UL PLTC Unarmored Tray Fieldbus/Profibus PA | Pairs (300V)
Construction
Voltage
300V

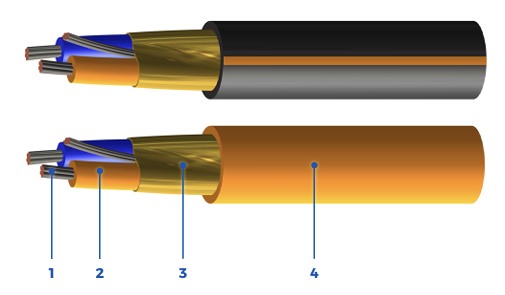

Product Construction
Insulation:
FR XLPE (VW-1 rated)rated: 60°C wet / 105°C dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armor:
Braided Armor for Shipboard ABS approval (optional)
Jacket:
FR PVC outer orange jacket (standard for Fieldbus)rated: 90°C to -40°C
FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
Black with integral orange stripe (optional)
Blue for Intrinsically Safe applications
Thermoset CPE (optional)
Thermoplastic CPE (optional)
Thermoplastic LSZH (optional)
Available in:
Custom insulation / jacket colors
COLOUR CODING
Blue and Orange conductors (standard)
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER) (optional)
- Foundation Fieldbus Spec. FF-844, Type H1
- UL 13, Power Limited Tray Cable (PLTC)
- UL 2250, Instrumentation Tray Cable (ITC)
- UL 44, Thermoset Insulated Wires and Cables)
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (TW 75 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
Properties
|
 |
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2F021U160105700 | 1 | 16 | 0.357 / 9.07 | 66 / 98 | 41 / 19 | 6.4 / 163 |
| 2F022U160205700 | 2 | 16 | 0.557 / 14.16 | 149 / 222 | 82 / 37 | 10 / 255 |
| 2F022U160405700 | 4 | 16 | 0.672 / 17.08 | 230 / 342 | 165 / 75 | 12.1 / 307 |
| 2F022U160605700 | 6 | 16 | 0.807 / 20.49 | 330 / 491 | 247 / 112 | 14.5 / 369 |
| 2F022U160805700 | 8 | 16 | 0.877 / 22.27 | 410 / 610 | 330 / 150 | 15.8 / 401 |
| 2F022U161205700 | 12 | 16 | 1.092 / 27.73 | 607 / 903 | 494 / 224 | 19.7 / 499 |
| 2F022U161605700 | 16 | 16 | 1.22 / 30.99 | 762 / 1134 | 659 / 299 | 22 / 558 |
| 2F022U162405700 | 24 | 16 | 1.541 / 39.14 | 1139 / 1695 | 989 / 449 | 27.7 / 705 |
| 2F021U180105700 | 1 | 18 | 0.313 / 7.95 | 49 / 73 | 26 / 12 | 5.6 / 143 |
| 2F022U180205700 | 2 | 18 | 0.485 / 12.31 | 111 / 165 | 52 / 24 | 8.7 / 222 |
| 2F022U180405700 | 4 | 18 | 0.564 / 14.33 | 157 / 233 | 104 / 47 | 10.2 / 258 |
| 2F022U180605700 | 6 | 18 | 0.696 / 17.68 | 236 / 351 | 156 / 71 | 12.5 / 318 |
| 2F022U180805700 | 8 | 18 | 0.754 / 19.16 | 291 / 432 | 208 / 94 | 13.6 / 345 |
| 2F022U181205700 | 12 | 18 | 0.937 / 23.81 | 425 / 633 | 312 / 142 | 16.9 / 429 |
| 2F022U181805700 | 16 | 18 | 1.102 / 27.99 | 593 / 882 | 468 / 212 | 19.8 / 504 |
| 2F022U182405700 | 24 | 18 | 1.315 / 33.41 | 793 / 1180 | 624 / 283 | 23.7 / 601 |
Markets / Applications
- Energy
- Industrial
- Industrial Construction/Automation
- Petrochem/Pulp & Paper
Voltage
300V
Product Construction
Insulation:
FR XLPE (VW-1 rated)rated: 60°C wet / 105°C dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armor:
Braided Armor for Shipboard ABS approval (optional)
Jacket:
FR PVC outer orange jacket (standard for Fieldbus)rated: 90°C to -40°C
FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
Black with integral orange stripe (optional)
Blue for Intrinsically Safe applications
Thermoset CPE (optional)
Thermoplastic CPE (optional)
Thermoplastic LSZH (optional)
Available in:
Custom insulation / jacket colors
COLOUR CODING
Blue and Orange conductors (standard)
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER) (optional)
- Foundation Fieldbus Spec. FF-844, Type H1
- UL 13, Power Limited Tray Cable (PLTC)
- UL 2250, Instrumentation Tray Cable (ITC)
- UL 44, Thermoset Insulated Wires and Cables)
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (TW 75 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
|
|
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2F021U160105700 | 1 | 16 | 0.357 / 9.07 | 66 / 98 | 41 / 19 | 6.4 / 163 |
| 2F022U160205700 | 2 | 16 | 0.557 / 14.16 | 149 / 222 | 82 / 37 | 10 / 255 |
| 2F022U160405700 | 4 | 16 | 0.672 / 17.08 | 230 / 342 | 165 / 75 | 12.1 / 307 |
| 2F022U160605700 | 6 | 16 | 0.807 / 20.49 | 330 / 491 | 247 / 112 | 14.5 / 369 |
| 2F022U160805700 | 8 | 16 | 0.877 / 22.27 | 410 / 610 | 330 / 150 | 15.8 / 401 |
| 2F022U161205700 | 12 | 16 | 1.092 / 27.73 | 607 / 903 | 494 / 224 | 19.7 / 499 |
| 2F022U161605700 | 16 | 16 | 1.22 / 30.99 | 762 / 1134 | 659 / 299 | 22 / 558 |
| 2F022U162405700 | 24 | 16 | 1.541 / 39.14 | 1139 / 1695 | 989 / 449 | 27.7 / 705 |
| 2F021U180105700 | 1 | 18 | 0.313 / 7.95 | 49 / 73 | 26 / 12 | 5.6 / 143 |
| 2F022U180205700 | 2 | 18 | 0.485 / 12.31 | 111 / 165 | 52 / 24 | 8.7 / 222 |
| 2F022U180405700 | 4 | 18 | 0.564 / 14.33 | 157 / 233 | 104 / 47 | 10.2 / 258 |
| 2F022U180605700 | 6 | 18 | 0.696 / 17.68 | 236 / 351 | 156 / 71 | 12.5 / 318 |
| 2F022U180805700 | 8 | 18 | 0.754 / 19.16 | 291 / 432 | 208 / 94 | 13.6 / 345 |
| 2F022U181205700 | 12 | 18 | 0.937 / 23.81 | 425 / 633 | 312 / 142 | 16.9 / 429 |
| 2F022U181805700 | 16 | 18 | 1.102 / 27.99 | 593 / 882 | 468 / 212 | 19.8 / 504 |
| 2F022U182405700 | 24 | 18 | 1.315 / 33.41 | 793 / 1180 | 624 / 283 | 23.7 / 601 |
- Energy
- Industrial
- Industrial Construction/Automation
- Petrochem/Pulp & Paper
Related products
-
CSA Safe-T-Ground | Green/Safe-T-Stripes | Single Conductor (1000V)
Read moreCSA Safe-T-Ground | Green/Safe-T-Stripes | Single Conductor (1000V)
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
-
UL Unarmored Tray, TC-ER, VFD, XLPE/PVC | Multi-Conductor (600V)
Read moreUL Unarmored Tray, TC-ER, VFD, XLPE/PVC | Multi-Conductor (600V)
Shawflex VFD Cables are a preferred power cable for AC Drives as the Tri-sectional symmetrical bare grounds in contact with the copper tape shield greatly reduce harmonic interference ensuring smooth and safe motor operation. Permitted for Exposed Run (ER) use in accordance with NEC, reducing installation cost and time.
-

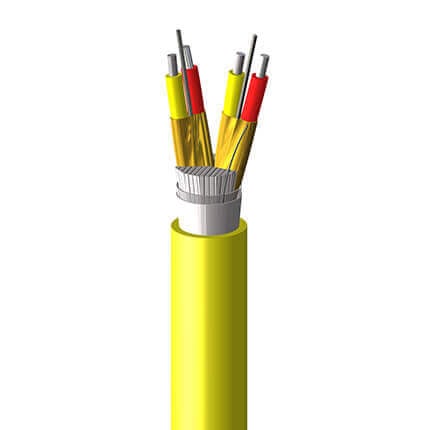

UL PLTC/ITC Unarmored Tray Thermocouple Extension | Pairs (300V)
