UL PLTC Unarmored Instrumentation | Pairs & Triads (300V)
Tray Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to carry analogue or digital signals. Tray Instrumentation cables can be installed in raceways, direct burial applications and in outdoor exposed industrial applications.
Construction
VOLTAGE
300 V

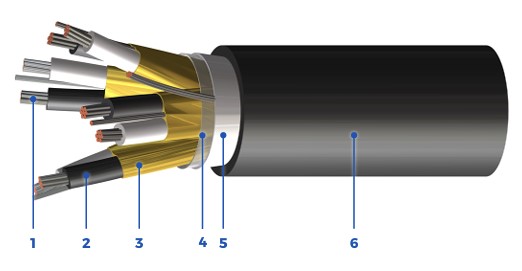

PRODUCT CONSTRUCTION
Insulation:
FR PVC rated: 60°C wet / 105°C dry
XLPE rated (optional)
VW-1 rated (optional)
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Jacket:
FR PVC outer black jacket (standard) rated: 90°C to -40°C
Thermoset CPE (optional)
Thermoplastic CPE (optional)
Thermoplastic LSZH (optional)
Available in:
Custom insulation / jacket colors
Composite constructions
TC-ER with CPE jackets
Certifications
CERTIFICATIONS/COMPLIANCES
- UL 13, Power Limited Tray Cable (PLTC)
- UL 2250, Instrumentation Tray Cable (ITC)
- UL 83, Thermoplastic Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated (optional)
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
COLOUR CODING
- Pairs – Black, & white, with black printing on white (standard)
- Triads – Black, white & red, with black printing on white (standard)
Properties
|
 |
PAIRS
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight(lbs/1000ft)/ (kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 23021U160100700 | 1 | 16 | 0.267 / 6.78 | 43 / 64 | 41 / 19 | 4.8 / 122 |
| 23022U160200700 | 2 | 16 | 0.426 / 10.81 | 104 / 155 | 82 / 37 | 7.7 / 195 |
| 23022U160400700 | 4 | 16 | 0.492 / 12.5 | 152 / 226 | 165 / 75 | 8.9 / 225 |
| 23022U160600700 | 6 | 16 | 0.586 / 14.88 | 216 / 321 | 247 / 112 | 10.5 / 268 |
| 23022U160800700 | 8 | 16 | 0.654 / 16.62 | 283 / 421 | 330 / 150 | 11.8 / 299 |
| 23022U161200700 | 12 | 16 | 0.791 / 20.09 | 401 / 597 | 494 / 224 | 14.2 / 362 |
| 23022U161600700 | 16 | 16 | 0.88 / 22.36 | 508 / 755 | 659 / 299 | 15.8 / 402 |
| 23022U162400700 | 24 | 16 | 1.111 / 28.21 | 761 / 1132 | 989 / 449 | 20 / 508 |
| 23022U163600700 | 36 | 16 | 1.276 / 32.4 | 1076 / 1601 | 1483 / 673 | 23 / 583 |
| 23021U180100700 | 1 | 18 | 0.243 / 6.17 | 34 / 51 | 26 / 12 | 4.4 / 111 |
| 23022U180200700 | 2 | 18 | 0.366 / 9.3 | 74 / 110 | 52 / 24 | 6.6 / 167 |
| 23022U180400700 | 4 | 18 | 0.444 / 11.27 | 118 / 175 | 104 / 47 | 8 / 203 |
| 23022U180600700 | 6 | 18 | 0.525 / 13.35 | 166 / 246 | 156 / 71 | 9.5 / 240 |
| 23022U180800700 | 8 | 18 | 0.568 / 14.42 | 204 / 303 | 208 / 94 | 10.2 / 260 |
| 23022U181200700 | 12 | 18 | 0.707 / 17.95 | 299 / 446 | 312 / 142 | 12.7 / 323 |
| 23022U181800700 | 18 | 18 | 0.827 / 21 | 420 / 625 | 468 / 212 | 14.9 / 378 |
| 23022U182400700 | 24 | 18 | 0.987 / 25.08 | 562 / 836 | 624 / 283 | 17.8 / 451 |
| 23022U183600700 | 36 | 18 | 1.131 / 28.73 | 791 / 1178 | 936 / 425 | 20.4 / 517 |
| 23021U200100700 | 1 | 20 | 0.211 / 5.36 | 26 / 38 | 16 / 7 | 3.8 / 96 |
| 23022U200200700 | 2 | 20 | 0.313 / 7.96 | 58 / 86 | 32 / 15 | 5.6 / 143 |
| 23022U200400700 | 4 | 20 | 0.36 / 9.14 | 82 / 121 | 64 / 29 | 6.5 / 164 |
| 23022U200600700 | 6 | 20 | 0.445 / 11.3 | 122 / 182 | 96 / 44 | 8 / 203 |
| 23022U200800700 | 8 | 20 | 0.479 / 12.17 | 149 / 222 | 128 / 58 | 8.6 / 219 |
| 23022U201200700 | 12 | 20 | 0.574 / 14.58 | 209 / 311 | 192 / 87 | 10.3 / 263 |
| 23022U201600700 | 16 | 20 | 0.656 / 16.68 | 274 / 407 | 256 / 116 | 11.8 / 300 |
| 23022U202400700 | 24 | 20 | 0.803 / 20.4 | 392 / 583 | 384 / 174 | 14.5 / 367 |
| 23022U203600700 | 36 | 20 | 0.938 / 23.83 | 567 / 843 | 576 / 261 | 16.9 / 429 |
TRIADS
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight(lbs/1000ft)/ (kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 23031U160100700 | 1 | 16 | 0.28 / 7.12 | 54 / 80 | 62 / 28 | 5 / 128 |
| 23032U160200700 | 2 | 16 | 0.478 / 12.14 | 134 / 199 | 124 / 56 | 8.6 / 219 |
| 23032U160400700 | 4 | 16 | 0.555 / 14.1 | 203 / 302 | 247 / 112 | 10 / 254 |
| 23032U160600700 | 6 | 16 | 0.684 / 17.38 | 304 / 453 | 371 / 168 | 12.3 / 313 |
| 23032U160800700 | 8 | 16 | 0.741 / 18.82 | 382 / 568 | 494 / 224 | 13.3 / 339 |
| 23032U161200700 | 12 | 16 | 0.919 / 23.36 | 563 / 839 | 742 / 336 | 16.6 / 420 |
| 23032U161600700 | 16 | 16 | 1.023 / 25.99 | 718 / 1068 | 989 / 449 | 18.4 / 468 |
| 23032U162400700 | 24 | 16 | 1.268 / 32.2 | 1045 / 1555 | 1483 / 673 | 22.8 / 580 |
| 23031U180100700 | 1 | 18 | 0.255 / 6.47 | 41 / 61 | 39 / 18 | 4.6 / 116 |
| 23032U180200700 | 2 | 18 | 0.433 / 11 | 105 / 156 | 78 / 35 | 7.8 / 198 |
| 23032U180400700 | 4 | 18 | 0.5 / 12.71 | 153 / 227 | 156 / 71 | 9 / 229 |
| 23032U180600700 | 6 | 18 | 0.596 / 15.13 | 217 / 322 | 234 / 106 | 10.7 / 272 |
| 23032U180800700 | 8 | 18 | 0.665 / 16.9 | 283 / 422 | 312 / 142 | 12 / 304 |
| 23032U181200700 | 12 | 18 | 0.804 / 20.42 | 402 / 598 | 468 / 212 | 14.5 / 367 |
| 23032U181800700 | 18 | 18 | 0.964 / 24.48 | 584 / 869 | 702 / 318 | 17.3 / 441 |
| 23032U182400700 | 24 | 18 | 1.128 / 28.65 | 762 / 1133 | 936 / 425 | 20.3 / 516 |
| 23031U200100700 | 1 | 20 | 0.22 / 5.6 | 31 / 46 | 24 / 11 | 4 / 101 |
| 23032U200200700 | 2 | 20 | 0.35 / 8.88 | 71 / 106 | 48 / 22 | 6.3 / 160 |
| 23032U200400700 | 4 | 20 | 0.424 / 10.76 | 112 / 166 | 96 / 44 | 7.6 / 194 |
| 23032U200600700 | 6 | 20 | 0.5 / 12.69 | 156 / 233 | 144 / 65 | 9 / 229 |
| 23032U200800700 | 8 | 20 | 0.539 / 13.7 | 193 / 288 | 192 / 87 | 9.7 / 247 |
| 23032U201200700 | 12 | 20 | 0.67 / 17.01 | 284 / 423 | 288 / 131 | 12.1 / 306 |
| 23032U201600700 | 16 | 20 | 0.742 / 18.85 | 359 / 535 | 384 / 174 | 13.4 / 339 |
| 23032U202400700 | 24 | 20 | 0.932 / 23.68 | 534 / 795 | 576 / 261 | 16.8 / 426 |
