UL Unarmored Tray, TC-ER, Power, XLPE/PVC | Multi-Conductor (600V)

Shawflex UL Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, between cable trays and utilization equipment, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations. TC-ER cables permitted for Exposed Run (ER) use in accordance with NEC, reducing installation cost and time.
Certification Logo
Contact Us

Construction

Voltage

600 V

Product Construction



Conductor:
8 AWG thru 750Kcmil fully annealed standard bare copper per Class B ASTM B8 stranding

Insulation:
Cross-linked Polyethylene (Type XHHW-2). 90°C DRY/WET

Jacket:
Polyvinyl Chloride (PVC), Sunlight Resistant in all colors

Certifications

Certification/Compliances



  • UL 1277, Tray Cable (TC-ER)
  • UL 44 Type XHHW-2
  • IEEE 1202/FT4, UL 1685
  • ICEA T-29-520**
  • SUN RES in all colors
  • DIR BUR
  • -40°C Cold Bend
  • OIL RES I**

Color Coding



  • Color-coded per ICEA Method 4, Individual conductors colored black with conductor number ink printed on surface

**6 AWG and smaller

Properties

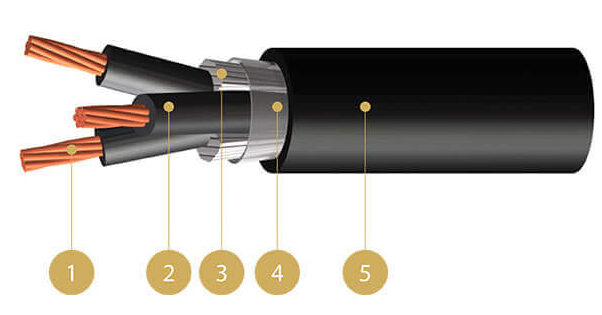

  1. Stranded Bare (ASTM B8) Annealed Copper Conductors
  2. FR XLPE (XHHW-2 Rated) Insulated Conductors
  3. Polypropylene Fillers
  4. Polyester Separator Tape
  5. FR PVC Outer Protective Jacket
PART NUMBER CONDUCTOR COUNT CONDUCTOR SIZE BARE GROUND CONDUCTOR SIZE NOMINAL OVERALL DIAMETER OF CABLE CABLE WEIGHT AMPACITY 30°C AMBIENT MAX. PULLING TENSION (PULLING EYE) MIN. BEND RADIUS (PULL)
AWG AWG IN LBS/1000FT AMPS LB IN

2V010U080300204

3C+G

8

10

0.66

321.19

55

396

5.94

2V010U060300204

3C+G

6

8

0.75

449.86

75

630

6.72

2C010U040300004

3C + G

4

8

0.83

608.43

95

1002

7.45

2C010U030300004

3C + G

3

6

0.93

793.73

115

1263

8.33

2C010U020300004

3C + G

2

6

0.99

932.79

130

1593

8.93

2C010U010340004

3C + G

1

6

1.12

1169.00

145

2009

10.07

2C010U1/0340004

3C + G

1/0

6

1.21

1400.27

170

2534

10.85

2C010U2/0340004

3C + G

2/0

6

1.30

1691.34

195

3194

11.68

2C010U3/0340004

3C + G

3/0

4

1.41

2103.45

225

4027

12.67

2C010U4/0340004

3C + G

4/0

4

1.53

2571.05

260

5078

13.76

2C010U250360004

3C + G

250

4

1.67

3011.43

290

6000

15.04

2C010U300360004

3C + G

300

3

1.85

3674.91

320

7200

16.61

2C010U350360004

3C + G

350

3

1.95

4174.99

350

8400

17.58

2C010U500360004

3C + G

500

2

2.23

5743.07

430

12000

20.06

2C010U750360004

3C + G

750

1

2.68

8458.42

535

18000

24.11
