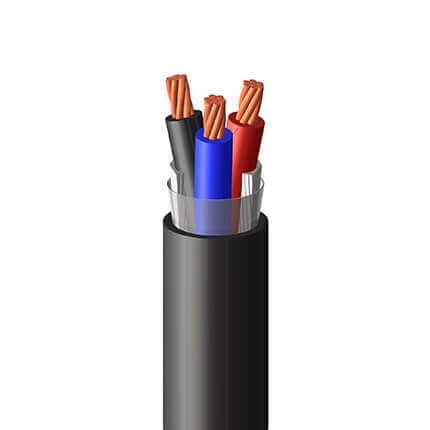

UL Unarmored Tray, TC-ER, Unshielded, Control, XLPE/PVC | Multi-Conductor (600V)

Shawflex UL Tray Unshielded Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, between cable trays and utilization equipment, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations. Permitted for Exposed Run (ER) use in accordance with NEC, reducing installation cost and time. Offering superior performance in harsh environment with all color sunlight resistance jacket, -40C cold bend, and oil resistance.
Certification Logo
Contact Us

Construction

Voltage

600 V

Product Construction



Conductor:
14 AWG through 10 AWG fully annealed standard bare copper per Class B ASTM B8 stranding

Insulation:
Cross-linked Polyethylene (Type XHHW-2). 90°C DRY/WET

Jacket:
Polyvinyl Chloride (PVC), Sunlight Resistant in all colors

Certifications

Certification/Compliances



  • UL 1277, Tray Cable (TC-ER)
  • UL 44 Type XHHW-2
  • IEEE 1202/FT4, UL 1685
  • ICEA T-29-520
  • UL 1581/UL 2556 VW-1
  • SUN RES in all colors
  • DIR BUR
  • -40°C Cold Bend
  • OIL RES I

Color Coding



  • Color-coded per ICEA Method 1, Table E-2)



*Optional color codes are available

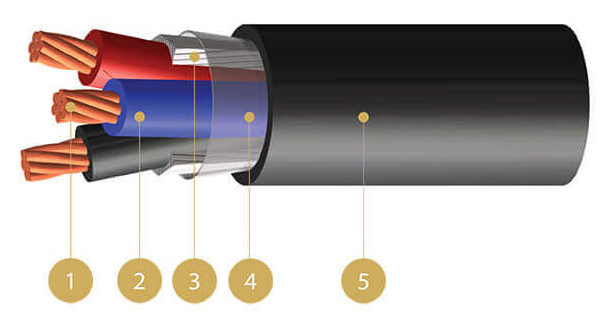

Properties



  1. Stranded Bare (ASTM B8) Annealed Copper Conductors (Tinned Available)
  2. FR XLPE (XHHW-2 Rated) Insulated Conductors
  3. Polypropylene Fillers
  4. Polyester Separator Tape
  5. FR PVC Outer Protective Jacket
PART NUMBER CONDUCTOR COUNT SIZE NOMINAL OVERALL DIAMETER OF CABLE CABLE WEIGHT AMPACITY 30 AMBIENT MAX. PULLING TENSION(PULLING EYE) MIN. BEND RADIUS(PULL)
AWG IN LBS/1000FT AMPS LB IN

2V010U140200201

2

14

0.37

74

25

66

3.35

2V010U140300201

3

14

0.39

92

25

99

3.53

2V010U140400201

4

14

0.43

115

20

132

3.84

2V010U140500201

5

14

0.47

135

20

164

4.19

2V010U140600201

6

14

0.51

159

20

197

4.55

2V010U140700201

7

14

0.51

174

17.5

230

4.55

2V010U140800201

8

14

0.57

215

17.5

263

5.17

2V010U141000201

10

14

0.67

266

12.5

329

6.01

2V010U141200201

12

14

0.69

303

12.5

395

6.19

2V010U141400201

14

14

0.72

346

12.5

460

6.50

2V010U141600201

16

14

0.76

385

12.5

526

6.85

2V010U142000201

20

14

0.84

474

12.5

658

7.57

2V010U143000201

30

14

1.03

713

11.25

986

9.26

2V010U144000201

40

14

1.15

915

10

1315

10.32

2V010U145000201

50

14

1.27

1123

8.75

1644

11.45

2V010U120200201

2

12

0.41

97

30

104

3.67

2V010U120300201

3

12

0.43

125

30

157

3.88

2V010U120400201

4

12

0.47

155

24

209

4.23

2V010U120500201

5

12

0.51

189

24

261

4.62

2V010U120600201

6

12

0.59

240

24

313

5.30

2V010U120700201

7

12

0.59

263

21

366

5.30

2V010U120800201

8

12

0.63

292

21

418

5.71

2V010U121000201

10

12

0.74

363

15

522

6.66

2V010U121200201

12

12

0.76

420

15

627

6.86

2V010U121400201

14

12

0.80

478

15

731

7.22

2V010U121600201

16

12

0.89

567

15

836

7.97

2V010U122000201

20

12

0.98

697

15

1045

8.79

2V010U123000201

30

12

1.14

992

13.5

1567

10.30

2V010U124000201

40

12

1.28

1284

12

2090

11.50

2V010U125000201

50

12

1.42

1582

10.5

2612

12.78

2V010U100200201

2

10

0.46

131

40

166

4.12

2V010U100300201

3

10

0.49

172

40

249

4.37

2V010U100400201

4

10

0.53

220

32

332

4.78

2V010U100500201

5

10

0.61

280

32

415

5.50

2V010U100600201

6

10

0.66

332

32

498

5.98

2V010U100700201

7

10

0.66

368

28

581

5.98

2V010U100800201

8

10

0.72

412

28

664

6.45

2V010U101000201

10

10

0.84

514

20

830

7.56

2V010U101200201

12

10

0.91

630

20

996

8.16

2V010U101400201

14

10

0.95

721

20

1163

8.57

2V010U101600201

16

10

1.00

804

20

1329

9.03

2V010U102000201

20

10

1.11

996

20

1661

9.98

2V010U103000201

30

10

1.30

1430

18

2491

11.74

2V010U104000201

40

10

1.46

1858

16

3322

13.15

2V010U105000201

50

10

1.63

2297

14

4152

14.64
