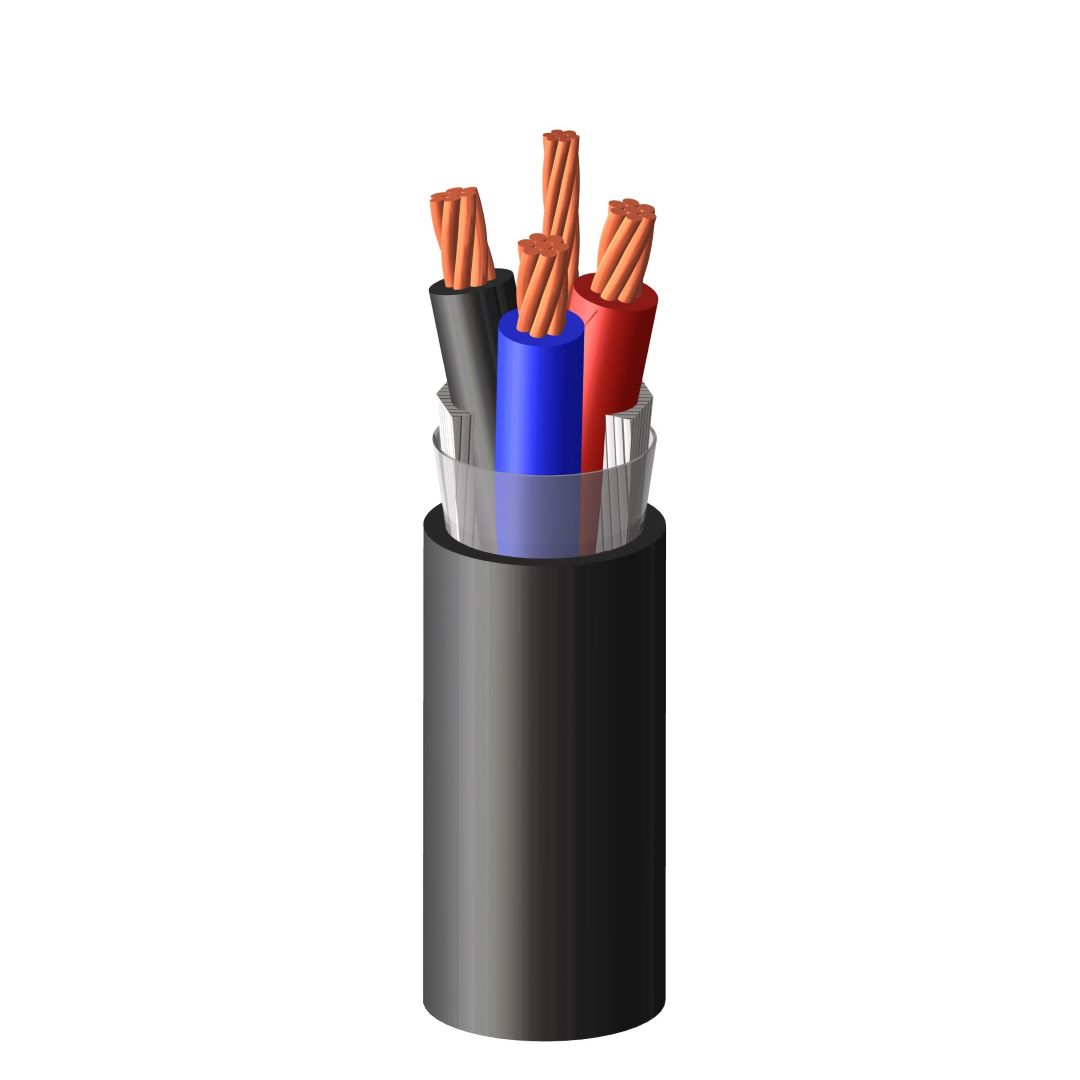

CSA Unarmoured Tray Control | Multi-Conductor (600V)
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
600V
Optional: 1000 / 2000V

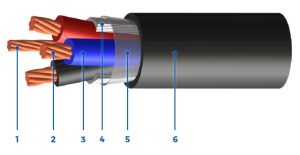

Product Construction
-
- Insulation:
- XLPE (RW90 rated)rated: 90°C wet / 105°C dry
- Insulation:
-
- Shielding (foil-free edge):
- OS (optional)
- Shielding (foil-free edge):
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Jacket:
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded
Certifications
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
Properties
|
 |
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius(Pull) (in/mm) |
| 4C010M140200000 | 2 | 14 | 14 | 0.372 / 9.45 | 82 / 122 | 25 | 66 / 30 | 3.3 / 85 |
| 4C010M140300000 | 3 | 14 | 14 | 0.403 / 10.23 | 100 / 149 | 25 | 99 / 45 | 3.6 / 92 |
| 4C010M140400000 | 4 | 14 | 14 | 0.436 / 11.07 | 122 / 182 | 20 | 132 / 60 | 3.9 / 100 |
| 4C010M140500000 | 5 | 14 | 14 | 0.465 / 11.81 | 140 / 208 | 20 | 165 / 75 | 4.2 / 106 |
| 4C010M140600000 | 6 | 14 | 14 | 0.505 / 12.83 | 163 / 243 | 20 | 197 / 90 | 4.5 / 115 |
| 4C010M140700000 | 7 | 14 | 14 | 0.575 / 14.6 | 202 / 300 | 17.5 | 230 / 104 | 5.2 / 131 |
| 4C010M140800000 | 8 | 14 | 14 | 0.616 / 15.65 | 227 / 338 | 17.5 | 263 / 119 | 5.5 / 141 |
| 4C010M141000000 | 10 | 14 | 14 | 0.668 / 16.97 | 265 / 394 | 17.5 | 329 / 149 | 6 / 153 |
| 4C010M141200000 | 12 | 14 | 14 | 0.688 / 17.48 | 300 / 446 | 17.5 | 395 / 179 | 6.2 / 157 |
| 4C010M141400000 | 14 | 14 | 14 | 0.722 / 18.35 | 341 / 508 | 17.5 | 461 / 209 | 6.5 / 165 |
| 4C010M141500000 | 15 | 14 | 14 | 0.741 / 18.83 | 361 / 537 | 17.5 | 494 / 224 | 6.7 / 169 |
| 4C010M142000000 | 20 | 14 | 14 | 0.841 / 21.36 | 462 / 688 | 17.5 | 658 / 298 | 7.6 / 192 |
| 4C010M142500000 | 25 | 14 | 14 | 0.974 / 24.74 | 599 / 891 | 15 | 823 / 373 | 8.8 / 223 |
| 4C010M143000000 | 30 | 14 | 14 | 1.028 / 26.12 | 690 / 1027 | 15 | 987 / 448 | 9.3 / 235 |
| 4C010M144000000 | 40 | 14 | 14 | 1.147 / 29.13 | 889 / 1324 | 15 | 1316 / 597 | 10.3 / 262 |
| 4C010M144000000 | 40 | 14 | 14 | 1.147 / 29.13 | 889 / 1324 | 15 | 1316 / 597 | 10.3 / 262 |
| 4C010M145000000 | 50 | 14 | 14 | 1.272 / 32.31 | 1082 / 1609 | 12.5 | 1645 / 746 | 11.4 / 291 |
| 4R010M120200000 | 2 | 12 | 14 | 0.408 / 10.36 | 104 / 154 | 20 | 104 / 47 | 3.7 / 93 |
| 4R010M120300000 | 3 | 12 | 14 | 0.443 / 11.25 | 132 / 196 | 20 | 157 / 71 | 4 / 101 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2. Values are corrected according to Table-5C for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius(Pull) (in/mm) |
| 4R010M120400000 | 4 | 12 | 14 | 0.48 / 12.2 | 160 / 239 | 16 | 209 / 95 | 4.3 / 110 |
| 4R010M120500000 | 5 | 12 | 14 | 0.514 / 13.05 | 192 / 285 | 16 | 261 / 118 | 4.6 / 117 |
| 4R010M120600000 | 6 | 12 | 14 | 0.589 / 14.96 | 240 / 358 | 16 | 313 / 142 | 5.3 / 135 |
| 4R010M120700000 | 7 | 12 | 14 | 0.634 / 16.11 | 275 / 410 | 14 | 365 / 166 | 5.7 / 145 |
| 4R010M120800000 | 8 | 12 | 14 | 0.681 / 17.3 | 304 / 453 | 14 | 418 / 189 | 6.1 / 156 |
| 4R010M121000000 | 10 | 12 | 14 | 0.74 / 18.8 | 359 / 535 | 14 | 522 / 237 | 6.7 / 169 |
| 4R010M121200000 | 12 | 12 | 14 | 0.763 / 19.37 | 413 / 615 | 14 | 626 / 284 | 6.9 / 174 |
| 4R010M121400000 | 14 | 12 | 14 | 0.802 / 20.37 | 469 / 698 | 14 | 731 / 331 | 7.2 / 183 |
| 4R010M121500000 | 15 | 12 | 14 | 0.823 / 20.91 | 498 / 741 | 14 | 783 / 355 | 7.4 / 188 |
| 4R010M122000000 | 20 | 12 | 14 | 0.976 / 24.8 | 677 / 1008 | 14 | 1044 / 474 | 8.8 / 223 |
| 4R010M122500000 | 25 | 12 | 14 | 1.082 / 27.48 | 830 / 1235 | 12 | 1305 / 592 | 9.7 / 247 |
| 4R010M123000000 | 30 | 12 | 14 | 1.144 / 29.06 | 962 / 1432 | 12 | 1566 / 710 | 10.3 / 261 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 / 32.47 | 1251 / 1861 | 12 | 2088 / 947 | 11.5 / 292 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 / 32.47 | 1251 / 1861 | 12 | 2088 / 947 | 11.5 / 292 |
| 4R010M125000000 | 50 | 12 | 14 | 1.42 / 36.08 | 1530 / 2277 | 10 | 2610 / 1184 | 12.8 / 325 |
| 4R010M100200000 | 2 | 10 | 12 | 0.458 / 11.63 | 144 / 215 | 30 | 166 / 75 | 4.1 / 105 |
| 4R010M100300000 | 3 | 10 | 12 | 0.498 / 12.66 | 184 / 275 | 30 | 249 / 113 | 4.5 / 114 |
| 4R010M100400000 | 4 | 10 | 12 | 0.572 / 14.54 | 245 / 365 | 24 | 332 / 151 | 5.2 / 131 |
| 4R010M100500000 | 5 | 10 | 12 | 0.611 / 15.52 | 288 / 429 | 24 | 415 / 188 | 5.5 / 140 |
| 4R010M100600000 | 6 | 10 | 12 | 0.664 / 16.87 | 338 / 503 | 24 | 498 / 226 | 6 / 152 |
| 4R010M100700000 | 7 | 10 | 12 | 0.717 / 18.21 | 388 / 578 | 21 | 581 / 264 | 6.5 / 164 |
| 4R010M100800000 | 8 | 10 | 12 | 0.771 / 19.59 | 433 / 645 | 21 | 664 / 301 | 6.9 / 176 |
| 4R010M101000000 | 10 | 10 | 12 | 0.84 / 21.34 | 514 / 764 | 21 | 830 / 376 | 7.6 / 192 |
| 4R010M101200000 | 12 | 10 | 12 | 0.906 / 23.02 | 624 / 928 | 21 | 996 / 452 | 8.2 / 207 |
| 4R010M101400000 | 14 | 10 | 12 | 0.952 / 24.18 | 712 / 1060 | 21 | 1162 / 527 | 8.6 / 218 |
| 4R010M101400000 | 14 | 10 | 12 | 0.952 / 24.18 | 712 / 1060 | 21 | 1162 / 527 | 8.6 / 218 |
| 4R010M101500000 | 15 | 10 | 12 | 0.977 / 24.81 | 755 / 1124 | 21 | 1245 / 565 | 8.8 / 223 |
| 4R010M102500000 | 25 | 10 | 12 | 1.232 / 31.29 | 1197 / 1781 | 18 | 2075 / 941 | 11.1 / 282 |
| 4R010M103000000 | 30 | 10 | 12 | 1.304 / 33.12 | 1398 / 2080 | 18 | 2490 / 1129 | 11.7 / 298 |
| 4R010M104000000 | 40 | 10 | 12 | 1.461 / 37.1 | 1824 / 2714 | 18 | 3320 / 1506 | 13.1 / 334 |
| 4R010M104000000 | 40 | 10 | 12 | 1.461 / 37.1 | 1824 / 2714 | 18 | 3320 / 1506 | 13.1 / 334 |
| 4R010M105000000 | 50 | 10 | 12 | 1.626 / 41.31 | 2238 / 3330 | 15 | 4150 / 1882 | 14.6 / 372 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2. Values are corrected according to Table-5C for number of Conductors.
Markets / Applications
- Energy
- Industrial
- Industrial Construction/Automation
- Petrochem/Pulp & Paper
- Utility
