CSA LSZH ACIC Armoured Control | Multi-Conductor (600V)
LSZH AIA Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
600V
Optional: 300 / 1000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Shielding (foil-free edge):
- OS (optional)
- Jacket:
- LSZH inner / outer black jacket rated: 90°C
- Armour:
- Aluminum Interlocked Armour (AIA) (standard)
- Steel Interlocked Armour (SIA) (optional)
- Serve Wire Armour (SWA) (optional)
- Available In:
- Composite constructions
- Custom insulation / jacket colours
Certifications
Certifications/Compliances
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C-50C Black # coded

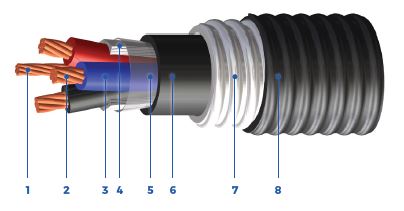

Properties
- Grounding / Bonding Conductor
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- LSZH Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M140200814 | 2 | 14 | 14 | 0.372 / 9.45 | 0.612 / 15.54 | 0.724 / 18.39 | 235 / 349 | 25 | 66 / 30 | 13 / 331 |
| 69210M140300814 | 3 | 14 | 14 | 0.403 / 10.23 | 0.643 / 16.32 | 0.755 / 19.17 | 263 / 391 | 25 | 99 / 45 | 13.6 / 345 |
| 69210M140400814 | 4 | 14 | 14 | 0.436 / 11.07 | 0.676 / 17.17 | 0.788 / 20.01 | 292 / 435 | 20 | 132 / 60 | 14.2 / 360 |
| 69210M140500814 | 5 | 14 | 14 | 0.465 / 11.81 | 0.705 / 17.91 | 0.817 / 20.76 | 321 / 477 | 20 | 165 / 75 | 14.7 / 374 |
| 69210M140600814 | 6 | 14 | 14 | 0.505 / 12.83 | 0.745 / 18.92 | 0.857 / 21.77 | 354 / 527 | 20 | 197 / 90 | 15.4 / 392 |
| 69210M140700814 | 7 | 14 | 14 | 0.575 / 14.6 | 0.815 / 20.69 | 0.927 / 23.54 | 413 / 615 | 17.5 | 230 / 104 | 16.7 / 424 |
| 69210M140800814 | 8 | 14 | 14 | 0.616 / 15.65 | 0.856 / 21.75 | 0.968 / 24.59 | 449 / 669 | 17.5 | 263 / 119 | 17.4 / 443 |
| 69210M141000814 | 10 | 14 | 14 | 0.668 / 16.97 | 0.908 / 23.06 | 1.02 / 25.91 | 501 / 746 | 17.5 | 329 / 149 | 18.4 / 466 |
| 69210M141200814 | 12 | 14 | 14 | 0.688 / 17.48 | 0.928 / 23.58 | 1.04 / 26.42 | 540 / 804 | 17.5 | 395 / 179 | 18.7 / 476 |
| 69210M141500814 | 15 | 14 | 14 | 0.741 / 18.83 | 0.981 / 24.92 | 1.093 / 27.77 | 615 / 915 | 17.5 | 494 / 224 | 19.7 / 500 |
| 69210M142000814 | 20 | 14 | 14 | 0.841 / 21.36 | 1.081 / 27.45 | 1.193 / 30.3 | 786 / 1170 | 17.5 | 658 / 298 | 21.5 / 545 |
| 69210M142500814 | 25 | 14 | 14 | 0.974 / 24.74 | 1.214 / 30.84 | 1.326 / 33.68 | 970 / 1443 | 15 | 823 / 373 | 23.9 / 606 |
| 69210M143000814 | 30 | 14 | 14 | 1.028 / 26.12 | 1.269 / 32.22 | 1.381 / 35.07 | 1077 / 1603 | 15 | 987 / 448 | 24.9 / 631 |
| 69210M144000814 | 40 | 14 | 14 | 1.147 / 29.13 | 1.387 / 35.22 | 1.499 / 38.07 | 1307 / 1945 | 15 | 1316 / 597 | 27 / 685 |
| 69210M145000814 | 50 | 14 | 14 | 1.272 / 32.31 | 1.512 / 38.4 | 1.624 / 41.24 | 1535 / 2284 | 12.5 | 1645 / 746 | 29.2 / 742 |
| 69210M120200814 | 2 | 12 | 14 | 0.408 / 10.36 | 0.648 / 16.46 | 0.76 / 19.3 | 265 / 394 | 30 | 104 / 47 | 13.7 / 347 |
| 69210M120300814 | 3 | 12 | 14 | 0.443 / 11.25 | 0.683 / 17.34 | 0.795 / 20.18 | 303 / 450 | 30 | 157 / 71 | 14.3 / 363 |
| 69210M120400814 | 4 | 12 | 14 | 0.48 / 12.2 | 0.721 / 18.31 | 0.833 / 21.15 | 342 / 508 | 24 | 209 / 95 | 15 / 381 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2. Values are corrected according to Table-5C for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M120500814 | 5 | 12 | 14 | 0.514 / 13.05 | 0.754 / 19.14 | 0.866 / 21.98 | 380 / 566 | 24 | 261 / 118 | 15.6 / 396 |
| 69210M120600814 | 6 | 12 | 14 | 0.589 / 14.96 | 0.829 / 21.06 | 0.941 / 23.9 | 451 / 671 | 24 | 313 / 142 | 16.9 / 430 |
| 69210M120700814 | 7 | 12 | 14 | 0.634 / 16.11 | 0.874 / 22.21 | 0.986 / 25.06 | 498 / 741 | 21 | 365 / 166 | 17.8 / 451 |
| 69210M120800814 | 8 | 12 | 14 | 0.681 / 17.3 | 0.921 / 23.4 | 1.033 / 26.24 | 545 / 811 | 21 | 418 / 189 | 18.6 / 472 |
| 69210M121000814 | 10 | 12 | 14 | 0.74 / 18.8 | 0.98 / 24.89 | 1.092 / 27.74 | 615 / 915 | 21 | 522 / 237 | 19.7 / 499 |
| 69210M121200814 | 12 | 12 | 14 | 0.763 / 19.37 | 0.982 / 24.96 | 1.095 / 27.8 | 713 / 1060 | 21 | 626 / 284 | 19.7 / 500 |
| 69210M121500814 | 15 | 12 | 14 | 0.823 / 20.91 | 1.063 / 27 | 1.175 / 29.85 | 818 / 1218 | 21 | 783 / 355 | 21.2 / 537 |
| 69210M122000814 | 20 | 12 | 14 | 0.976 / 24.8 | 1.216 / 30.9 | 1.328 / 33.74 | 1052 / 1565 | 21 | 1044 / 474 | 23.9 / 607 |
| 69210M122500814 | 25 | 12 | 14 | 1.082 / 27.48 | 1.322 / 33.58 | 1.434 / 36.42 | 1234 / 1836 | 18 | 1305 / 592 | 25.8 / 656 |
| 69210M123000814 | 30 | 12 | 14 | 1.144 / 29.06 | 1.384 / 35.15 | 1.496 / 37.99 | 1384 / 2060 | 18 | 1566 / 710 | 26.9 / 684 |
| 69210M124000814 | 40 | 12 | 14 | 1.278 / 32.47 | 1.518 / 38.57 | 1.63 / 41.41 | 1708 / 2542 | 18 | 2088 / 947 | 29.3 / 745 |
| 69210M125000814 | 50 | 12 | 14 | 1.42 / 36.08 | 1.66 / 42.17 | 1.792 / 45.53 | 2065 / 3073 | 15 | 2610 / 1184 | 32.3 / 819 |
| 69210M180200814 | 2 | 10 | 12 | 0.458 / 11.63 | 0.698 / 17.73 | 0.81 / 20.57 | 317 / 471 | 40 | 166 / 75 | 14.6 / 370 |
| 69210M180300814 | 3 | 10 | 12 | 0.498 / 12.66 | 0.739 / 18.76 | 0.851 / 21.61 | 370 / 550 | 40 | 249 / 113 | 15.3 / 389 |
| 69210M180400814 | 4 | 10 | 12 | 0.572 / 14.54 | 0.813 / 20.64 | 0.925 / 23.49 | 450 / 670 | 32 | 332 / 151 | 16.6 / 423 |
| 69210M180500814 | 5 | 10 | 12 | 0.611 / 15.52 | 0.851 / 21.62 | 0.963 / 24.46 | 506 / 753 | 32 | 415 / 188 | 17.3 / 440 |
| 69210M180600814 | 6 | 10 | 12 | 0.664 / 16.87 | 0.904 / 22.96 | 1.016 / 25.81 | 568 / 845 | 32 | 498 / 226 | 18.3 / 465 |
| 69210M180700814 | 7 | 10 | 12 | 0.717 / 18.21 | 0.957 / 24.31 | 1.069 / 27.15 | 631 / 940 | 28 | 581 / 264 | 19.2 / 489 |
| 69210M180800814 | 8 | 10 | 12 | 0.771 / 19.59 | 0.991 / 25.18 | 1.103 / 28.03 | 737 / 1096 | 28 | 664 / 301 | 19.9 / 504 |
| 69210M181000814 | 10 | 10 | 12 | 0.84 / 21.34 | 1.08 / 27.43 | 1.192 / 30.28 | 842 / 1254 | 28 | 830 / 376 | 21.5 / 545 |
| 69210M181200814 | 12 | 10 | 12 | 0.906 / 23.02 | 1.147 / 29.12 | 1.258 / 31.97 | 979 / 1456 | 28 | 996 / 452 | 22.7 / 575 |
| 69210M181500814 | 15 | 10 | 12 | 0.977 / 24.81 | 1.217 / 30.91 | 1.329 / 33.76 | 1131 / 1684 | 28 | 1245 / 565 | 23.9 / 608 |
| 69210M182000814 | 20 | 10 | 12 | 1.109 / 28.16 | 1.349 / 34.26 | 1.461 / 37.11 | 1388 / 2066 | 28 | 1660 / 753 | 26.3 / 668 |
| 69210M182500814 | 25 | 10 | 12 | 1.232 / 31.29 | 1.472 / 37.39 | 1.584 / 40.23 | 1646 / 2449 | 24 | 2075 / 941 | 28.5 / 724 |
| 69210M183000814 | 30 | 10 | 12 | 1.304 / 33.12 | 1.544 / 39.23 | 1.676 / 42.58 | 1903 / 2832 | 24 | 2490 / 1129 | 30.2 / 766 |
| 69210M184000814 | 40 | 10 | 12 | 1.461 / 37.1 | 1.701 / 43.21 | 1.833 / 46.56 | 2372 / 3530 | 24 | 3320 / 1506 | 33 / 838 |
| 69210M185000814 | 50 | 10 | 12 | 1.626 / 41.31 | 1.931 / 49.05 | 2.063 / 52.4 | 2926 / 4354 | 20 | 4150 / 1882 | 37.1 / 943 |
| 69210M160200814 | 2 | 16 | 16 | 0.346 / 8.79 | 0.346 / 8.79 | 0.698 / 17.73 | 211 / 314 | 10 | 41 / 19 | 12.6 / 319 |
| 69210M160300814 | 3 | 16 | 16 | 0.374 / 9.49 | 0.374 / 9.49 | 0.726 / 18.43 | 233 / 347 | 10 | 62 / 28 | 13.1 / 332 |
| 69210M160400814 | 4 | 16 | 16 | 0.404 / 10.25 | 0.404 / 10.25 | 0.756 / 19.2 | 256 / 381 | 8 | 82 / 37 | 13.6 / 346 |
| 69210M160500814 | 5 | 16 | 16 | 0.43 / 10.92 | 0.43 / 10.92 | 0.782 / 19.87 | 279 / 415 | 8 | 103 / 47 | 14.1 / 358 |
| 69210M160600814 | 6 | 16 | 16 | 0.466 / 11.84 | 0.466 / 11.84 | 0.818 / 20.78 | 305 / 453 | 8 | 124 / 56 | 14.7 / 374 |
| 69210M160700814 | 7 | 16 | 16 | 0.502 / 12.75 | 0.502 / 12.75 | 0.854 / 21.69 | 331 / 493 | 7 | 144 / 65 | 15.4 / 390 |
| 69210M160800814 | 8 | 16 | 16 | 0.569 / 14.46 | 0.569 / 14.46 | 0.921 / 23.4 | 386 / 575 | 7 | 165 / 75 | 16.6 / 421 |
| 69210M161000814 | 10 | 16 | 16 | 0.616 / 15.65 | 0.616 / 15.65 | 0.968 / 24.59 | 425 / 632 | 7 | 206 / 93 | 17.4 / 443 |
| 69210M161200814 | 12 | 16 | 16 | 0.634 / 16.1 | 0.634 / 16.1 | 0.986 / 25.05 | 455 / 677 | 7 | 247 / 112 | 17.8 / 451 |
| 69210M161500814 | 15 | 16 | 16 | 0.682 / 17.32 | 0.682 / 17.32 | 1.034 / 26.26 | 508 / 756 | 7 | 309 / 140 | 18.6 / 473 |
| 69210M162000814 | 20 | 16 | 16 | 0.772 / 19.61 | 0.772 / 19.61 | 1.104 / 28.04 | 646 / 962 | 7 | 412 / 187 | 19.9 / 505 |
| 69210M162500814 | 25 | 16 | 16 | 0.896 / 22.76 | 0.896 / 22.76 | 1.248 / 31.7 | 802 / 1193 | 6 | 515 / 234 | 22.5 / 571 |
| 69210M163000814 | 30 | 16 | 16 | 0.945 / 24.01 | 0.945 / 24.01 | 1.297 / 32.94 | 879 / 1308 | 6 | 618 / 280 | 23.3 / 593 |
| 69210M164000814 | 40 | 16 | 16 | 1.052 / 26.72 | 1.052 / 26.72 | 1.404 / 35.66 | 1058 / 1574 | 6 | 824 / 374 | 25.3 / 642 |
| 69210M165000814 | 50 | 16 | 16 | 1.165 / 29.59 | 1.165 / 29.59 | 1.517 / 38.52 | 1229 / 1828 | 5 | 1030 / 467 | 27.3 / 693 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M180200814 | 2 | 18 | 18 | 0.322 / 8.18 | 0.322 / 8.18 | 0.674 / 17.12 | 191 / 285 | 5 | 26 / 12 | 12.1 / 308 |
| 69210M180300814 | 3 | 18 | 18 | 0.338 / 8.59 | 0.338 / 8.59 | 0.69 / 17.53 | 205 / 306 | 5 | 39 / 18 | 12.4 / 316 |
| 69210M180400814 | 4 | 18 | 18 | 0.366 / 9.3 | 0.366 / 9.3 | 0.719 / 18.25 | 224 / 333 | 4 | 52 / 24 | 12.9 / 329 |
| 69210M180500814 | 5 | 18 | 18 | 0.398 / 10.1 | 0.398 / 10.1 | 0.749 / 19.04 | 246 / 366 | 4 | 65 / 29 | 13.5 / 343 |
| 69210M180600814 | 6 | 18 | 18 | 0.43 / 10.92 | 0.43 / 10.92 | 0.782 / 19.86 | 267 / 397 | 4 | 78 / 35 | 14.1 / 358 |
| 69210M180700814 | 7 | 18 | 18 | 0.462 / 11.74 | 0.462 / 11.74 | 0.814 / 20.69 | 289 / 430 | 3.5 | 91 / 41 | 14.7 / 372 |
| 69210M180800814 | 8 | 18 | 18 | 0.496 / 12.6 | 0.496 / 12.6 | 0.848 / 21.54 | 311 / 462 | 3.5 | 104 / 47 | 15.3 / 388 |
| 69210M181000814 | 10 | 18 | 18 | 0.568 / 14.43 | 0.568 / 14.43 | 0.92 / 23.37 | 367 / 546 | 3.5 | 130 / 59 | 16.6 / 421 |
| 69210M181200814 | 12 | 18 | 18 | 0.584 / 14.84 | 0.584 / 14.84 | 0.936 / 23.78 | 389 / 579 | 3.5 | 156 / 71 | 16.9 / 428 |
| 69210M181500814 | 15 | 18 | 18 | 0.627 / 15.94 | 0.627 / 15.94 | 0.979 / 24.87 | 429 / 639 | 3.5 | 195 / 88 | 17.6 / 448 |
| 69210M182000814 | 20 | 18 | 18 | 0.708 / 17.99 | 0.708 / 17.99 | 1.061 / 26.94 | 507 / 755 | 3.5 | 260 / 118 | 19.1 / 485 |
| 69210M182500814 | 25 | 18 | 18 | 0.784 / 19.91 | 0.784 / 19.91 | 1.136 / 28.85 | 626 / 931 | 3 | 325 / 147 | 20.4 / 519 |
| 69210M183000814 | 30 | 18 | 18 | 0.828 / 21.04 | 0.828 / 21.04 | 1.181 / 29.99 | 681 / 1014 | 3 | 390 / 177 | 21.2 / 540 |
| 69210M184000814 | 40 | 18 | 18 | 0.964 / 24.5 | 0.964 / 24.5 | 1.316 / 33.44 | 866 / 1289 | 3 | 520 / 236 | 23.7 / 602 |
| 69210M185000814 | 50 | 18 | 18 | 1.066 / 27.07 | 1.066 / 27.07 | 1.418 / 36.01 | 998 / 1485 | 2.5 | 650 / 295 | 25.5 / 648 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
Markets / Applications
- OEM
- Transit
- Utility
Voltage
600V
Optional: 300 / 1000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Shielding (foil-free edge):
- OS (optional)
- Jacket:
- LSZH inner / outer black jacket rated: 90°C
- Armour:
- Aluminum Interlocked Armour (AIA) (standard)
- Steel Interlocked Armour (SIA) (optional)
- Serve Wire Armour (SWA) (optional)
- Available In:
- Composite constructions
- Custom insulation / jacket colours
Certifications/Compliances
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C-50C Black # coded
- Grounding / Bonding Conductor
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- LSZH Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M140200814 | 2 | 14 | 14 | 0.372 / 9.45 | 0.612 / 15.54 | 0.724 / 18.39 | 235 / 349 | 25 | 66 / 30 | 13 / 331 |
| 69210M140300814 | 3 | 14 | 14 | 0.403 / 10.23 | 0.643 / 16.32 | 0.755 / 19.17 | 263 / 391 | 25 | 99 / 45 | 13.6 / 345 |
| 69210M140400814 | 4 | 14 | 14 | 0.436 / 11.07 | 0.676 / 17.17 | 0.788 / 20.01 | 292 / 435 | 20 | 132 / 60 | 14.2 / 360 |
| 69210M140500814 | 5 | 14 | 14 | 0.465 / 11.81 | 0.705 / 17.91 | 0.817 / 20.76 | 321 / 477 | 20 | 165 / 75 | 14.7 / 374 |
| 69210M140600814 | 6 | 14 | 14 | 0.505 / 12.83 | 0.745 / 18.92 | 0.857 / 21.77 | 354 / 527 | 20 | 197 / 90 | 15.4 / 392 |
| 69210M140700814 | 7 | 14 | 14 | 0.575 / 14.6 | 0.815 / 20.69 | 0.927 / 23.54 | 413 / 615 | 17.5 | 230 / 104 | 16.7 / 424 |
| 69210M140800814 | 8 | 14 | 14 | 0.616 / 15.65 | 0.856 / 21.75 | 0.968 / 24.59 | 449 / 669 | 17.5 | 263 / 119 | 17.4 / 443 |
| 69210M141000814 | 10 | 14 | 14 | 0.668 / 16.97 | 0.908 / 23.06 | 1.02 / 25.91 | 501 / 746 | 17.5 | 329 / 149 | 18.4 / 466 |
| 69210M141200814 | 12 | 14 | 14 | 0.688 / 17.48 | 0.928 / 23.58 | 1.04 / 26.42 | 540 / 804 | 17.5 | 395 / 179 | 18.7 / 476 |
| 69210M141500814 | 15 | 14 | 14 | 0.741 / 18.83 | 0.981 / 24.92 | 1.093 / 27.77 | 615 / 915 | 17.5 | 494 / 224 | 19.7 / 500 |
| 69210M142000814 | 20 | 14 | 14 | 0.841 / 21.36 | 1.081 / 27.45 | 1.193 / 30.3 | 786 / 1170 | 17.5 | 658 / 298 | 21.5 / 545 |
| 69210M142500814 | 25 | 14 | 14 | 0.974 / 24.74 | 1.214 / 30.84 | 1.326 / 33.68 | 970 / 1443 | 15 | 823 / 373 | 23.9 / 606 |
| 69210M143000814 | 30 | 14 | 14 | 1.028 / 26.12 | 1.269 / 32.22 | 1.381 / 35.07 | 1077 / 1603 | 15 | 987 / 448 | 24.9 / 631 |
| 69210M144000814 | 40 | 14 | 14 | 1.147 / 29.13 | 1.387 / 35.22 | 1.499 / 38.07 | 1307 / 1945 | 15 | 1316 / 597 | 27 / 685 |
| 69210M145000814 | 50 | 14 | 14 | 1.272 / 32.31 | 1.512 / 38.4 | 1.624 / 41.24 | 1535 / 2284 | 12.5 | 1645 / 746 | 29.2 / 742 |
| 69210M120200814 | 2 | 12 | 14 | 0.408 / 10.36 | 0.648 / 16.46 | 0.76 / 19.3 | 265 / 394 | 30 | 104 / 47 | 13.7 / 347 |
| 69210M120300814 | 3 | 12 | 14 | 0.443 / 11.25 | 0.683 / 17.34 | 0.795 / 20.18 | 303 / 450 | 30 | 157 / 71 | 14.3 / 363 |
| 69210M120400814 | 4 | 12 | 14 | 0.48 / 12.2 | 0.721 / 18.31 | 0.833 / 21.15 | 342 / 508 | 24 | 209 / 95 | 15 / 381 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2. Values are corrected according to Table-5C for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M120500814 | 5 | 12 | 14 | 0.514 / 13.05 | 0.754 / 19.14 | 0.866 / 21.98 | 380 / 566 | 24 | 261 / 118 | 15.6 / 396 |
| 69210M120600814 | 6 | 12 | 14 | 0.589 / 14.96 | 0.829 / 21.06 | 0.941 / 23.9 | 451 / 671 | 24 | 313 / 142 | 16.9 / 430 |
| 69210M120700814 | 7 | 12 | 14 | 0.634 / 16.11 | 0.874 / 22.21 | 0.986 / 25.06 | 498 / 741 | 21 | 365 / 166 | 17.8 / 451 |
| 69210M120800814 | 8 | 12 | 14 | 0.681 / 17.3 | 0.921 / 23.4 | 1.033 / 26.24 | 545 / 811 | 21 | 418 / 189 | 18.6 / 472 |
| 69210M121000814 | 10 | 12 | 14 | 0.74 / 18.8 | 0.98 / 24.89 | 1.092 / 27.74 | 615 / 915 | 21 | 522 / 237 | 19.7 / 499 |
| 69210M121200814 | 12 | 12 | 14 | 0.763 / 19.37 | 0.982 / 24.96 | 1.095 / 27.8 | 713 / 1060 | 21 | 626 / 284 | 19.7 / 500 |
| 69210M121500814 | 15 | 12 | 14 | 0.823 / 20.91 | 1.063 / 27 | 1.175 / 29.85 | 818 / 1218 | 21 | 783 / 355 | 21.2 / 537 |
| 69210M122000814 | 20 | 12 | 14 | 0.976 / 24.8 | 1.216 / 30.9 | 1.328 / 33.74 | 1052 / 1565 | 21 | 1044 / 474 | 23.9 / 607 |
| 69210M122500814 | 25 | 12 | 14 | 1.082 / 27.48 | 1.322 / 33.58 | 1.434 / 36.42 | 1234 / 1836 | 18 | 1305 / 592 | 25.8 / 656 |
| 69210M123000814 | 30 | 12 | 14 | 1.144 / 29.06 | 1.384 / 35.15 | 1.496 / 37.99 | 1384 / 2060 | 18 | 1566 / 710 | 26.9 / 684 |
| 69210M124000814 | 40 | 12 | 14 | 1.278 / 32.47 | 1.518 / 38.57 | 1.63 / 41.41 | 1708 / 2542 | 18 | 2088 / 947 | 29.3 / 745 |
| 69210M125000814 | 50 | 12 | 14 | 1.42 / 36.08 | 1.66 / 42.17 | 1.792 / 45.53 | 2065 / 3073 | 15 | 2610 / 1184 | 32.3 / 819 |
| 69210M180200814 | 2 | 10 | 12 | 0.458 / 11.63 | 0.698 / 17.73 | 0.81 / 20.57 | 317 / 471 | 40 | 166 / 75 | 14.6 / 370 |
| 69210M180300814 | 3 | 10 | 12 | 0.498 / 12.66 | 0.739 / 18.76 | 0.851 / 21.61 | 370 / 550 | 40 | 249 / 113 | 15.3 / 389 |
| 69210M180400814 | 4 | 10 | 12 | 0.572 / 14.54 | 0.813 / 20.64 | 0.925 / 23.49 | 450 / 670 | 32 | 332 / 151 | 16.6 / 423 |
| 69210M180500814 | 5 | 10 | 12 | 0.611 / 15.52 | 0.851 / 21.62 | 0.963 / 24.46 | 506 / 753 | 32 | 415 / 188 | 17.3 / 440 |
| 69210M180600814 | 6 | 10 | 12 | 0.664 / 16.87 | 0.904 / 22.96 | 1.016 / 25.81 | 568 / 845 | 32 | 498 / 226 | 18.3 / 465 |
| 69210M180700814 | 7 | 10 | 12 | 0.717 / 18.21 | 0.957 / 24.31 | 1.069 / 27.15 | 631 / 940 | 28 | 581 / 264 | 19.2 / 489 |
| 69210M180800814 | 8 | 10 | 12 | 0.771 / 19.59 | 0.991 / 25.18 | 1.103 / 28.03 | 737 / 1096 | 28 | 664 / 301 | 19.9 / 504 |
| 69210M181000814 | 10 | 10 | 12 | 0.84 / 21.34 | 1.08 / 27.43 | 1.192 / 30.28 | 842 / 1254 | 28 | 830 / 376 | 21.5 / 545 |
| 69210M181200814 | 12 | 10 | 12 | 0.906 / 23.02 | 1.147 / 29.12 | 1.258 / 31.97 | 979 / 1456 | 28 | 996 / 452 | 22.7 / 575 |
| 69210M181500814 | 15 | 10 | 12 | 0.977 / 24.81 | 1.217 / 30.91 | 1.329 / 33.76 | 1131 / 1684 | 28 | 1245 / 565 | 23.9 / 608 |
| 69210M182000814 | 20 | 10 | 12 | 1.109 / 28.16 | 1.349 / 34.26 | 1.461 / 37.11 | 1388 / 2066 | 28 | 1660 / 753 | 26.3 / 668 |
| 69210M182500814 | 25 | 10 | 12 | 1.232 / 31.29 | 1.472 / 37.39 | 1.584 / 40.23 | 1646 / 2449 | 24 | 2075 / 941 | 28.5 / 724 |
| 69210M183000814 | 30 | 10 | 12 | 1.304 / 33.12 | 1.544 / 39.23 | 1.676 / 42.58 | 1903 / 2832 | 24 | 2490 / 1129 | 30.2 / 766 |
| 69210M184000814 | 40 | 10 | 12 | 1.461 / 37.1 | 1.701 / 43.21 | 1.833 / 46.56 | 2372 / 3530 | 24 | 3320 / 1506 | 33 / 838 |
| 69210M185000814 | 50 | 10 | 12 | 1.626 / 41.31 | 1.931 / 49.05 | 2.063 / 52.4 | 2926 / 4354 | 20 | 4150 / 1882 | 37.1 / 943 |
| 69210M160200814 | 2 | 16 | 16 | 0.346 / 8.79 | 0.346 / 8.79 | 0.698 / 17.73 | 211 / 314 | 10 | 41 / 19 | 12.6 / 319 |
| 69210M160300814 | 3 | 16 | 16 | 0.374 / 9.49 | 0.374 / 9.49 | 0.726 / 18.43 | 233 / 347 | 10 | 62 / 28 | 13.1 / 332 |
| 69210M160400814 | 4 | 16 | 16 | 0.404 / 10.25 | 0.404 / 10.25 | 0.756 / 19.2 | 256 / 381 | 8 | 82 / 37 | 13.6 / 346 |
| 69210M160500814 | 5 | 16 | 16 | 0.43 / 10.92 | 0.43 / 10.92 | 0.782 / 19.87 | 279 / 415 | 8 | 103 / 47 | 14.1 / 358 |
| 69210M160600814 | 6 | 16 | 16 | 0.466 / 11.84 | 0.466 / 11.84 | 0.818 / 20.78 | 305 / 453 | 8 | 124 / 56 | 14.7 / 374 |
| 69210M160700814 | 7 | 16 | 16 | 0.502 / 12.75 | 0.502 / 12.75 | 0.854 / 21.69 | 331 / 493 | 7 | 144 / 65 | 15.4 / 390 |
| 69210M160800814 | 8 | 16 | 16 | 0.569 / 14.46 | 0.569 / 14.46 | 0.921 / 23.4 | 386 / 575 | 7 | 165 / 75 | 16.6 / 421 |
| 69210M161000814 | 10 | 16 | 16 | 0.616 / 15.65 | 0.616 / 15.65 | 0.968 / 24.59 | 425 / 632 | 7 | 206 / 93 | 17.4 / 443 |
| 69210M161200814 | 12 | 16 | 16 | 0.634 / 16.1 | 0.634 / 16.1 | 0.986 / 25.05 | 455 / 677 | 7 | 247 / 112 | 17.8 / 451 |
| 69210M161500814 | 15 | 16 | 16 | 0.682 / 17.32 | 0.682 / 17.32 | 1.034 / 26.26 | 508 / 756 | 7 | 309 / 140 | 18.6 / 473 |
| 69210M162000814 | 20 | 16 | 16 | 0.772 / 19.61 | 0.772 / 19.61 | 1.104 / 28.04 | 646 / 962 | 7 | 412 / 187 | 19.9 / 505 |
| 69210M162500814 | 25 | 16 | 16 | 0.896 / 22.76 | 0.896 / 22.76 | 1.248 / 31.7 | 802 / 1193 | 6 | 515 / 234 | 22.5 / 571 |
| 69210M163000814 | 30 | 16 | 16 | 0.945 / 24.01 | 0.945 / 24.01 | 1.297 / 32.94 | 879 / 1308 | 6 | 618 / 280 | 23.3 / 593 |
| 69210M164000814 | 40 | 16 | 16 | 1.052 / 26.72 | 1.052 / 26.72 | 1.404 / 35.66 | 1058 / 1574 | 6 | 824 / 374 | 25.3 / 642 |
| 69210M165000814 | 50 | 16 | 16 | 1.165 / 29.59 | 1.165 / 29.59 | 1.517 / 38.52 | 1229 / 1828 | 5 | 1030 / 467 | 27.3 / 693 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M180200814 | 2 | 18 | 18 | 0.322 / 8.18 | 0.322 / 8.18 | 0.674 / 17.12 | 191 / 285 | 5 | 26 / 12 | 12.1 / 308 |
| 69210M180300814 | 3 | 18 | 18 | 0.338 / 8.59 | 0.338 / 8.59 | 0.69 / 17.53 | 205 / 306 | 5 | 39 / 18 | 12.4 / 316 |
| 69210M180400814 | 4 | 18 | 18 | 0.366 / 9.3 | 0.366 / 9.3 | 0.719 / 18.25 | 224 / 333 | 4 | 52 / 24 | 12.9 / 329 |
| 69210M180500814 | 5 | 18 | 18 | 0.398 / 10.1 | 0.398 / 10.1 | 0.749 / 19.04 | 246 / 366 | 4 | 65 / 29 | 13.5 / 343 |
| 69210M180600814 | 6 | 18 | 18 | 0.43 / 10.92 | 0.43 / 10.92 | 0.782 / 19.86 | 267 / 397 | 4 | 78 / 35 | 14.1 / 358 |
| 69210M180700814 | 7 | 18 | 18 | 0.462 / 11.74 | 0.462 / 11.74 | 0.814 / 20.69 | 289 / 430 | 3.5 | 91 / 41 | 14.7 / 372 |
| 69210M180800814 | 8 | 18 | 18 | 0.496 / 12.6 | 0.496 / 12.6 | 0.848 / 21.54 | 311 / 462 | 3.5 | 104 / 47 | 15.3 / 388 |
| 69210M181000814 | 10 | 18 | 18 | 0.568 / 14.43 | 0.568 / 14.43 | 0.92 / 23.37 | 367 / 546 | 3.5 | 130 / 59 | 16.6 / 421 |
| 69210M181200814 | 12 | 18 | 18 | 0.584 / 14.84 | 0.584 / 14.84 | 0.936 / 23.78 | 389 / 579 | 3.5 | 156 / 71 | 16.9 / 428 |
| 69210M181500814 | 15 | 18 | 18 | 0.627 / 15.94 | 0.627 / 15.94 | 0.979 / 24.87 | 429 / 639 | 3.5 | 195 / 88 | 17.6 / 448 |
| 69210M182000814 | 20 | 18 | 18 | 0.708 / 17.99 | 0.708 / 17.99 | 1.061 / 26.94 | 507 / 755 | 3.5 | 260 / 118 | 19.1 / 485 |
| 69210M182500814 | 25 | 18 | 18 | 0.784 / 19.91 | 0.784 / 19.91 | 1.136 / 28.85 | 626 / 931 | 3 | 325 / 147 | 20.4 / 519 |
| 69210M183000814 | 30 | 18 | 18 | 0.828 / 21.04 | 0.828 / 21.04 | 1.181 / 29.99 | 681 / 1014 | 3 | 390 / 177 | 21.2 / 540 |
| 69210M184000814 | 40 | 18 | 18 | 0.964 / 24.5 | 0.964 / 24.5 | 1.316 / 33.44 | 866 / 1289 | 3 | 520 / 236 | 23.7 / 602 |
| 69210M185000814 | 50 | 18 | 18 | 1.066 / 27.07 | 1.066 / 27.07 | 1.418 / 36.01 | 998 / 1485 | 2.5 | 650 / 295 | 25.5 / 648 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
- OEM
- Transit
- Utility
Related products
-
CSA TECK 90 Armoured Control | Multi-Conductor (1000V)
Read more -
CSA ARMCON Armoured Control | Multi-Conductor (600V)
Read moreCSA ARMCON Armoured Control | Multi-Conductor (600V)
Unshielded armoured control cable is used for operation of control automation equipment. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
-

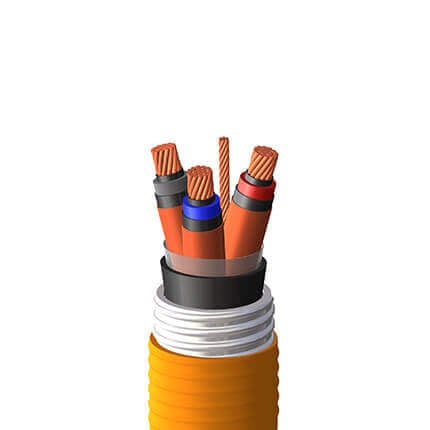

CSA TECK 90 Armoured Power | Multi-Conductor Shielded (5000V)
Read moreCSA TECK 90 Armoured Power | Multi-Conductor Shielded (5000V)
Shielded armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
