CSA LSZH Unarmoured Tray Power | Multi-Conductor (1000V)
LSZH Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
1000V
Optional: 600V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Shielding (foil-free edge):
- OS (optional)
- Jacket:
- LSZH outer black jacket rated: 90°C
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4, Vertical Tray Flame Test
- rated IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 1 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded

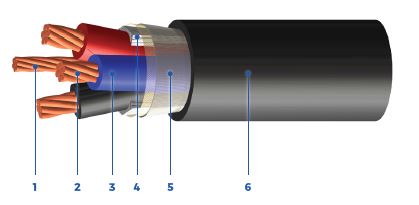

Properties
- Grounding / Bonding Conductor
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 40010M140200800 | 2 | 14 | 14 | 0.432 / 10.97 | 104 / 155 | 25 | 66 / 30 | 3.9 / 99 |
| 40010M120200800 | 2 | 12 | 14 | 0.468 / 11.89 | 128 / 190 | 30 | 104 / 47 | 4.2 / 107 |
| 40010M100200800 | 2 | 10 | 12 | 0.518 / 13.16 | 170 / 253 | 40 | 166 / 75 | 4.7 / 118 |
| 40010M080200800 | 2 | 8 | 10 | 0.606 / 15.39 | 257 / 382 | 55 | 265 / 120 | 5.5 / 139 |
| 40010M060200800 | 2 | 6 | 8 | 0.744 / 18.9 | 382 / 568 | 75 | 419 / 190 | 6.7 / 170 |
| 40010M040200800 | 2 | 4 | 8 | 0.838 / 21.29 | 513 / 764 | 95 | 668 / 303 | 7.5 / 192 |
| 40010M030200800 | 2 | 3 | 6 | 0.932 / 23.67 | 673 / 1001 | 115 | 842 / 382 | 8.4 / 213 |
| 40010M020200800 | 2 | 2 | 6 | 0.994 / 25.25 | 783 / 1165 | 130 | 1062 / 482 | 8.9 / 227 |
| 40010M010240800 | 2 | 1 | 6 | 1.152 / 29.26 | 977 / 1454 | 145 | 1339 / 607 | 10.4 / 263 |
| 40010M1/0240800 | 2 | 1/0 | 6 | 1.232 / 31.29 | 1145 / 1704 | 170 | 1690 / 766 | 11.1 / 282 |
| 40010M2/0240800 | 2 | 2/0 | 6 | 1.318 / 33.48 | 1364 / 2030 | 195 | 2130 / 966 | 11.9 / 301 |
| 40010M3/0240800 | 2 | 3/0 | 4 | 1.42 / 36.07 | 1675 / 2492 | 225 | 2671 / 1212 | 12.8 / 325 |
| 40010M4/0240800 | 2 | 4/0 | 4 | 1.532 / 38.91 | 2015 / 2999 | 260 | 3386 / 1536 | 13.8 / 350 |
| 40010M140300800 | 3 | 14 | 14 | 0.47 / 11.93 | 126 / 188 | 25 | 99 / 45 | 4.2 / 107 |
| 40010M120300800 | 3 | 12 | 14 | 0.51 / 12.95 | 159 / 237 | 30 | 157 / 71 | 4.6 / 117 |
| 40010M100300800 | 3 | 10 | 12 | 0.595 / 15.12 | 234 / 349 | 40 | 249 / 113 | 5.4 / 136 |
| 40010M080300800 | 3 | 8 | 10 | 0.66 / 16.76 | 325 / 484 | 55 | 397 / 180 | 5.9 / 151 |
| 40010M060300800 | 3 | 6 | 8 | 0.813 / 20.66 | 490 / 730 | 75 | 629 / 285 | 7.3 / 186 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye)(lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 40010M040300800 | 3 | 4 | 8 | 0.93 / 23.63 | 710 / 1056 | 95 | 1002 / 454 | 8.4 / 213 |
| 40010M030300800 | 3 | 3 | 6 | 0.988 / 25.11 | 862 / 1283 | 115 | 1263 / 573 | 8.9 / 226 |
| 40010M020300800 | 3 | 2 | 6 | 1.055 / 26.8 | 1022 / 1521 | 130 | 1593 / 723 | 9.5 / 241 |
| 40010M010340800 | 3 | 1 | 6 | 1.225 / 31.11 | 1278 / 1901 | 145 | 2009 / 911 | 11 / 280 |
| 40010M1/0340800 | 3 | 1/0 | 6 | 1.311 / 33.3 | 1516 / 2256 | 170 | 2534 / 1150 | 11.8 / 300 |
| 40010M2/0340800 | 3 | 2/0 | 6 | 1.403 / 35.65 | 1819 / 2707 | 195 | 3194 / 1449 | 12.6 / 321 |
| 40010M3/0340800 | 3 | 3/0 | 4 | 1.513 / 38.43 | 2257 / 3359 | 225 | 4007 / 1818 | 13.6 / 346 |
| 40010M4/0340800 | 3 | 4/0 | 4 | 1.633 / 41.49 | 2745 / 4085 | 260 | 5078 / 2304 | 14.7 / 373 |
| 40010M140400800 | 4 | 14 | 14 | 0.51 / 12.96 | 150 / 223 | 25 | 132 / 60 | 4.6 / 117 |
| 40010M120400800 | 4 | 12 | 14 | 0.585 / 14.86 | 213 / 317 | 30 | 209 / 95 | 5.3 / 134 |
| 40010M100400800 | 4 | 10 | 12 | 0.647 / 16.43 | 284 / 423 | 40 | 332 / 151 | 5.8 / 148 |
| 40010M080400800 | 4 | 8 | 10 | 0.719 / 18.26 | 397 / 590 | 55 | 529 / 240 | 6.5 / 164 |
| 40010M060400800 | 4 | 6 | 8 | 0.929 / 23.59 | 646 / 962 | 75 | 839 / 380 | 8.4 / 212 |
| 40010M040400800 | 4 | 4 | 8 | 1.045 / 26.56 | 888 / 1322 | 95 | 1336 / 606 | 9.4 / 239 |
| 40010M030400800 | 4 | 3 | 6 | 1.112 / 28.26 | 1084 / 1614 | 115 | 1684 / 764 | 10 / 254 |
| 40010M020400800 | 4 | 2 | 6 | 1.189 / 30.21 | 1295 / 1928 | 130 | 2124 / 964 | 10.7 / 272 |
| 40010M010440800 | 4 | 1 | 6 | 1.351 / 34.32 | 1622 / 2414 | 145 | 2678 / 1215 | 12.2 / 309 |
| 40010M1/0440800 | 4 | 1/0 | 6 | 1.448 / 36.77 | 1924 / 2863 | 170 | 3379 / 1533 | 13 / 331 |
| 40010M2/0440800 | 4 | 2/0 | 6 | 1.551 / 39.4 | 2351 / 3499 | 195 | 4259 / 1932 | 14 / 355 |
| 40010M3/0440800 | 4 | 3/0 | 4 | 1.674 / 42.52 | 2889 / 4299 | 225 | 5343 / 2423 | 15.1 / 383 |
| 40010M4/0440800 | 4 | 4/0 | 4 | 1.869 / 47.48 | 3663 / 5451 | 230 | 6771 / 3071 | 16.8 / 427 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2. Ampacity of 4 conductors cable is based on 3 current-carrying conductors and 1 neutral.
Markets / Applications
- Industrial Construction/Automation
- Industrial
- Commercial Construction Projects
Voltage
1000V
Optional: 600V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Shielding (foil-free edge):
- OS (optional)
- Jacket:
- LSZH outer black jacket rated: 90°C
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4, Vertical Tray Flame Test
- rated IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 1 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded
- Grounding / Bonding Conductor
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 40010M140200800 | 2 | 14 | 14 | 0.432 / 10.97 | 104 / 155 | 25 | 66 / 30 | 3.9 / 99 |
| 40010M120200800 | 2 | 12 | 14 | 0.468 / 11.89 | 128 / 190 | 30 | 104 / 47 | 4.2 / 107 |
| 40010M100200800 | 2 | 10 | 12 | 0.518 / 13.16 | 170 / 253 | 40 | 166 / 75 | 4.7 / 118 |
| 40010M080200800 | 2 | 8 | 10 | 0.606 / 15.39 | 257 / 382 | 55 | 265 / 120 | 5.5 / 139 |
| 40010M060200800 | 2 | 6 | 8 | 0.744 / 18.9 | 382 / 568 | 75 | 419 / 190 | 6.7 / 170 |
| 40010M040200800 | 2 | 4 | 8 | 0.838 / 21.29 | 513 / 764 | 95 | 668 / 303 | 7.5 / 192 |
| 40010M030200800 | 2 | 3 | 6 | 0.932 / 23.67 | 673 / 1001 | 115 | 842 / 382 | 8.4 / 213 |
| 40010M020200800 | 2 | 2 | 6 | 0.994 / 25.25 | 783 / 1165 | 130 | 1062 / 482 | 8.9 / 227 |
| 40010M010240800 | 2 | 1 | 6 | 1.152 / 29.26 | 977 / 1454 | 145 | 1339 / 607 | 10.4 / 263 |
| 40010M1/0240800 | 2 | 1/0 | 6 | 1.232 / 31.29 | 1145 / 1704 | 170 | 1690 / 766 | 11.1 / 282 |
| 40010M2/0240800 | 2 | 2/0 | 6 | 1.318 / 33.48 | 1364 / 2030 | 195 | 2130 / 966 | 11.9 / 301 |
| 40010M3/0240800 | 2 | 3/0 | 4 | 1.42 / 36.07 | 1675 / 2492 | 225 | 2671 / 1212 | 12.8 / 325 |
| 40010M4/0240800 | 2 | 4/0 | 4 | 1.532 / 38.91 | 2015 / 2999 | 260 | 3386 / 1536 | 13.8 / 350 |
| 40010M140300800 | 3 | 14 | 14 | 0.47 / 11.93 | 126 / 188 | 25 | 99 / 45 | 4.2 / 107 |
| 40010M120300800 | 3 | 12 | 14 | 0.51 / 12.95 | 159 / 237 | 30 | 157 / 71 | 4.6 / 117 |
| 40010M100300800 | 3 | 10 | 12 | 0.595 / 15.12 | 234 / 349 | 40 | 249 / 113 | 5.4 / 136 |
| 40010M080300800 | 3 | 8 | 10 | 0.66 / 16.76 | 325 / 484 | 55 | 397 / 180 | 5.9 / 151 |
| 40010M060300800 | 3 | 6 | 8 | 0.813 / 20.66 | 490 / 730 | 75 | 629 / 285 | 7.3 / 186 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye)(lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 40010M040300800 | 3 | 4 | 8 | 0.93 / 23.63 | 710 / 1056 | 95 | 1002 / 454 | 8.4 / 213 |
| 40010M030300800 | 3 | 3 | 6 | 0.988 / 25.11 | 862 / 1283 | 115 | 1263 / 573 | 8.9 / 226 |
| 40010M020300800 | 3 | 2 | 6 | 1.055 / 26.8 | 1022 / 1521 | 130 | 1593 / 723 | 9.5 / 241 |
| 40010M010340800 | 3 | 1 | 6 | 1.225 / 31.11 | 1278 / 1901 | 145 | 2009 / 911 | 11 / 280 |
| 40010M1/0340800 | 3 | 1/0 | 6 | 1.311 / 33.3 | 1516 / 2256 | 170 | 2534 / 1150 | 11.8 / 300 |
| 40010M2/0340800 | 3 | 2/0 | 6 | 1.403 / 35.65 | 1819 / 2707 | 195 | 3194 / 1449 | 12.6 / 321 |
| 40010M3/0340800 | 3 | 3/0 | 4 | 1.513 / 38.43 | 2257 / 3359 | 225 | 4007 / 1818 | 13.6 / 346 |
| 40010M4/0340800 | 3 | 4/0 | 4 | 1.633 / 41.49 | 2745 / 4085 | 260 | 5078 / 2304 | 14.7 / 373 |
| 40010M140400800 | 4 | 14 | 14 | 0.51 / 12.96 | 150 / 223 | 25 | 132 / 60 | 4.6 / 117 |
| 40010M120400800 | 4 | 12 | 14 | 0.585 / 14.86 | 213 / 317 | 30 | 209 / 95 | 5.3 / 134 |
| 40010M100400800 | 4 | 10 | 12 | 0.647 / 16.43 | 284 / 423 | 40 | 332 / 151 | 5.8 / 148 |
| 40010M080400800 | 4 | 8 | 10 | 0.719 / 18.26 | 397 / 590 | 55 | 529 / 240 | 6.5 / 164 |
| 40010M060400800 | 4 | 6 | 8 | 0.929 / 23.59 | 646 / 962 | 75 | 839 / 380 | 8.4 / 212 |
| 40010M040400800 | 4 | 4 | 8 | 1.045 / 26.56 | 888 / 1322 | 95 | 1336 / 606 | 9.4 / 239 |
| 40010M030400800 | 4 | 3 | 6 | 1.112 / 28.26 | 1084 / 1614 | 115 | 1684 / 764 | 10 / 254 |
| 40010M020400800 | 4 | 2 | 6 | 1.189 / 30.21 | 1295 / 1928 | 130 | 2124 / 964 | 10.7 / 272 |
| 40010M010440800 | 4 | 1 | 6 | 1.351 / 34.32 | 1622 / 2414 | 145 | 2678 / 1215 | 12.2 / 309 |
| 40010M1/0440800 | 4 | 1/0 | 6 | 1.448 / 36.77 | 1924 / 2863 | 170 | 3379 / 1533 | 13 / 331 |
| 40010M2/0440800 | 4 | 2/0 | 6 | 1.551 / 39.4 | 2351 / 3499 | 195 | 4259 / 1932 | 14 / 355 |
| 40010M3/0440800 | 4 | 3/0 | 4 | 1.674 / 42.52 | 2889 / 4299 | 225 | 5343 / 2423 | 15.1 / 383 |
| 40010M4/0440800 | 4 | 4/0 | 4 | 1.869 / 47.48 | 3663 / 5451 | 230 | 6771 / 3071 | 16.8 / 427 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2. Ampacity of 4 conductors cable is based on 3 current-carrying conductors and 1 neutral.
- Industrial Construction/Automation
- Industrial
- Commercial Construction Projects
