CSA Type RW90 Single Conductor, 600 V
Construction
Voltage
600 V
Optional: 1000 / 2000 V
Product Construction
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Available in:
All colours
Aluminum conductor
FT1 flame test
FT4 flame test
Sunlight resistant
Oil Resistant PRI
Halogen-free
Certifications
Certifications/Compliances
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- -40°C cold bend / impact rated
Colour Coding
- Black conductor (standard)
Properties

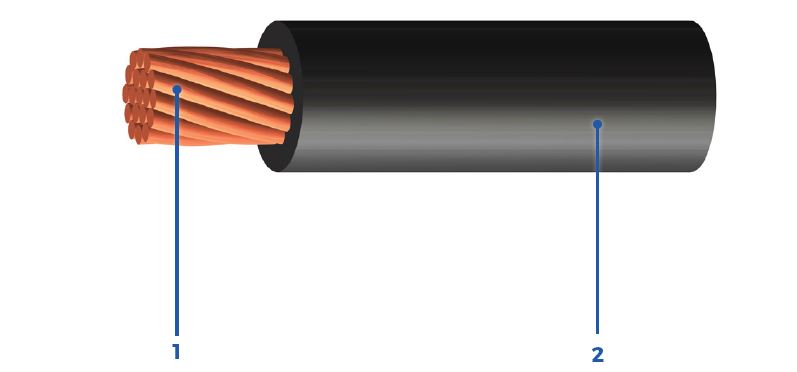

- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size | Insulation Thickness | Nominal Diameter Overall cable | Cable Weight | Ampacity | Max. Pulling Tension | Min. Bend Radius |
| AWG or kcmil | in. | mm | in. | mm | lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 19010M12010BN00 | 1 | 12 | 0.030 | 0.8 | 0.151 | 3.9 | 25 | 37 | 40 | 52 | 24 | 1.4 | 35 |
| 19010M10010BN00 | 1 | 10 | 0.030 | 0.8 | 0.176 | 4.5 | 37 | 56 | 55 | 83 | 38 | 1.6 | 40 |
| 19010M08010BN00 | 1 | 8 | 0.045 | 1.1 | 0.235 | 6.0 | 63 | 94 | 80 | 132 | 60 | 2.1 | 54 |
| 19010M06010BN00 | 1 | 6 | 0.045 | 1.1 | 0.272 | 6.9 | 96 | 142 | 105 | 210 | 95 | 2.4 | 62 |
| 19010M04010BN00 | 1 | 4 | 0.045 | 1.1 | 0.319 | 8.1 | 147 | 219 | 140 | 334 | 151 | 2.9 | 73 |
| 19010M03010BN00 | 1 | 3 | 0.045 | 1.1 | 0.346 | 8.8 | 183 | 272 | 165 | 421 | 191 | 3.1 | 79 |
| 19010M02010BN00 | 1 | 2 | 0.045 | 1.1 | 0.377 | 9.6 | 228 | 339 | 190 | 531 | 241 | 3.4 | 86 |
| 19010M01014BN00 | 1 | 1 | 0.055 | 1.4 | 0.436 | 11.1 | 289 | 430 | 220 | 670 | 304 | 3.9 | 100 |
| 19010M1/014BN00 | 1 | 1/0 | 0.055 | 1.4 | 0.476 | 12.1 | 360 | 536 | 260 | 845 | 383 | 4.3 | 109 |
| 19010M2/014BN00 | 1 | 2/0 | 0.055 | 1.4 | 0.519 | 13.2 | 449 | 669 | 300 | 1065 | 483 | 4.7 | 119 |
| 19010M3/014BN00 | 1 | 3/0 | 0.055 | 1.4 | 0.570 | 14.5 | 562 | 836 | 350 | 1336 | 606 | 5.1 | 130 |
| 19010M4/014BN00 | 1 | 4/0 | 0.055 | 1.4 | 0.626 | 15.9 | 703 | 1046 | 405 | 1693 | 768 | 5.6 | 143 |
| 19010M25016BN00 | 1 | 250 | 0.065 | 1.7 | 0.692 | 17.6 | 824 | 1227 | 455 | 2000 | 907 | 6.2 | 158 |
| 19010M35016BN00 | 1 | 350 | 0.065 | 1.7 | 0.795 | 20.2 | 1142 | 1700 | 570 | 2800 | 1270 | 7.2 | 182 |
| 19010M50016BN00 | 1 | 500 | 0.065 | 1.7 | 0.923 | 23.4 | 1616 | 2405 | 700 | 4000 | 1814 | 8.3 | 211 |
| 19010M75016BN00 | 1 | 750 | 0.080 | 2.0 | 1.132 | 28.8 | 2424 | 3608 | 885 | 6000 | 2722 | 10.2 | 259 |
| 19010MA0016BN00 | 1 | 1000 | 0.080 | 2.0 | 1.281 | 32.5 | 3197 | 4758 | 1055 | 8000 | 3629 | 11.5 | 293 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 1.
Markets / Applications
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
Voltage
600 V
Optional: 1000 / 2000 V
Product Construction
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Available in:
All colours
Aluminum conductor
FT1 flame test
FT4 flame test
Sunlight resistant
Oil Resistant PRI
Halogen-free
Certifications/Compliances
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- -40°C cold bend / impact rated
Colour Coding
- Black conductor (standard)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size | Insulation Thickness | Nominal Diameter Overall cable | Cable Weight | Ampacity | Max. Pulling Tension | Min. Bend Radius |
| AWG or kcmil | in. | mm | in. | mm | lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 19010M12010BN00 | 1 | 12 | 0.030 | 0.8 | 0.151 | 3.9 | 25 | 37 | 40 | 52 | 24 | 1.4 | 35 |
| 19010M10010BN00 | 1 | 10 | 0.030 | 0.8 | 0.176 | 4.5 | 37 | 56 | 55 | 83 | 38 | 1.6 | 40 |
| 19010M08010BN00 | 1 | 8 | 0.045 | 1.1 | 0.235 | 6.0 | 63 | 94 | 80 | 132 | 60 | 2.1 | 54 |
| 19010M06010BN00 | 1 | 6 | 0.045 | 1.1 | 0.272 | 6.9 | 96 | 142 | 105 | 210 | 95 | 2.4 | 62 |
| 19010M04010BN00 | 1 | 4 | 0.045 | 1.1 | 0.319 | 8.1 | 147 | 219 | 140 | 334 | 151 | 2.9 | 73 |
| 19010M03010BN00 | 1 | 3 | 0.045 | 1.1 | 0.346 | 8.8 | 183 | 272 | 165 | 421 | 191 | 3.1 | 79 |
| 19010M02010BN00 | 1 | 2 | 0.045 | 1.1 | 0.377 | 9.6 | 228 | 339 | 190 | 531 | 241 | 3.4 | 86 |
| 19010M01014BN00 | 1 | 1 | 0.055 | 1.4 | 0.436 | 11.1 | 289 | 430 | 220 | 670 | 304 | 3.9 | 100 |
| 19010M1/014BN00 | 1 | 1/0 | 0.055 | 1.4 | 0.476 | 12.1 | 360 | 536 | 260 | 845 | 383 | 4.3 | 109 |
| 19010M2/014BN00 | 1 | 2/0 | 0.055 | 1.4 | 0.519 | 13.2 | 449 | 669 | 300 | 1065 | 483 | 4.7 | 119 |
| 19010M3/014BN00 | 1 | 3/0 | 0.055 | 1.4 | 0.570 | 14.5 | 562 | 836 | 350 | 1336 | 606 | 5.1 | 130 |
| 19010M4/014BN00 | 1 | 4/0 | 0.055 | 1.4 | 0.626 | 15.9 | 703 | 1046 | 405 | 1693 | 768 | 5.6 | 143 |
| 19010M25016BN00 | 1 | 250 | 0.065 | 1.7 | 0.692 | 17.6 | 824 | 1227 | 455 | 2000 | 907 | 6.2 | 158 |
| 19010M35016BN00 | 1 | 350 | 0.065 | 1.7 | 0.795 | 20.2 | 1142 | 1700 | 570 | 2800 | 1270 | 7.2 | 182 |
| 19010M50016BN00 | 1 | 500 | 0.065 | 1.7 | 0.923 | 23.4 | 1616 | 2405 | 700 | 4000 | 1814 | 8.3 | 211 |
| 19010M75016BN00 | 1 | 750 | 0.080 | 2.0 | 1.132 | 28.8 | 2424 | 3608 | 885 | 6000 | 2722 | 10.2 | 259 |
| 19010MA0016BN00 | 1 | 1000 | 0.080 | 2.0 | 1.281 | 32.5 | 3197 | 4758 | 1055 | 8000 | 3629 | 11.5 | 293 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 1.
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
