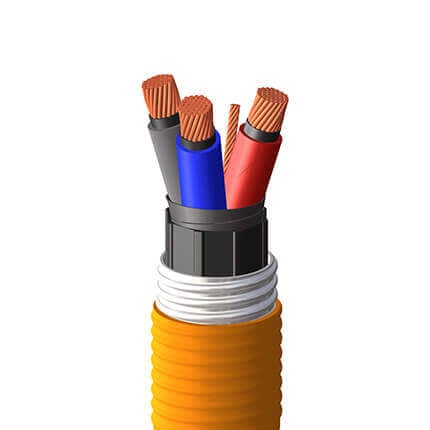

CSA Riser TECK 90 Armoured Mineshaft | Multi-Conductor Unshielded (5000V)

Riser TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting lengths. Typically used in Mining, Utilities, Industrial and Commercial applications.
Certification Logo
Datasheet (PDF) Contact Us

Construction

Voltage

5000 V

Optional: 600 / 1000V

Product Construction



    • Insulation:
      • XLPE (RW90 rated) rated: 90°C wet / dry



    • Armour:
      • Steel Interlocked Armour (SIA) (standard)
      • Aluminum Interlocked Armour (AIA) (optional)
      • Serve Wire Armour (SWA) (optional)



    • Jacket:
      • FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C



  • Available in:
    • Variable Frequency Drive (VFD)
    • Custom colour coding
    • Custom insulation / jacket colours
    • Aluminum conductors
    • Composite constructions
    • Single conductor

Colour Coding



  • 2C Black & white
  • 3C Black, red & blue
  • 4C Black, red, blue & white
  • 5C to 50C Black # coded

Certifications

Certifications/Compliances



  • CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
  • CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
  • CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
  • CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
  • IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (RW90 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours)
  • Direct burial rated
  • -40°C cold bend / impact rated
  • HL rated for use in hazardous locations:
    • Class I Zone 1 (Div 1)
    • Class I Zone 2 (Div 2)
    • Class III Zone 20, 21 (Div 1)
    • Class II Zone 22 (Div 2)

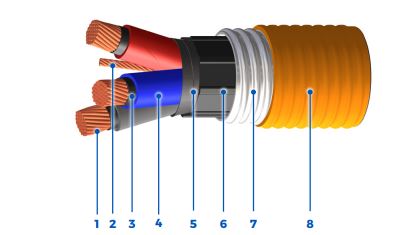

Properties



  1. Strand Bare (ASTM B8) Annealed Copper Conductors
  2. Grounding / Bonding Conductor
  3. Semicon Conductor Shield
  4. XLPE (RW90 Rated) Insulated Conductors
  5. Cloth Backed Rubberized Separator Tape
  6. Inner Ribbed Jacket
  7. Steel Interlocked Armour (SIA)
  8. FR LAG PVC Outer Protective Jacket
Part Number Number of Conductors Conductor Size (AWG/MCM) Ground Wire Size (uninsulated) (AWG/MCM) OD Over Inner Jacket (in/mm) Normal Diameters Cable Weight (lbs/1000ft)/ (kg/km) Ampacity (30°C ambient) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm) Self Support Length (ft/m)
Over Armour (in/mm) Overall Cable (in/mm)
85110M1/034570V 3 1/0 6 1.435 / 36.46 1.845 / 46.87 1.953 / 49.62 3458 / 5145 170 2534 / 1150 35 / 893 660.8 / 201
85110M2/034570V 3 2/0 6 1.528 / 38.81 1.938 / 49.22 2.046 / 51.97 3877 / 5769 195 3194 / 1449 37 / 935 737.8 / 225
85110M3/034570V 3 3/0 4 1.638 / 41.59 2.048 / 52.01 2.156 / 54.75 4494 / 6687 225 4007 / 1818 39 / 985 806.8 / 246
85110M4/034570V 3 4/0 4 1.818 / 46.17 2.228 / 56.59 2.336 / 59.33 5137 / 7645 260 5078 / 2304 42 / 1068 889.8 / 271
85110M25036570V 3 250 4 1.938 / 49.23 2.348 / 59.65 2.48 / 63 5716 / 8507 290 6000 / 2722 45 / 1134 949.7 / 289
85110M35036570V 3 350 3 2.16 / 54.86 2.57 / 65.27 2.702 / 68.63 7114 / 10586 350 8400 / 3810 49 / 1235 1070.9 / 326
85110M50036570V 3 500 3 2.435 / 61.85 2.845 / 72.26 2.977 / 75.62 9068 / 13495 430 12000 / 5443 54 / 1361 1196.9 / 365
85110M75036570V 3 750 2 2.897 / 73.58 3.369 / 85.59 3.515 / 89.29 11583 / 17238 535 18000 / 8165 63 / 1607 1410.5 / 430

*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
