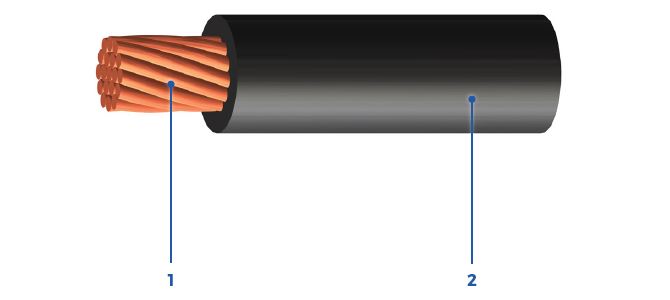

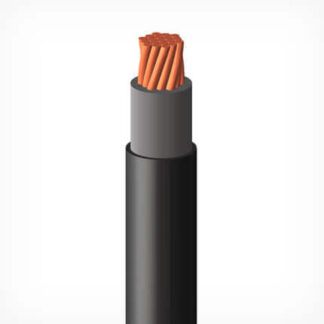

CSA RW90 | Single Conductor (1000V)
Construction
Voltage
1000V
Optional: 600 / 2000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Available in:
- All colours
Certifications
Certifications/Compliances
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- -40°C cold bend / impact rated
Colour Coding
- Black conductor (standard)
Properties
- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Insulation Thickness (in/mm) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 10010M08010BN00 | 1 | 8 | 0.06 / 1.52 | 0.265 / 6.73 | 68 / 101 | 80 | 132 / 60 | 2.4 / 61 |
| 10010M06010BN00 | 1 | 6 | 0.06 / 1.52 | 0.302 / 7.67 | 101 / 150 | 105 | 210 / 95 | 2.7 / 69 |
| 10010M04010BN00 | 1 | 4 | 0.06 / 1.52 | 0.349 / 8.86 | 153 / 228 | 140 | 334 / 151 | 3.1 / 80 |
| 10010M03010BN00 | 1 | 3 | 0.06 / 1.52 | 0.376 / 9.55 | 190 / 282 | 165 | 421 / 191 | 3.4 / 86 |
| 10010M02010BN00 | 1 | 2 | 0.06 / 1.52 | 0.407 / 10.34 | 235 / 350 | 190 | 531 / 241 | 3.7 / 93 |
| 10010M01014BN00 | 1 | 1 | 0.08 / 2.03 | 0.486 / 12.34 | 303 / 451 | 220 | 670 / 304 | 4.4 / 111 |
| 10010M1/014BN00 | 1 | 1/0 | 0.08 / 2.03 | 0.526 / 13.36 | 376 / 559 | 260 | 845 / 383 | 4.7 / 120 |
| 10010M2/014BN00 | 1 | 2/0 | 0.08 / 2.03 | 0.569 / 14.45 | 467 / 694 | 300 | 1065 / 483 | 5.1 / 130 |
| 10010M3/014BN00 | 1 | 3/0 | 0.08 / 2.03 | 0.62 / 15.75 | 580 / 864 | 350 | 1336 / 606 | 5.6 / 142 |
| 10010M4/014BN00 | 1 | 4/0 | 0.08 / 2.03 | 0.676 / 17.17 | 723 / 1076 | 405 | 1693 / 768 | 6.1 / 155 |
| 10010M25016BN00 | 1 | 250 | 0.09 / 2.29 | 0.742 / 18.85 | 847 / 1260 | 455 | 2000 / 907 | 6.7 / 170 |
| 10010M35016BN00 | 1 | 350 | 0.09 / 2.29 | 0.845 / 21.46 | 1168 / 1738 | 570 | 2800 / 1270 | 7.6 / 193 |
| 10010M50016BN00 | 1 | 500 | 0.09 / 2.29 | 0.973 / 24.71 | 1646 / 2449 | 700 | 4000 / 1814 | 8.8 / 222 |
| 10010M75016BN00 | 1 | 750 | 0.09 / 2.29 | 1.152 / 29.26 | 2439 / 3629 | 885 | 6000 / 2722 | 10.4 / 263 |
| 10010MA0016BN00 | 1 | 1000 | 0.09 / 2.29 | 1.301 / 33.05 | 3214 / 4782 | 1055 | 8000 / 3629 | 11.7 / 297 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-1.
Markets / Applications
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
Voltage
1000V
Optional: 600 / 2000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Available in:
- All colours
Certifications/Compliances
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- -40°C cold bend / impact rated
Colour Coding
- Black conductor (standard)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Insulation Thickness (in/mm) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 10010M08010BN00 | 1 | 8 | 0.06 / 1.52 | 0.265 / 6.73 | 68 / 101 | 80 | 132 / 60 | 2.4 / 61 |
| 10010M06010BN00 | 1 | 6 | 0.06 / 1.52 | 0.302 / 7.67 | 101 / 150 | 105 | 210 / 95 | 2.7 / 69 |
| 10010M04010BN00 | 1 | 4 | 0.06 / 1.52 | 0.349 / 8.86 | 153 / 228 | 140 | 334 / 151 | 3.1 / 80 |
| 10010M03010BN00 | 1 | 3 | 0.06 / 1.52 | 0.376 / 9.55 | 190 / 282 | 165 | 421 / 191 | 3.4 / 86 |
| 10010M02010BN00 | 1 | 2 | 0.06 / 1.52 | 0.407 / 10.34 | 235 / 350 | 190 | 531 / 241 | 3.7 / 93 |
| 10010M01014BN00 | 1 | 1 | 0.08 / 2.03 | 0.486 / 12.34 | 303 / 451 | 220 | 670 / 304 | 4.4 / 111 |
| 10010M1/014BN00 | 1 | 1/0 | 0.08 / 2.03 | 0.526 / 13.36 | 376 / 559 | 260 | 845 / 383 | 4.7 / 120 |
| 10010M2/014BN00 | 1 | 2/0 | 0.08 / 2.03 | 0.569 / 14.45 | 467 / 694 | 300 | 1065 / 483 | 5.1 / 130 |
| 10010M3/014BN00 | 1 | 3/0 | 0.08 / 2.03 | 0.62 / 15.75 | 580 / 864 | 350 | 1336 / 606 | 5.6 / 142 |
| 10010M4/014BN00 | 1 | 4/0 | 0.08 / 2.03 | 0.676 / 17.17 | 723 / 1076 | 405 | 1693 / 768 | 6.1 / 155 |
| 10010M25016BN00 | 1 | 250 | 0.09 / 2.29 | 0.742 / 18.85 | 847 / 1260 | 455 | 2000 / 907 | 6.7 / 170 |
| 10010M35016BN00 | 1 | 350 | 0.09 / 2.29 | 0.845 / 21.46 | 1168 / 1738 | 570 | 2800 / 1270 | 7.6 / 193 |
| 10010M50016BN00 | 1 | 500 | 0.09 / 2.29 | 0.973 / 24.71 | 1646 / 2449 | 700 | 4000 / 1814 | 8.8 / 222 |
| 10010M75016BN00 | 1 | 750 | 0.09 / 2.29 | 1.152 / 29.26 | 2439 / 3629 | 885 | 6000 / 2722 | 10.4 / 263 |
| 10010MA0016BN00 | 1 | 1000 | 0.09 / 2.29 | 1.301 / 33.05 | 3214 / 4782 | 1055 | 8000 / 3629 | 11.7 / 297 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-1.
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
