CSA LSZH Unarmoured Tray Instrumentation | Pairs & Triads (300V)
LSZH Tray Instrumentation cables are used to convert analogue or digital signals. Used when there is a possibility for crosstalk between pairs / triads. Cable can be installed in raceways, direct burial applications and in outdoor exposed Industrial applications,
Construction
Voltage
300V
Optional: 600 / 1000V
Product Construction
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- LSZH outer black jacket rated: 90°C
- Insulation:
- XLPE (RW90 rated)
- rated: 90°C wet / dry
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables (TC))
- CSA C22.2 NO. 239, Control & Instrumentation 1 2Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4,Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
- TC-BCD gas groups rated
Colour Coding
- Pairs – Black, & white, with black printing on white (standard)
- Triads – Black, white & red, with black printing on white (standard)

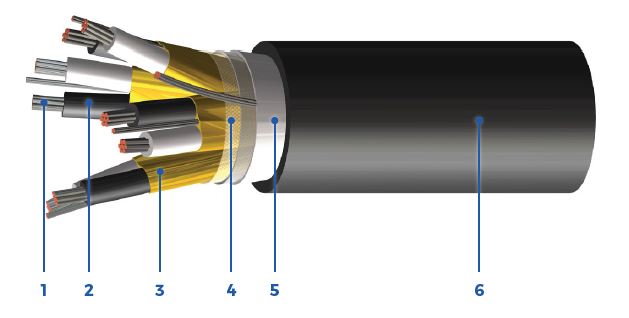

Properties
- Stranded Bare Copper Conductors (TinnedAvailable)
- Halogen Free XLPE (RW90 Rated) Insulated Conductors
- Individual Shield & Overall Shielded Pairs / Triads with Tinned Copper Drain Wire
- Fiberglass Tape
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
- LSZH Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 42021M160110800 | 1 | 16 | 0.327 / 8.31 | 58 / 86 | 41 / 19 | 5.9 / 150 |
| 42022M160210800 | 2 | 16 | 0.479 / 12.16 | 118 / 175 | 82 / 37 | 8.6 / 219 |
| 42022M160410800 | 4 | 16 | 0.588 / 14.94 | 186 / 277 | 165 / 75 | 10.6 / 269 |
| 42022M160610800 | 6 | 16 | 0.7 / 17.78 | 261 / 388 | 247 / 112 | 12.6 / 320 |
| 42022M160810800 | 8 | 16 | 0.758 / 19.26 | 319 / 475 | 330 / 150 | 13.7 / 347 |
| 42022M161210800 | 12 | 16 | 0.961 / 24.42 | 487 / 725 | 494 / 224 | 17.3 / 440 |
| 42022M161610800 | 16 | 16 | 1.068 / 27.13 | 607 / 903 | 659 / 299 | 19.2 / 488 |
| 42022M162410800 | 24 | 16 | 1.319 / 33.51 | 866 / 1289 | 989 / 449 | 23.7 / 603 |
| 42022M163610800 | 36 | 16 | 1.516 / 38.52 | 1206 / 1795 | 1483 / 673 | 27.3 / 693 |
| 42022M180210800 | 2 | 18 | 0.439 / 11.16 | 97 / 145 | 52 / 24 | 7.9 / 201 |
| 42022M180410800 | 4 | 18 | 0.51 / 12.95 | 134 / 199 | 104 / 47 | 9.2 / 233 |
| 42022M180610800 | 6 | 18 | 0.64 / 16.25 | 207 / 308 | 156 / 71 | 11.5 / 293 |
| 42022M180810800 | 8 | 18 | 0.692 / 17.57 | 250 / 372 | 208 / 94 | 12.5 / 316 |
| 42022M181210800 | 12 | 18 | 0.837 / 21.26 | 348 / 517 | 312 / 142 | 15.1 / 383 |
| 42022M181610800 | 16 | 18 | 0.972 / 24.69 | 472 / 703 | 416 / 189 | 17.5 / 444 |
| 42022M182410800 | 24 | 18 | 1.196 / 30.38 | 670 / 998 | 624 / 283 | 21.5 / 547 |
| 42022M183610800 | 36 | 18 | 1.372 / 34.85 | 921 / 1371 | 936 / 425 | 24.7 / 627 |
| 42021M200110800 | 1 | 20 | 0.283 / 7.19 | 41 / 61 | 16 / 7 | 5.1 / 129 |
| 42022M200210800 | 2 | 20 | 0.406 / 10.32 | 81 / 121 | 32 / 15 | 7.3 / 186 |
| 42022M200410800 | 4 | 20 | 0.47 / 11.94 | 109 / 163 | 64 / 29 | 8.5 / 215 |
| 42022M200610800 | 6 | 20 | 0.59 / 14.98 | 171 / 254 | 96 / 44 | 10.6 / 270 |
| 42022M200810800 | 8 | 20 | 0.636 / 16.16 | 204 / 304 | 128 / 58 | 11.5 / 291 |
| 42022M201210800 | 12 | 20 | 0.767 / 19.48 | 281 / 418 | 192 / 87 | 13.8 / 351 |
| 42022M201610800 | 16 | 20 | 0.892 / 22.66 | 382 / 569 | 256 / 116 | 16.1 / 408 |
| 42022M202410800 | 24 | 20 | 1.093 / 27.77 | 537 / 799 | 384 / 174 | 19.7 / 500 |
| 42022M203610800 | 36 | 20 | 1.251 / 31.79 | 729 / 1084 | 576 / 261 | 22.5 / 572 |
TRIADS
| Part Number | Number of Triads | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 42031M160110800 | 1 | 16 | 0.343 / 8.72 | 71 / 106 | 62 / 28 | 6.2 / 157 |
| 42032M160210800 | 2 | 16 | 0.572 / 14.54 | 170 / 254 | 124 / 56 | 10.3 / 262 |
| 42032M160410800 | 4 | 16 | 0.665 / 16.89 | 244 / 364 | 247 / 112 | 12 / 304 |
| 42032M160610800 | 6 | 16 | 0.795 / 20.2 | 347 / 516 | 371 / 168 | 14.3 / 364 |
| 42032M160810800 | 8 | 16 | 0.903 / 22.94 | 469 / 697 | 494 / 224 | 16.3 / 413 |
| 42032M161210800 | 12 | 16 | 1.093 / 27.76 | 660 / 982 | 742 / 336 | 19.7 / 500 |
| 42032M161610800 | 16 | 16 | 1.217 / 30.91 | 823 / 1224 | 989 / 449 | 21.9 / 556 |
| 42032M162410800 | 24 | 16 | 1.509 / 38.34 | 1186 / 1766 | 1483 / 673 | 27.2 / 690 |
| 42031M180110800 | 1 | 18 | 0.317 / 8.06 | 57 / 85 | 39 / 18 | 5.7 / 145 |
| 42032M180210800 | 2 | 18 | 0.496 / 12.59 | 121 / 180 | 78 / 35 | 8.9 / 227 |
| 42032M180410800 | 4 | 18 | 0.608 / 15.44 | 191 / 284 | 156 / 71 | 10.9 / 278 |
| 42032M180610800 | 6 | 18 | 0.724 / 18.39 | 268 / 399 | 234 / 106 | 13 / 331 |
| 42032M180810800 | 8 | 18 | 0.784 / 19.92 | 327 / 487 | 312 / 142 | 14.1 / 359 |
| 42032M181210800 | 12 | 18 | 0.993 / 25.23 | 503 / 748 | 468 / 212 | 17.9 / 454 |
| 42032M181610800 | 16 | 18 | 1.104 / 28.04 | 623 / 927 | 624 / 283 | 19.9 / 505 |
| 42032M182410800 | 24 | 18 | 1.364 / 34.65 | 889 / 1323 | 936 / 425 | 24.6 / 624 |
| 42031M200110800 | 1 | 20 | 0.296 / 7.52 | 48 / 71 | 24 / 11 | 5.3 / 135 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200810800 | 8 | 20 | 0.721 / 18.31 | 261 / 388 | 192 / 87 | 13 / 330 |
| 42032M201210800 | 12 | 20 | 0.913 / 23.19 | 401 / 597 | 288 / 131 | 16.4 / 417 |
| 42032M201610800 | 16 | 20 | 1.012 / 25.71 | 492 / 732 | 384 / 174 | 18.2 / 463 |
| 42032M202410800 | 24 | 20 | 1.247 / 31.67 | 696 / 1036 | 576 / 261 | 22.4 / 570 |
Markets / Applications
- Transit
- OEM
- Transit
- Industrial Construction/Automation
- Industrial
- Utility
Voltage
300V
Optional: 600 / 1000V
Product Construction
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- LSZH outer black jacket rated: 90°C
- Insulation:
- XLPE (RW90 rated)
- rated: 90°C wet / dry
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables (TC))
- CSA C22.2 NO. 239, Control & Instrumentation 1 2Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4,Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
- TC-BCD gas groups rated
Colour Coding
- Pairs – Black, & white, with black printing on white (standard)
- Triads – Black, white & red, with black printing on white (standard)
- Stranded Bare Copper Conductors (TinnedAvailable)
- Halogen Free XLPE (RW90 Rated) Insulated Conductors
- Individual Shield & Overall Shielded Pairs / Triads with Tinned Copper Drain Wire
- Fiberglass Tape
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
- LSZH Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 42021M160110800 | 1 | 16 | 0.327 / 8.31 | 58 / 86 | 41 / 19 | 5.9 / 150 |
| 42022M160210800 | 2 | 16 | 0.479 / 12.16 | 118 / 175 | 82 / 37 | 8.6 / 219 |
| 42022M160410800 | 4 | 16 | 0.588 / 14.94 | 186 / 277 | 165 / 75 | 10.6 / 269 |
| 42022M160610800 | 6 | 16 | 0.7 / 17.78 | 261 / 388 | 247 / 112 | 12.6 / 320 |
| 42022M160810800 | 8 | 16 | 0.758 / 19.26 | 319 / 475 | 330 / 150 | 13.7 / 347 |
| 42022M161210800 | 12 | 16 | 0.961 / 24.42 | 487 / 725 | 494 / 224 | 17.3 / 440 |
| 42022M161610800 | 16 | 16 | 1.068 / 27.13 | 607 / 903 | 659 / 299 | 19.2 / 488 |
| 42022M162410800 | 24 | 16 | 1.319 / 33.51 | 866 / 1289 | 989 / 449 | 23.7 / 603 |
| 42022M163610800 | 36 | 16 | 1.516 / 38.52 | 1206 / 1795 | 1483 / 673 | 27.3 / 693 |
| 42022M180210800 | 2 | 18 | 0.439 / 11.16 | 97 / 145 | 52 / 24 | 7.9 / 201 |
| 42022M180410800 | 4 | 18 | 0.51 / 12.95 | 134 / 199 | 104 / 47 | 9.2 / 233 |
| 42022M180610800 | 6 | 18 | 0.64 / 16.25 | 207 / 308 | 156 / 71 | 11.5 / 293 |
| 42022M180810800 | 8 | 18 | 0.692 / 17.57 | 250 / 372 | 208 / 94 | 12.5 / 316 |
| 42022M181210800 | 12 | 18 | 0.837 / 21.26 | 348 / 517 | 312 / 142 | 15.1 / 383 |
| 42022M181610800 | 16 | 18 | 0.972 / 24.69 | 472 / 703 | 416 / 189 | 17.5 / 444 |
| 42022M182410800 | 24 | 18 | 1.196 / 30.38 | 670 / 998 | 624 / 283 | 21.5 / 547 |
| 42022M183610800 | 36 | 18 | 1.372 / 34.85 | 921 / 1371 | 936 / 425 | 24.7 / 627 |
| 42021M200110800 | 1 | 20 | 0.283 / 7.19 | 41 / 61 | 16 / 7 | 5.1 / 129 |
| 42022M200210800 | 2 | 20 | 0.406 / 10.32 | 81 / 121 | 32 / 15 | 7.3 / 186 |
| 42022M200410800 | 4 | 20 | 0.47 / 11.94 | 109 / 163 | 64 / 29 | 8.5 / 215 |
| 42022M200610800 | 6 | 20 | 0.59 / 14.98 | 171 / 254 | 96 / 44 | 10.6 / 270 |
| 42022M200810800 | 8 | 20 | 0.636 / 16.16 | 204 / 304 | 128 / 58 | 11.5 / 291 |
| 42022M201210800 | 12 | 20 | 0.767 / 19.48 | 281 / 418 | 192 / 87 | 13.8 / 351 |
| 42022M201610800 | 16 | 20 | 0.892 / 22.66 | 382 / 569 | 256 / 116 | 16.1 / 408 |
| 42022M202410800 | 24 | 20 | 1.093 / 27.77 | 537 / 799 | 384 / 174 | 19.7 / 500 |
| 42022M203610800 | 36 | 20 | 1.251 / 31.79 | 729 / 1084 | 576 / 261 | 22.5 / 572 |
TRIADS
| Part Number | Number of Triads | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 42031M160110800 | 1 | 16 | 0.343 / 8.72 | 71 / 106 | 62 / 28 | 6.2 / 157 |
| 42032M160210800 | 2 | 16 | 0.572 / 14.54 | 170 / 254 | 124 / 56 | 10.3 / 262 |
| 42032M160410800 | 4 | 16 | 0.665 / 16.89 | 244 / 364 | 247 / 112 | 12 / 304 |
| 42032M160610800 | 6 | 16 | 0.795 / 20.2 | 347 / 516 | 371 / 168 | 14.3 / 364 |
| 42032M160810800 | 8 | 16 | 0.903 / 22.94 | 469 / 697 | 494 / 224 | 16.3 / 413 |
| 42032M161210800 | 12 | 16 | 1.093 / 27.76 | 660 / 982 | 742 / 336 | 19.7 / 500 |
| 42032M161610800 | 16 | 16 | 1.217 / 30.91 | 823 / 1224 | 989 / 449 | 21.9 / 556 |
| 42032M162410800 | 24 | 16 | 1.509 / 38.34 | 1186 / 1766 | 1483 / 673 | 27.2 / 690 |
| 42031M180110800 | 1 | 18 | 0.317 / 8.06 | 57 / 85 | 39 / 18 | 5.7 / 145 |
| 42032M180210800 | 2 | 18 | 0.496 / 12.59 | 121 / 180 | 78 / 35 | 8.9 / 227 |
| 42032M180410800 | 4 | 18 | 0.608 / 15.44 | 191 / 284 | 156 / 71 | 10.9 / 278 |
| 42032M180610800 | 6 | 18 | 0.724 / 18.39 | 268 / 399 | 234 / 106 | 13 / 331 |
| 42032M180810800 | 8 | 18 | 0.784 / 19.92 | 327 / 487 | 312 / 142 | 14.1 / 359 |
| 42032M181210800 | 12 | 18 | 0.993 / 25.23 | 503 / 748 | 468 / 212 | 17.9 / 454 |
| 42032M181610800 | 16 | 18 | 1.104 / 28.04 | 623 / 927 | 624 / 283 | 19.9 / 505 |
| 42032M182410800 | 24 | 18 | 1.364 / 34.65 | 889 / 1323 | 936 / 425 | 24.6 / 624 |
| 42031M200110800 | 1 | 20 | 0.296 / 7.52 | 48 / 71 | 24 / 11 | 5.3 / 135 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200210800 | 2 | 20 | 0.458 / 11.62 | 101 / 150 | 48 / 22 | 8.2 / 209 |
| 42032M200810800 | 8 | 20 | 0.721 / 18.31 | 261 / 388 | 192 / 87 | 13 / 330 |
| 42032M201210800 | 12 | 20 | 0.913 / 23.19 | 401 / 597 | 288 / 131 | 16.4 / 417 |
| 42032M201610800 | 16 | 20 | 1.012 / 25.71 | 492 / 732 | 384 / 174 | 18.2 / 463 |
| 42032M202410800 | 24 | 20 | 1.247 / 31.67 | 696 / 1036 | 576 / 261 | 22.4 / 570 |
- Transit
- OEM
- Transit
- Industrial Construction/Automation
- Industrial
- Utility
Related products
-
CSA Unarmoured Tray Power Control | Single Conductor (1000V)
Read moreCSA Unarmoured Tray Power Control | Single Conductor (1000V)
Tray Power Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
-
CSA Unarmoured Tray Instrumentation | Pairs & Triads (300V)
Read moreCSA Unarmoured Tray Instrumentation | Pairs & Triads (300V)
Tray Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Tray Instrumentation cables can be installed in raceways, direct burial applications and in outdoor exposed industrial applications.
-
CSA ACIC Armoured Instrumentation | Pairs & Triads (600V)
Read moreCSA ACIC Armoured Instrumentation | Pairs & Triads (600V)
Armoured Instrumentation cables are used to convert analogue or digital signals. Used when there is a possibility for crosstalk between pairs / triads. Interlocked armour replaces the use of conduit for mechanical protection. Cables can be installed in raceways, direct burial applications and in outdoor exposed Industrial applications.
