CSA TYPE ACIC Armoured Instrumentation, 600 V
Armoured Instrumentation cables are used to convert analogue or digital signals. Used when there is a possibility for crosstalk between pairs / triads. Interlocked armour replaces the use of conduit for mechanical protection. Type ACIC Instrumentation cables can be installed in raceways, cable trays, direct burial applications and in outdoor exposed Industrial applications.
Construction
Voltage
600 V Optional: 300, 1000 V
PRODUCT CONSTRUCTION
Insulation:
FR XLPE (RW90 rated) rated: 90°C wet / 105°C dry
PVC (optional)
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer grey jacket rated: 90°C to -40°C
Available in:
Copper taper or braided shield
Custom insulation/jacket colours
Composite constructions
Ribbed inner-jacketed core for vertical/mineshaft applications
Certifications
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 No. 239, Control and instrumentation cables
- CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/ 1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
- HL-BCD gas groups rated
COLOUR CODING
- Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
- Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

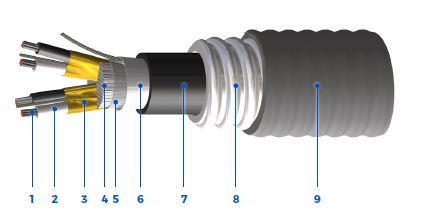

Properties
- Stranded Bare Copper Conductors (Tin-coated Available)
- XLPE (RW90 Rated) Insulated Conductors
- Individually & Overall Shielded Pairs/Triads with Tin-Coated Copper Drain Wire
- Polypropylene Fillers
- Polyester Separator Tape
- Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size | Normal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
lb | kg | in. | mm | ||
| 69221M160108700 | 1 | 16 | 0.327 | 8.3 | 0.567 | 14.4 | 0.679 | 17.3 | 180 | 269 | 41 | 19 | 12.2 | 310 |
| 69222M160208700 | 2 | 16 | 0.494 | 12.6 | 0.734 | 18.7 | 0.846 | 21.5 | 285 | 424 | 82 | 37 | 15.2 | 387 |
| 69222M160408700 | 4 | 16 | 0.608 | 15.5 | 0.848 | 21.5 | 0.960 | 24.4 | 379 | 564 | 165 | 75 | 17.3 | 439 |
| 69222M160608700 | 6 | 16 | 0.732 | 18.6 | 0.972 | 24.7 | 1.084 | 27.5 | 488 | 726 | 247 | 112 | 19.5 | 496 |
| 69222M160818700 | 8 | 16 | 0.797 | 20.3 | 1.037 | 26.3 | 1.149 | 29.2 | 612 | 910 | 330 | 150 | 20.7 | 525 |
| 69222M161218700 | 12 | 16 | 1.010 | 25.6 | 1.250 | 31.8 | 1.362 | 34.6 | 843 | 1254 | 494 | 224 | 24.5 | 623 |
| 69222M161608700 | 16 | 16 | 1.128 | 28.7 | 1.368 | 34.8 | 1.480 | 37.6 | 1003 | 1493 | 659 | 299 | 26.6 | 677 |
| 69222M162418700 | 24 | 16 | 1.406 | 35.7 | 1.646 | 41.8 | 1.778 | 45.2 | 1399 | 2081 | 989 | 449 | 32.0 | 813 |
| 69222M163618700 | 36 | 16 | 1.625 | 41.3 | 1.930 | 49.0 | 2.062 | 52.4 | 1931 | 2874 | 1483 | 673 | 37.1 | 943 |
| 69221M180108700 | 1 | 18 | 0.303 | 7.7 | 0.543 | 13.8 | 0.655 | 16.6 | 165 | 245 | 26 | 12 | 11.8 | 299 |
| 69222M180208700 | 2 | 18 | 0.455 | 11.6 | 0.695 | 17.7 | 0.807 | 20.5 | 250 | 373 | 52 | 24 | 14.5 | 369 |
| 69222M180408700 | 4 | 18 | 0.560 | 14.2 | 0.800 | 20.3 | 0.912 | 23.2 | 325 | 484 | 104 | 47 | 16.4 | 417 |
| 69222M180608700 | 6 | 18 | 0.672 | 17.1 | 0.912 | 23.2 | 1.024 | 26.0 | 411 | 611 | 156 | 71 | 18.4 | 468 |
| 69222M180808700 | 8 | 18 | 0.730 | 18.6 | 0.970 | 24.6 | 1.082 | 27.5 | 470 | 700 | 208 | 94 | 19.5 | 495 |
| 69222M181218700 | 12 | 18 | 0.925 | 23.5 | 1.165 | 29.6 | 1.277 | 32.4 | 695 | 1034 | 312 | 142 | 23.0 | 584 |
| 69222M181618700 | 16 | 18 | 1.032 | 26.2 | 1.272 | 32.3 | 1.384 | 35.2 | 817 | 1216 | 416 | 189 | 24.9 | 633 |
| 69222M182418700 | 24 | 18 | 1.283 | 32.6 | 1.523 | 38.7 | 1.635 | 41.5 | 1092 | 1625 | 624 | 283 | 29.4 | 748 |
| 69222M183618700 | 36 | 18 | 1.480 | 37.6 | 1.720 | 43.7 | 1.852 | 47.1 | 1448 | 2154 | 936 | 425 | 33.3 | 847 |
TRIADS
| Part Number | Number of Pairs | Conductor Size | Normal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
lb | kg | in. | mm | ||
| 69231M160108700 | 1 | 16 | 0.345 | 8.8 | 0.585 | 14.9 | 0.697 | 17.7 | 198 | 295 | 62 | 28 | 12.5 | 319 |
| 69232M160218700 | 2 | 16 | 0.591 | 15.0 | 0.831 | 21.1 | 0.943 | 24.0 | 356 | 530 | 124 | 56 | 17.0 | 431 |
| 69232M160418700 | 4 | 16 | 0.694 | 17.6 | 0.934 | 23.7 | 1.046 | 26.6 | 458 | 681 | 247 | 112 | 18.8 | 478 |
| 69232M160608700 | 6 | 16 | 0.871 | 22.1 | 1.111 | 28.2 | 1.223 | 31.1 | 684 | 1017 | 371 | 168 | 22.0 | 559 |
| 69232M160808700 | 8 | 16 | 0.946 | 24.0 | 1.186 | 30.1 | 1.298 | 33.0 | 795 | 1183 | 494 | 224 | 23.4 | 593 |
| 69232M161208700 | 12 | 16 | 1.156 | 29.4 | 1.396 | 35.5 | 1.508 | 38.3 | 1054 | 1569 | 742 | 336 | 27.2 | 690 |
| 69232M161608700 | 16 | 16 | 1.294 | 32.9 | 1.534 | 39.0 | 1.666 | 42.3 | 1301 | 1936 | 989 | 449 | 30.0 | 762 |
| 69232M162418700 | 24 | 16 | 1.619 | 41.1 | 1.924 | 48.9 | 2.056 | 52.2 | 1880 | 2797 | 1483 | 673 | 37.0 | 940 |
| 69231M180108700 | 1 | 18 | 0.319 | 8.1 | 0.559 | 14.2 | 0.671 | 17.1 | 178 | 265 | 39 | 18 | 12.1 | 307 |
| 69232M180218700 | 2 | 18 | 0.544 | 13.8 | 0.784 | 19.9 | 0.896 | 22.8 | 311 | 464 | 78 | 35 | 16.1 | 410 |
| 69232M180418700 | 4 | 18 | 0.637 | 16.5 | 0.877 | 22.3 | 0.989 | 25.1 | 388 | 578 | 156 | 71 | 17.8 | 452 |
| 69232M180608700 | 6 | 18 | 0.767 | 19.5 | 0.987 | 25.1 | 1.099 | 27.9 | 540 | 803 | 234 | 106 | 19.8 | 503 |
| 69232M180808700 | 8 | 18 | 0.867 | 22.0 | 1.107 | 28.1 | 1.219 | 31.0 | 662 | 985 | 312 | 142 | 21.9 | 557 |
| 69232M181208700 | 12 | 18 | 1.057 | 26.9 | 1.297 | 33.0 | 1.409 | 35.8 | 865 | 1287 | 468 | 212 | 25.4 | 644 |
| 69232M181608700 | 16 | 18 | 1.181 | 30.0 | 1.421 | 36.1 | 1.533 | 38.9 | 1024 | 1524 | 624 | 283 | 27.6 | 701 |
| 69232M182418700 | 24 | 18 | 1.474 | 37.4 | 1.713 | 43.5 | 1.845 | 46.9 | 1425 | 2121 | 936 | 425 | 33.2 | 844 |
Markets / Applications
- Water/Waste Water Treatment
- Industrial
- Petrochem/Pulp & Paper
Voltage
600 V Optional: 300, 1000 V
PRODUCT CONSTRUCTION
Insulation:
FR XLPE (RW90 rated) rated: 90°C wet / 105°C dry
PVC (optional)
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer grey jacket rated: 90°C to -40°C
Available in:
Copper taper or braided shield
Custom insulation/jacket colours
Composite constructions
Ribbed inner-jacketed core for vertical/mineshaft applications
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 No. 239, Control and instrumentation cables
- CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/ 1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
- HL-BCD gas groups rated
COLOUR CODING
- Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
- Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)
- Stranded Bare Copper Conductors (Tin-coated Available)
- XLPE (RW90 Rated) Insulated Conductors
- Individually & Overall Shielded Pairs/Triads with Tin-Coated Copper Drain Wire
- Polypropylene Fillers
- Polyester Separator Tape
- Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size | Normal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
lb | kg | in. | mm | ||
| 69221M160108700 | 1 | 16 | 0.327 | 8.3 | 0.567 | 14.4 | 0.679 | 17.3 | 180 | 269 | 41 | 19 | 12.2 | 310 |
| 69222M160208700 | 2 | 16 | 0.494 | 12.6 | 0.734 | 18.7 | 0.846 | 21.5 | 285 | 424 | 82 | 37 | 15.2 | 387 |
| 69222M160408700 | 4 | 16 | 0.608 | 15.5 | 0.848 | 21.5 | 0.960 | 24.4 | 379 | 564 | 165 | 75 | 17.3 | 439 |
| 69222M160608700 | 6 | 16 | 0.732 | 18.6 | 0.972 | 24.7 | 1.084 | 27.5 | 488 | 726 | 247 | 112 | 19.5 | 496 |
| 69222M160818700 | 8 | 16 | 0.797 | 20.3 | 1.037 | 26.3 | 1.149 | 29.2 | 612 | 910 | 330 | 150 | 20.7 | 525 |
| 69222M161218700 | 12 | 16 | 1.010 | 25.6 | 1.250 | 31.8 | 1.362 | 34.6 | 843 | 1254 | 494 | 224 | 24.5 | 623 |
| 69222M161608700 | 16 | 16 | 1.128 | 28.7 | 1.368 | 34.8 | 1.480 | 37.6 | 1003 | 1493 | 659 | 299 | 26.6 | 677 |
| 69222M162418700 | 24 | 16 | 1.406 | 35.7 | 1.646 | 41.8 | 1.778 | 45.2 | 1399 | 2081 | 989 | 449 | 32.0 | 813 |
| 69222M163618700 | 36 | 16 | 1.625 | 41.3 | 1.930 | 49.0 | 2.062 | 52.4 | 1931 | 2874 | 1483 | 673 | 37.1 | 943 |
| 69221M180108700 | 1 | 18 | 0.303 | 7.7 | 0.543 | 13.8 | 0.655 | 16.6 | 165 | 245 | 26 | 12 | 11.8 | 299 |
| 69222M180208700 | 2 | 18 | 0.455 | 11.6 | 0.695 | 17.7 | 0.807 | 20.5 | 250 | 373 | 52 | 24 | 14.5 | 369 |
| 69222M180408700 | 4 | 18 | 0.560 | 14.2 | 0.800 | 20.3 | 0.912 | 23.2 | 325 | 484 | 104 | 47 | 16.4 | 417 |
| 69222M180608700 | 6 | 18 | 0.672 | 17.1 | 0.912 | 23.2 | 1.024 | 26.0 | 411 | 611 | 156 | 71 | 18.4 | 468 |
| 69222M180808700 | 8 | 18 | 0.730 | 18.6 | 0.970 | 24.6 | 1.082 | 27.5 | 470 | 700 | 208 | 94 | 19.5 | 495 |
| 69222M181218700 | 12 | 18 | 0.925 | 23.5 | 1.165 | 29.6 | 1.277 | 32.4 | 695 | 1034 | 312 | 142 | 23.0 | 584 |
| 69222M181618700 | 16 | 18 | 1.032 | 26.2 | 1.272 | 32.3 | 1.384 | 35.2 | 817 | 1216 | 416 | 189 | 24.9 | 633 |
| 69222M182418700 | 24 | 18 | 1.283 | 32.6 | 1.523 | 38.7 | 1.635 | 41.5 | 1092 | 1625 | 624 | 283 | 29.4 | 748 |
| 69222M183618700 | 36 | 18 | 1.480 | 37.6 | 1.720 | 43.7 | 1.852 | 47.1 | 1448 | 2154 | 936 | 425 | 33.3 | 847 |
TRIADS
| Part Number | Number of Pairs | Conductor Size | Normal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
lb | kg | in. | mm | ||
| 69231M160108700 | 1 | 16 | 0.345 | 8.8 | 0.585 | 14.9 | 0.697 | 17.7 | 198 | 295 | 62 | 28 | 12.5 | 319 |
| 69232M160218700 | 2 | 16 | 0.591 | 15.0 | 0.831 | 21.1 | 0.943 | 24.0 | 356 | 530 | 124 | 56 | 17.0 | 431 |
| 69232M160418700 | 4 | 16 | 0.694 | 17.6 | 0.934 | 23.7 | 1.046 | 26.6 | 458 | 681 | 247 | 112 | 18.8 | 478 |
| 69232M160608700 | 6 | 16 | 0.871 | 22.1 | 1.111 | 28.2 | 1.223 | 31.1 | 684 | 1017 | 371 | 168 | 22.0 | 559 |
| 69232M160808700 | 8 | 16 | 0.946 | 24.0 | 1.186 | 30.1 | 1.298 | 33.0 | 795 | 1183 | 494 | 224 | 23.4 | 593 |
| 69232M161208700 | 12 | 16 | 1.156 | 29.4 | 1.396 | 35.5 | 1.508 | 38.3 | 1054 | 1569 | 742 | 336 | 27.2 | 690 |
| 69232M161608700 | 16 | 16 | 1.294 | 32.9 | 1.534 | 39.0 | 1.666 | 42.3 | 1301 | 1936 | 989 | 449 | 30.0 | 762 |
| 69232M162418700 | 24 | 16 | 1.619 | 41.1 | 1.924 | 48.9 | 2.056 | 52.2 | 1880 | 2797 | 1483 | 673 | 37.0 | 940 |
| 69231M180108700 | 1 | 18 | 0.319 | 8.1 | 0.559 | 14.2 | 0.671 | 17.1 | 178 | 265 | 39 | 18 | 12.1 | 307 |
| 69232M180218700 | 2 | 18 | 0.544 | 13.8 | 0.784 | 19.9 | 0.896 | 22.8 | 311 | 464 | 78 | 35 | 16.1 | 410 |
| 69232M180418700 | 4 | 18 | 0.637 | 16.5 | 0.877 | 22.3 | 0.989 | 25.1 | 388 | 578 | 156 | 71 | 17.8 | 452 |
| 69232M180608700 | 6 | 18 | 0.767 | 19.5 | 0.987 | 25.1 | 1.099 | 27.9 | 540 | 803 | 234 | 106 | 19.8 | 503 |
| 69232M180808700 | 8 | 18 | 0.867 | 22.0 | 1.107 | 28.1 | 1.219 | 31.0 | 662 | 985 | 312 | 142 | 21.9 | 557 |
| 69232M181208700 | 12 | 18 | 1.057 | 26.9 | 1.297 | 33.0 | 1.409 | 35.8 | 865 | 1287 | 468 | 212 | 25.4 | 644 |
| 69232M181608700 | 16 | 18 | 1.181 | 30.0 | 1.421 | 36.1 | 1.533 | 38.9 | 1024 | 1524 | 624 | 283 | 27.6 | 701 |
| 69232M182418700 | 24 | 18 | 1.474 | 37.4 | 1.713 | 43.5 | 1.845 | 46.9 | 1425 | 2121 | 936 | 425 | 33.2 | 844 |
- Water/Waste Water Treatment
- Industrial
- Petrochem/Pulp & Paper
