CSA RWU90 | Single Conductor (1000V)
Construction
Voltage
1000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Available in:
- All colours
Certifications
Certifications/Compliances
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- -40°C cold bend / impact rated
- Direct burial rated
- UV sunlight resistant SUN RES (black only)
Colour Coding
- Black conductor (standard)
Properties

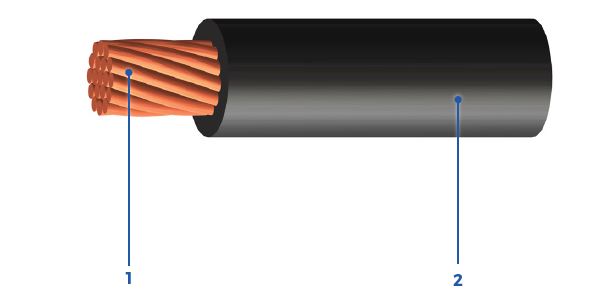

- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Insulation Thickness (in/mm) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 11010M08010BN00 | 1 | 8 | 0.08 / 2.03 | 0.305 / 7.75 | 75 / 111 | 80 | 132 / 60 | 2.7 / 70 |
| 11010M06010BN00 | 1 | 6 | 0.08 / 2.03 | 0.342 / 8.69 | 109 / 162 | 105 | 210 / 95 | 3.1 / 78 |
| 11010M04010BN00 | 1 | 4 | 0.08 / 2.03 | 0.389 / 9.88 | 163 / 242 | 140 | 334 / 151 | 3.5 / 89 |
| 11010M03010BN00 | 1 | 3 | 0.08 / 2.03 | 0.416 / 10.57 | 200 / 297 | 165 | 421 / 191 | 3.7 / 95 |
| 11010M02010BN00 | 1 | 2 | 0.08 / 2.03 | 0.447 / 11.35 | 246 / 366 | 190 | 531 / 241 | 4 / 102 |
| 11010M01014BN00 | 1 | 1 | 0.095 / 2.41 | 0.516 / 13.11 | 312 / 465 | 220 | 670 / 304 | 4.6 / 118 |
| 11010M1/014BN00 | 1 | 1/0 | 0.095 / 2.41 | 0.556 / 14.12 | 386 / 575 | 260 | 845 / 383 | 5 / 127 |
| 11010M2/014BN00 | 1 | 2/0 | 0.095 / 2.41 | 0.599 / 15.21 | 477 / 711 | 300 | 1065 / 483 | 5.4 / 137 |
| 11010M3/014BN00 | 1 | 3/0 | 0.095 / 2.41 | 0.65 / 16.51 | 592 / 882 | 350 | 1336 / 606 | 5.9 / 149 |
| 11010M4/014BN00 | 1 | 4/0 | 0.095 / 2.41 | 0.706 / 17.93 | 736 / 1095 | 405 | 1693 / 768 | 6.4 / 161 |
| 11010M25016BN00 | 1 | 250 | 0.11 / 2.79 | 0.782 / 19.86 | 866 / 1289 | 455 | 2000 / 907 | 7 / 179 |
| 11010M35016BN00 | 1 | 350 | 0.11 / 2.79 | 0.885 / 22.48 | 1190 / 1770 | 570 | 2800 / 1270 | 8 / 202 |
| 11010M50016BN00 | 1 | 500 | 0.11 / 2.79 | 1.013 / 25.73 | 1671 / 2486 | 700 | 4000 / 1814 | 9.1 / 232 |
| 11010MA0016BN00 | 1 | 1000 | 0.125 / 3.18 | 1.371 / 34.82 | 3272 / 4870 | 1055 | 8000 / 3629 | 12.3 / 313 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-1.
Markets / Applications
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
Voltage
1000V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / dry
- Available in:
- All colours
Certifications/Compliances
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- -40°C cold bend / impact rated
- Direct burial rated
- UV sunlight resistant SUN RES (black only)
Colour Coding
- Black conductor (standard)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Insulation Thickness (in/mm) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 11010M08010BN00 | 1 | 8 | 0.08 / 2.03 | 0.305 / 7.75 | 75 / 111 | 80 | 132 / 60 | 2.7 / 70 |
| 11010M06010BN00 | 1 | 6 | 0.08 / 2.03 | 0.342 / 8.69 | 109 / 162 | 105 | 210 / 95 | 3.1 / 78 |
| 11010M04010BN00 | 1 | 4 | 0.08 / 2.03 | 0.389 / 9.88 | 163 / 242 | 140 | 334 / 151 | 3.5 / 89 |
| 11010M03010BN00 | 1 | 3 | 0.08 / 2.03 | 0.416 / 10.57 | 200 / 297 | 165 | 421 / 191 | 3.7 / 95 |
| 11010M02010BN00 | 1 | 2 | 0.08 / 2.03 | 0.447 / 11.35 | 246 / 366 | 190 | 531 / 241 | 4 / 102 |
| 11010M01014BN00 | 1 | 1 | 0.095 / 2.41 | 0.516 / 13.11 | 312 / 465 | 220 | 670 / 304 | 4.6 / 118 |
| 11010M1/014BN00 | 1 | 1/0 | 0.095 / 2.41 | 0.556 / 14.12 | 386 / 575 | 260 | 845 / 383 | 5 / 127 |
| 11010M2/014BN00 | 1 | 2/0 | 0.095 / 2.41 | 0.599 / 15.21 | 477 / 711 | 300 | 1065 / 483 | 5.4 / 137 |
| 11010M3/014BN00 | 1 | 3/0 | 0.095 / 2.41 | 0.65 / 16.51 | 592 / 882 | 350 | 1336 / 606 | 5.9 / 149 |
| 11010M4/014BN00 | 1 | 4/0 | 0.095 / 2.41 | 0.706 / 17.93 | 736 / 1095 | 405 | 1693 / 768 | 6.4 / 161 |
| 11010M25016BN00 | 1 | 250 | 0.11 / 2.79 | 0.782 / 19.86 | 866 / 1289 | 455 | 2000 / 907 | 7 / 179 |
| 11010M35016BN00 | 1 | 350 | 0.11 / 2.79 | 0.885 / 22.48 | 1190 / 1770 | 570 | 2800 / 1270 | 8 / 202 |
| 11010M50016BN00 | 1 | 500 | 0.11 / 2.79 | 1.013 / 25.73 | 1671 / 2486 | 700 | 4000 / 1814 | 9.1 / 232 |
| 11010MA0016BN00 | 1 | 1000 | 0.125 / 3.18 | 1.371 / 34.82 | 3272 / 4870 | 1055 | 8000 / 3629 | 12.3 / 313 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-1.
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Utility
- Commercial Construction Projects
