CSA Riser TECK 90 Armoured Mineshaft | Multi-Conductor Unshielded (1000V)
Riser TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting lengths. Typically used in Mining, Utilities, Industrial and Commercial applications.
Construction
Voltage
1000 V
Optional: 300/600/5000V
Product Construction
- Insulation:
- XLPE (RW90 rated rated: 90°C wet / dry)
- Armour:
- Steel Interlocked Armour (SIA) (standard)-Aluminum Interlocked Armour (AIA) (optional)
- Aluminum Interlocked Armour (AIA) (optional)
- Served Wire Armour (SWA) (optional)
- Jacket:
- FR LAG PVC (AG14 rated) outer black jacket rated: 90°C to -40°C
- Available in:
- Variable Frequency Drive (VFD)
- Custom colour coding
- Custom insulation / jacket colours
- Composite constructions
- Aluminum conductors
- Single conductor
Certifications
Certifications/Compliances
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded

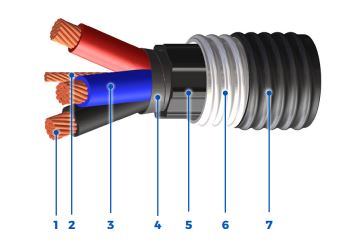

Properties
- Strand Bare (ASTM B8) Annealed Copper Conductors
- Grounding / Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Cloth Backed Rubberized Separator Tape
- Inner Ribbed Jacket
- Steel Interlocked Armour (SIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Numberof Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | Self Support Length (ft/m) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||||
| 80110M1/034070V | 3 | 1/0 | 6 | 1.328 / 33.73 | 1.673 / 42.49 | 1.781 / 45.23 | 3196 / 4755 | 170 | 2534 / 1150 | 32/814 | 715 / 218 |
| 80110M2/034070V | 3 | 2/0 | 6 | 1.42 / 36.08 | 1.83 / 46.49 | 1.938 / 49.24 | 3630 / 5402 | 195 | 3194 / 1449 | 35/886 | 787.9 / 240 |
| 80110M3/034070V | 3 | 3/0 | 4 | 1.53 / 38.86 | 1.94 / 49.28 | 2.048 / 52.02 | 4226 / 6289 | 225 | 4007 / 1818 | 37/936 | 857.9 / 261 |
| 80110M4/034070V | 3 | 4/0 | 4 | 1.65 / 41.92 | 2.06 / 52.33 | 2.168 / 55.08 | 4705 / 7001 | 260 | 5078 / 2304 | 39/991 | 971.5 / 296 |
| 80110M25036070V | 3 | 250 | 4 | 1.852 / 47.05 | 2.262 / 57.46 | 2.394 / 60.82 | 5499 / 8183 | 290 | 6000 / 2722 | 43/1095 | 987.3 / 301 |
| 80110M35036070V | 3 | 350 | 3 | 2.074 / 52.67 | 2.484 / 63.09 | 2.616 / 66.44 | 6876 / 10232 | 350 | 8400 / 3810 | 47/1196 | 1108 / 338 |
| 80110M50036070V | 3 | 500 | 3 | 2.349 / 59.66 | 2.759 / 70.08 | 2.891 / 73.43 | 8807 / 13107 | 430 | 12000 / 5443 | 52/1322 | 1232.4 / 376 |
| 80110M75036070V | 3 | 750 | 2 | 2.734 / 69.44 | 3.206 / 81.44 | 3.352 / 85.15 | 11074 / 16480 | 535 | 18000 / 8165 | 60/1533 | 1475.3 / 450 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
Markets / Applications
- Industrial
- Commercial Construction Projects
- Mining
Voltage
1000 V
Optional: 300/600/5000V
Product Construction
- Insulation:
- XLPE (RW90 rated rated: 90°C wet / dry)
- Armour:
- Steel Interlocked Armour (SIA) (standard)-Aluminum Interlocked Armour (AIA) (optional)
- Aluminum Interlocked Armour (AIA) (optional)
- Served Wire Armour (SWA) (optional)
- Jacket:
- FR LAG PVC (AG14 rated) outer black jacket rated: 90°C to -40°C
- Available in:
- Variable Frequency Drive (VFD)
- Custom colour coding
- Custom insulation / jacket colours
- Composite constructions
- Aluminum conductors
- Single conductor
Certifications/Compliances
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded
- Strand Bare (ASTM B8) Annealed Copper Conductors
- Grounding / Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Cloth Backed Rubberized Separator Tape
- Inner Ribbed Jacket
- Steel Interlocked Armour (SIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Numberof Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | Self Support Length (ft/m) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||||
| 80110M1/034070V | 3 | 1/0 | 6 | 1.328 / 33.73 | 1.673 / 42.49 | 1.781 / 45.23 | 3196 / 4755 | 170 | 2534 / 1150 | 32/814 | 715 / 218 |
| 80110M2/034070V | 3 | 2/0 | 6 | 1.42 / 36.08 | 1.83 / 46.49 | 1.938 / 49.24 | 3630 / 5402 | 195 | 3194 / 1449 | 35/886 | 787.9 / 240 |
| 80110M3/034070V | 3 | 3/0 | 4 | 1.53 / 38.86 | 1.94 / 49.28 | 2.048 / 52.02 | 4226 / 6289 | 225 | 4007 / 1818 | 37/936 | 857.9 / 261 |
| 80110M4/034070V | 3 | 4/0 | 4 | 1.65 / 41.92 | 2.06 / 52.33 | 2.168 / 55.08 | 4705 / 7001 | 260 | 5078 / 2304 | 39/991 | 971.5 / 296 |
| 80110M25036070V | 3 | 250 | 4 | 1.852 / 47.05 | 2.262 / 57.46 | 2.394 / 60.82 | 5499 / 8183 | 290 | 6000 / 2722 | 43/1095 | 987.3 / 301 |
| 80110M35036070V | 3 | 350 | 3 | 2.074 / 52.67 | 2.484 / 63.09 | 2.616 / 66.44 | 6876 / 10232 | 350 | 8400 / 3810 | 47/1196 | 1108 / 338 |
| 80110M50036070V | 3 | 500 | 3 | 2.349 / 59.66 | 2.759 / 70.08 | 2.891 / 73.43 | 8807 / 13107 | 430 | 12000 / 5443 | 52/1322 | 1232.4 / 376 |
| 80110M75036070V | 3 | 750 | 2 | 2.734 / 69.44 | 3.206 / 81.44 | 3.352 / 85.15 | 11074 / 16480 | 535 | 18000 / 8165 | 60/1533 | 1475.3 / 450 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
- Industrial
- Commercial Construction Projects
- Mining
