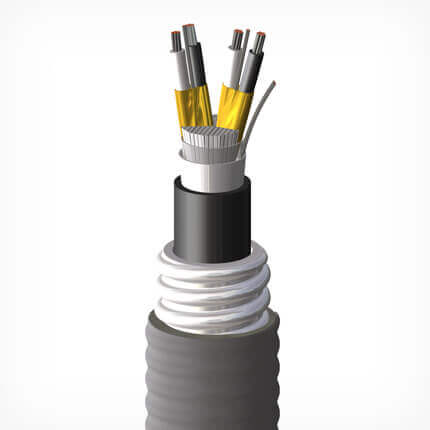

CSA TYPE ACIC Armoured Instrumentation Cables

CSA TYPE ACIC Armoured Instrumentation, 300 V

Armoured Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Type ACIC Instrumentation cables can be installed in raceways, cable trays, direct burial applications and in outdoor exposed industrial applications.

Datasheet (PDF) Contact Us

Construction

VOLTAGE

300 V Optional: 600, 1000 V

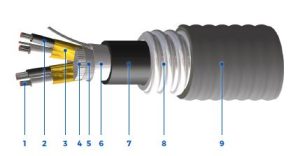

PRODUCT CONSTRUCTION

Insulation:
FR XLPE (RW90 rated) rated: 90°C wet / 105°C dry
PVC (optional)

Shielding (foil-free edge):
ISOS (standard)
OS (optional)

Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)

Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer grey jacket rated: 90°C to -40°C

Available in:
Copper taper or braided shield
Custom insulation / jacket colours
Composite construction
Ribbed inner-jacketed core for vertical/mineshaft applications

Certifications

CERTIFICATIONS/COMPLIANCES

CSA C22.2 No. 239, Control and instrumentation cables
CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations
CSA C22.2 No. 38, Thermoset-insulated wires and cables
CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
IEEE 383/ 1202 (70,000 BTU / hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / 105°C dry
UV sunlight resistant SUN RES (all colours)
Direct burial rated
-40°C cold bend / impact rated
HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
- HL-BCD gas groups rated

COLOUR CODING

Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

Properties

Stranded Bare Copper Conductors (Tin-coated Available) XLPE (RW90 Rated) Insulated Conductors Individually Shielded Pairs/Triads with Tin-coated Copper Drain Wire Polypropylene Fillers Polyester Separator Tape Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire FR LAG PVC Inner Protective Jacket Aluminum Interlocked Armour (AIA) FR LAG PVC Outer Protective Jacket

PAIRS

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64221M160108700	1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
64222M160208700	2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
64222M160408700	4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
64222M160608700	6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
64222M160808700	8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
64222M161208700	12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
64222M161608700	16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
64222M162408700	24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
64222M163608700	36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
64221M180108700	1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
64222M180208700	2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
64222M180408700	4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
64222M180608700	6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
64222M180808700	8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
64222M181208700	12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
64222M181608700	16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
64222M182408700	24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

TRIADS

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64232M181208700	12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
64232M181608700	16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
64232M182408700	24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
64231M200108700	1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
64232M200208700	2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
64232M200608700	6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
64232M200808700	8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
64232M201208700	12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
64232M201608700	16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
64232M202408700	24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648

Markets / Applications

Industrial
Petrochem/Pulp & Paper
Water/Waste Water Treatment

VOLTAGE

300 V Optional: 600, 1000 V

PRODUCT CONSTRUCTION

Insulation:
FR XLPE (RW90 rated) rated: 90°C wet / 105°C dry
PVC (optional)

Shielding (foil-free edge):
ISOS (standard)
OS (optional)

Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)

Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer grey jacket rated: 90°C to -40°C

Available in:
Copper taper or braided shield
Custom insulation / jacket colours
Composite construction
Ribbed inner-jacketed core for vertical/mineshaft applications

CERTIFICATIONS/COMPLIANCES

CSA C22.2 No. 239, Control and instrumentation cables
CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations
CSA C22.2 No. 38, Thermoset-insulated wires and cables
CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
IEEE 383/ 1202 (70,000 BTU / hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / 105°C dry
UV sunlight resistant SUN RES (all colours)
Direct burial rated
-40°C cold bend / impact rated
HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
- HL-BCD gas groups rated

COLOUR CODING

Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

Stranded Bare Copper Conductors (Tin-coated Available) XLPE (RW90 Rated) Insulated Conductors Individually Shielded Pairs/Triads with Tin-coated Copper Drain Wire Polypropylene Fillers Polyester Separator Tape Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire FR LAG PVC Inner Protective Jacket Aluminum Interlocked Armour (AIA) FR LAG PVC Outer Protective Jacket

PAIRS

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64221M160108700	1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
64222M160208700	2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
64222M160408700	4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
64222M160608700	6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
64222M160808700	8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
64222M161208700	12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
64222M161608700	16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
64222M162408700	24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
64222M163608700	36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
64221M180108700	1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
64222M180208700	2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
64222M180408700	4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
64222M180608700	6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
64222M180808700	8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
64222M181208700	12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
64222M181608700	16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
64222M182408700	24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

TRIADS

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64232M181208700	12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
64232M181608700	16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
64232M182408700	24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
64231M200108700	1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
64232M200208700	2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
64232M200608700	6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
64232M200808700	8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
64232M201208700	12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
64232M201608700	16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
64232M202408700	24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648

Industrial
Petrochem/Pulp & Paper
Water/Waste Water Treatment

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64221M160108700	1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
64222M160208700	2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
64222M160408700	4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
64222M160608700	6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
64222M160808700	8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
64222M161208700	12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
64222M161608700	16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
64222M162408700	24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
64222M163608700	36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
64221M180108700	1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
64222M180208700	2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
64222M180408700	4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
64222M180608700	6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
64222M180808700	8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
64222M181208700	12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
64222M181608700	16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
64222M182408700	24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64232M181208700	12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
64232M181608700	16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
64232M182408700	24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
64231M200108700	1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
64232M200208700	2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
64232M200608700	6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
64232M200808700	8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
64232M201208700	12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
64232M201608700	16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
64232M202408700	24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64221M160108700	1	16	0.299 \| 7.6	0.539 \| 13.7	0.651 \| 16.5	168 \| 251	41 \| 19	11.7 \| 298
64222M160208700	2	16	0.448 \| 11.4	0.688 \| 17.5	0.800 \| 20.3	259 \| 385	82 \| 37	14.4 \| 366
64222M160408700	4	16	0.552 \| 14.0	0.792 \| 20.1	0.904 \| 23.0	343 \| 511	165 \| 75	16.3 \| 413
64222M160608700	6	16	0.662 \| 16.8	0.902 \| 22.9	1.014 \| 25.8	438 \| 651	247 \| 112	18.3 \| 464
64222M160808700	8	16	0.719 \| 18.3	0.959 \| 24.4	1.071 \| 27.2	508 \| 756	330 \| 150	19.3 \| 490
64222M161208700	12	16	0.911 \| 23.2	1.151 \| 29.2	1.263 \| 32.1	751 \| 1117	494 \| 224	22.7 \| 578
64222M161608700	16	16	1.016 \| 25.8	1.256 \| 31.9	1.368 \| 34.8	893 \| 1329	659 \| 299	24.6 \| 625
64222M162408700	24	16	1.263 \| 32.1	1.503 \| 38.2	1.615 \| 41.0	1207 \| 1797	989 \| 449	29.1 \| 738
64222M163608700	36	16	1.456 \| 37.0	1.696 \| 43.1	1.828 \| 46.4	1623 \| 2416	1483 \| 673	32.9 \| 836
64221M180108700	1	18	0.275 \| 7.0	0.515 \| 13.1	0.627 \| 15.9	154 \| 229	26 \| 12	11.3 \| 287
64222M180208700	2	18	0.409 \| 10.4	0.649 \| 16.5	0.761 \| 19.3	230 \| 342	52 \| 24	13.7 \| 348
64222M180408700	4	18	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.1	279 \| 416	104 \| 47	14.9 \| 379
64222M180608700	6	18	0.602 \| 15.3	0.842 \| 21.4	0.954 \| 24.2	373 \| 555	156 \| 71	17.2 \| 436
64222M180808700	8	18	0.653 \| 16.6	0.893 \| 22.7	1.005 \| 25.5	426 \| 633	208 \| 94	18.1 \| 459
64222M181208700	12	18	0.795 \| 20.2	1.035 \| 26.3	1.147 \| 29.1	594 \| 884	312 \| 142	20.6 \| 524
64222M181608700	16	18	0.920 \| 23.4	1.160 \| 29.5	1.272 \| 32.3	737 \| 1096	416 \| 189	22.9 \| 582
64222M182408700	24	18	1.139 \| 28.9	1.379 \| 35.0	1.492 \| 37.9	983 \| 1463	624 \| 283	26.8 \| 682

Part Number	Number of Pairs	Conductor Size	Normal Diameters			Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
		AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb\|1000ft \| kg\|km	lb \| kg	in. \| mm
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12.0 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64231M160108700	1	16	0.315 \| 8.0	0.555 \| 14.1	0.667 \| 16.9	184 \| 274	62 \| 28	12 \| 305
64232M160208700	2	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	305 \| 454	124 \| 56	15.5 \| 395
64232M160408700	4	16	0.628 \| 16.0	0.868 \| 22.0	0.980 \| 24.9	416 \| 620	247 \| 112	17.6 \| 448
64232M160608700	6	16	0.756 \| 19.2	0.997 \| 25.3	1.109 \| 28.2	542 \| 807	371 \| 168	20.0 \| 507
64232M160808700	8	16	0.855 \| 21.7	1.095 \| 27.8	1.207 \| 30.7	718 \| 1068	494 \| 224	21.7 \| 552
64232M161208700	12	16	1.042 \| 26.5	1.281 \| 32.6	1.393 \| 35.4	948 \| 1411	742 \| 336	25.1 \| 637
64232M161608700	16	16	1.164 \| 29.6	1.404 \| 35.7	1.516 \| 38.5	1141 \| 1698	989 \| 449	27.3 \| 693
64232M162408700	24	16	1.451 \| 36.9	1.691 \| 43.0	1.823 \| 46.3	1602 \| 2384	1483 \| 673	32.8 \| 834
64231M180108700	1	18	0.289 \| 7.3	0.529 \| 13.4	0.641 \| 16.3	166 \| 246	39 \| 18	11.5 \| 293
64232M180208700	2	18	0.464 \| 11.8	0.704 \| 17.9	0.816 \| 20.7	265 \| 394	78 \| 35	14.7 \| 373
64232M180408700	4	18	0.571 \| 14.5	0.811 \| 20.6	0.923 \| 23.4	352 \| 523	156 \| 71	16.6 \| 422
64232M180608700	6	18	0.685 \| 17.4	0.925 \| 23.5	1.037 \| 26.3	449 \| 668	234 \| 106	18.7 \| 474
64232M180808700	8	18	0.744 \| 18.9	0.984 \| 25.0	1.096 \| 27.8	520 \| 774	312 \| 142	19.7 \| 501
64232M181208700	12	18	0.942 \| 23.9	1.182 \| 30.0	1.294 \| 32.9	769 \| 1144	468 \| 212	23.3 \| 592
64232M181608700	16	18	1.050 \| 26.7	1.290 \| 32.8	1.402 \| 35.6	915 \| 1361	624 \| 283	25.2 \| 641
64232M182408700	24	18	1.306 \| 33.2	1.546 \| 39.3	1.678 \| 42.6	1269 \| 1888	936 \| 425	30.2 \| 767
64231M200108700	1	20	0.246 \| 6.3	0.486 \| 12.4	0.598 \| 15.2	144 \| 214	24 \| 11	10.8 \| 273
64232M200208700	2	20	0.387 \| 9.8	0.627 \| 15.9	0.739 \| 18.8	218 \| 325	48 \| 22	13.3 \| 338
64232M200608700	6	20	0.567 \| 14.4	0.807 \| 20.5	0.919 \| 23.3	353 \| 525	144 \| 65	16.5 \| 420
64232M200808700	8	20	0.614 \| 15.6	0.854 \| 21.7	0.966 \| 24.5	403 \| 599	192 \| 87	17.4 \| 442
64232M201208700	12	20	0.745 \| 18.9	0.985 \| 25.0	1.097 \| 27.9	518 \| 771	288 \| 131	19.8 \| 502
64232M201608700	16	20	0.863 \| 21.9	1.103 \| 28.0	1.215 \| 30.9	694 \| 1032	384 \| 174	21.9 \| 556
64232M202408700	24	20	1.066 \| 27.1	1.305 \| 33.2	1.418 \| 36.0	921 \| 1370	576 \| 261	25.5 \| 648

CSA TYPE ACIC Armoured Instrumentation, 300 V

Construction

VOLTAGE

PRODUCT CONSTRUCTION

Certifications

CERTIFICATIONS/COMPLIANCES

COLOUR CODING

Properties

PAIRS

TRIADS

Markets / Applications

VOLTAGE

PRODUCT CONSTRUCTION

CERTIFICATIONS/COMPLIANCES

COLOUR CODING

PAIRS

TRIADS

Related products

CSA TYPE RW90 CIC TC Tray VFD, Multi-Conductor, 1000 V

CSA TYPE RW90 CIC TC Tray VFD, Multi-Conductor, 1000 V

CSA TYPE TECK 90 Armoured Vertical Mineshaft, 1000 V

CSA TYPE TECK 90 Armoured Vertical Mineshaft, 1000 V

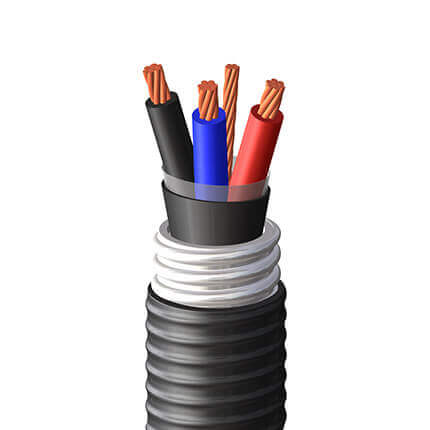

CSA TYPE TECK 90 Armoured Power, Multi-Conductor, 1000 V

CSA TYPE TECK 90 Armoured Power, Multi-Conductor, 1000 V
