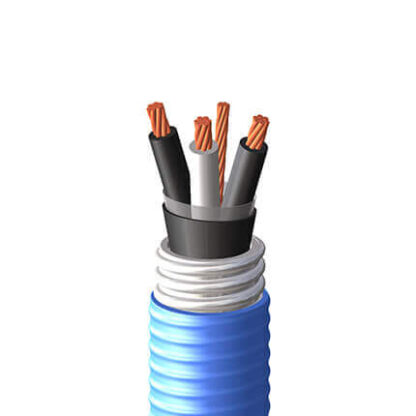

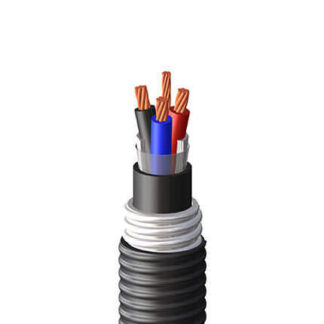

CSA ARMCON Armoured Control | Multi-Conductor (600V)
Unshielded armoured control cable is used for operation of control automation equipment. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
Construction
Voltage
600 V
Optional: 300 / 1000V
Product Construction
Insulation:
- XLPE (RW90 rated)rated: 90°C wet / 105°C dry
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
Shielding (foil-free edge):
-
- ISOS (optional)
- OS (optional)
Armour:
-
- Aluminum Interlocked Armour (AIA) (standard)
- Steel Interlocked Armour (SIA) (optional)
- Serve Wire Armour (SWA) (optional)
Jacket:
-
- FR LAG PVC (AG14 rated) outer blue jacket rated: 90°C to -40°C
Available in:
-
- Verlock® (for mineshaft applications)
- Custom insulation / jacket colours
- Composite constructions & Cables (XLPE)
Certifications
Certifications/Compliances
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
Colour Coding
- First conductor white, all remaining conductors are black number coded

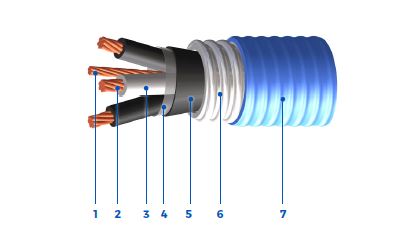

Properties
- Stranded Bare Copper Conductors (Tinned Available)
- Grounding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M160209714 | 2 | 16 | 16 | 0.326 / 8.28 | 0.566 / 14.38 | 0.678 / 17.22 | 185 / 276 | 10 | 41 / 19 | 12.2 / 310 |
| 69210M160309714 | 3 | 16 | 16 | 0.354 / 8.98 | 0.594 / 15.08 | 0.706 / 17.92 | 206 / 306 | 10 | 62 / 28 | 12.7 / 323 |
| 69210M160409714 | 4 | 16 | 16 | 0.384 / 9.74 | 0.624 / 15.84 | 0.736 / 18.69 | 227 / 338 | 8 | 82 / 37 | 13.2 / 336 |
| 69210M160509714 | 5 | 16 | 16 | 0.41 / 10.41 | 0.65 / 16.52 | 0.762 / 19.36 | 249 / 370 | 8 | 103 / 47 | 13.7 / 348 |
| 69210M160609714 | 6 | 16 | 16 | 0.446 / 11.33 | 0.686 / 17.42 | 0.798 / 20.27 | 273 / 406 | 8 | 124 / 56 | 14.4 / 365 |
| 69210M160709714 | 7 | 16 | 16 | 0.482 / 12.24 | 0.722 / 18.33 | 0.834 / 21.18 | 298 / 443 | 7 | 144 / 65 | 15 / 381 |
| 69210M160809714 | 8 | 16 | 16 | 0.545 / 13.85 | 0.785 / 19.94 | 0.897 / 22.79 | 345 / 513 | 7 | 165 / 75 | 16.1 / 410 |
| 69210M161009714 | 10 | 16 | 16 | 0.592 / 15.04 | 0.832 / 21.13 | 0.944 / 23.98 | 381 / 567 | 7 | 206 / 93 | 17 / 432 |
| 69210M161209714 | 12 | 16 | 16 | 0.61 / 15.49 | 0.85 / 21.59 | 0.962 / 24.44 | 410 / 610 | 7 | 247 / 112 | 17.3 / 440 |
| 69210M161509714 | 15 | 16 | 16 | 0.658 / 16.71 | 0.898 / 22.81 | 1.01 / 25.66 | 460 / 684 | 7 | 309 / 140 | 18.2 / 462 |
| 69210M162009714 | 20 | 16 | 16 | 0.748 / 19 | 0.988 / 25.09 | 1.1 / 27.93 | 554 / 824 | 7 | 412 / 187 | 19.8 / 503 |
| 69210M162509714 | 25 | 16 | 16 | 0.864 / 21.95 | 1.104 / 28.04 | 1.216 / 30.89 | 727 / 1082 | 6 | 515 / 234 | 21.9 / 556 |
| 69210M163009714 | 30 | 16 | 16 | 0.913 / 23.2 | 1.153 / 29.29 | 1.265 / 32.13 | 801 / 1192 | 6 | 618 / 280 | 22.8 / 578 |
| 69210M164009714 | 40 | 16 | 16 | 1.02 / 25.91 | 1.26 / 32 | 1.372 / 34.84 | 972 / 1447 | 6 | 824 / 374 | 24.7 / 627 |
| 69210M165009714 | 50 | 16 | 16 | 1.133 / 28.77 | 1.373 / 34.87 | 1.485 / 37.71 | 1135 / 1689 | 5 | 1030 / 467 |
26.7 / 679 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
Markets / Applications
- Transit
- Water/Waste Water Treatment
- Communication Power & Control
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Commercial Construction Projects
- Mining
Voltage
600 V
Optional: 300 / 1000V
Product Construction
Insulation:
- XLPE (RW90 rated)rated: 90°C wet / 105°C dry
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
Shielding (foil-free edge):
-
- ISOS (optional)
- OS (optional)
Armour:
-
- Aluminum Interlocked Armour (AIA) (standard)
- Steel Interlocked Armour (SIA) (optional)
- Serve Wire Armour (SWA) (optional)
Jacket:
-
- FR LAG PVC (AG14 rated) outer blue jacket rated: 90°C to -40°C
Available in:
-
- Verlock® (for mineshaft applications)
- Custom insulation / jacket colours
- Composite constructions & Cables (XLPE)
Certifications/Compliances
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
Colour Coding
- First conductor white, all remaining conductors are black number coded
- Stranded Bare Copper Conductors (Tinned Available)
- Grounding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
| 69210M160209714 | 2 | 16 | 16 | 0.326 / 8.28 | 0.566 / 14.38 | 0.678 / 17.22 | 185 / 276 | 10 | 41 / 19 | 12.2 / 310 |
| 69210M160309714 | 3 | 16 | 16 | 0.354 / 8.98 | 0.594 / 15.08 | 0.706 / 17.92 | 206 / 306 | 10 | 62 / 28 | 12.7 / 323 |
| 69210M160409714 | 4 | 16 | 16 | 0.384 / 9.74 | 0.624 / 15.84 | 0.736 / 18.69 | 227 / 338 | 8 | 82 / 37 | 13.2 / 336 |
| 69210M160509714 | 5 | 16 | 16 | 0.41 / 10.41 | 0.65 / 16.52 | 0.762 / 19.36 | 249 / 370 | 8 | 103 / 47 | 13.7 / 348 |
| 69210M160609714 | 6 | 16 | 16 | 0.446 / 11.33 | 0.686 / 17.42 | 0.798 / 20.27 | 273 / 406 | 8 | 124 / 56 | 14.4 / 365 |
| 69210M160709714 | 7 | 16 | 16 | 0.482 / 12.24 | 0.722 / 18.33 | 0.834 / 21.18 | 298 / 443 | 7 | 144 / 65 | 15 / 381 |
| 69210M160809714 | 8 | 16 | 16 | 0.545 / 13.85 | 0.785 / 19.94 | 0.897 / 22.79 | 345 / 513 | 7 | 165 / 75 | 16.1 / 410 |
| 69210M161009714 | 10 | 16 | 16 | 0.592 / 15.04 | 0.832 / 21.13 | 0.944 / 23.98 | 381 / 567 | 7 | 206 / 93 | 17 / 432 |
| 69210M161209714 | 12 | 16 | 16 | 0.61 / 15.49 | 0.85 / 21.59 | 0.962 / 24.44 | 410 / 610 | 7 | 247 / 112 | 17.3 / 440 |
| 69210M161509714 | 15 | 16 | 16 | 0.658 / 16.71 | 0.898 / 22.81 | 1.01 / 25.66 | 460 / 684 | 7 | 309 / 140 | 18.2 / 462 |
| 69210M162009714 | 20 | 16 | 16 | 0.748 / 19 | 0.988 / 25.09 | 1.1 / 27.93 | 554 / 824 | 7 | 412 / 187 | 19.8 / 503 |
| 69210M162509714 | 25 | 16 | 16 | 0.864 / 21.95 | 1.104 / 28.04 | 1.216 / 30.89 | 727 / 1082 | 6 | 515 / 234 | 21.9 / 556 |
| 69210M163009714 | 30 | 16 | 16 | 0.913 / 23.2 | 1.153 / 29.29 | 1.265 / 32.13 | 801 / 1192 | 6 | 618 / 280 | 22.8 / 578 |
| 69210M164009714 | 40 | 16 | 16 | 1.02 / 25.91 | 1.26 / 32 | 1.372 / 34.84 | 972 / 1447 | 6 | 824 / 374 | 24.7 / 627 |
| 69210M165009714 | 50 | 16 | 16 | 1.133 / 28.77 | 1.373 / 34.87 | 1.485 / 37.71 | 1135 / 1689 | 5 | 1030 / 467 |
26.7 / 679 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
- Transit
- Water/Waste Water Treatment
- Communication Power & Control
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Commercial Construction Projects
- Mining
