CSA ACIC Armoured Fieldbus/Profibus PA | Pairs (300/600V)
Fieldbus is the Process Industries digital replacement for analog 4-20mA transmission of process variables. Depending mainly on the current requirement of each device, up to 32 sensors and actuators are possible on a Fieldbus link with a maximum transmission distance of 1900m.

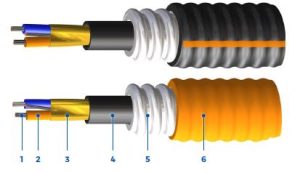

Construction
VOLTAGE
300 / 600V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR PVC outer orange jacket (standard for Fieldbus) rated: 90°C to -40°C
FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
Black with integral orange stripe (optional)
Blue for Intrinsically Safe applications
Available in:
Custom insulation / jacket colours
Green bonding conductor
LSZH jacket
Marine / shipboard cable types
Certifications
CERTIFICATIONS/COMPLIANCES
- Foundation Fieldbus Spec. FF-844, Type H1
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- HL-BCD gas groups rated
COLOUR CODING
- Blue and Orange conductors (standard)
Properties
|
|
 |
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft) /(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||
| 6F221M140115700 | 1 | 14 | 0.405 / 10.29 | 0.625 / 15.87 | 0.737 / 18.72 | 215 / 320 | 66 / 30 | 13.3 / 337 |
| 6F222M140215700 | 2 | 14 | 0.64 / 16.25 | 0.856 / 21.73 | 0.968 / 24.58 | 377 / 561 | 132 / 60 | 17.4 / 442 |
| 6F222M140415700 | 4 | 14 | 0.749 / 19.01 | 0.965 / 24.51 | 1.077 / 27.35 | 484 / 720 | 263 / 119 | 19.4 / 492 |
| 6F222M140615700 | 6 | 14 | 0.942 / 23.93 | 1.15 / 29.21 | 1.262 / 32.06 | 724 / 1077 | 395 / 179 | 22.7 / 577 |
| 6F222M141215700 | 12 | 14 | 1.245 / 31.63 | 1.453 / 36.91 | 1.565 / 39.76 | 1126 / 1675 | 790 / 358 | 28.2 / 716 |
| 6F222M142415700 | 24 | 14 | 1.796 / 45.62 | 2.061 / 52.36 | 2.193 / 55.71 | 2115 / 3148 | 1579 / 716 | 39.5 / 1003 |
| 6F221M160115700 | 1 | 16 | 0.347 / 8.81 | 0.567 / 14.4 | 0.679 / 17.25 | 182 / 271 | 41 / 19 | 12.2 / 310 |
| 6F222M160215700 | 2 | 16 | 0.514 / 13.06 | 0.734 / 18.66 | 0.846 / 21.5 | 289 / 429 | 82 / 37 | 15.2 / 387 |
| 6F222M160415700 | 4 | 16 | 0.632 / 16.06 | 0.848 / 21.54 | 0.96 / 24.39 | 387 / 575 | 165 / 75 | 17.3 / 439 |
| 6F222M160615700 | 6 | 16 | 0.756 / 19.21 | 0.972 / 24.69 | 1.084 / 27.54 | 499 / 743 | 247 / 112 | 19.5 / 496 |
| 6F222M161215700 | 12 | 16 | 1.042 / 26.46 | 1.25 / 31.75 | 1.362 / 34.59 | 866 / 1289 | 494 / 224 | 24.5 / 623 |
| 6F222M162415700 | 24 | 16 | 1.438 / 36.54 | 1.646 / 41.82 | 1.778 / 45.17 | 1446 / 2151 | 989 / 449 | 32 / 813 |
| 6F221M180115700 | 1 | 18 | 0.303 / 7.7 | 0.523 / 13.28 | 0.635 / 16.13 | 158 / 235 | 26 / 12 | 11.4 / 290 |
| 6F222M180215700 | 2 | 18 | 0.442 / 11.22 | 0.662 / 16.81 | 0.774 / 19.65 | 237 / 353 | 52 / 24 | 13.9 / 354 |
| 6F222M180415700 | 4 | 18 | 0.514 / 13.06 | 0.734 / 18.64 | 0.846 / 21.49 | 292 / 435 | 104 / 47 | 15.2 / 387 |
| 6F222M180615700 | 6 | 18 | 0.646 / 16.41 | 0.862 / 21.89 | 0.974 / 24.74 | 391 / 582 | 156 / 71 | 17.5 / 445 |
| 6F222M181215700 | 12 | 18 | 0.887 / 22.53 | 1.095 / 27.82 | 1.207 / 30.66 | 662 / 985 | 312 / 142 | 21.7 / 552 |
| 6F222M182415700 | 24 | 18 | 1.213 / 30.8 | 1.421 / 36.08 | 1.533 / 38.93 | 1042 / 1551 | 624 / 283 | 27.6 / 701 |
| 6F221M14011V700 | 1 | 14 | 0.405 / 10.29 | 0.625 / 15.87 | 0.737 / 18.72 | 215 / 320 | 66 / 30 | 13.3 / 337 |
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | OD Over Inner Jacket (in/mm) | Normal Diameters | Cable Weight (lbs/1000ft) /(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||
| 6F222M14021V700 | 2 | 14 | 0.64 / 16.25 | 0.856 / 21.73 | 0.968 / 24.58 | 377 / 561 | 132 / 60 | 17.4 / 442 |
| 6F222M14041V700 | 4 | 14 | 0.749 / 19.01 | 0.965 / 24.51 | 1.077 / 27.35 | 484 / 720 | 263 / 119 | 19.4 / 492 |
| 6F222M14061V700 | 6 | 14 | 0.942 / 23.93 | 1.15 / 29.21 | 1.262 / 32.06 | 724 / 1077 | 395 / 179 | 22.7 / 577 |
| 6F222M14121V700 | 12 | 14 | 1.245 / 31.63 | 1.453 / 36.91 | 1.565 / 39.76 | 1126 / 1675 | 790 / 358 | 28.2 / 716 |
| 6F222M14241V700 | 24 | 14 | 1.796 / 45.62 | 2.061 / 52.36 | 2.193 / 55.71 | 2115 / 3148 | 1579 / 716 | 39.5 / 1003 |
| 6F221M16011V700 | 1 | 16 | 0.347 / 8.81 | 0.567 / 14.4 | 0.679 / 17.25 | 182 / 271 | 41 / 19 | 12.2 / 310 |
| 6F222M16021V700 | 2 | 16 | 0.514 / 13.06 | 0.734 / 18.66 | 0.846 / 21.5 | 289 / 429 | 82 / 37 | 15.2 / 387 |
| 6F222M16041V700 | 4 | 16 | 0.632 / 16.06 | 0.848 / 21.54 | 0.96 / 24.39 | 387 / 575 | 165 / 75 | 17.3 / 439 |
| 6F222M16061V700 | 6 | 16 | 0.756 / 19.21 | 0.972 / 24.69 | 1.084 / 27.54 | 499 / 743 | 247 / 112 | 19.5 / 496 |
| 6F222M16121V700 | 12 | 16 | 1.042 / 26.46 | 1.25 / 31.75 | 1.362 / 34.59 | 866 / 1289 | 494 / 224 | 24.5 / 623 |
| 6F222M16241V700 | 24 | 16 | 1.438 / 36.54 | 1.646 / 41.82 | 1.778 / 45.17 | 1446 / 2151 | 989 / 449 | 32 / 813 |
| 6F221M18011V700 | 1 | 18 | 0.303 / 7.7 | 0.523 / 13.28 | 0.635 / 16.13 | 158 / 235 | 26 / 12 | 11.4 / 290 |
| 6F222M18021V700 | 2 | 18 | 0.442 / 11.22 | 0.662 / 16.81 | 0.774 / 19.65 | 237 / 353 | 52 / 24 | 13.9 / 354 |
| 6F222M18041V700 | 4 | 18 | 0.514 / 13.06 | 0.734 / 18.64 | 0.846 / 21.49 | 292 / 435 | 104 / 47 | 15.2 / 387 |
| 6F222M18061V700 | 6 | 18 | 0.646 / 16.41 | 0.862 / 21.89 | 0.974 / 24.74 | 391 / 582 | 156 / 71 | 17.5 / 445 |
| 6F222M18121V700 | 12 | 18 | 0.887 / 22.53 | 1.095 / 27.82 | 1.207 / 30.66 | 662 / 985 | 312 / 142 | 21.7 / 552 |
| 6F222M18241V700 | 24 | 18 | 1.213 / 30.8 | 1.421 / 36.08 | 1.533 / 38.93 | 1042 / 1551 | 624 / 283 | 27.6 / 701 |
Markets / Applications
This product does not currently have any associated applications. Please check back at a later date.
