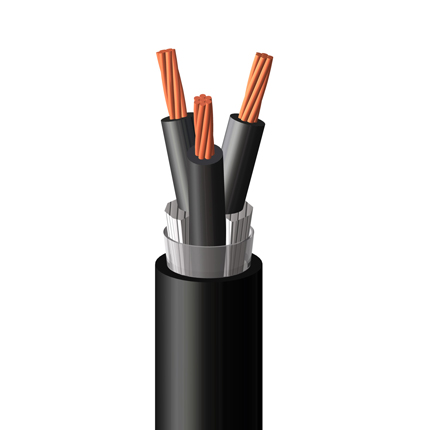

UL Unarmored Tray Power | Multi-Conductor (600/1000V)
Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
600V, 1000V (optional)
Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- VW-1 rated (optional)
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Black conductors (standard)
- Method K1 or K2 (optional)
- Method 4 (optional)

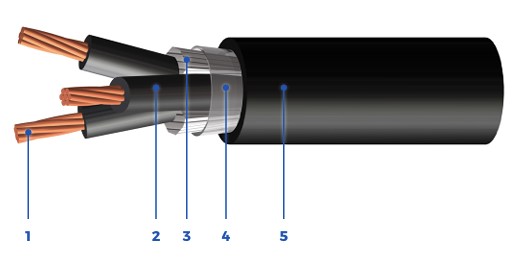

Properties
- Strand Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U140200300 | 2 | 14 | 0.372 / 9.45 | 72 / 108 | 25 | 66 / 30 | 3.3 / 85 |
| 2C010U120200300 | 2 | 12 | 0.408 / 10.36 | 95 / 141 | 30 | 104 / 47 | 3.7 / 93 |
| 2C010U100200300 | 2 | 10 | 0.458 / 11.63 | 128 / 191 | 40 | 166 / 75 | 4.1 / 105 |
| 2C010U080200300 | 2 | 8 | 0.606 / 15.39 | 218 / 324 | 55 | 265 / 120 | 5.5 / 139 |
| 2C010U060200300 | 2 | 6 | 0.684 / 17.37 | 298 / 443 | 75 | 419 / 190 | 6.2 / 156 |
| 2C010U040200300 | 2 | 4 | 0.778 / 19.76 | 426 / 634 | 95 | 668 / 303 | 7 / 178 |
| 2C010U030200300 | 2 | 3 | 0.832 / 21.13 | 511 / 761 | 115 | 842 / 382 | 7.5 / 190 |
| 2C010U020200300 | 2 | 2 | 0.934 / 23.72 | 656 / 977 | 130 | 1062 / 482 | 8.4 / 214 |
| 2C010U010240300 | 2 | 1 | 1.052 / 26.72 | 816 / 1214 | 145 | 1339 / 607 | 9.5 / 240 |
| 2C010U1/0240300 | 2 | 1/0 | 1.132 / 28.75 | 991 / 1474 | 170 | 1690 / 766 | 10.2 / 259 |
| 2C010U2/0240300 | 2 | 2/0 | 1.218 / 30.94 | 1202 / 1789 | 195 | 2130 / 966 | 11 / 278 |
| 2C010U3/0240300 | 2 | 3/0 | 1.32 / 33.53 | 1468 / 2184 | 225 | 2671 / 1212 | 11.9 / 302 |
| 2C010U4/0240300 | 2 | 4/0 | 1.432 / 36.37 | 1799 / 2677 | 260 | 3386 / 1536 | 12.9 / 327 |
| 2C010U250260300 | 2 | 250 | 1.564 / 39.73 | 2099 / 3123 | 290 | 4000 / 1814 | 14.1 / 358 |
| 2C010U300260300 | 2 | 300 | 1.67 / 42.42 | 2465 / 3668 | 320 | 4800 / 2177 | 15 / 382 |
| 2C010U350260300 | 2 | 350 | 1.83 / 46.48 | 2939 / 4373 | 350 | 5600 / 2540 | 16.5 / 418 |
| 2C010U500260300 | 2 | 500 | 2.086 / 52.98 | 4036 / 6007 | 430 | 8000 / 3629 | 18.8 / 477 |
| 2C010U140300300 | 3 | 14 | 0.392 / 9.96 | 90 / 134 | 25 | 99 / 45 | 3.5 / 90 |
| 2C010U120300300 | 3 | 12 | 0.431 / 10.94 | 122 / 182 | 30 | 157 / 71 | 3.9 / 98 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16).
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U100300300 | 3 | 10 | 0.484 / 12.3 | 168 / 250 | 40 | 249 / 113 | 4.4 / 111 |
| 2C010U080300300 | 3 | 8 | 0.641 / 16.29 | 285 / 424 | 55 | 397 / 180 | 5.8 / 147 |
| 2C010U060300300 | 3 | 6 | 0.725 / 18.41 | 398 / 592 | 75 | 629 / 285 | 6.5 / 166 |
| 2C010U040300300 | 3 | 4 | 0.826 / 20.98 | 577 / 859 | 95 | 1002 / 454 | 7.4 / 189 |
| 2C010U030300300 | 3 | 3 | 0.924 / 23.47 | 736 / 1096 | 115 | 1263 / 573 | 8.3 / 211 |
| 2C010U020300300 | 3 | 2 | 0.991 / 25.16 | 886 / 1319 | 130 | 1593 / 723 | 8.9 / 226 |
| 2C010U010340300 | 3 | 10 | 1.117 / 28.38 | 1110 / 1652 | 145 | 2009 / 911 | 10.1 / 255 |
| 2C010U1/0340300 | 3 | 1/0 | 1.203 / 30.57 | 1359 / 2022 | 170 | 2534 / 1150 | 10.8 / 275 |
| 2C010U2/0340300 | 3 | 2/0 | 1.296 / 32.92 | 1657 / 2465 | 195 | 3194 / 1449 | 11.7 / 296 |
| 2C010U3/0340300 | 3 | 3/0 | 1.406 / 35.7 | 2034 / 3027 | 225 | 4007 / 1818 | 12.6 / 321 |
| 2C010U4/0340300 | 3 | 4/0 | 1.526 / 38.76 | 2501 / 3722 | 260 | 5078 / 2304 | 13.7 / 349 |
| 2C010U250360300 | 3 | 250 | 1.668 / 42.36 | 2927 / 4356 | 290 | 6000 / 2722 | 15 / 381 |
| 2C010U300360300 | 3 | 300 | 1.842 / 46.78 | 3556 / 5292 | 320 | 7200 / 3266 | 16.6 / 421 |
| 2C010U350360300 | 3 | 350 | 1.949 / 49.51 | 4089 / 6086 | 350 | 8400 / 3810 | 17.5 / 446 |
| 2C010U500360300 | 3 | 500 | 2.224 / 56.5 | 5662 / 8426 | 430 | 12000 / 5443 | 20 / 509 |
| 2C010U750360300 | 3 | 750 | 2.674 / 67.91 | 8362 / 12444 | 535 | 18000 / 8165 | 24.1 / 611 |
| 2C010U140400300 | 4 | 14 | 0.426 / 10.83 | 111 / 166 | 20 | 132 / 60 | 3.8 / 97 |
| 2C010U120400300 | 4 | 12 | 0.47 / 11.94 | 150 / 224 | 24 | 209 / 95 | 4.2 / 107 |
| 2C010U100400300 | 4 | 10 | 0.53 / 13.46 | 214 / 318 | 32 | 332 / 151 | 4.8 / 121 |
| 2C010U080400300 | 4 | 8 | 0.702 / 17.84 | 357 / 531 | 44 | 529 / 240 | 6.3 / 161 |
| 2C010U060400300 | 4 | 6 | 0.796 / 20.21 | 504 / 750 | 60 | 839 / 380 | 7.2 / 182 |
| 2C010U040400300 | 4 | 4 | 0.949 / 24.1 | 776 / 1154 | 76 | 1336 / 606 | 8.5 / 217 |
| 2C010U030400300 | 4 | 3 | 1.014 / 25.75 | 935 / 1392 | 92 | 1684 / 764 | 9.1 / 232 |
| 2C010U020400300 | 4 | 2 | 1.088 / 27.65 | 1143 / 1701 | 104 | 2124 / 964 | 9.8 / 249 |
| 2C010U010440300 | 4 | 1 | 1.231 / 31.26 | 1429 / 2127 | 116 | 2678 / 1215 | 11.1 / 281 |
| 2C010U1/0440300 | 4 | 1/0 | 1.327 / 33.71 | 1751 / 2605 | 136 | 3379 / 1533 | 11.9 / 303 |
| 2C010U2/0440300 | 4 | 2/0 | 1.431 / 36.34 | 2143 / 3189 | 156 | 4259 / 1932 | 12.9 / 327 |
| 2C010U4/0440300 | 4 | 4/0 | 1.749 / 44.41 | 3368 / 5012 | 208 | 6771 / 3071 | 15.7 / 400 |
| 2C010U250460300 | 4 | 250 | 1.908 / 48.46 | 3927 / 5844 | 232 | 8000 / 3629 | 17.2 / 436 |
| 2C010U300460300 | 4 | 300 | 2.035 / 51.7 | 4630 / 6890 | 256 | 9600 / 4355 | 18.3 / 465 |
| 2C010U350460300 | 4 | 350 | 2.156 / 54.76 | 5329 / 7931 | 280 | 11200 / 5080 | 19.4 / 493 |
| 2C010U500460300 | 4 | 500 | 2.464 / 62.6 | 7406 / 11021 | 344 | 16000 / 7258 | 22.2 / 563 |
| 2C010U750460300 | 4 | 750 | 3.028 / 76.91 | 11138 / 16575 | 428 | 24000 / 10886 | 27.3 / 692 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Per NEC 310.15(B)(3)(a), the ampacity of 4 / C cable shall be reduced by a factor of 0.8 when the neutral is considered a currrent-carrying conductor.
Markets / Applications
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- OIl & Gas
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Mining

Voltage
600V, 1000V (optional)
Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- VW-1 rated (optional)
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Black conductors (standard)
- Method K1 or K2 (optional)
- Method 4 (optional)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U140200300 | 2 | 14 | 0.372 / 9.45 | 72 / 108 | 25 | 66 / 30 | 3.3 / 85 |
| 2C010U120200300 | 2 | 12 | 0.408 / 10.36 | 95 / 141 | 30 | 104 / 47 | 3.7 / 93 |
| 2C010U100200300 | 2 | 10 | 0.458 / 11.63 | 128 / 191 | 40 | 166 / 75 | 4.1 / 105 |
| 2C010U080200300 | 2 | 8 | 0.606 / 15.39 | 218 / 324 | 55 | 265 / 120 | 5.5 / 139 |
| 2C010U060200300 | 2 | 6 | 0.684 / 17.37 | 298 / 443 | 75 | 419 / 190 | 6.2 / 156 |
| 2C010U040200300 | 2 | 4 | 0.778 / 19.76 | 426 / 634 | 95 | 668 / 303 | 7 / 178 |
| 2C010U030200300 | 2 | 3 | 0.832 / 21.13 | 511 / 761 | 115 | 842 / 382 | 7.5 / 190 |
| 2C010U020200300 | 2 | 2 | 0.934 / 23.72 | 656 / 977 | 130 | 1062 / 482 | 8.4 / 214 |
| 2C010U010240300 | 2 | 1 | 1.052 / 26.72 | 816 / 1214 | 145 | 1339 / 607 | 9.5 / 240 |
| 2C010U1/0240300 | 2 | 1/0 | 1.132 / 28.75 | 991 / 1474 | 170 | 1690 / 766 | 10.2 / 259 |
| 2C010U2/0240300 | 2 | 2/0 | 1.218 / 30.94 | 1202 / 1789 | 195 | 2130 / 966 | 11 / 278 |
| 2C010U3/0240300 | 2 | 3/0 | 1.32 / 33.53 | 1468 / 2184 | 225 | 2671 / 1212 | 11.9 / 302 |
| 2C010U4/0240300 | 2 | 4/0 | 1.432 / 36.37 | 1799 / 2677 | 260 | 3386 / 1536 | 12.9 / 327 |
| 2C010U250260300 | 2 | 250 | 1.564 / 39.73 | 2099 / 3123 | 290 | 4000 / 1814 | 14.1 / 358 |
| 2C010U300260300 | 2 | 300 | 1.67 / 42.42 | 2465 / 3668 | 320 | 4800 / 2177 | 15 / 382 |
| 2C010U350260300 | 2 | 350 | 1.83 / 46.48 | 2939 / 4373 | 350 | 5600 / 2540 | 16.5 / 418 |
| 2C010U500260300 | 2 | 500 | 2.086 / 52.98 | 4036 / 6007 | 430 | 8000 / 3629 | 18.8 / 477 |
| 2C010U140300300 | 3 | 14 | 0.392 / 9.96 | 90 / 134 | 25 | 99 / 45 | 3.5 / 90 |
| 2C010U120300300 | 3 | 12 | 0.431 / 10.94 | 122 / 182 | 30 | 157 / 71 | 3.9 / 98 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16).
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U100300300 | 3 | 10 | 0.484 / 12.3 | 168 / 250 | 40 | 249 / 113 | 4.4 / 111 |
| 2C010U080300300 | 3 | 8 | 0.641 / 16.29 | 285 / 424 | 55 | 397 / 180 | 5.8 / 147 |
| 2C010U060300300 | 3 | 6 | 0.725 / 18.41 | 398 / 592 | 75 | 629 / 285 | 6.5 / 166 |
| 2C010U040300300 | 3 | 4 | 0.826 / 20.98 | 577 / 859 | 95 | 1002 / 454 | 7.4 / 189 |
| 2C010U030300300 | 3 | 3 | 0.924 / 23.47 | 736 / 1096 | 115 | 1263 / 573 | 8.3 / 211 |
| 2C010U020300300 | 3 | 2 | 0.991 / 25.16 | 886 / 1319 | 130 | 1593 / 723 | 8.9 / 226 |
| 2C010U010340300 | 3 | 10 | 1.117 / 28.38 | 1110 / 1652 | 145 | 2009 / 911 | 10.1 / 255 |
| 2C010U1/0340300 | 3 | 1/0 | 1.203 / 30.57 | 1359 / 2022 | 170 | 2534 / 1150 | 10.8 / 275 |
| 2C010U2/0340300 | 3 | 2/0 | 1.296 / 32.92 | 1657 / 2465 | 195 | 3194 / 1449 | 11.7 / 296 |
| 2C010U3/0340300 | 3 | 3/0 | 1.406 / 35.7 | 2034 / 3027 | 225 | 4007 / 1818 | 12.6 / 321 |
| 2C010U4/0340300 | 3 | 4/0 | 1.526 / 38.76 | 2501 / 3722 | 260 | 5078 / 2304 | 13.7 / 349 |
| 2C010U250360300 | 3 | 250 | 1.668 / 42.36 | 2927 / 4356 | 290 | 6000 / 2722 | 15 / 381 |
| 2C010U300360300 | 3 | 300 | 1.842 / 46.78 | 3556 / 5292 | 320 | 7200 / 3266 | 16.6 / 421 |
| 2C010U350360300 | 3 | 350 | 1.949 / 49.51 | 4089 / 6086 | 350 | 8400 / 3810 | 17.5 / 446 |
| 2C010U500360300 | 3 | 500 | 2.224 / 56.5 | 5662 / 8426 | 430 | 12000 / 5443 | 20 / 509 |
| 2C010U750360300 | 3 | 750 | 2.674 / 67.91 | 8362 / 12444 | 535 | 18000 / 8165 | 24.1 / 611 |
| 2C010U140400300 | 4 | 14 | 0.426 / 10.83 | 111 / 166 | 20 | 132 / 60 | 3.8 / 97 |
| 2C010U120400300 | 4 | 12 | 0.47 / 11.94 | 150 / 224 | 24 | 209 / 95 | 4.2 / 107 |
| 2C010U100400300 | 4 | 10 | 0.53 / 13.46 | 214 / 318 | 32 | 332 / 151 | 4.8 / 121 |
| 2C010U080400300 | 4 | 8 | 0.702 / 17.84 | 357 / 531 | 44 | 529 / 240 | 6.3 / 161 |
| 2C010U060400300 | 4 | 6 | 0.796 / 20.21 | 504 / 750 | 60 | 839 / 380 | 7.2 / 182 |
| 2C010U040400300 | 4 | 4 | 0.949 / 24.1 | 776 / 1154 | 76 | 1336 / 606 | 8.5 / 217 |
| 2C010U030400300 | 4 | 3 | 1.014 / 25.75 | 935 / 1392 | 92 | 1684 / 764 | 9.1 / 232 |
| 2C010U020400300 | 4 | 2 | 1.088 / 27.65 | 1143 / 1701 | 104 | 2124 / 964 | 9.8 / 249 |
| 2C010U010440300 | 4 | 1 | 1.231 / 31.26 | 1429 / 2127 | 116 | 2678 / 1215 | 11.1 / 281 |
| 2C010U1/0440300 | 4 | 1/0 | 1.327 / 33.71 | 1751 / 2605 | 136 | 3379 / 1533 | 11.9 / 303 |
| 2C010U2/0440300 | 4 | 2/0 | 1.431 / 36.34 | 2143 / 3189 | 156 | 4259 / 1932 | 12.9 / 327 |
| 2C010U4/0440300 | 4 | 4/0 | 1.749 / 44.41 | 3368 / 5012 | 208 | 6771 / 3071 | 15.7 / 400 |
| 2C010U250460300 | 4 | 250 | 1.908 / 48.46 | 3927 / 5844 | 232 | 8000 / 3629 | 17.2 / 436 |
| 2C010U300460300 | 4 | 300 | 2.035 / 51.7 | 4630 / 6890 | 256 | 9600 / 4355 | 18.3 / 465 |
| 2C010U350460300 | 4 | 350 | 2.156 / 54.76 | 5329 / 7931 | 280 | 11200 / 5080 | 19.4 / 493 |
| 2C010U500460300 | 4 | 500 | 2.464 / 62.6 | 7406 / 11021 | 344 | 16000 / 7258 | 22.2 / 563 |
| 2C010U750460300 | 4 | 750 | 3.028 / 76.91 | 11138 / 16575 | 428 | 24000 / 10886 | 27.3 / 692 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Per NEC 310.15(B)(3)(a), the ampacity of 4 / C cable shall be reduced by a factor of 0.8 when the neutral is considered a currrent-carrying conductor.
