UL Unarmored Tray Copper Tape Utility | Multi-Conductor (600/1000V)
Shawflex Utility cables are the ideal choice for applications requiring an extra level of durability and noise protection in utility applications.
Construction
Voltage
600V, 1000V (optional)

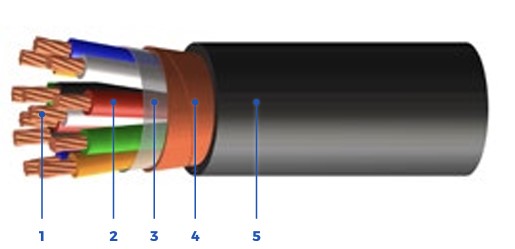

Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- VW-1 rated (optional)
- Shielding:
- Copper tape shield (standard)
- Available in various copper tape thickness & configurations
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional) Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Method K1 & K2 (standard)
- Method 4 (optional)
Properties
- Stranded Bare (ASTM B8) Annealed Copper Conductors (Tinned Available)
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Bare / Tinned Copper Tape Shield
- Thermoset CPE Outer Protective Jacket
Each utility has its own unique specifications. Please contract ShawFlex for product details.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C01HU140200700 | 2 | 14 | 0.396 / 10.06 | 104 / 155 | 25 | 66 / 30 | 7.1 / 181 |
| 2C01HU140300700 | 3 | 14 | 0.416 / 10.57 | 123 / 184 | 25 | 99 / 45 | 7.5 / 190 |
| 2C01HU140400700 | 4 | 14 | 0.451 / 11.44 | 148 / 221 | 20 | 132 / 60 | 8.1 / 206 |
| 2C01HU140500700 | 5 | 14 | 0.489 / 12.42 | 171 / 255 | 20 | 165 / 75 | 8.8 / 224 |
| 2C01HU140600700 | 6 | 14 | 0.529 / 13.44 | 199 / 295 | 20 | 197 / 90 | 9.5 / 242 |
| 2C01HU140700700 | 7 | 14 | 0.529 / 13.44 | 212 / 316 | 17.5 | 230 / 104 | 9.5 / 242 |
| 2C01HU140800700 | 8 | 14 | 0.599 / 15.21 | 257 / 382 | 17.5 | 263 / 119 | 10.8 / 274 |
| 2C01HU141000700 | 10 | 14 | 0.692 / 17.58 | 319 / 474 | 12.5 | 329 / 149 | 12.5 / 316 |
| 2C01HU141200700 | 12 | 14 | 0.712 / 18.08 | 356 / 530 | 12.5 | 395 / 179 | 12.8 / 326 |
| 2C01HU141400700 | 14 | 14 | 0.746 / 18.96 | 401 / 597 | 12.5 | 461 / 209 | 13.4 / 341 |
| 2C01HU141500700 | 15 | 14 | 0.765 / 19.44 | 423 / 629 | 12.5 | 494 / 224 | 13.8 / 350 |
| 2C01HU142000700 | 20 | 14 | 0.905 / 22.98 | 571 / 849 | 12.5 | 658 / 298 | 16.3 / 414 |
| 2C01HU142500700 | 25 | 14 | 0.998 / 25.35 | 686 / 1021 | 11.25 | 823 / 373 | 18 / 456 |
| 2C01HU143000700 | 30 | 14 | 1.053 / 26.73 | 783 / 1166 | 11.25 | 987 / 448 | 18.9 / 481 |
| 2C01HU144000700 | 40 | 14 | 1.171 / 29.74 | 990 / 1474 | 10 | 1316 / 597 | 21.1 / 535 |
| 2C01HU145000700 | 50 | 14 | 1.296 / 32.92 | 1202 / 1789 | 8.75 | 1645 / 746 | 23.3 / 592 |
| 2C01HU120200700 | 2 | 12 | 0.432 / 10.97 | 130 / 194 | 30 | 104 / 47 | 7.8 / 198 |
| 2C01HU120300700 | 3 | 12 | 0.455 / 11.55 | 159 / 237 | 30 | 157 / 71 | 8.2 / 208 |
| 2C01HU120400700 | 4 | 12 | 0.494 / 12.55 | 192 / 285 | 24 | 209 / 95 | 8.9 / 226 |
| 2C01HU120500700 | 5 | 12 | 0.568 / 14.42 | 245 / 364 | 24 | 261 / 118 | 10.2 / 260 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C01HU120600700 | 6 | 12 | 0.613 / 15.57 | 284 / 423 | 24 | 313 / 142 | 11 / 280 |
| 2C01HU120700700 | 7 | 12 | 0.613 / 15.57 | 306 / 456 | 21 | 365 / 166 | 11 / 280 |
| 2C01HU120800700 | 8 | 12 | 0.658 / 16.72 | 343 / 510 | 21 | 418 / 189 | 11.8 / 301 |
| 2C01HU121000700 | 10 | 12 | 0.764 / 19.41 | 423 / 630 | 15 | 522 / 237 | 13.8 / 349 |
| 2C01HU121200700 | 12 | 12 | 0.787 / 19.98 | 480 / 714 | 15 | 626 / 284 | 14.2 / 360 |
| 2C01HU121400700 | 14 | 12 | 0.826 / 20.98 | 540 / 804 | 15 | 731 / 331 | 14.9 / 378 |
| 2C01HU121500700 | 15 | 12 | 0.887 / 22.53 | 605 / 900 | 15 | 783 / 355 | 16 / 406 |
| 2C01HU122000700 | 20 | 12 | 1 / 25.41 | 770 / 1146 | 15 | 1044 / 474 | 18 / 457 |
| 2C01HU122500700 | 25 | 12 | 1.106 / 28.09 | 933 / 1388 | 13.5 | 1305 / 592 | 19.9 / 506 |
| 2C01HU123000700 | 30 | 12 | 1.168 / 29.66 | 1074 / 1598 | 13.5 | 1566 / 710 | 21 / 534 |
| 2C01HU124000700 | 40 | 12 | 1.302 / 33.08 | 1369 / 2038 | 12 | 2088 / 947 | 23.4 / 595 |
| 2C01HU125000700 | 50 | 12 | 1.444 / 36.69 | 1674 / 2491 | 10.5 | 2610 / 1184 | 26 / 660 |
| 2C01HU100200700 | 2 | 10 | 0.482 / 12.24 | 169 / 251 | 40 | 166 / 75 | 8.7 / 220 |
| 2C01HU100300700 | 3 | 10 | 0.508 / 12.91 | 211 / 314 | 40 | 249 / 113 | 9.2 / 232 |
| 2C01HU100400700 | 4 | 10 | 0.584 / 14.84 | 278 / 413 | 32 | 332 / 151 | 10.5 / 267 |
| 2C01HU100500700 | 5 | 10 | 0.635 / 16.13 | 327 / 486 | 32 | 415 / 188 | 11.4 / 290 |
| 2C01HU100600700 | 6 | 10 | 0.688 / 17.48 | 387 / 575 | 32 | 498 / 226 | 12.4 / 315 |
| 2C01HU100700700 | 7 | 10 | 0.688 / 17.48 | 421 / 627 | 28 | 581 / 264 | 12.4 / 315 |
| 2C01HU100800700 | 8 | 10 | 0.741 / 18.82 | 471 / 701 | 28 | 664 / 301 | 13.3 / 339 |
| 2C01HU101000700 | 10 | 10 | 0.904 / 22.96 | 617 / 918 | 20 | 830 / 376 | 16.3 / 413 |
| 2C01HU101200700 | 12 | 10 | 0.93 / 23.63 | 702 / 1045 | 20 | 996 / 452 | 16.7 / 425 |
| 2C01HU101400700 | 14 | 10 | 0.976 / 24.79 | 795 / 1184 | 20 | 1162 / 527 | 17.6 / 446 |
| 2C01HU101500700 | 15 | 10 | 1.001 / 25.42 | 842 / 1252 | 20 | 1245 / 565 | 18 / 458 |
| 2C01HU102000700 | 20 | 10 | 1.133 / 28.77 | 1081 / 1608 | 20 | 1660 / 753 | 20.4 / 518 |
| 2C01HU102500700 | 25 | 10 | 1.256 / 31.9 | 1313 / 1954 | 18 | 2075 / 941 | 22.6 / 574 |
| 2C01HU103000700 | 30 | 10 | 1.328 / 33.73 | 1524 / 2268 | 18 | 2490 / 1129 | 23.9 / 607 |
| 2C01HU104000700 | 40 | 10 | 1.485 / 37.71 | 1959 / 2915 | 16 | 3320 / 1506 | 26.7 / 679 |
| 2C01HU105000700 | 50 | 10 | 1.65 / 41.92 | 2406 / 3581 | 14 | 4150 / 1882 | 29.7 / 755 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
Markets / Applications
- Generation – Renewables – Wind
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Power Distribution – LV
- Generation – Renewables
- Utility
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
Voltage
600V, 1000V (optional)
Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- VW-1 rated (optional)
- Shielding:
- Copper tape shield (standard)
- Available in various copper tape thickness & configurations
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional) Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Method K1 & K2 (standard)
- Method 4 (optional)
- Stranded Bare (ASTM B8) Annealed Copper Conductors (Tinned Available)
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Bare / Tinned Copper Tape Shield
- Thermoset CPE Outer Protective Jacket
Each utility has its own unique specifications. Please contract ShawFlex for product details.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C01HU140200700 | 2 | 14 | 0.396 / 10.06 | 104 / 155 | 25 | 66 / 30 | 7.1 / 181 |
| 2C01HU140300700 | 3 | 14 | 0.416 / 10.57 | 123 / 184 | 25 | 99 / 45 | 7.5 / 190 |
| 2C01HU140400700 | 4 | 14 | 0.451 / 11.44 | 148 / 221 | 20 | 132 / 60 | 8.1 / 206 |
| 2C01HU140500700 | 5 | 14 | 0.489 / 12.42 | 171 / 255 | 20 | 165 / 75 | 8.8 / 224 |
| 2C01HU140600700 | 6 | 14 | 0.529 / 13.44 | 199 / 295 | 20 | 197 / 90 | 9.5 / 242 |
| 2C01HU140700700 | 7 | 14 | 0.529 / 13.44 | 212 / 316 | 17.5 | 230 / 104 | 9.5 / 242 |
| 2C01HU140800700 | 8 | 14 | 0.599 / 15.21 | 257 / 382 | 17.5 | 263 / 119 | 10.8 / 274 |
| 2C01HU141000700 | 10 | 14 | 0.692 / 17.58 | 319 / 474 | 12.5 | 329 / 149 | 12.5 / 316 |
| 2C01HU141200700 | 12 | 14 | 0.712 / 18.08 | 356 / 530 | 12.5 | 395 / 179 | 12.8 / 326 |
| 2C01HU141400700 | 14 | 14 | 0.746 / 18.96 | 401 / 597 | 12.5 | 461 / 209 | 13.4 / 341 |
| 2C01HU141500700 | 15 | 14 | 0.765 / 19.44 | 423 / 629 | 12.5 | 494 / 224 | 13.8 / 350 |
| 2C01HU142000700 | 20 | 14 | 0.905 / 22.98 | 571 / 849 | 12.5 | 658 / 298 | 16.3 / 414 |
| 2C01HU142500700 | 25 | 14 | 0.998 / 25.35 | 686 / 1021 | 11.25 | 823 / 373 | 18 / 456 |
| 2C01HU143000700 | 30 | 14 | 1.053 / 26.73 | 783 / 1166 | 11.25 | 987 / 448 | 18.9 / 481 |
| 2C01HU144000700 | 40 | 14 | 1.171 / 29.74 | 990 / 1474 | 10 | 1316 / 597 | 21.1 / 535 |
| 2C01HU145000700 | 50 | 14 | 1.296 / 32.92 | 1202 / 1789 | 8.75 | 1645 / 746 | 23.3 / 592 |
| 2C01HU120200700 | 2 | 12 | 0.432 / 10.97 | 130 / 194 | 30 | 104 / 47 | 7.8 / 198 |
| 2C01HU120300700 | 3 | 12 | 0.455 / 11.55 | 159 / 237 | 30 | 157 / 71 | 8.2 / 208 |
| 2C01HU120400700 | 4 | 12 | 0.494 / 12.55 | 192 / 285 | 24 | 209 / 95 | 8.9 / 226 |
| 2C01HU120500700 | 5 | 12 | 0.568 / 14.42 | 245 / 364 | 24 | 261 / 118 | 10.2 / 260 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C01HU120600700 | 6 | 12 | 0.613 / 15.57 | 284 / 423 | 24 | 313 / 142 | 11 / 280 |
| 2C01HU120700700 | 7 | 12 | 0.613 / 15.57 | 306 / 456 | 21 | 365 / 166 | 11 / 280 |
| 2C01HU120800700 | 8 | 12 | 0.658 / 16.72 | 343 / 510 | 21 | 418 / 189 | 11.8 / 301 |
| 2C01HU121000700 | 10 | 12 | 0.764 / 19.41 | 423 / 630 | 15 | 522 / 237 | 13.8 / 349 |
| 2C01HU121200700 | 12 | 12 | 0.787 / 19.98 | 480 / 714 | 15 | 626 / 284 | 14.2 / 360 |
| 2C01HU121400700 | 14 | 12 | 0.826 / 20.98 | 540 / 804 | 15 | 731 / 331 | 14.9 / 378 |
| 2C01HU121500700 | 15 | 12 | 0.887 / 22.53 | 605 / 900 | 15 | 783 / 355 | 16 / 406 |
| 2C01HU122000700 | 20 | 12 | 1 / 25.41 | 770 / 1146 | 15 | 1044 / 474 | 18 / 457 |
| 2C01HU122500700 | 25 | 12 | 1.106 / 28.09 | 933 / 1388 | 13.5 | 1305 / 592 | 19.9 / 506 |
| 2C01HU123000700 | 30 | 12 | 1.168 / 29.66 | 1074 / 1598 | 13.5 | 1566 / 710 | 21 / 534 |
| 2C01HU124000700 | 40 | 12 | 1.302 / 33.08 | 1369 / 2038 | 12 | 2088 / 947 | 23.4 / 595 |
| 2C01HU125000700 | 50 | 12 | 1.444 / 36.69 | 1674 / 2491 | 10.5 | 2610 / 1184 | 26 / 660 |
| 2C01HU100200700 | 2 | 10 | 0.482 / 12.24 | 169 / 251 | 40 | 166 / 75 | 8.7 / 220 |
| 2C01HU100300700 | 3 | 10 | 0.508 / 12.91 | 211 / 314 | 40 | 249 / 113 | 9.2 / 232 |
| 2C01HU100400700 | 4 | 10 | 0.584 / 14.84 | 278 / 413 | 32 | 332 / 151 | 10.5 / 267 |
| 2C01HU100500700 | 5 | 10 | 0.635 / 16.13 | 327 / 486 | 32 | 415 / 188 | 11.4 / 290 |
| 2C01HU100600700 | 6 | 10 | 0.688 / 17.48 | 387 / 575 | 32 | 498 / 226 | 12.4 / 315 |
| 2C01HU100700700 | 7 | 10 | 0.688 / 17.48 | 421 / 627 | 28 | 581 / 264 | 12.4 / 315 |
| 2C01HU100800700 | 8 | 10 | 0.741 / 18.82 | 471 / 701 | 28 | 664 / 301 | 13.3 / 339 |
| 2C01HU101000700 | 10 | 10 | 0.904 / 22.96 | 617 / 918 | 20 | 830 / 376 | 16.3 / 413 |
| 2C01HU101200700 | 12 | 10 | 0.93 / 23.63 | 702 / 1045 | 20 | 996 / 452 | 16.7 / 425 |
| 2C01HU101400700 | 14 | 10 | 0.976 / 24.79 | 795 / 1184 | 20 | 1162 / 527 | 17.6 / 446 |
| 2C01HU101500700 | 15 | 10 | 1.001 / 25.42 | 842 / 1252 | 20 | 1245 / 565 | 18 / 458 |
| 2C01HU102000700 | 20 | 10 | 1.133 / 28.77 | 1081 / 1608 | 20 | 1660 / 753 | 20.4 / 518 |
| 2C01HU102500700 | 25 | 10 | 1.256 / 31.9 | 1313 / 1954 | 18 | 2075 / 941 | 22.6 / 574 |
| 2C01HU103000700 | 30 | 10 | 1.328 / 33.73 | 1524 / 2268 | 18 | 2490 / 1129 | 23.9 / 607 |
| 2C01HU104000700 | 40 | 10 | 1.485 / 37.71 | 1959 / 2915 | 16 | 3320 / 1506 | 26.7 / 679 |
| 2C01HU105000700 | 50 | 10 | 1.65 / 41.92 | 2406 / 3581 | 14 | 4150 / 1882 | 29.7 / 755 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
- Generation – Renewables – Wind
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Power Distribution – LV
- Generation – Renewables
- Utility
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
Related products
-
UL Metal Clad Armored Instrumentation | Pairs & Triads (600V)
Read moreUL Metal Clad Armored Instrumentation | Pairs & Triads (600V)
Metal Clad Armored Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Tray Instrumentation cables can be installed in raceways, direct burial applications and in outdoor exposed industrial applications.
-
UL HD-XHHW-2 | Single Conductor (600V)
Read moreUL HD-XHHW-2 | Single Conductor (600V)
Heavy Duty provides an extra level of reliability and is suitable for use in ventilated, non- ventilated and ladder type cable trays, direct burial and raceways. Applicable for use in Utilities, Industrial and Commercial applications.
-
CSA TECK 90 Armoured Power | Single Conductor (1000V)
Read moreCSA TECK 90 Armoured Power | Single Conductor (1000V)

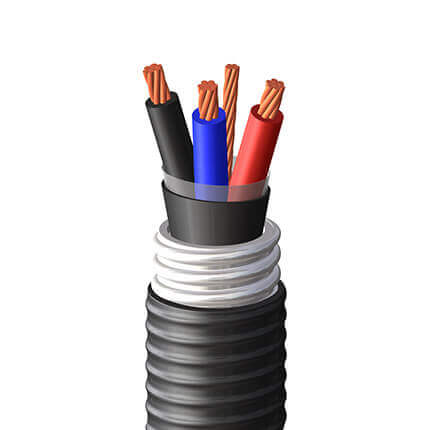

Unshielded armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments
