UL Unarmored Tray Instrumentation | Pairs & Triads (600V)

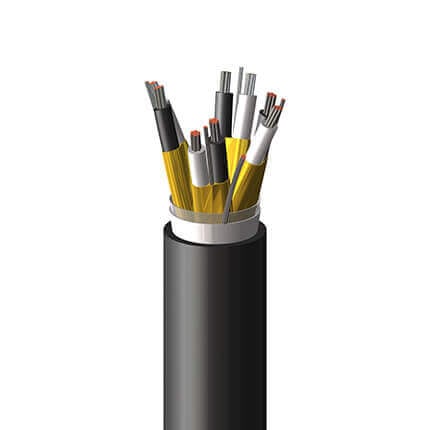

Tray Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to carry analogue or digital signals. Tray Instrumentation cables can be installed in raceways, direct burial applications and in outdoor exposed industrial applications.
Certification Logo
Datasheet (PDF) Contact Us

Construction

Voltage

600V

Product Construction



      • Insulation:
        • FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
        • VW-1 rated (optional)



    • Shielding (foil-free edge):
      • ISOS (standard)
      • OS (optional)



    • Armor:
      • Zetaon (optional)



    • Jacket:
      • FR PVC outer black jacket rated: 90°C to -40°C
      • Thermoset CPE (optional)
      • Thermoplastic CPE (optional)
      • Thermoplastic LSZH (optional)



  • Available in:
    • Custom insulation / jacket colors
    • Composite constructions



Colour Coding:



  • Pairs – Black, & white, with black printing on white (standard)
  • Triads – Black, white & red, with black printing on white (standard)

Certifications

Certifications/Compliances



  • UL 1277, Tray Cable (TC-ER)
  • UL 44, Thermoset Insulated Wires and Cables
  • UL 1685 / FT4, Vertical Tray Flame Test rated
  • IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (XHHW-2 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours)
  • Direct burial rated
  • -40°C cold bend rated
  • Rated for use in hazardous locations:
    • Class I Zone 2 (Div 2)
    • Class II Zone 22 (Div 2)

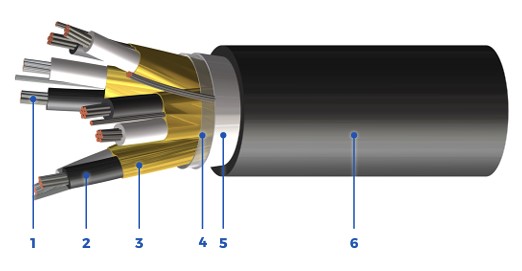

Properties



  1. Stranded Bare Copper Conductors (Tinned Available)
  2. FR XLPE (XHHW-2 rated) Insulated Conductors
  3. Individual Shield & Overall Shielded Pairs / Triads with Tinned Copper Drain Wire
  4. Polyester Separator Tape
  5. Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
  6. FR PVC Protective Jacket

PAIRS

Part Number Number of Pairs Conductor Size (AWG/MCM) OD Over Inner Jacket (in/mm) Cable Weight (lbs/1000ft)/ (kg/km) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm)
2C021U160100700 1 16 0.347 / 8.81 60 / 89 41 / 19 6.2 / 159
2C022U160200700 2 16 0.514 / 13.06 126 / 187 82 / 37 9.3 / 235
2C022U160400700 4 16 0.632 / 16.06 199 / 296 165 / 75 11.4 / 289
2C022U160600700 6 16 0.756 / 19.21 282 / 420 247 / 112 13.6 / 346
2C022U160800700 8 16 0.821 / 20.86 349 / 519 330 / 150 14.8 / 375
2C022U161200700 12 16 1.042 / 26.46 534 / 795 494 / 224 18.7 / 476
2C022U161600700 16 16 1.16 / 29.46 667 / 993 659 / 299 20.9 / 530
2C022U162400700 24 16 1.438 / 36.54 963 / 1433 989 / 449 25.9 / 658
2C022U163600700 36 16 1.657 / 42.09 1353 / 2013 1483 / 673 29.8 / 758
2C021U180100700 1 18 0.323 / 8.2 49 / 73 26 / 12 5.8 / 148
2C022U180200700 2 18 0.475 / 12.06 100 / 149 52 / 24 8.5 / 217
2C022U180400700 4 18 0.584 / 14.84 156 / 232 104 / 47 10.5 / 267
2C022U180600700 6 18 0.696 / 17.68 218 / 324 156 / 71 12.5 / 318
2C022U180800700 8 18 0.754 / 19.16 266 / 396 208 / 94 13.6 / 345
2C022U181200700 12 18 0.957 / 24.32 407 / 605 312 / 142 17.2 / 438
2C022U181800700 18 18 1.122 / 28.5 559 / 832 468 / 212 20.2 / 513
2C022U182400700 24 18 1.315 / 33.41 719 / 1070 624 / 283 23.7 / 601
2C022U183600700 36 18 1.512 / 38.42 996 / 1482 936 / 425 27.2 / 692

TRIADS

Part Number Number of Triads Conductor Size (AWG/MCM) OD Over Inner Jacket (in/mm) Cable Weight (lbs/1000ft)/ (kg/km) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm)
2C031U160100700 1 16 0.365 / 9.27 72 / 107 62 / 28 6.6 / 167
2C032U160200700 2 16 0.615 / 15.63 179 / 267 124 / 56 11.1 / 281
2C032U160400700 4 16 0.718 / 18.23 261 / 388 247 / 112 12.9 / 328
2C032U160600700 6 16 0.903 / 22.93 409 / 609 371 / 168 16.3 / 413
2C032U160800700 8 16 0.978 / 24.84 503 / 749 494 / 224 17.6 / 447
2C032U161200700 12 16 1.188 / 30.19 713 / 1060 742 / 336 21.4 / 543
2C032U161600700 16 16 1.326 / 33.69 897 / 1335 989 / 449 23.9 / 606
2C032U162400700 24 16 1.651 / 41.93 1305 / 1941 1483 / 673 29.7 / 755
2C031U180100700 1 18 0.339 / 8.62 57 / 85 39 / 18 6.1 / 155
2C032U180200700 2 18 0.568 / 14.44 145 / 215 78 / 35 10.2 / 260
2C032U180400700 4 18 0.661 / 16.78 203 / 302 156 / 71 11.9 / 302
2C032U180600700 6 18 0.791 / 20.1 289 / 430 234 / 106 14.2 / 362
2C032U180800700 8 18 0.899 / 22.84 389 / 579 312 / 142 16.2 / 411
2C032U181200700 12 18 1.089 / 27.66 547 / 814 468 / 212 19.6 / 498
2C032U181800700 18 18 1.281 / 32.53 754 / 1123 702 / 318 23.1 / 586
2C032U182400700 24 18 1.506 / 38.24 977 / 1453 936 / 425 27.1 / 688

Markets / Applications

  • Civil Construction Projects
  • Commercial Construction Projects
  • Communication Power & Control
  • Generation
  • Generation – Nuclear
  • Generation – Renewables
  • Generation – Renewables – Geo Thermal
  • Generation – Renewables – Solar
  • Generation – Renewables – Wind
  • Generation – Traditional Power
  • Industrial
  • Industrial Construction/Automation
  • Mining
  • Petrochem/Pulp & Paper
  • Power Distribution
  • Power Distribution – LV
  • Transit
  • Utility
  • Water/Waste Water Treatment

Voltage

600V

Product Construction



      • Insulation:
        • FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
        • VW-1 rated (optional)



    • Shielding (foil-free edge):
      • ISOS (standard)
      • OS (optional)



    • Armor:
      • Zetaon (optional)



    • Jacket:
      • FR PVC outer black jacket rated: 90°C to -40°C
      • Thermoset CPE (optional)
      • Thermoplastic CPE (optional)
      • Thermoplastic LSZH (optional)



  • Available in:
    • Custom insulation / jacket colors
    • Composite constructions



Colour Coding:



  • Pairs – Black, & white, with black printing on white (standard)
  • Triads – Black, white & red, with black printing on white (standard)

Certifications/Compliances



  • UL 1277, Tray Cable (TC-ER)
  • UL 44, Thermoset Insulated Wires and Cables
  • UL 1685 / FT4, Vertical Tray Flame Test rated
  • IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (XHHW-2 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours)
  • Direct burial rated
  • -40°C cold bend rated
  • Rated for use in hazardous locations:
    • Class I Zone 2 (Div 2)
    • Class II Zone 22 (Div 2)


  1. Stranded Bare Copper Conductors (Tinned Available)
  2. FR XLPE (XHHW-2 rated) Insulated Conductors
  3. Individual Shield & Overall Shielded Pairs / Triads with Tinned Copper Drain Wire
  4. Polyester Separator Tape
  5. Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
  6. FR PVC Protective Jacket

PAIRS

Part Number Number of Pairs Conductor Size (AWG/MCM) OD Over Inner Jacket (in/mm) Cable Weight (lbs/1000ft)/ (kg/km) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm)
2C021U160100700 1 16 0.347 / 8.81 60 / 89 41 / 19 6.2 / 159
2C022U160200700 2 16 0.514 / 13.06 126 / 187 82 / 37 9.3 / 235
2C022U160400700 4 16 0.632 / 16.06 199 / 296 165 / 75 11.4 / 289
2C022U160600700 6 16 0.756 / 19.21 282 / 420 247 / 112 13.6 / 346
2C022U160800700 8 16 0.821 / 20.86 349 / 519 330 / 150 14.8 / 375
2C022U161200700 12 16 1.042 / 26.46 534 / 795 494 / 224 18.7 / 476
2C022U161600700 16 16 1.16 / 29.46 667 / 993 659 / 299 20.9 / 530
2C022U162400700 24 16 1.438 / 36.54 963 / 1433 989 / 449 25.9 / 658
2C022U163600700 36 16 1.657 / 42.09 1353 / 2013 1483 / 673 29.8 / 758
2C021U180100700 1 18 0.323 / 8.2 49 / 73 26 / 12 5.8 / 148
2C022U180200700 2 18 0.475 / 12.06 100 / 149 52 / 24 8.5 / 217
2C022U180400700 4 18 0.584 / 14.84 156 / 232 104 / 47 10.5 / 267
2C022U180600700 6 18 0.696 / 17.68 218 / 324 156 / 71 12.5 / 318
2C022U180800700 8 18 0.754 / 19.16 266 / 396 208 / 94 13.6 / 345
2C022U181200700 12 18 0.957 / 24.32 407 / 605 312 / 142 17.2 / 438
2C022U181800700 18 18 1.122 / 28.5 559 / 832 468 / 212 20.2 / 513
2C022U182400700 24 18 1.315 / 33.41 719 / 1070 624 / 283 23.7 / 601
2C022U183600700 36 18 1.512 / 38.42 996 / 1482 936 / 425 27.2 / 692

TRIADS

Part Number Number of Triads Conductor Size (AWG/MCM) OD Over Inner Jacket (in/mm) Cable Weight (lbs/1000ft)/ (kg/km) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm)
2C031U160100700 1 16 0.365 / 9.27 72 / 107 62 / 28 6.6 / 167
2C032U160200700 2 16 0.615 / 15.63 179 / 267 124 / 56 11.1 / 281
2C032U160400700 4 16 0.718 / 18.23 261 / 388 247 / 112 12.9 / 328
2C032U160600700 6 16 0.903 / 22.93 409 / 609 371 / 168 16.3 / 413
2C032U160800700 8 16 0.978 / 24.84 503 / 749 494 / 224 17.6 / 447
2C032U161200700 12 16 1.188 / 30.19 713 / 1060 742 / 336 21.4 / 543
2C032U161600700 16 16 1.326 / 33.69 897 / 1335 989 / 449 23.9 / 606
2C032U162400700 24 16 1.651 / 41.93 1305 / 1941 1483 / 673 29.7 / 755
2C031U180100700 1 18 0.339 / 8.62 57 / 85 39 / 18 6.1 / 155
2C032U180200700 2 18 0.568 / 14.44 145 / 215 78 / 35 10.2 / 260
2C032U180400700 4 18 0.661 / 16.78 203 / 302 156 / 71 11.9 / 302
2C032U180600700 6 18 0.791 / 20.1 289 / 430 234 / 106 14.2 / 362
2C032U180800700 8 18 0.899 / 22.84 389 / 579 312 / 142 16.2 / 411
2C032U181200700 12 18 1.089 / 27.66 547 / 814 468 / 212 19.6 / 498
2C032U181800700 18 18 1.281 / 32.53 754 / 1123 702 / 318 23.1 / 586
2C032U182400700 24 18 1.506 / 38.24 977 / 1453 936 / 425 27.1 / 688
