UL Unarmored Tray Control | Multi-Conductor (600/1000V)
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
VOLTAGE
600V, 1000V (optional)

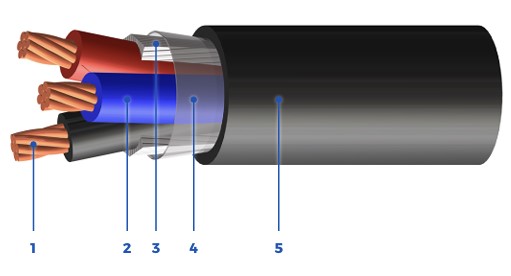

PRODUCT CONSTRUCTION
Insulation:
FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
VW-1 rated (optional)
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Thermoset CPE (optional)
Thermoplastic CPE (optional)
Thermoplastic LSZH (optional)
Available in:
Custom insulation / jacket colors
Composite constructions
Certifications
CERTIFICATIONS/COMPLIANCES
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
COLOUR CODING
- Method K1 & K2 (standard)
- Method 4 (optional)
Properties
|
 |
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U140200300 | 2 | 14 | 0.372 / 9.45 | 72 / 108 | 25 | 66 / 30 | 3.3 / 85 |
| 2C010U140300300 | 3 | 14 | 0.392 / 9.96 | 90 / 134 | 25 | 99 / 45 | 3.5 / 90 |
| 2C010U140400300 | 4 | 14 | 0.426 / 10.83 | 111 / 166 | 20 | 132 / 60 | 3.8 / 97 |
| 2C010U140500300 | 5 | 14 | 0.465 / 11.81 | 130 / 194 | 20 | 165 / 75 | 4.2 / 106 |
| 2C010U140600300 | 6 | 14 | 0.505 / 12.83 | 153 / 228 | 20 | 197 / 90 | 4.5 / 115 |
| 2C010U140700300 | 7 | 14 | 0.505 / 12.83 | 167 / 249 | 17.5 | 230 / 104 | 4.5 / 115 |
| 2C010U140800300 | 8 | 14 | 0.575 / 14.6 | 207 / 308 | 17.5 | 263 / 119 | 5.2 / 131 |
| 2C010U141000300 | 10 | 14 | 0.668 / 16.97 | 256 / 381 | 12.5 | 329 / 149 | 6 / 153 |
| 2C010U141200300 | 12 | 14 | 0.688 / 17.48 | 291 / 433 | 12.5 | 395 / 179 | 6.2 / 157 |
| 2C010U141400300 | 14 | 14 | 0.722 / 18.35 | 331 / 493 | 12.5 | 461 / 209 | 6.5 / 165 |
| 2C010U141500300 | 15 | 14 | 0.741 / 18.83 | 351 / 522 | 12.5 | 494 / 224 | 6.7 / 169 |
| 2C010U142000300 | 20 | 14 | 0.841 / 21.36 | 453 / 674 | 12.5 | 658 / 298 | 7.6 / 192 |
| 2C010U142500300 | 25 | 14 | 0.974 / 24.74 | 590 / 878 | 11.25 | 823 / 373 | 8.8 / 223 |
| 2C010U143000300 | 30 | 14 | 1.028 / 26.12 | 680 / 1012 | 11.25 | 987 / 448 | 9.3 / 235 |
| 2C010U144000300 | 40 | 14 | 1.147 / 29.13 | 871 / 1296 | 10 | 1316 / 597 | 10.3 / 262 |
| 2C010U145000300 | 50 | 14 | 1.272 / 32.31 | 1067 / 1588 | 8.75 | 1645 / 746 | 11.4 / 291 |
| 2C010U120200300 | 2 | 12 | 0.408 / 10.36 | 95 / 141 | 30 | 104 / 47 | 3.7 / 93 |
| 2C010U120300300 | 3 | 12 | 0.431 / 10.94 | 122 / 182 | 30 | 157 / 71 | 3.9 / 98 |
| 2C010U120400300 | 4 | 12 | 0.47 / 11.94 | 150 / 224 | 24 | 209 / 95 | 4.2 / 107 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U120500300 | 5 | 12 | 0.514 / 13.05 | 183 / 272 | 24 | 261 / 118 | 4.6 / 117 |
| 2C010U120600300 | 6 | 12 | 0.589 / 14.96 | 233 / 347 | 24 | 313 / 142 | 5.3 / 135 |
| 2C010U120700300 | 7 | 12 | 0.589 / 14.96 | 255 / 380 | 21 | 365 / 166 | 5.3 / 135 |
| 2C010U120800300 | 8 | 12 | 0.634 / 16.11 | 283 / 421 | 21 | 418 / 189 | 5.7 / 145 |
| 2C010U121000300 | 10 | 12 | 0.74 / 18.8 | 351 / 523 | 15 | 522 / 237 | 6.7 / 169 |
| 2C010U121200300 | 12 | 12 | 0.763 / 19.37 | 405 / 602 | 15 | 626 / 284 | 6.9 / 174 |
| 2C010U121400300 | 14 | 12 | 0.802 / 20.37 | 460 / 685 | 15 | 731 / 331 | 7.2 / 183 |
| 2C010U121500300 | 15 | 12 | 0.823 / 20.91 | 488 / 727 | 15 | 783 / 355 | 7.4 / 188 |
| 2C010U122000300 | 20 | 12 | 0.976 / 24.8 | 672 / 1000 | 15 | 1044 / 474 | 8.8 / 223 |
| 2C010U122500300 | 25 | 12 | 1.082 / 27.48 | 821 / 1221 | 13.5 | 1305 / 592 | 9.7 / 247 |
| 2C010U123000300 | 30 | 12 | 1.144 / 29.06 | 953 / 1418 | 13.5 | 1566 / 710 | 10.3 / 261 |
| 2C010U124000300 | 40 | 12 | 1.278 / 32.47 | 1230 / 1831 | 12 | 2088 / 947 | 11.5 / 292 |
| 2C010U125000300 | 50 | 12 | 1.42 / 36.08 | 1515 / 2254 | 10.5 | 2610 / 1184 | 12.8 / 325 |
| 2C010U100200300 | 2 | 10 | 0.458 / 11.63 | 128 / 191 | 40 | 166 / 75 | 4.1 / 105 |
| 2C010U100300300 | 3 | 10 | 0.484 / 12.3 | 168 / 250 | 40 | 249 / 113 | 4.4 / 111 |
| 2C010U100400300 | 4 | 10 | 0.53 / 13.46 | 214 / 318 | 32 | 332 / 151 | 4.8 / 121 |
| 2C010U100500300 | 5 | 10 | 0.611 / 15.52 | 273 / 406 | 32 | 415 / 188 | 5.5 / 140 |
| 2C010U100600300 | 6 | 10 | 0.664 / 16.87 | 323 / 481 | 32 | 498 / 226 | 6 / 152 |
| 2C010U100700300 | 7 | 10 | 0.664 / 16.87 | 357 / 531 | 28 | 581 / 264 | 6 / 152 |
| 2C010U100800300 | 8 | 10 | 0.717 / 18.21 | 400 / 595 | 28 | 664 / 301 | 6.5 / 164 |
| 2C010U101000300 | 10 | 10 | 0.84 / 21.34 | 498 / 742 | 20 | 830 / 376 | 7.6 / 192 |
| 2C010U101200300 | 12 | 10 | 0.906 / 23.02 | 612 / 911 | 20 | 996 / 452 | 8.2 / 207 |
| 2C010U101400300 | 14 | 10 | 0.952 / 24.18 | 699 / 1040 | 20 | 1162 / 527 | 8.6 / 218 |
| 2C010U101500300 | 15 | 10 | 0.977 / 24.81 | 742 / 1104 | 20 | 1245 / 565 | 8.8 / 223 |
| 2C010U102000300 | 20 | 10 | 1.109 / 28.16 | 963 / 1434 | 20 | 1660 / 753 | 10 / 253 |
| 2C010U102500300 | 25 | 10 | 1.232 / 31.29 | 1179 / 1755 | 18 | 2075 / 941 | 11.1 / 282 |
| 2C010U103000300 | 30 | 10 | 1.304 / 33.12 | 1380 / 2053 | 18 | 2490 / 1129 | 11.7 / 298 |
| 2C010U104000300 | 40 | 10 | 1.461 / 37.1 | 1790 / 2664 | 16 | 3320 / 1506 | 13.1 / 334 |
| 2C010U105000300 | 50 | 10 | 1.626 / 41.31 | 2211 / 3291 | 14 | 4150 / 1882 | 14.6 / 372 |
*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors.
Markets / Applications
|
|
VOLTAGE
600V, 1000V (optional)
PRODUCT CONSTRUCTION
Insulation:
FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
VW-1 rated (optional)
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Thermoset CPE (optional)
Thermoplastic CPE (optional)
Thermoplastic LSZH (optional)
Available in:
Custom insulation / jacket colors
Composite constructions
CERTIFICATIONS/COMPLIANCES
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
COLOUR CODING
- Method K1 & K2 (standard)
- Method 4 (optional)
|
|
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U140200300 | 2 | 14 | 0.372 / 9.45 | 72 / 108 | 25 | 66 / 30 | 3.3 / 85 |
| 2C010U140300300 | 3 | 14 | 0.392 / 9.96 | 90 / 134 | 25 | 99 / 45 | 3.5 / 90 |
| 2C010U140400300 | 4 | 14 | 0.426 / 10.83 | 111 / 166 | 20 | 132 / 60 | 3.8 / 97 |
| 2C010U140500300 | 5 | 14 | 0.465 / 11.81 | 130 / 194 | 20 | 165 / 75 | 4.2 / 106 |
| 2C010U140600300 | 6 | 14 | 0.505 / 12.83 | 153 / 228 | 20 | 197 / 90 | 4.5 / 115 |
| 2C010U140700300 | 7 | 14 | 0.505 / 12.83 | 167 / 249 | 17.5 | 230 / 104 | 4.5 / 115 |
| 2C010U140800300 | 8 | 14 | 0.575 / 14.6 | 207 / 308 | 17.5 | 263 / 119 | 5.2 / 131 |
| 2C010U141000300 | 10 | 14 | 0.668 / 16.97 | 256 / 381 | 12.5 | 329 / 149 | 6 / 153 |
| 2C010U141200300 | 12 | 14 | 0.688 / 17.48 | 291 / 433 | 12.5 | 395 / 179 | 6.2 / 157 |
| 2C010U141400300 | 14 | 14 | 0.722 / 18.35 | 331 / 493 | 12.5 | 461 / 209 | 6.5 / 165 |
| 2C010U141500300 | 15 | 14 | 0.741 / 18.83 | 351 / 522 | 12.5 | 494 / 224 | 6.7 / 169 |
| 2C010U142000300 | 20 | 14 | 0.841 / 21.36 | 453 / 674 | 12.5 | 658 / 298 | 7.6 / 192 |
| 2C010U142500300 | 25 | 14 | 0.974 / 24.74 | 590 / 878 | 11.25 | 823 / 373 | 8.8 / 223 |
| 2C010U143000300 | 30 | 14 | 1.028 / 26.12 | 680 / 1012 | 11.25 | 987 / 448 | 9.3 / 235 |
| 2C010U144000300 | 40 | 14 | 1.147 / 29.13 | 871 / 1296 | 10 | 1316 / 597 | 10.3 / 262 |
| 2C010U145000300 | 50 | 14 | 1.272 / 32.31 | 1067 / 1588 | 8.75 | 1645 / 746 | 11.4 / 291 |
| 2C010U120200300 | 2 | 12 | 0.408 / 10.36 | 95 / 141 | 30 | 104 / 47 | 3.7 / 93 |
| 2C010U120300300 | 3 | 12 | 0.431 / 10.94 | 122 / 182 | 30 | 157 / 71 | 3.9 / 98 |
| 2C010U120400300 | 4 | 12 | 0.47 / 11.94 | 150 / 224 | 24 | 209 / 95 | 4.2 / 107 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors.
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 2C010U120500300 | 5 | 12 | 0.514 / 13.05 | 183 / 272 | 24 | 261 / 118 | 4.6 / 117 |
| 2C010U120600300 | 6 | 12 | 0.589 / 14.96 | 233 / 347 | 24 | 313 / 142 | 5.3 / 135 |
| 2C010U120700300 | 7 | 12 | 0.589 / 14.96 | 255 / 380 | 21 | 365 / 166 | 5.3 / 135 |
| 2C010U120800300 | 8 | 12 | 0.634 / 16.11 | 283 / 421 | 21 | 418 / 189 | 5.7 / 145 |
| 2C010U121000300 | 10 | 12 | 0.74 / 18.8 | 351 / 523 | 15 | 522 / 237 | 6.7 / 169 |
| 2C010U121200300 | 12 | 12 | 0.763 / 19.37 | 405 / 602 | 15 | 626 / 284 | 6.9 / 174 |
| 2C010U121400300 | 14 | 12 | 0.802 / 20.37 | 460 / 685 | 15 | 731 / 331 | 7.2 / 183 |
| 2C010U121500300 | 15 | 12 | 0.823 / 20.91 | 488 / 727 | 15 | 783 / 355 | 7.4 / 188 |
| 2C010U122000300 | 20 | 12 | 0.976 / 24.8 | 672 / 1000 | 15 | 1044 / 474 | 8.8 / 223 |
| 2C010U122500300 | 25 | 12 | 1.082 / 27.48 | 821 / 1221 | 13.5 | 1305 / 592 | 9.7 / 247 |
| 2C010U123000300 | 30 | 12 | 1.144 / 29.06 | 953 / 1418 | 13.5 | 1566 / 710 | 10.3 / 261 |
| 2C010U124000300 | 40 | 12 | 1.278 / 32.47 | 1230 / 1831 | 12 | 2088 / 947 | 11.5 / 292 |
| 2C010U125000300 | 50 | 12 | 1.42 / 36.08 | 1515 / 2254 | 10.5 | 2610 / 1184 | 12.8 / 325 |
| 2C010U100200300 | 2 | 10 | 0.458 / 11.63 | 128 / 191 | 40 | 166 / 75 | 4.1 / 105 |
| 2C010U100300300 | 3 | 10 | 0.484 / 12.3 | 168 / 250 | 40 | 249 / 113 | 4.4 / 111 |
| 2C010U100400300 | 4 | 10 | 0.53 / 13.46 | 214 / 318 | 32 | 332 / 151 | 4.8 / 121 |
| 2C010U100500300 | 5 | 10 | 0.611 / 15.52 | 273 / 406 | 32 | 415 / 188 | 5.5 / 140 |
| 2C010U100600300 | 6 | 10 | 0.664 / 16.87 | 323 / 481 | 32 | 498 / 226 | 6 / 152 |
| 2C010U100700300 | 7 | 10 | 0.664 / 16.87 | 357 / 531 | 28 | 581 / 264 | 6 / 152 |
| 2C010U100800300 | 8 | 10 | 0.717 / 18.21 | 400 / 595 | 28 | 664 / 301 | 6.5 / 164 |
| 2C010U101000300 | 10 | 10 | 0.84 / 21.34 | 498 / 742 | 20 | 830 / 376 | 7.6 / 192 |
| 2C010U101200300 | 12 | 10 | 0.906 / 23.02 | 612 / 911 | 20 | 996 / 452 | 8.2 / 207 |
| 2C010U101400300 | 14 | 10 | 0.952 / 24.18 | 699 / 1040 | 20 | 1162 / 527 | 8.6 / 218 |
| 2C010U101500300 | 15 | 10 | 0.977 / 24.81 | 742 / 1104 | 20 | 1245 / 565 | 8.8 / 223 |
| 2C010U102000300 | 20 | 10 | 1.109 / 28.16 | 963 / 1434 | 20 | 1660 / 753 | 10 / 253 |
| 2C010U102500300 | 25 | 10 | 1.232 / 31.29 | 1179 / 1755 | 18 | 2075 / 941 | 11.1 / 282 |
| 2C010U103000300 | 30 | 10 | 1.304 / 33.12 | 1380 / 2053 | 18 | 2490 / 1129 | 11.7 / 298 |
| 2C010U104000300 | 40 | 10 | 1.461 / 37.1 | 1790 / 2664 | 16 | 3320 / 1506 | 13.1 / 334 |
| 2C010U105000300 | 50 | 10 | 1.626 / 41.31 | 2211 / 3291 | 14 | 4150 / 1882 | 14.6 / 372 |
*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors.
|
|
