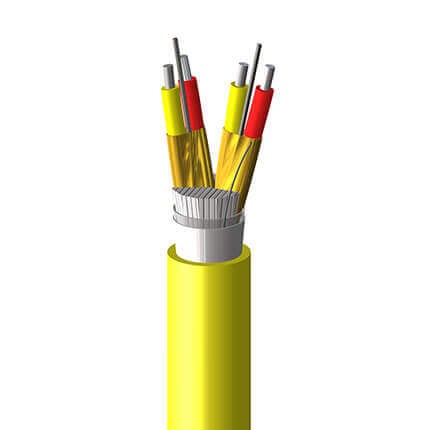

UL Type PLTC / ITC Tray Thermocouple Extension, 300 V
Shawflex Thermocouple Extension cables offer advantages in cost and mechanical properties when used for connections between thermocouples and instruments.
Construction
Voltage
300 V
Optional: 600V
Product Construction
- Insulation:
- FR PVC Insulation rated: 60°C wet / 105°C dry
- XLPE rated (optional)
- VW-1 rated (optional)
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- FR PVC (see Colour Coding for standard colours) rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Composite constructions
- Custom insulation / jacket colors
- TC-ER (optional)
- Extension cables for type E, J, K, N, R, S and T thermocouple alloys
Certifications
Certifications/Compliances
- UL 13, Power Limited Tray Cable (PLTC)
- UL 2250, Instrumentation Tray Cable (ITC)
- UL 83, Thermoplastic Insulated Wires and Cables
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- UL 1685 / FT4, Vertical Tray Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- UV sunlight resistant SUN RES (all colours)
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Type EX: (+) Purple (-) Red Purple jacket
- Type JX: (+) White (-) Red Black jacket
- Type KX: (+) Yellow (-) Red Yellow jacket
- Type NX: (+) Orange (-) Red Orange jacket
- Type RX/SX: (+) Black (-) Red Green jacket
- Type TX: (+) Blue (-) Red Blue jacket

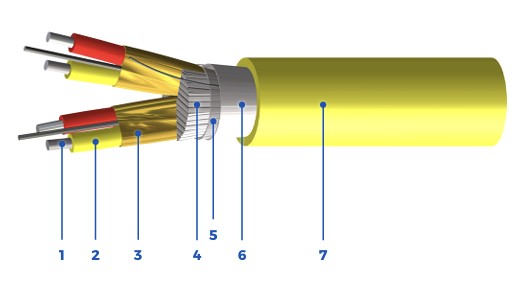

Properties
- Thermocouple Alloys
- Insulated Thermocouple Alloy Wires
- Individual Aluminum / Mylar Shielded Pairs with Tinned Copper Drain Wire
- Polypropylene Fillers
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
- FR PVC Outer Protective Jacket
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft)/ (kg/km) | (lb/kg) | (in/mm) | ||
| 7P021U160147700 | 1 | 16 | 0.257 / 6.5 | 40 / 60 | 41 / 19 | 4.6 / 118 |
| 7P022U160247700 | 2 | 16 | 0.389 / 9.9 | 91 / 135 | 82 / 37 | 7 / 178 |
| 7P022U160447700 | 4 | 16 | 0.472 / 12.0 | 145 / 216 | 165 / 75 | 8.5 / 216 |
| 7P022U160647700 | 6 | 16 | 0.561 / 14.2 | 206 / 307 | 247 / 112 | 10.1 / 256 |
| 7P022U160847700 | 8 | 16 | 0.607 / 15.4 | 257 / 383 | 330 / 150 | 10.9 / 277 |
| 7P022U161247700 | 12 | 16 | 0.756 / 19.2 | 381 / 567 | 494 / 224 | 13.6 / 346 |
| 7P022U162447700 | 24 | 16 | 1.059 / 26.9 | 720 / 1071 | 989 / 449 | 19.1 / 484 |
| 7P021U180147700 | 1 | 18 | 0.235 / 6.0 | 32 / 47 | 26 / 12 | 4.2 / 107 |
| 7P022U180247700 | 2 | 18 | 0.353 / 9.0 | 72 / 106 | 52 / 24 | 6.4 / 161 |
| 7P022U180447700 | 4 | 18 | 0.428 / 10.9 | 112 / 166 | 104 / 47 | 7.7 / 196 |
| 7P022U180647700 | 6 | 18 | 0.505 / 12.8 | 156 / 232 | 156 / 71 | 9.1 / 231 |
| 7P022U180847700 | 8 | 18 | 0.546 / 13.9 | 193 / 287 | 208 / 94 | 9.8 / 249 |
| 7P022U181247700 | 12 | 18 | 0.679 / 17.2 | 283 / 422 | 312 / 142 | 12.2 / 310 |
| 7P022U182447700 | 24 | 18 | 0.946 / 24.0 | 532 / 791 | 624 / 283 | 17 / 433 |
Markets / Applications
- Water/Waste Water Treatment
- Generation – Nuclear
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Commercial Construction Projects
- Mining
Voltage
300 V
Optional: 600V
Product Construction
- Insulation:
- FR PVC Insulation rated: 60°C wet / 105°C dry
- XLPE rated (optional)
- VW-1 rated (optional)
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- FR PVC (see Colour Coding for standard colours) rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Composite constructions
- Custom insulation / jacket colors
- TC-ER (optional)
- Extension cables for type E, J, K, N, R, S and T thermocouple alloys
Certifications/Compliances
- UL 13, Power Limited Tray Cable (PLTC)
- UL 2250, Instrumentation Tray Cable (ITC)
- UL 83, Thermoplastic Insulated Wires and Cables
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- UL 1685 / FT4, Vertical Tray Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- UV sunlight resistant SUN RES (all colours)
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Type EX: (+) Purple (-) Red Purple jacket
- Type JX: (+) White (-) Red Black jacket
- Type KX: (+) Yellow (-) Red Yellow jacket
- Type NX: (+) Orange (-) Red Orange jacket
- Type RX/SX: (+) Black (-) Red Green jacket
- Type TX: (+) Blue (-) Red Blue jacket
- Thermocouple Alloys
- Insulated Thermocouple Alloy Wires
- Individual Aluminum / Mylar Shielded Pairs with Tinned Copper Drain Wire
- Polypropylene Fillers
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
- FR PVC Outer Protective Jacket
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft)/ (kg/km) | (lb/kg) | (in/mm) | ||
| 7P021U160147700 | 1 | 16 | 0.257 / 6.5 | 40 / 60 | 41 / 19 | 4.6 / 118 |
| 7P022U160247700 | 2 | 16 | 0.389 / 9.9 | 91 / 135 | 82 / 37 | 7 / 178 |
| 7P022U160447700 | 4 | 16 | 0.472 / 12.0 | 145 / 216 | 165 / 75 | 8.5 / 216 |
| 7P022U160647700 | 6 | 16 | 0.561 / 14.2 | 206 / 307 | 247 / 112 | 10.1 / 256 |
| 7P022U160847700 | 8 | 16 | 0.607 / 15.4 | 257 / 383 | 330 / 150 | 10.9 / 277 |
| 7P022U161247700 | 12 | 16 | 0.756 / 19.2 | 381 / 567 | 494 / 224 | 13.6 / 346 |
| 7P022U162447700 | 24 | 16 | 1.059 / 26.9 | 720 / 1071 | 989 / 449 | 19.1 / 484 |
| 7P021U180147700 | 1 | 18 | 0.235 / 6.0 | 32 / 47 | 26 / 12 | 4.2 / 107 |
| 7P022U180247700 | 2 | 18 | 0.353 / 9.0 | 72 / 106 | 52 / 24 | 6.4 / 161 |
| 7P022U180447700 | 4 | 18 | 0.428 / 10.9 | 112 / 166 | 104 / 47 | 7.7 / 196 |
| 7P022U180647700 | 6 | 18 | 0.505 / 12.8 | 156 / 232 | 156 / 71 | 9.1 / 231 |
| 7P022U180847700 | 8 | 18 | 0.546 / 13.9 | 193 / 287 | 208 / 94 | 9.8 / 249 |
| 7P022U181247700 | 12 | 18 | 0.679 / 17.2 | 283 / 422 | 312 / 142 | 12.2 / 310 |
| 7P022U182447700 | 24 | 18 | 0.946 / 24.0 | 532 / 791 | 624 / 283 | 17 / 433 |
- Water/Waste Water Treatment
- Generation – Nuclear
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Commercial Construction Projects
- Mining
Related products
-
UL HD-RHW-2, Single Conductor, 600 V
View Product: UL HD-RHW-2, Single Conductor, 600 VUL HD-RHW-2, Single Conductor, 600 V
Heavy Duty provides an extra level of reliability and is suitable for use in ventilated, non- ventilated and ladder type cable trays, direct burial and raceways. Applicable for use in Utilities, Industrial and Commercial applications.
-
UL Type MC Armored VFD, Multi-Conductor, 600/1000 V
View Product: UL Type MC Armored VFD, Multi-Conductor, 600/1000 VUL Type MC Armored VFD, Multi-Conductor, 600/1000 V
Shawflex VFD cables are the preferred power cables for AC Drives. These cables are primarily used between Pulse Width Modulation (PWM) inverters and AC motors. Tray cables are suitable for use in raceways, including ventilated, non-ventilated, indoor / outdoor and ladder-type cable trays in wet / dry locations and are applicable in Industrial and Processing facilities.
-

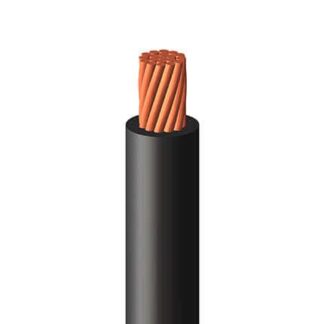

CSA TYPE RWU90, Single Conductor, 1000 V
