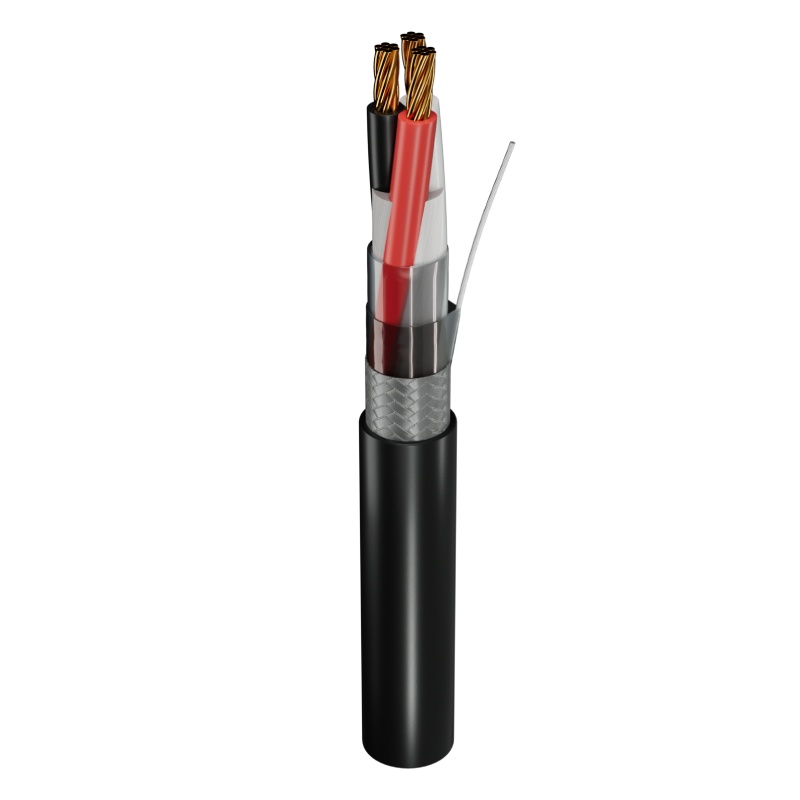

SH-HFA 150/250 V Armoured Multi-Conductor (LSZH), HF90/SHF1
Construction
Voltage
150/250v
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
Halogen Free HF90 Rated: +90ºC Wet/Dry, IEC 60092-360
Shielding:
Aluminum/mylar foil shield with tinned copper drain wire (standard)
Armour:
Tinned-Copper Braid (optional)
Bronze Braid (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
- IEC 60092-376
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-3-22, Cat. A (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- IEC 60811-403 (Ozone Resistance)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
Per IEEE 1580 Table 23:
- 2C – Black, White
- 3C – Black, White, Red
- 4C – Black, White, Red, Green
- 5C – Black, White, Red, Green, Orange
- 6C – Black, White, Red, Green, Orange, Blue
- >=7C – Base color with tracers

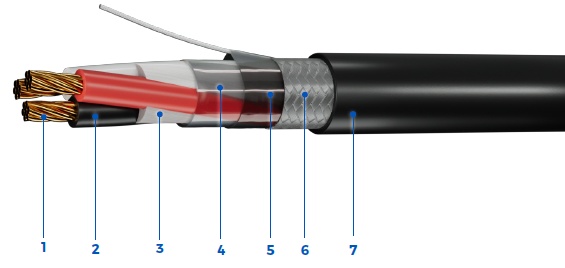

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- Halogen Free HF90 Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Overall Aluminum/Mylar Shield with Tinned Copper Drain Wire
Optional: LSZH Inner Sheath (Not Shown) - Tinned-Copper or Bronze Braided Armour
- Protective LSZH Outer Sheath
NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
(c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
2c | x | 0.5 | 0.3 / 7.9 | 81.11 / 120.71 | 14 | SHC11E1A02F0800 |
2c | x | 1 | 0.3 / 8.7 | 93.56 / 139.23 | 16 | SHC11E0102F0800 |
2c | x | 1.5 | 0.4 / 10.2 | 123.99 / 184.51 | 20 | SHC11E3A02F0800 |
2c | x | 2.5 | 0.5 / 11.5 | 168.8 / 251.2 | 26 | SHC11E5A02F0800 |
3c | x | 0.5 | 0.3 / 8.3 | 87.42 / 130.09 | 9 | SHC11E1A03F0800 |
3c | x | 1 | 0.4 / 9.3 | 108.74 / 161.83 | 12 | SHC11E0103F0800 |
3c | x | 1.5 | 0.4 / 10.7 | 139.86 / 208.14 | 16 | SHC11E3A03F0800 |
3c | x | 2.5 | 0.5 / 12 | 192.08 / 285.84 | 21 | SHC11E5A03F0800 |
4c | x | 0.5 | 0.3 / 8.8 | 98 / 145.85 | 9 | SHC11E1A04F0800 |
4c | x | 1 | 0.4 / 10 | 123.89 / 184.37 | 12 | SHC11E0104F0800 |
4c | x | 1.5 | 0.5 / 11.9 | 179.94 / 267.78 | 16 | SHC11E3A04F0800 |
4c | x | 2.5 | 0.5 / 13.2 | 230.61 / 343.18 | 21 | SHC11E5A04F0800 |
5c | x | 0.5 | 0.4 / 10 | 119.79 / 178.27 | 7.2 | SHC11E1A05F0800 |
5c | x | 1 | 0.4 / 11 | 144.89 / 215.62 | 9.6 | SHC11E0105F0800 |
5c | x | 1.5 | 0.5 / 13 | 211.55 / 314.82 | 12.8 | SHC11E3A05F0800 |
5c | x | 2.5 | 0.6 / 14.2 | 265.07 / 394.47 | 16.8 | SHC11E5A05F0800 |
7c | x | 0.5 | 0.4 / 10.7 | 136.97 / 203.83 | 6.3 | SHC11E1A07F0800 |
7c | x | 1 | 0.5 / 12.1 | 191.43 / 284.87 | 8.4 | SHC11E0107F0800 |
7c | x | 1.5 | 0.5 / 13.9 | 246.37 / 366.64 | 11.2 | SHC11E3A07F0800 |
7c | x | 2.5 | 0.6 / 15.2 | 309.47 / 460.54 | 14.7 | SHC11E5A07F0800 |
10c | x | 0.5 | 0.5 / 13.5 | 210.63 / 313.46 | 6.3 | SHC11E1A10F0800 |
10c | x | 1 | 0.6 / 14.9 | 257.86 / 383.74 | 8.4 | SHC11E0110F0800 |
10c | x | 1.5 | 0.7 / 17.2 | 336.87 / 501.31 | 11.2 | SHC11E3A10F0800 |
10c | x | 2.5 | 0.7 / 18.9 | 426.03 / 634 | 14.7 | SHC11E5A10F0800 |
12c | x | 0.5 | 0.5 / 13.8 | 223.37 / 332.41 | 6.3 | SHC11E1A12F0800 |
12c | x | 1 | 0.6 / 15.3 | 277.03 / 412.27 | 8.4 | SHC11E0112F0800 |
12c | x | 1.5 | 0.7 / 17.7 | 366.41 / 545.28 | 11.2 | SHC11E3A12F0800 |
12c | x | 2.5 | 0.8 / 19.5 | 468.59 / 697.34 | 14.7 | SHC11E5A12F0800 |
14c | x | 0.5 | 0.6 / 14.4 | 241.35 / 359.17 | 6.3 | SHC11E1A14F0800 |
14c | x | 1 | 0.6 / 16 | 301.97 / 449.39 | 8.4 | SHC11E0114F0800 |
14c | x | 1.5 | 0.7 / 18.5 | 398.38 / 592.85 | 11.2 | SHC11E3A14F0800 |
14c | x | 2.5 | 0.8 / 20.6 | 531.16 / 790.45 | 14.7 | SHC11E5A14F0800 |
19c | x | 0.5 | 0.6 / 15.7 | 284.64 / 423.59 | 6.3 | SHC11E1A19F0800 |
19c | x | 1 | 0.7 / 17.7 | 372.63 / 554.53 | 8.4 | SHC11E0119F0800 |
19c | x | 1.5 | 0.8 / 20.5 | 495.55 / 737.47 | 11.2 | SHC11E3A19F0800 |
19c | x | 2.5 | 0.9 / 22.7 | 649.26 / 966.21 | 14.7 | SHC11E5A19F0800 |
24c | x | 0.5 | 0.7 / 18.1 | 355.46 / 528.98 | 6.3 | SHC11E1A24F0800 |
24c | x | 1 | 0.8 / 20.5 | 466.43 / 694.12 | 8.4 | SHC11E0124F0800 |
24c | x | 1.5 | 0.9 / 23.8 | 624.34 / 929.12 | 11.2 | SHC11E3A24F0800 |
24c | x | 2.5 | 1 / 26.4 | 821.64 / 1222.73 | 14.7 | SHC11E5A24F0800 |
27c | x | 0.5 | 0.7 / 18.4 | 373.94 / 556.48 | 5.4 | SHC11E1A27F0800 |
27c | x | 1 | 0.8 / 20.9 | 494.61 / 736.06 | 7.2 | SHC11E0127F0800 |
27c | x | 1.5 | 1 / 24.3 | 667.28 / 993.01 | 9.6 | SHC11E3A27F0800 |
27c | x | 2.5 | 1.1 / 27.2 | 899.87 / 1339.16 | 12.6 | SHC11E5A27F0800 |
37c | x | 0.5 | 0.8 / 20.6 | 464.91 / 691.87 | 5.4 | SHC11E1A37F0800 |
37c | x | 1 | 0.9 / 23 | 608.54 / 905.61 | 7.2 | SHC11E0137F0800 |
37c | x | 1.5 | 1.1 / 27.1 | 841.6 / 1252.43 | 9.6 | SHC11E3A37F0800 |
37c | x | 2.5 | 1.2 / 30.4 | 1149.02 / 1709.93 | 12.6 | SHC11E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Markets / Applications
Marine & Shipboard
