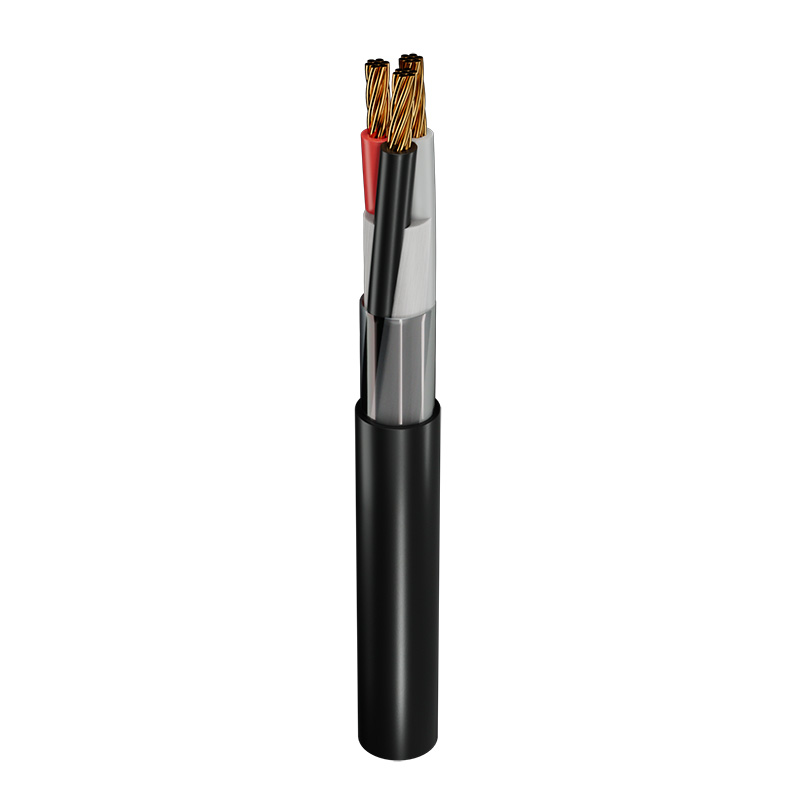

SE-XL 600/1000 V Unarmoured Multi-Conductor (LSZH), XLPE/SHF1
SE-XL 600/1000 V unarmoured multicore cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
Construction
Voltage
600/ 1000 V
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Shield:
Aluminum/mylar shield with drain wire or copper tape shielded (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-3-22, Cat. A (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
Custom colour coding available, inc.:
- Per IEEE 1580 Table 23:
- 2C – Black, White
- 3C – Black, White, Red
- 4C – Black, White, Red, Green
- 5C – Black, White, Red, Green, Orange
- 6C – Black, White, Red, Green, Orange, Blue
- ≥7C – Base color with tracers

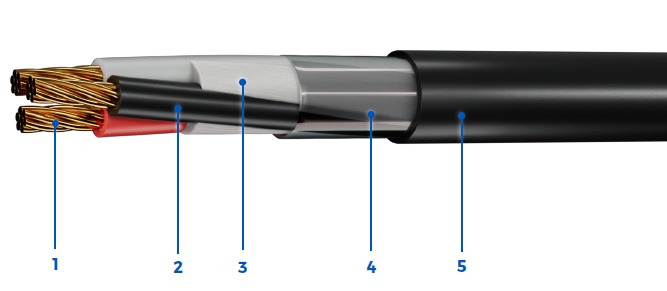

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 1 | 0.3 / 8.3 | 65.44 / 97.39 | 16 | SE011E0102F0800 |
| 2c | x | 1.5 | 0.4 / 9.2 | 79.19 / 117.85 | 20 | SE011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 10.1 | 97.7 / 145.39 | 26 | SE011E5A02F0800 |
| 2c | x | 4 | 0.4 / 11.1 | 124.51 / 185.29 | 34 | SE011E0402F0800 |
| 2c | x | 6 | 0.5 / 12.9 | 167.75 / 249.64 | 44 | SE011E0602F0800 |
| 2c | x | 10 | 0.6 / 14.4 | 233.1 / 346.9 | 61 | SE011E1002F0800 |
| 2c | x | 16 | 0.7 / 17.9 | 356.33 / 530.27 | 82 | SE011E1602F0800 |
| 2c | x | 25 | 0.8 / 21.5 | 525.87 / 782.59 | 108 | SE011E2502F0800 |
| 2c | x | 35 | 1 / 24.3 | 684.57 / 1018.75 | 133 | SE011E3502F0800 |
| 2c | x | 50 | 1.1 / 27.3 | 936.17 / 1393.17 | 167 | SE011E5002F0800 |
| 2c | x | 70 | 1.3 / 32.1 | 1269.82 / 1889.7 | 206 | SE011E7002F0800 |
| 2c | x | 120 | 1.6 / 40.1 | 2062.33 / 3069.08 | 288 | SE011E12002F0800 |
| 3c | x | 1 | 0.3 / 8.7 | 75.21 / 111.92 | 12 | SE011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.7 | 92.87 / 138.2 | 16 | SE011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.6 | 117.39 / 174.7 | 21 | SE011E5A03F0800 |
| 3c | x | 4 | 0.5 / 12 | 161.47 / 240.29 | 28 | SE011E0403F0800 |
| 3c | x | 6 | 0.5 / 13.6 | 212.75 / 316.61 | 36 | SE011E0603F0800 |
| 3c | x | 10 | 0.6 / 15.5 | 308.74 / 459.46 | 50 | SE011E1003F0800 |
| 3c | x | 16 | 0.8 / 19.2 | 479.12 / 713 | 67 | SE011E1603F0800 |
| 3c | x | 25 | 0.9 / 23 | 706.52 / 1051.41 | 89 | SE011E2503F0800 |
| 3c | x | 35 | 1 / 26 | 932.72 / 1388.04 | 110 | SE011E3503F0800 |
| 3c | x | 50 | 1.2 / 29.3 | 1274.07 / 1896.03 | 137 | SE011E5003F0800 |
| 3c | x | 70 | 1.4 / 34.5 | 1737.88 / 2586.24 | 169 | SE011E7003F0800 |
| 3c | x | 120 | 1.7 / 43 | 2834.96 / 4218.88 | 237 | SE011E12003F0800 |
| 4c | x | 1 | 0.4 / 9.4 | 85.79 / 127.66 | 12 | SE011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10.5 | 106.18 / 158.02 | 16 | SE011E3A04F0800 |
| 4c | x | 2.5 | 0.5 / 11.8 | 148.24 / 220.61 | 21 | SE011E5A04F0800 |
| 4c | x | 4 | 0.5 / 13 | 194.76 / 289.84 | 28 | SE011E0404F0800 |
| 4c | x | 6 | 0.6 / 14.9 | 263.13 / 391.57 | 36 | SE011E0604F0800 |
| 4c | x | 10 | 0.7 / 16.9 | 385.66 / 573.93 | 50 | SE011E1004F0800 |
| 4c | x | 16 | 0.8 / 21.1 | 601.25 / 894.75 | 67 | SE011E1604F0800 |
| 4c | x | 25 | 1 / 25.3 | 896.84 / 1334.64 | 89 | SE011E2504F0800 |
| 5c | x | 1 | 0.4 / 10.5 | 102.19 / 152.08 | 10 | SE011E0105F0800 |
| 5c | x | 1.5 | 0.5 / 11.6 | 130.32 / 193.93 | 13 | SE011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.7 | 176.09 / 262.05 | 17 | SE011E5A05F0800 |
| 5c | x | 4 | 0.6 / 14.2 | 233.65 / 347.7 | 22 | SE011E0405F0800 |
| 5c | x | 6 | 0.6 / 16.5 | 320.47 / 476.91 | 29 | SE011E0605F0800 |
| 5c | x | 10 | 0.7 / 18.7 | 476.52 / 709.14 | 40 | SE011E1005F0800 |
| 5c | x | 16 | 0.9 / 23.3 | 745.81 / 1109.88 | 54 | SE011E1605F0800 |
| 5c | x | 25 | 1.1 / 28 | 1113.86 / 1657.6 | 71 | SE011E2505F0800 |
| 7c | x | 1 | 0.5 / 11.6 | 129.07 / 192.08 | 8 | SE011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 12.5 | 159.06 / 236.71 | 11 | SE011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.8 | 213.55 / 317.8 | 15 | SE011E5A07F0800 |
| 10c | x | 1 | 0.6 / 14.3 | 176.43 / 262.56 | 8 | SE011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 15.8 | 227.61 / 338.72 | 11 | SE011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 17.5 | 305.29 / 454.33 | 15 | SE011E5A10F0800 |
| 12c | x | 1 | 0.6 / 14.7 | 195.39 / 290.78 | 8 | SE011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 16.3 | 254.11 / 378.16 | 11 | SE011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 18 | 344.38 / 512.49 | 15 | SE011E5A12F0800 |
| 14c | x | 1 | 1 / 22.46 | 222.46 / 331.06 | 8 | SE011E0114F0800 |
| 14c | x | 1.5 | 0.7 / 17 | 280.82 / 417.9 | 11 | SE011E3A14F0800 |
| 14c | x | 2.5 | 0.8 / 19.2 | 399.4 / 594.37 | 15 | SE011E5A14F0800 |
| 19c | x | 1 | 0.7 / 17.3 | 277.13 / 412.41 | 8 | SE011E0119F0800 |
| 19c | x | 1.5 | 0.8 / 19.1 | 364.5 / 542.44 | 11 | SE011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 21.3 | 503.86 / 749.82 | 15 | SE011E5A19F0800 |
| 24c | x | 1 | 0.8 / 20.3 | 359.64 / 535.21 | 8 | SE011E0124F0800 |
| 24c | x | 1.5 | 0.9 / 22.4 | 471.19 / 701.21 | 11 | SE011E3A24F0800 |
| 24c | x | 2.5 | 1 / 25 | 651.27 / 969.19 | 15 | SE011E5A24F0800 |
| 27c | x | 1 | 0.8 / 20.7 | 388.23 / 577.75 | 7 | SE011E0127F0800 |
| 27c | x | 1.5 | 0.9 / 22.9 | 511.09 / 760.58 | 10 | SE011E3A27F0800 |
| 27c | x | 2.5 | 1 / 25.8 | 724.34 / 1077.94 | 13 | SE011E5A27F0800 |
| 37c | x | 1 | 0.9 / 23.3 | 503.62 / 749.47 | 7 | SE011E0137F0800 |
| 37c | x | 1.5 | 1 / 25.7 | 666.5 / 991.86 | 10 | SE011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 29 | 952.15 / 1416.96 | 13 | SE011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes
Markets / Applications
Marine & Shipboard
Voltage
600/ 1000 V
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Shield:
Aluminum/mylar shield with drain wire or copper tape shielded (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-3-22, Cat. A (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
Custom colour coding available, inc.:
- Per IEEE 1580 Table 23:
- 2C – Black, White
- 3C – Black, White, Red
- 4C – Black, White, Red, Green
- 5C – Black, White, Red, Green, Orange
- 6C – Black, White, Red, Green, Orange, Blue
- ≥7C – Base color with tracers
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 1 | 0.3 / 8.3 | 65.44 / 97.39 | 16 | SE011E0102F0800 |
| 2c | x | 1.5 | 0.4 / 9.2 | 79.19 / 117.85 | 20 | SE011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 10.1 | 97.7 / 145.39 | 26 | SE011E5A02F0800 |
| 2c | x | 4 | 0.4 / 11.1 | 124.51 / 185.29 | 34 | SE011E0402F0800 |
| 2c | x | 6 | 0.5 / 12.9 | 167.75 / 249.64 | 44 | SE011E0602F0800 |
| 2c | x | 10 | 0.6 / 14.4 | 233.1 / 346.9 | 61 | SE011E1002F0800 |
| 2c | x | 16 | 0.7 / 17.9 | 356.33 / 530.27 | 82 | SE011E1602F0800 |
| 2c | x | 25 | 0.8 / 21.5 | 525.87 / 782.59 | 108 | SE011E2502F0800 |
| 2c | x | 35 | 1 / 24.3 | 684.57 / 1018.75 | 133 | SE011E3502F0800 |
| 2c | x | 50 | 1.1 / 27.3 | 936.17 / 1393.17 | 167 | SE011E5002F0800 |
| 2c | x | 70 | 1.3 / 32.1 | 1269.82 / 1889.7 | 206 | SE011E7002F0800 |
| 2c | x | 120 | 1.6 / 40.1 | 2062.33 / 3069.08 | 288 | SE011E12002F0800 |
| 3c | x | 1 | 0.3 / 8.7 | 75.21 / 111.92 | 12 | SE011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.7 | 92.87 / 138.2 | 16 | SE011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.6 | 117.39 / 174.7 | 21 | SE011E5A03F0800 |
| 3c | x | 4 | 0.5 / 12 | 161.47 / 240.29 | 28 | SE011E0403F0800 |
| 3c | x | 6 | 0.5 / 13.6 | 212.75 / 316.61 | 36 | SE011E0603F0800 |
| 3c | x | 10 | 0.6 / 15.5 | 308.74 / 459.46 | 50 | SE011E1003F0800 |
| 3c | x | 16 | 0.8 / 19.2 | 479.12 / 713 | 67 | SE011E1603F0800 |
| 3c | x | 25 | 0.9 / 23 | 706.52 / 1051.41 | 89 | SE011E2503F0800 |
| 3c | x | 35 | 1 / 26 | 932.72 / 1388.04 | 110 | SE011E3503F0800 |
| 3c | x | 50 | 1.2 / 29.3 | 1274.07 / 1896.03 | 137 | SE011E5003F0800 |
| 3c | x | 70 | 1.4 / 34.5 | 1737.88 / 2586.24 | 169 | SE011E7003F0800 |
| 3c | x | 120 | 1.7 / 43 | 2834.96 / 4218.88 | 237 | SE011E12003F0800 |
| 4c | x | 1 | 0.4 / 9.4 | 85.79 / 127.66 | 12 | SE011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10.5 | 106.18 / 158.02 | 16 | SE011E3A04F0800 |
| 4c | x | 2.5 | 0.5 / 11.8 | 148.24 / 220.61 | 21 | SE011E5A04F0800 |
| 4c | x | 4 | 0.5 / 13 | 194.76 / 289.84 | 28 | SE011E0404F0800 |
| 4c | x | 6 | 0.6 / 14.9 | 263.13 / 391.57 | 36 | SE011E0604F0800 |
| 4c | x | 10 | 0.7 / 16.9 | 385.66 / 573.93 | 50 | SE011E1004F0800 |
| 4c | x | 16 | 0.8 / 21.1 | 601.25 / 894.75 | 67 | SE011E1604F0800 |
| 4c | x | 25 | 1 / 25.3 | 896.84 / 1334.64 | 89 | SE011E2504F0800 |
| 5c | x | 1 | 0.4 / 10.5 | 102.19 / 152.08 | 10 | SE011E0105F0800 |
| 5c | x | 1.5 | 0.5 / 11.6 | 130.32 / 193.93 | 13 | SE011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.7 | 176.09 / 262.05 | 17 | SE011E5A05F0800 |
| 5c | x | 4 | 0.6 / 14.2 | 233.65 / 347.7 | 22 | SE011E0405F0800 |
| 5c | x | 6 | 0.6 / 16.5 | 320.47 / 476.91 | 29 | SE011E0605F0800 |
| 5c | x | 10 | 0.7 / 18.7 | 476.52 / 709.14 | 40 | SE011E1005F0800 |
| 5c | x | 16 | 0.9 / 23.3 | 745.81 / 1109.88 | 54 | SE011E1605F0800 |
| 5c | x | 25 | 1.1 / 28 | 1113.86 / 1657.6 | 71 | SE011E2505F0800 |
| 7c | x | 1 | 0.5 / 11.6 | 129.07 / 192.08 | 8 | SE011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 12.5 | 159.06 / 236.71 | 11 | SE011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.8 | 213.55 / 317.8 | 15 | SE011E5A07F0800 |
| 10c | x | 1 | 0.6 / 14.3 | 176.43 / 262.56 | 8 | SE011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 15.8 | 227.61 / 338.72 | 11 | SE011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 17.5 | 305.29 / 454.33 | 15 | SE011E5A10F0800 |
| 12c | x | 1 | 0.6 / 14.7 | 195.39 / 290.78 | 8 | SE011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 16.3 | 254.11 / 378.16 | 11 | SE011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 18 | 344.38 / 512.49 | 15 | SE011E5A12F0800 |
| 14c | x | 1 | 1 / 22.46 | 222.46 / 331.06 | 8 | SE011E0114F0800 |
| 14c | x | 1.5 | 0.7 / 17 | 280.82 / 417.9 | 11 | SE011E3A14F0800 |
| 14c | x | 2.5 | 0.8 / 19.2 | 399.4 / 594.37 | 15 | SE011E5A14F0800 |
| 19c | x | 1 | 0.7 / 17.3 | 277.13 / 412.41 | 8 | SE011E0119F0800 |
| 19c | x | 1.5 | 0.8 / 19.1 | 364.5 / 542.44 | 11 | SE011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 21.3 | 503.86 / 749.82 | 15 | SE011E5A19F0800 |
| 24c | x | 1 | 0.8 / 20.3 | 359.64 / 535.21 | 8 | SE011E0124F0800 |
| 24c | x | 1.5 | 0.9 / 22.4 | 471.19 / 701.21 | 11 | SE011E3A24F0800 |
| 24c | x | 2.5 | 1 / 25 | 651.27 / 969.19 | 15 | SE011E5A24F0800 |
| 27c | x | 1 | 0.8 / 20.7 | 388.23 / 577.75 | 7 | SE011E0127F0800 |
| 27c | x | 1.5 | 0.9 / 22.9 | 511.09 / 760.58 | 10 | SE011E3A27F0800 |
| 27c | x | 2.5 | 1 / 25.8 | 724.34 / 1077.94 | 13 | SE011E5A27F0800 |
| 37c | x | 1 | 0.9 / 23.3 | 503.62 / 749.47 | 7 | SE011E0137F0800 |
| 37c | x | 1.5 | 1 / 25.7 | 666.5 / 991.86 | 10 | SE011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 29 | 952.15 / 1416.96 | 13 | SE011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes
Marine & Shipboard
Related products
-
SH-HF (C) 150/250 V Unarmoured Overall Screened Pairs & Triads (LSZH), HF90/SHF1
Read moreSH-HF (C) 150/250 V Unarmoured Overall Screened Pairs & Triads (LSZH), HF90/SHF1
SH-HF (C) 150/250 V unarmoured overall screened pair & triad cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
-
SL-HF 600/1000 V Unarmoured Single Conductor (LSZH), HF90/SHF1
Read moreSL-HF 600/1000 V Unarmoured Single Conductor (LSZH), HF90/SHF1
SL-HF 600/1000 V unarmoured single core cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
-

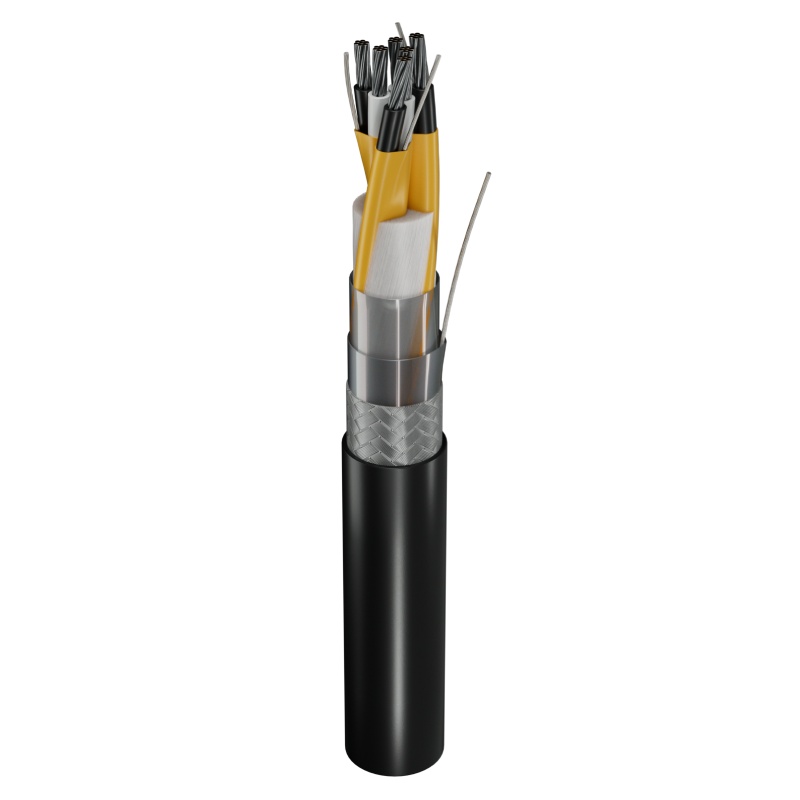

SH-HFA (I) 150/250 V Armoured Individually and Overall Screened Pairs & Triads (LSZH), HF90/SHF1
Read moreSH-HFA (I) 150/250 V Armoured Individually and Overall Screened Pairs & Triads (LSZH), HF90/SHF1
SH-HFA (I) 150/250 V armoured individually and overall screened pair & triad cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
