SF-XL 150/250 V Unarmoured Multi-Conductor (LSZH), XLPE/SHF1
Construction
Voltage
150/250v
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Shielding:
Aluminum/mylar foil shield with tinned copper drain wire (standard)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
- IEC 60092-376
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-3-22, Cat. A (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
Custom colour coding available, inc.
• Per IEEE 1580 Table 23:
- 2C – Black, White
- 3C – Black, White, Red
- 4C – Black, White, Red, Green
- 5C – Black, White, Red, Green, Orange
- 6C – Black, White, Red, Green, Orange, Blue
- ≥7C – Base color with tracers

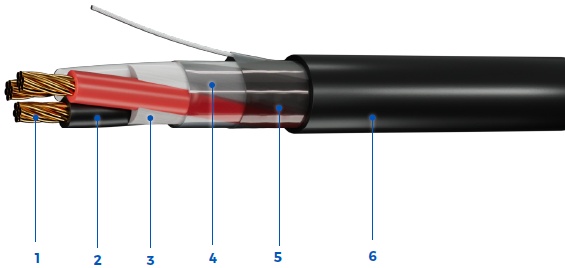

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Overall Aluminum/Mylar Shield with Tinned Copper Drain Wire
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 0.5 | 0.2 / 6.1 | 39.16 / 58.27 | 14 | SF011E1A02F0800 |
| 2c | x | 1 | 0.3 / 7.2 | 53 / 78.87 | 16 | SF011E0102F0800 |
| 2c | x | 1.5 | 0.3 / 8.8 | 75.78 / 112.77 | 20 | SF011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 9.7 | 94.14 / 140.09 | 26 | SF011E5A02F0800 |
| 3c | x | 0.5 | 0.3 / 6.4 | 44.9 / 66.81 | 9 | SF011E1A03F0800 |
| 3c | x | 1 | 0.3 / 7.6 | 60.18 / 89.55 | 12 | SF011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.2 | 88.71 / 132.01 | 16 | SF011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.2 | 112.98 / 168.13 | 21 | SF011E5A03F0800 |
| 4c | x | 0.5 | 0.3 / 6.9 | 51.56 / 76.73 | 9 | SF011E1A04F0800 |
| 4c | x | 1 | 0.3 / 8.5 | 75.11 / 111.77 | 12 | SF011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10 | 101.15 / 150.53 | 16 | SF011E3A04F0800 |
| 4c | x | 2.5 | 0.4 / 11 | 136.68 / 203.4 | 21 | SF011E5A04F0800 |
| 5c | x | 0.5 | 0.3 / 7.6 | 61.82 / 92 | 7.2 | SF011E1A05F0800 |
| 5c | x | 1 | 0.4 / 9.4 | 91.1 / 135.57 | 9.6 | SF011E0105F0800 |
| 5c | x | 1.5 | 0.4 / 10.8 | 118.25 / 175.97 | 12.8 | SF011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.2 | 163.03 / 242.61 | 16.8 | SF011E5A05F0800 |
| 7c | x | 0.5 | 0.3 / 8.4 | 77.83 / 115.83 | 6.3 | SF011E1A07F0800 |
| 7c | x | 1 | 0.4 / 10.1 | 109.18 / 162.48 | 8.4 | SF011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 11.9 | 151.27 / 225.12 | 11.2 | SF011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.2 | 204.34 / 304.09 | 14.7 | SF011E5A07F0800 |
| 10c | x | 0.5 | 0.4 / 10.2 | 100.29 / 149.25 | 6.3 | SF011E1A10F0800 |
| 10c | x | 1 | 0.5 / 12.7 | 153.7 / 228.73 | 8.4 | SF011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 14.7 | 208.14 / 309.74 | 11.2 | SF011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 16.7 | 292.87 / 435.84 | 14.7 | SF011E5A10F0800 |
| 12c | x | 0.5 | 0.4 / 10.5 | 110.85 / 164.97 | 6.3 | SF011E1A12F0800 |
| 12c | x | 1 | 0.5 / 13.1 | 169.16 / 251.74 | 8.4 | SF011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 15.4 | 241.16 / 358.89 | 11.2 | SF011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 17.2 | 330.38 / 491.67 | 14.7 | SF011E5A12F0800 |
| 14c | x | 0.5 | 0.4 / 10.9 | 122.58 / 182.41 | 6.3 | SF011E1A14F0800 |
| 14c | x | 1 | 0.5 / 13.7 | 188.39 / 280.35 | 8.4 | SF011E0114F0800 |
| 14c | x | 1.5 | 0.6 / 16.2 | 266.31 / 396.31 | 11.2 | SF011E3A14F0800 |
| 14c | x | 2.5 | 0.7 / 18.1 | 373.36 / 555.62 | 14.7 | SF011E5A14F0800 |
| 19c | x | 0.5 | 0.5 / 12.2 | 157.37 / 234.19 | 6.3 | SF011E1A19F0800 |
| 19c | x | 1 | 0.6 / 15.3 | 243.63 / 362.57 | 8.4 | SF011E0119F0800 |
| 19c | x | 1.5 | 0.7 / 17.8 | 335.94 / 499.94 | 11.2 | SF011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 20.2 | 483.37 / 719.33 | 14.7 | SF011E5A19F0800 |
| 24c | x | 0.5 | 0.6 / 14 | 194.02 / 288.73 | 6.3 | SF011E1A24F0800 |
| 24c | x | 1 | 0.7 / 17.6 | 304.66 / 453.39 | 8.4 | SF011E0124F0800 |
| 24c | x | 1.5 | 0.8 / 20.9 | 435.44 / 648 | 11.2 | SF011E3A24F0800 |
| 24c | x | 2.5 | 0.9 / 23.8 | 624.89 / 929.94 | 14.7 | SF011E5A24F0800 |
| 27c | x | 0.5 | 0.6 / 14.3 | 209.48 / 311.74 | 5.4 | SF011E1A27F0800 |
| 27c | x | 1 | 0.7 / 18 | 328.4 / 488.71 | 7.2 | SF011E0127F0800 |
| 27c | x | 1.5 | 0.8 / 21.4 | 473.05 / 703.97 | 9.6 | SF011E3A27F0800 |
| 27c | x | 2.5 | 1 / 24.3 | 681.98 / 1014.89 | 12.6 | SF011E5A27F0800 |
| 37c | x | 0.5 | 0.6 / 16.1 | 273.46 / 406.95 | 5.4 | SF011E1A37F0800 |
| 37c | x | 1 | 0.8 / 20.2 | 431.21 / 641.71 | 7.2 | SF011E0137F0800 |
| 37c | x | 1.5 | 0.9 / 24 | 619.15 / 921.39 | 9.6 | SF011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 27.3 | 899.02 / 1337.89 | 12.6 | SF011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Markets / Applications
Marine & Shipboard
Voltage
150/250v
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Shielding:
Aluminum/mylar foil shield with tinned copper drain wire (standard)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in
Custom insulation/jacket colours
Certification/Compliances
Construction & Materials:
- IEC 60092-376
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-3-22, Cat. A (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
Custom colour coding available, inc.
• Per IEEE 1580 Table 23:
- 2C – Black, White
- 3C – Black, White, Red
- 4C – Black, White, Red, Green
- 5C – Black, White, Red, Green, Orange
- 6C – Black, White, Red, Green, Orange, Blue
- ≥7C – Base color with tracers
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Overall Aluminum/Mylar Shield with Tinned Copper Drain Wire
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 0.5 | 0.2 / 6.1 | 39.16 / 58.27 | 14 | SF011E1A02F0800 |
| 2c | x | 1 | 0.3 / 7.2 | 53 / 78.87 | 16 | SF011E0102F0800 |
| 2c | x | 1.5 | 0.3 / 8.8 | 75.78 / 112.77 | 20 | SF011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 9.7 | 94.14 / 140.09 | 26 | SF011E5A02F0800 |
| 3c | x | 0.5 | 0.3 / 6.4 | 44.9 / 66.81 | 9 | SF011E1A03F0800 |
| 3c | x | 1 | 0.3 / 7.6 | 60.18 / 89.55 | 12 | SF011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.2 | 88.71 / 132.01 | 16 | SF011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.2 | 112.98 / 168.13 | 21 | SF011E5A03F0800 |
| 4c | x | 0.5 | 0.3 / 6.9 | 51.56 / 76.73 | 9 | SF011E1A04F0800 |
| 4c | x | 1 | 0.3 / 8.5 | 75.11 / 111.77 | 12 | SF011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10 | 101.15 / 150.53 | 16 | SF011E3A04F0800 |
| 4c | x | 2.5 | 0.4 / 11 | 136.68 / 203.4 | 21 | SF011E5A04F0800 |
| 5c | x | 0.5 | 0.3 / 7.6 | 61.82 / 92 | 7.2 | SF011E1A05F0800 |
| 5c | x | 1 | 0.4 / 9.4 | 91.1 / 135.57 | 9.6 | SF011E0105F0800 |
| 5c | x | 1.5 | 0.4 / 10.8 | 118.25 / 175.97 | 12.8 | SF011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.2 | 163.03 / 242.61 | 16.8 | SF011E5A05F0800 |
| 7c | x | 0.5 | 0.3 / 8.4 | 77.83 / 115.83 | 6.3 | SF011E1A07F0800 |
| 7c | x | 1 | 0.4 / 10.1 | 109.18 / 162.48 | 8.4 | SF011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 11.9 | 151.27 / 225.12 | 11.2 | SF011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.2 | 204.34 / 304.09 | 14.7 | SF011E5A07F0800 |
| 10c | x | 0.5 | 0.4 / 10.2 | 100.29 / 149.25 | 6.3 | SF011E1A10F0800 |
| 10c | x | 1 | 0.5 / 12.7 | 153.7 / 228.73 | 8.4 | SF011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 14.7 | 208.14 / 309.74 | 11.2 | SF011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 16.7 | 292.87 / 435.84 | 14.7 | SF011E5A10F0800 |
| 12c | x | 0.5 | 0.4 / 10.5 | 110.85 / 164.97 | 6.3 | SF011E1A12F0800 |
| 12c | x | 1 | 0.5 / 13.1 | 169.16 / 251.74 | 8.4 | SF011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 15.4 | 241.16 / 358.89 | 11.2 | SF011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 17.2 | 330.38 / 491.67 | 14.7 | SF011E5A12F0800 |
| 14c | x | 0.5 | 0.4 / 10.9 | 122.58 / 182.41 | 6.3 | SF011E1A14F0800 |
| 14c | x | 1 | 0.5 / 13.7 | 188.39 / 280.35 | 8.4 | SF011E0114F0800 |
| 14c | x | 1.5 | 0.6 / 16.2 | 266.31 / 396.31 | 11.2 | SF011E3A14F0800 |
| 14c | x | 2.5 | 0.7 / 18.1 | 373.36 / 555.62 | 14.7 | SF011E5A14F0800 |
| 19c | x | 0.5 | 0.5 / 12.2 | 157.37 / 234.19 | 6.3 | SF011E1A19F0800 |
| 19c | x | 1 | 0.6 / 15.3 | 243.63 / 362.57 | 8.4 | SF011E0119F0800 |
| 19c | x | 1.5 | 0.7 / 17.8 | 335.94 / 499.94 | 11.2 | SF011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 20.2 | 483.37 / 719.33 | 14.7 | SF011E5A19F0800 |
| 24c | x | 0.5 | 0.6 / 14 | 194.02 / 288.73 | 6.3 | SF011E1A24F0800 |
| 24c | x | 1 | 0.7 / 17.6 | 304.66 / 453.39 | 8.4 | SF011E0124F0800 |
| 24c | x | 1.5 | 0.8 / 20.9 | 435.44 / 648 | 11.2 | SF011E3A24F0800 |
| 24c | x | 2.5 | 0.9 / 23.8 | 624.89 / 929.94 | 14.7 | SF011E5A24F0800 |
| 27c | x | 0.5 | 0.6 / 14.3 | 209.48 / 311.74 | 5.4 | SF011E1A27F0800 |
| 27c | x | 1 | 0.7 / 18 | 328.4 / 488.71 | 7.2 | SF011E0127F0800 |
| 27c | x | 1.5 | 0.8 / 21.4 | 473.05 / 703.97 | 9.6 | SF011E3A27F0800 |
| 27c | x | 2.5 | 1 / 24.3 | 681.98 / 1014.89 | 12.6 | SF011E5A27F0800 |
| 37c | x | 0.5 | 0.6 / 16.1 | 273.46 / 406.95 | 5.4 | SF011E1A37F0800 |
| 37c | x | 1 | 0.8 / 20.2 | 431.21 / 641.71 | 7.2 | SF011E0137F0800 |
| 37c | x | 1.5 | 0.9 / 24 | 619.15 / 921.39 | 9.6 | SF011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 27.3 | 899.02 / 1337.89 | 12.6 | SF011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Marine & Shipboard
