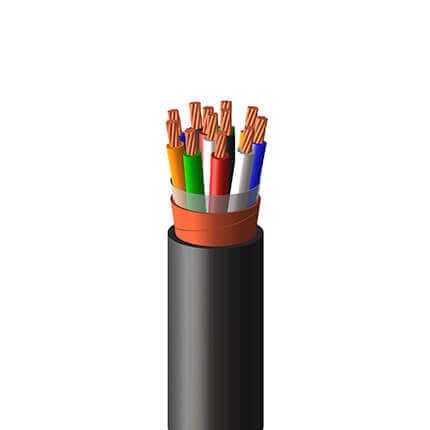

CSA Utility Unarmoured Power Control | Multi-Conductor (1000V)
Construction
Voltage
1000V
Optional: 300 / 600 / 2000V

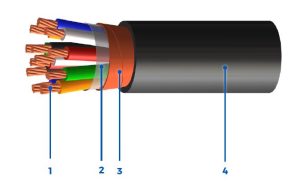

Product Construction
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding:
Copper tape shield (standard)
Available in various configurations
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Armour:
Aluminum Interlocked Armour (AIA) (optional)
Steel Interlocked Armour (SIA) (optional)
Serve Wired Armour (SWA) (optional)
Available in:
Custom insulation / jacket colours
LSZH Jacket
1-50 Conductor, pairs & triads & composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 #230, Tray Cables (TC)
- C22.2 #239, Instrumentation, (CIC)
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- – 40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue and white
- 5C-50C Black # coded (colour coding available)
Properties
Each utility has its own unique specifications. Please contract ShawFlex for product details |
 |
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 4D01HM140300000 | 3 | 14 | 14 | 0.494 / 12.53 | 161 / 239 | 25 | 99 / 45 | 8.9 / 226 |
| 4D01HM120300000 | 3 | 12 | 12 | 0.564 / 14.32 | 218 / 325 | 30 | 157 / 71 | 10.1 / 258 |
| 4D01HM100300000 | 3 | 10 | 10 | 0.619 / 15.73 | 287 / 427 | 40 | 249 / 113 | 11.1 / 283 |
| 4D01HM080300000 | 3 | 8 | 10 | 0.684 / 17.37 | 375 / 558 | 55 | 397 / 180 | 12.3 / 313 |
| 4D01HM060300000 | 3 | 6 | 8 | 0.833 / 21.17 | 558 / 831 | 75 | 629 / 285 | 15 / 381 |
| 4D01HM040300000 | 3 | 4 | 8 | 0.95 / 24.14 | 782 / 1164 | 95 | 1002 / 454 | 17.1 / 435 |
| 4D01HM020300000 | 3 | 2 | 6 | 1.075 / 27.31 | 1112 / 1654 | 130 | 1593 / 723 | 19.4 / 492 |
| 4D01HM010340000 | 3 | 1 | 6 | 1.245 / 31.62 | 1392 / 2072 | 145 | 2009 / 911 | 22.4 / 569 |
| 4D01HM1/0340000 | 3 | 1/0 | 6 | 1.331 / 33.8 | 1639 / 2439 | 170 | 2534 / 1150 | 24 / 608 |
| 4D01HM2/0340000 | 3 | 2/0 | 6 | 1.423 / 36.15 | 1957 / 2912 | 195 | 3194 / 1449 | 25.6 / 651 |
| 4D01HM3/0340000 | 3 | 3/0 | 4 | 1.533 / 38.94 | 2413 / 3592 | 225 | 4007 / 1818 | 27.6 / 701 |
| 4D01HM4/0340000 | 3 | 4/0 | 4 | 1.653 / 42 | 2922 / 4349 | 260 | 5078 / 2304 | 29.8 / 756 |
| 4D01HM250360000 | 3 | 250 | 4 | 1.855 / 47.12 | 3455 / 5141 | 290 | 6000 / 2722 | 33.4 / 848 |
| 4D01HM350360000 | 3 | 350 | 3 | 2.077 / 52.75 | 4615 / 6868 | 350 | 8400 / 3810 | 37.4 / 950 |
| 4D01HM500360000 | 3 | 500 | 3 | 2.352 / 59.74 | 6257 / 9311 | 430 | 12000 / 5443 | 42.3 / 1075 |
| 4D01HM750360000 | 3 | 750 | 2 | 2.737 / 69.51 | 8992 / 13381 | 535 | 18000 / 8165 | 49.3 / 1251 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
Markets / Applications
- Generation
- Generation – Nuclear
- Generation – Renewables
- Generation – Traditional Power
- Power Distribution
- Power Distribution – LV
- Utility
Voltage
1000V
Optional: 300 / 600 / 2000V
Product Construction
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding:
Copper tape shield (standard)
Available in various configurations
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Armour:
Aluminum Interlocked Armour (AIA) (optional)
Steel Interlocked Armour (SIA) (optional)
Serve Wired Armour (SWA) (optional)
Available in:
Custom insulation / jacket colours
LSZH Jacket
1-50 Conductor, pairs & triads & composite constructions
Certifications/Compliances
- CSA C22.2 #230, Tray Cables (TC)
- C22.2 #239, Instrumentation, (CIC)
- CSA C22.2 #38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- – 40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 2 (Div 2)
Colour Coding
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue and white
- 5C-50C Black # coded (colour coding available)
Each utility has its own unique specifications. Please contract ShawFlex for product details |
|
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 4D01HM140300000 | 3 | 14 | 14 | 0.494 / 12.53 | 161 / 239 | 25 | 99 / 45 | 8.9 / 226 |
| 4D01HM120300000 | 3 | 12 | 12 | 0.564 / 14.32 | 218 / 325 | 30 | 157 / 71 | 10.1 / 258 |
| 4D01HM100300000 | 3 | 10 | 10 | 0.619 / 15.73 | 287 / 427 | 40 | 249 / 113 | 11.1 / 283 |
| 4D01HM080300000 | 3 | 8 | 10 | 0.684 / 17.37 | 375 / 558 | 55 | 397 / 180 | 12.3 / 313 |
| 4D01HM060300000 | 3 | 6 | 8 | 0.833 / 21.17 | 558 / 831 | 75 | 629 / 285 | 15 / 381 |
| 4D01HM040300000 | 3 | 4 | 8 | 0.95 / 24.14 | 782 / 1164 | 95 | 1002 / 454 | 17.1 / 435 |
| 4D01HM020300000 | 3 | 2 | 6 | 1.075 / 27.31 | 1112 / 1654 | 130 | 1593 / 723 | 19.4 / 492 |
| 4D01HM010340000 | 3 | 1 | 6 | 1.245 / 31.62 | 1392 / 2072 | 145 | 2009 / 911 | 22.4 / 569 |
| 4D01HM1/0340000 | 3 | 1/0 | 6 | 1.331 / 33.8 | 1639 / 2439 | 170 | 2534 / 1150 | 24 / 608 |
| 4D01HM2/0340000 | 3 | 2/0 | 6 | 1.423 / 36.15 | 1957 / 2912 | 195 | 3194 / 1449 | 25.6 / 651 |
| 4D01HM3/0340000 | 3 | 3/0 | 4 | 1.533 / 38.94 | 2413 / 3592 | 225 | 4007 / 1818 | 27.6 / 701 |
| 4D01HM4/0340000 | 3 | 4/0 | 4 | 1.653 / 42 | 2922 / 4349 | 260 | 5078 / 2304 | 29.8 / 756 |
| 4D01HM250360000 | 3 | 250 | 4 | 1.855 / 47.12 | 3455 / 5141 | 290 | 6000 / 2722 | 33.4 / 848 |
| 4D01HM350360000 | 3 | 350 | 3 | 2.077 / 52.75 | 4615 / 6868 | 350 | 8400 / 3810 | 37.4 / 950 |
| 4D01HM500360000 | 3 | 500 | 3 | 2.352 / 59.74 | 6257 / 9311 | 430 | 12000 / 5443 | 42.3 / 1075 |
| 4D01HM750360000 | 3 | 750 | 2 | 2.737 / 69.51 | 8992 / 13381 | 535 | 18000 / 8165 | 49.3 / 1251 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
- Generation
- Generation – Nuclear
- Generation – Renewables
- Generation – Traditional Power
- Power Distribution
- Power Distribution – LV
- Utility
Related products
-

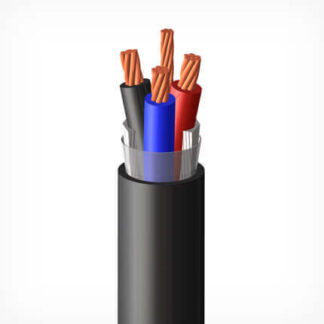

CSA Unarmoured Tray Control | Multi-Conductor (600V)
Read moreCSA Unarmoured Tray Control | Multi-Conductor (600V)
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
-
CSA Unarmoured Tray VFD | Multi-Conductor (1000V)
Read moreCSA Unarmoured Tray VFD | Multi-Conductor (1000V)
Shawflex VFD cables are the preferred power cables for AC Drives. These cables are primarily used between Pulse Width Modulation (PWM) inverters and AC motors. Shawflex VFD Tray cables are suitable for use in raceways, including ventilated, non-ventilated, indoor / outdoor and ladder-type cable trays in wet / dry locations and are applicable in Industrial and Processing facilities.
-

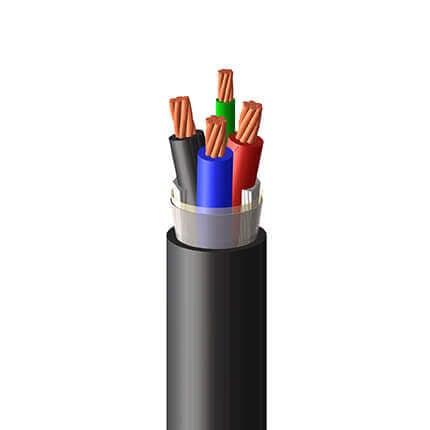

CSA LSZH Unarmoured Tray Control | Multi-Conductor (300V)
