CSA Unarmoured Tray Fieldbus/Profibus PA | Pairs (300/600V)
Fieldbus is the Process Industries digital replacement for analog 4-20mA transmission of process variables. Depending mainly on the current requirement of each device, up to 32 sensors and actuators are possible on a Fieldbus link with a maximum transmission distance of 1900m.
Construction
Voltage
300 / 600V

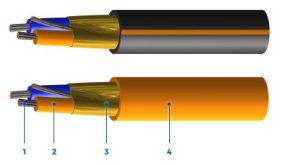

Product Construction
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Jacket:
FR PVC outer orange jacket (standard for Fieldbus)rated: 90°C to -40°C
FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
Black with integral orange stripe (optional)
Blue for Intrinsically Safe applications
Available in:
Custom insulation / jacket colours
Certifications
Certifications/Compliances
- Foundation Fieldbus Spec. FF-844, Type H1
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- TC-BCD gas groups rated
Colour Coding
- Blue and Orange conductors (standard)
Properties
|
 |
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 4F021M160115000 | 1 | 16 | 0.367 / 9.32 | 63 / 93 | 41 / 19 | 6.6 / 168 |
| 4F022M160215000 | 2 | 16 | 0.577 / 14.66 | 151 / 225 | 82 / 37 | 10.4 / 264 |
| 4F022M160415000 | 4 | 16 | 0.672 / 17.08 | 216 / 321 | 165 / 75 | 12.1 / 307 |
| 4F022M160615000 | 6 | 16 | 0.807 / 20.49 | 311 / 463 | 247 / 112 | 14.5 / 369 |
| 4F022M161215000 | 12 | 16 | 1.112 / 28.24 | 591 / 880 | 494 / 224 | 20 / 508 |
| 4F022M162415000 | 24 | 16 | 1.541 / 39.14 | 1076 / 1602 | 989 / 449 | 27.7 / 705 |
| 4F021M180115000 | 1 | 18 | 0.323 / 8.2 | 47 / 69 | 26 / 12 | 5.8 / 148 |
| 4F022M180215000 | 2 | 18 | 0.475 / 12.06 | 100 / 150 | 52 / 24 | 8.5 / 217 |
| 4F022M180415000 | 4 | 18 | 0.584 / 14.84 | 157 / 233 | 104 / 47 | 10.5 / 267 |
| 4F022M180615000 | 6 | 18 | 0.696 / 17.68 | 222 / 330 | 156 / 71 | 12.5 / 318 |
| 4F022M181215000 | 12 | 18 | 0.957 / 24.32 | 415 / 618 | 312 / 142 | 17.2 / 438 |
| 4F022M182415000 | 24 | 18 | 1.315 / 33.41 | 746 / 1110 | 624 / 283 | 23.7 / 601 |
| 4F021M16011V000 | 1 | 16 | 0.367 / 9.32 | 63 / 93 | 41 / 19 | 6.6 / 168 |
| 4F022M16021V000 | 2 | 16 | 0.577 / 14.66 | 151 / 225 | 82 / 37 | 10.4 / 264 |
| 4F022M16041V000 | 4 | 16 | 0.672 / 17.08 | 216 / 321 | 165 / 75 | 12.1 / 307 |
| 4F022M16061V000 | 6 | 16 | 0.807 / 20.49 | 311 / 463 | 247 / 112 | 14.5 / 369 |
| 4F022M16121V000 | 12 | 16 | 1.112 / 28.24 | 591 / 880 | 494 / 224 | 20 / 508 |
| 4F022M16241V000 | 24 | 16 | 1.541 / 39.14 | 1076 / 1602 | 989 / 449 | 27.7 / 705 |
| 4F021M18011V000 | 1 | 18 | 0.323 / 8.2 | 47 / 69 | 26 / 12 | 5.8 / 148 |
| 4F022M18021V000 | 2 | 18 | 0.475 / 12.06 | 100 / 150 | 52 / 24 | 8.5 / 217 |
| 4F022M18041V000 | 4 | 18 | 0.584 / 14.84 | 157 / 233 | 104 / 47 | 10.5 / 267 |
| 4F022M18061V000 | 6 | 18 | 0.696 / 17.68 | 222 / 330 | 156 / 71 | 12.5 / 318 |
| 4F022M18121V000 | 12 | 18 | 0.957 / 24.32 | 415 / 618 | 312 / 142 | 17.2 / 438 |
| 4F022M18241V000 | 24 | 18 | 1.315 / 33.41 | 746 / 1110 | 624 / 283 | 23.7 / 601 |
Markets / Applications
- Industrial
- Industrial Construction/Automation
Voltage
300 / 600V
Product Construction
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Jacket:
FR PVC outer orange jacket (standard for Fieldbus)rated: 90°C to -40°C
FR PVC outer purple jacket (standard for Profibus) rated: 90°C to -40°C
Black with integral orange stripe (optional)
Blue for Intrinsically Safe applications
Available in:
Custom insulation / jacket colours
Certifications/Compliances
- Foundation Fieldbus Spec. FF-844, Type H1
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type ACIC)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class 1 Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- TC-BCD gas groups rated
Colour Coding
- Blue and Orange conductors (standard)
|
|
| Part Number | Number of Pairs | Conductor Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
| 4F021M160115000 | 1 | 16 | 0.367 / 9.32 | 63 / 93 | 41 / 19 | 6.6 / 168 |
| 4F022M160215000 | 2 | 16 | 0.577 / 14.66 | 151 / 225 | 82 / 37 | 10.4 / 264 |
| 4F022M160415000 | 4 | 16 | 0.672 / 17.08 | 216 / 321 | 165 / 75 | 12.1 / 307 |
| 4F022M160615000 | 6 | 16 | 0.807 / 20.49 | 311 / 463 | 247 / 112 | 14.5 / 369 |
| 4F022M161215000 | 12 | 16 | 1.112 / 28.24 | 591 / 880 | 494 / 224 | 20 / 508 |
| 4F022M162415000 | 24 | 16 | 1.541 / 39.14 | 1076 / 1602 | 989 / 449 | 27.7 / 705 |
| 4F021M180115000 | 1 | 18 | 0.323 / 8.2 | 47 / 69 | 26 / 12 | 5.8 / 148 |
| 4F022M180215000 | 2 | 18 | 0.475 / 12.06 | 100 / 150 | 52 / 24 | 8.5 / 217 |
| 4F022M180415000 | 4 | 18 | 0.584 / 14.84 | 157 / 233 | 104 / 47 | 10.5 / 267 |
| 4F022M180615000 | 6 | 18 | 0.696 / 17.68 | 222 / 330 | 156 / 71 | 12.5 / 318 |
| 4F022M181215000 | 12 | 18 | 0.957 / 24.32 | 415 / 618 | 312 / 142 | 17.2 / 438 |
| 4F022M182415000 | 24 | 18 | 1.315 / 33.41 | 746 / 1110 | 624 / 283 | 23.7 / 601 |
| 4F021M16011V000 | 1 | 16 | 0.367 / 9.32 | 63 / 93 | 41 / 19 | 6.6 / 168 |
| 4F022M16021V000 | 2 | 16 | 0.577 / 14.66 | 151 / 225 | 82 / 37 | 10.4 / 264 |
| 4F022M16041V000 | 4 | 16 | 0.672 / 17.08 | 216 / 321 | 165 / 75 | 12.1 / 307 |
| 4F022M16061V000 | 6 | 16 | 0.807 / 20.49 | 311 / 463 | 247 / 112 | 14.5 / 369 |
| 4F022M16121V000 | 12 | 16 | 1.112 / 28.24 | 591 / 880 | 494 / 224 | 20 / 508 |
| 4F022M16241V000 | 24 | 16 | 1.541 / 39.14 | 1076 / 1602 | 989 / 449 | 27.7 / 705 |
| 4F021M18011V000 | 1 | 18 | 0.323 / 8.2 | 47 / 69 | 26 / 12 | 5.8 / 148 |
| 4F022M18021V000 | 2 | 18 | 0.475 / 12.06 | 100 / 150 | 52 / 24 | 8.5 / 217 |
| 4F022M18041V000 | 4 | 18 | 0.584 / 14.84 | 157 / 233 | 104 / 47 | 10.5 / 267 |
| 4F022M18061V000 | 6 | 18 | 0.696 / 17.68 | 222 / 330 | 156 / 71 | 12.5 / 318 |
| 4F022M18121V000 | 12 | 18 | 0.957 / 24.32 | 415 / 618 | 312 / 142 | 17.2 / 438 |
| 4F022M18241V000 | 24 | 18 | 1.315 / 33.41 | 746 / 1110 | 624 / 283 | 23.7 / 601 |
- Industrial
- Industrial Construction/Automation
