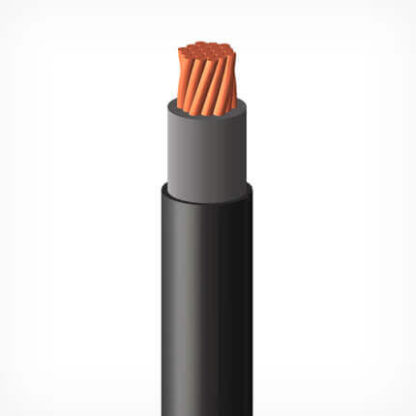

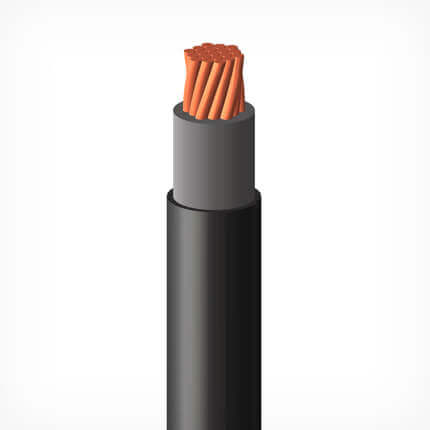

CSA TYPE RW90 TC Tray Power, Single Conductor, 1000 V
Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
VOLTAGE
1000 V
Optional: 600, 2000 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Available in:
Custom insulation/jacket colors
Aluminum conductors
Certifications
CERTIFICATION/COMPLIANCES
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/ dry
- UV sunlight resistant “SUN RES” (all colours)
- Oil resistant “PR I” and “OIL RES”
- Direct burial rated
- -40°C cold bend/impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Colour Coding
- Black conductor (standard)
Properties

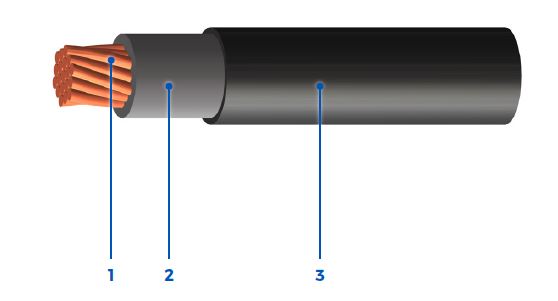

- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG or kcmil | in. | mm | lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 4D010M1/0140000 | 1 | 1/0 | 0.628 | 16.0 | 443 | 659 | 260 | 845 | 383 | 5.7 | 144 |
| 4D010M2/0140000 | 1 | 2/0 | 0.671 | 17.0 | 539 | 803 | 300 | 1065 | 483 | 6.0 | 153 |
| 4D010M3/0140000 | 1 | 3/0 | 0.722 | 18.3 | 661 | 984 | 350 | 1336 | 606 | 6.5 | 165 |
| 4D010M4/0140000 | 1 | 4/0 | 0.778 | 19.8 | 812 | 1209 | 405 | 1693 | 768 | 7.0 | 178 |
| 4D010M250160000 | 1 | 250 | 0.884 | 22.5 | 975 | 1450 | 455 | 2000 | 907 | 8.0 | 202 |
| 4D010M300160000 | 1 | 300 | 0.937 | 23.8 | 1145 | 1704 | 500 | 2400 | 1089 | 8.4 | 214 |
| 4D010M350160000 | 1 | 350 | 0.987 | 25.1 | 1316 | 1958 | 570 | 2800 | 1270 | 8.9 | 226 |
| 4D010M500160000 | 1 | 500 | 1.115 | 28.3 | 1819 | 2707 | 700 | 4000 | 1814 | 10.0 | 255 |
| 4D010M750160000 | 1 | 750 | 1.294 | 32.9 | 2650 | 3944 | 885 | 6000 | 2722 | 11.6 | 296 |
| 4D010MA00160000 | 1 | 1000 | 1.443 | 36.7 | 3459 | 5147 | 1055 | 8000 | 3629 | 13.0 | 330 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2024 26th Edition), Table 1.
Markets / Applications
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Shipboard
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Aerospace Defense
- Mining
VOLTAGE
1000 V
Optional: 600, 2000 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Jacket:
FR PVC outer black jacket rated: 90°C to -40°C
Available in:
Custom insulation/jacket colors
Aluminum conductors
CERTIFICATION/COMPLIANCES
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/ dry
- UV sunlight resistant “SUN RES” (all colours)
- Oil resistant “PR I” and “OIL RES”
- Direct burial rated
- -40°C cold bend/impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Colour Coding
- Black conductor (standard)
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductor
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG or kcmil | in. | mm | lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 4D010M1/0140000 | 1 | 1/0 | 0.628 | 16.0 | 443 | 659 | 260 | 845 | 383 | 5.7 | 144 |
| 4D010M2/0140000 | 1 | 2/0 | 0.671 | 17.0 | 539 | 803 | 300 | 1065 | 483 | 6.0 | 153 |
| 4D010M3/0140000 | 1 | 3/0 | 0.722 | 18.3 | 661 | 984 | 350 | 1336 | 606 | 6.5 | 165 |
| 4D010M4/0140000 | 1 | 4/0 | 0.778 | 19.8 | 812 | 1209 | 405 | 1693 | 768 | 7.0 | 178 |
| 4D010M250160000 | 1 | 250 | 0.884 | 22.5 | 975 | 1450 | 455 | 2000 | 907 | 8.0 | 202 |
| 4D010M300160000 | 1 | 300 | 0.937 | 23.8 | 1145 | 1704 | 500 | 2400 | 1089 | 8.4 | 214 |
| 4D010M350160000 | 1 | 350 | 0.987 | 25.1 | 1316 | 1958 | 570 | 2800 | 1270 | 8.9 | 226 |
| 4D010M500160000 | 1 | 500 | 1.115 | 28.3 | 1819 | 2707 | 700 | 4000 | 1814 | 10.0 | 255 |
| 4D010M750160000 | 1 | 750 | 1.294 | 32.9 | 2650 | 3944 | 885 | 6000 | 2722 | 11.6 | 296 |
| 4D010MA00160000 | 1 | 1000 | 1.443 | 36.7 | 3459 | 5147 | 1055 | 8000 | 3629 | 13.0 | 330 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2024 26th Edition), Table 1.
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Shipboard
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Aerospace Defense
- Mining
Related products
-
CSA ARMCON Armoured Control Multi-Conductor, 600 V
View Product: CSA ARMCON Armoured Control Multi-Conductor, 600 VCSA ARMCON Armoured Control Multi-Conductor, 600 V
Unshielded armoured control cables can be used for operation of control automation equipment. Interlocked armour replaces the use of conduit for mechanical protection. Cables can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cables are suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
-
CSA TYPE RWU90, Single Conductor, 1000 V
View Product: CSA TYPE RWU90, Single Conductor, 1000 VCSA TYPE RWU90, Single Conductor, 1000 V
For use in open wiring and raceways (with the exception of cable troughs and ventilated flexible cableways) in dry or wet locations. For open wiring exposed to the weather. Maximum conductor temperature 90°C.
-

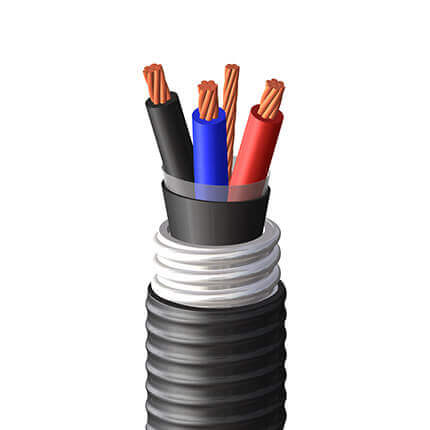

CSA TYPE TECK 90 Armoured Control, Multi-Conductor, 1000 V
