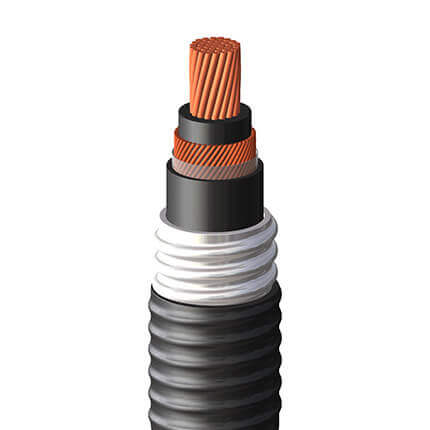

CSA TECK 90 Armoured Power | Single Conductor (1000V)

Unshielded armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments
Certification Logo
Datasheet (PDF) Contact Us

Construction

Voltage

1000 V

Optional: 600V

Product Construction

  • Grounding/Bonding Conductor: Concentric serving of solid bare copper wires applied over the insulation
  • Insulation
    • XLPE (RW90 rated)
    • rated: 90°C wet/dry
  • Armour
    • Aluminum Interlocked Armour (AIA) (standard)
  • Jacket
    • FR LAG PVC (AG14 rated) outer black jacket
    • rated: 90°C to -40°C
  • Available in
    • Verlock® (for mineshaft applications)
    • Custom colour coding
    • Custom insulation/jacket colours
    • Aluminum conductors

Certifications

Certifications/Compliances

  • CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
  • CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
  • CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
  • CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
  • IEEE 383 & 1202 (70,000 BTU/hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU/hr), Vertical Flame Test rated
  • XLPE (RW90 rated), 90°C wet/dry
  • UV sunlight resistant “SUN RES” (all colours)
  • Direct burial rated
  • -40°C cold bend/impact rated
  • HL rated for use in hazardous locations:
    • Class I Zone 0 (Intrinsically Safe cables only)
    • Class I Zone 1 (Div 1)
    • Class I Zone 2 (Div 2)
    • Class II Zone 20, 21 (Div 1)
    • Class II Zone 22 (Div 2)

Colour Coding

  • Black conductor (standard)

Properties

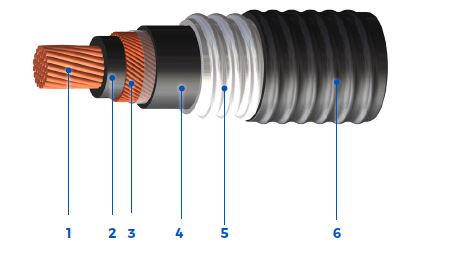

  1. Strand Bare (ASTM B8) Annealed Copper Conductor
  2. XLPE (RW90 Rated) Insulated Conductor
  3. Serve/Wound Grounds
  4. Polyester Separator Tape
  5. FR LAG PVC Inner Protective Jacket
  6. Aluminum Interlocked Armour (AIA)
  7. FR LAG PVC Outer Protective Jacket
Part Number Number of Conductors Conductor Size (AWG/MCM) Ground Wire Size (Uninsulated) (AWG/MCM) OD Over Inner Jacket (in/mm) Normal Diameters Cable Weight (lbs/1000ft)/ (kg/km) Ampacity (30°C ambient) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm)
Over Armour (in/mm) Overall Cable (in/mm)
80210M040100700 1 4 6 0.523 / 13.28 0.763 / 19.38 0.855 / 21.72 442 / 658 140 334 / 151 15.4 / 391
80210M020100700 1 2 6 0.581 / 14.76 0.821 / 20.85 0.913 / 23.19 541 / 805 190 531 / 241 16.4 / 417
80210M010140700 1 1 4 0.716 / 18.19 0.956 / 24.28 1.048 / 26.62 721 / 1073 220 670 / 304 18.9 / 479
80210M1/0140700 1 1/0 4 0.756 / 19.2 0.996 / 25.3 1.088 / 27.64 807 / 1201 260 845 / 383 19.6 / 497
80210M2/0140700 1 2/0 4 0.799 / 20.29 1.039 / 26.39 1.131 / 28.73 956 / 1423 300 1065 / 483 20.4 / 517
80210M3/0140700 1 3/0 3 0.85 / 21.59 1.09 / 27.69 1.182 / 30.02 1116 / 1661 350 1336 / 606 21.3 / 540
80210M4/0140700 1 4/0 3 0.906 / 23.01 1.146 / 29.11 1.238 / 31.45 1279 / 1904 405 1693 / 768 22.3 / 566
80210M250160700 1 250 2 1.002 / 25.45 1.242 / 31.55 1.334 / 33.88 1518 / 2260 455 2000 / 907 24 / 610
80210M300160700 1 300 2 1.055 / 26.8 1.295 / 32.89 1.387 / 35.23 1701 / 2532 500 2400 / 1089 25 / 634
80210M350160700 1 350 1 1.105 / 28.07 1.345 / 34.16 1.437 / 36.5 1938 / 2885 570 2800 / 1270 25.9 / 657
80210M500160700 1 500 1/0 1.233 / 31.32 1.473 / 37.41 1.565 / 39.75 2542 / 3782 700 4000 / 1814 28.2 / 716
80210M750160700 1 750 2/0 1.412 / 35.86 1.652 / 41.96 1.76 / 44.7 3541 / 5270 885 6000 / 2722 31.7 / 805
80210MA00160700 1 1000 2/0 1.561 / 39.65 1.866 / 47.4 1.974 / 50.14 4474 / 6658 1055 8000 / 3629 35.5 / 903

*Ampacity value based on Canadian Electrical Code, Version 2015, Table-1.
