CSA Riser TECK 90 Armoured Mineshaft | Multi-Conductor Shielded (5000V)

Riser TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting lengths. Typically used in Mining, Utilities, Industrial and Commercial applications.
Certification Logo
Datasheet (PDF) Contact Us

Construction

Voltage

5000 V

Optional: 600 / 1000V

Product Construction



    • Insulation:
      • XLPE (RW90 rated) rated: 90°C wet / dry



    • Armour:
      • Steel Interlocked Armour (SIA) (standard)
      • Aluminum Interlocked Armour (AIA) (optional)
      • Serve Wire Armour (SIA) (optional)



    • Jacket:
      • FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C



  • Available in:
    • Variable Frequency Drive (VFD)
    • Custom colour coding
    • Custom insulation / jacket colours
    • Composite constructions
    • Aluminum conductors
    • Single conductor

Colour Coding



  • 2C Black & white
  • 3C Black, red & blue
  • 4C Black, red, blue & white
  • 5C to 50C Black # coded

Certifications

Certifications/Compliances



  • CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
  • CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
  • CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
  • CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
  • IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (RW90 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours)
  • Direct burial rated
  • -40°C cold bend / impact rated
  • HL rated for use in hazardous locations:
    • Class I Zone 1 (Div 1)
    • Class I Zone 2 (Div 2)
    • Class III Zone 20, 21 (Div 1)
    • Class II Zone 22 (Div 2)

Properties

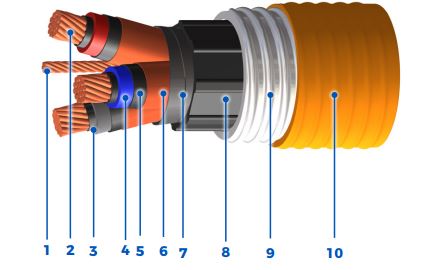

  1. Grounding / Bonding Conductor
  2. Strand Bare (ASTM B8) Annealed Copper Conductors
  3. Semicon Conductor Shield
  4. XLPE (RW90 Rated) Insulated Conductors
  5. Semicon Insulation Shield
  6. Copper Tape Shield
  7. Cloth Backed Rubberized Separator Tape
  8. Inner Ribbed Jacket
  9. Steel Interlocked Armour (SIA)
  10. FR LAG PVC Outer Protective Jacket
Part Number Number of Conductors Conductor Size (AWG/MCM) Ground Wire Size (uninsulated) (AWG/MCM) OD Over Inner Jacket (in/mm) Normal Diameters Cable Weight (lbs/1000ft)/ (kg/km) Ampacity (30°C ambient) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm) Self Support Length (ft/m)
Over Armour (in/mm) Overall Cable (in/mm)
8S110M1/034570V 3 1/0 6 1.573 / 39.96 1.983 / 50.37 2.091 / 53.11 3786 / 5634 170 2534 / 1150 38 / 956 603.5 / 184
8S110M2/034570V 3 2/0 6 1.666 / 42.3 2.076 / 52.72 2.184 / 55.46 4230 / 6294 195 3194 / 1449 39 / 998 676.2 / 206
8S110M3/034570V 3 3/0 4 1.835 / 46.61 2.245 / 57.03 2.353 / 59.77 4976 / 7406 225 4007 / 1818 42 / 1076 728.6 / 222
8S110M4/034570V 3 4/0 4 1.956 / 49.67 2.366 / 60.09 2.498 / 63.44 5701 / 8484 260 5078 / 2304 45 / 1142 801.8 / 244
8S110M25036570V 3 250 4 2.076 / 52.73 2.486 / 63.14 2.618 / 66.5 6251 / 9302 290 6000 / 2722 47 / 1197 868.5 / 265
8S110M35036570V 3 350 3 2.297 / 58.35 2.707 / 68.77 2.839 / 72.12 7712 / 11476 350 8400 / 3810 51 / 1298 987.8 / 301
8S110M50036570V 3 500 3 2.573 / 65.34 3.045 / 77.35 3.191 / 81.05 8895 / 13237 430 12000 / 5443 57 / 1459 1220.3 / 372
8S110M75036570V 3 750 2 3.035 / 77.08 3.507 / 89.08 3.653 / 92.79 12357 / 18390 535 18000 / 8165 66 / 1670 1322.1 / 403

*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.

Markets / Applications

  • Commercial Construction Projects
  • Industrial
  • Mining

Voltage

5000 V

Optional: 600 / 1000V

Product Construction



    • Insulation:
      • XLPE (RW90 rated) rated: 90°C wet / dry



    • Armour:
      • Steel Interlocked Armour (SIA) (standard)
      • Aluminum Interlocked Armour (AIA) (optional)
      • Serve Wire Armour (SIA) (optional)



    • Jacket:
      • FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C



  • Available in:
    • Variable Frequency Drive (VFD)
    • Custom colour coding
    • Custom insulation / jacket colours
    • Composite constructions
    • Aluminum conductors
    • Single conductor

Colour Coding



  • 2C Black & white
  • 3C Black, red & blue
  • 4C Black, red, blue & white
  • 5C to 50C Black # coded

Certifications/Compliances



  • CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
  • CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
  • CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
  • CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
  • IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (RW90 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours)
  • Direct burial rated
  • -40°C cold bend / impact rated
  • HL rated for use in hazardous locations:
    • Class I Zone 1 (Div 1)
    • Class I Zone 2 (Div 2)
    • Class III Zone 20, 21 (Div 1)
    • Class II Zone 22 (Div 2)
  1. Grounding / Bonding Conductor
  2. Strand Bare (ASTM B8) Annealed Copper Conductors
  3. Semicon Conductor Shield
  4. XLPE (RW90 Rated) Insulated Conductors
  5. Semicon Insulation Shield
  6. Copper Tape Shield
  7. Cloth Backed Rubberized Separator Tape
  8. Inner Ribbed Jacket
  9. Steel Interlocked Armour (SIA)
  10. FR LAG PVC Outer Protective Jacket
Part Number Number of Conductors Conductor Size (AWG/MCM) Ground Wire Size (uninsulated) (AWG/MCM) OD Over Inner Jacket (in/mm) Normal Diameters Cable Weight (lbs/1000ft)/ (kg/km) Ampacity (30°C ambient) Max. Pulling Tension (Pulling Eye) (lb/kg) Min. Bend Radius (Pull) (in/mm) Self Support Length (ft/m)
Over Armour (in/mm) Overall Cable (in/mm)
8S110M1/034570V 3 1/0 6 1.573 / 39.96 1.983 / 50.37 2.091 / 53.11 3786 / 5634 170 2534 / 1150 38 / 956 603.5 / 184
8S110M2/034570V 3 2/0 6 1.666 / 42.3 2.076 / 52.72 2.184 / 55.46 4230 / 6294 195 3194 / 1449 39 / 998 676.2 / 206
8S110M3/034570V 3 3/0 4 1.835 / 46.61 2.245 / 57.03 2.353 / 59.77 4976 / 7406 225 4007 / 1818 42 / 1076 728.6 / 222
8S110M4/034570V 3 4/0 4 1.956 / 49.67 2.366 / 60.09 2.498 / 63.44 5701 / 8484 260 5078 / 2304 45 / 1142 801.8 / 244
8S110M25036570V 3 250 4 2.076 / 52.73 2.486 / 63.14 2.618 / 66.5 6251 / 9302 290 6000 / 2722 47 / 1197 868.5 / 265
8S110M35036570V 3 350 3 2.297 / 58.35 2.707 / 68.77 2.839 / 72.12 7712 / 11476 350 8400 / 3810 51 / 1298 987.8 / 301
8S110M50036570V 3 500 3 2.573 / 65.34 3.045 / 77.35 3.191 / 81.05 8895 / 13237 430 12000 / 5443 57 / 1459 1220.3 / 372
8S110M75036570V 3 750 2 3.035 / 77.08 3.507 / 89.08 3.653 / 92.79 12357 / 18390 535 18000 / 8165 66 / 1670 1322.1 / 403

*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
