CSA LSZH Type ACIC Armoured Power, Multi-Conductor, 1000 V
LSZH AIA Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
1000 V
Optional: 300, 600 V
Product Construction
Insulation:|
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH inner / outer black jacket rated: 90°C
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Available In:
Custom insulation / jacket colours
Composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 NO. 239, Control and instrumentation cables
- CSA C22.2 NO. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556/UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- CSA C22.2 No. 2556/UL 2556 ST1 Limited Smoke rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend/impact rated
- Halogen-free rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically circuits cables only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Colour Coding
- 2C – Black & white
- 3C – Black, red & blue
- 4C – Black, red, blue & white
- 5C and greater – Black, number-coded with white ink
Properties

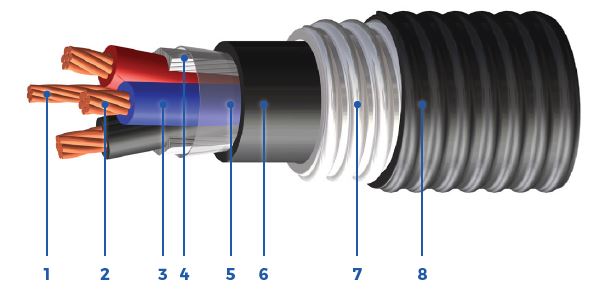

- Bonding Conductor
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- LSZH Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Bonding Conductor Size | Nominal Diameter | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb/1000ft | kg/km |
30°C ambient | lb | kg | in. | mm | ||
| 60210M080200814 | 2 | 8 | 10 | 0.606 | 15.4 | 0.846 | 21.5 | 0.958 | 24.3 | 451 | 671 | 55 | 265 | 120 | 17.2 | 438 |
| 60210M060200814 | 2 | 6 | 8 | 0.744 | 18.9 | 0.984 | 25.0 | 1.096 | 27.8 | 605 | 901 | 75 | 419 | 190 | 19.7 | 501 |
| 60210M040200814 | 2 | 4 | 8 | 0.838 | 21.3 | 1.078 | 27.4 | 1.19 | 30.2 | 797 | 1187 | 95 | 668 | 303 | 21.4 | 544 |
| 60210M030200814 | 2 | 3 | 6 | 0.932 | 23.7 | 1.172 | 29.8 | 1.284 | 32.6 | 978 | 1456 | 115 | 842 | 382 | 23.1 | 587 |
| 60210M020200814 | 2 | 2 | 6 | 0.994 | 25.3 | 1.234 | 31.3 | 1.346 | 34.2 | 1102 | 1640 | 130 | 1062 | 482 | 24.2 | 615 |
| 60210M010240814 | 2 | 1 | 6 | 1.152 | 29.3 | 1.392 | 35.4 | 1.504 | 38.2 | 1319 | 1963 | 145 | 1339 | 607 | 27.1 | 688 |
| 60210M1/0240814 | 2 | 1/0 | 6 | 1.232 | 31.3 | 1.472 | 37.4 | 1.584 | 40.2 | 1507 | 2243 | 170 | 1690 | 766 | 28.5 | 724 |
| 60210M2/0240814 | 2 | 2/0 | 6 | 1.318 | 33.5 | 1.558 | 39.6 | 1.69 | 42.9 | 1770 | 2635 | 195 | 2130 | 966 | 30.4 | 773 |
| 60210M3/0240814 | 2 | 3/0 | 4 | 1.420 | 36.1 | 1.660 | 42.2 | 1.792 | 45.5 | 2105 | 3132 | 225 | 2671 | 1212 | 32.3 | 819 |
| 60210M4/0240814 | 2 | 4/0 | 4 | 1.532 | 38.9 | 1.837 | 46.7 | 1.969 | 50.0 | 2541 | 3782 | 260 | 3386 | 1536 | 35.4 | 900 |
| 60210M080300814 | 3 | 8 | 10 | 0.660 | 16.8 | 0.900 | 22.9 | 1.012 | 25.7 | 537 | 799 | 55 | 397 | 180 | 18.2 | 463 |
| 60210M060300814 | 3 | 6 | 8 | 0.813 | 20.7 | 1.054 | 26.8 | 1.166 | 29.6 | 782 | 1164 | 75 | 629 | 285 | 21.0 | 533 |
| 60210M040300814 | 3 | 4 | 8 | 0.930 | 23.6 | 1.171 | 29.7 | 1.283 | 32.6 | 1029 | 1532 | 95 | 1002 | 454 | 23.1 | 586 |
| 60210M030300814 | 3 | 3 | 6 | 0.988 | 25.1 | 1.229 | 31.2 | 1.341 | 34.1 | 1200 | 1785 | 115 | 1263 | 573 | 24.1 | 613 |
| 60210M020300814 | 3 | 2 | 6 | 1.055 | 26.8 | 1.295 | 32.9 | 1.407 | 35.8 | 1372 | 2042 | 130 | 1593 | 723 | 25.3 | 643 |
| 60210M010340814 | 3 | 1 | 6 | 1.225 | 31.1 | 1.465 | 37.2 | 1.577 | 40.1 | 1664 | 2477 | 145 | 2009 | 911 | 28.4 | 721 |
| 60210M1/0340814 | 3 | 1/0 | 6 | 1.311 | 33.3 | 1.551 | 39.4 | 1.683 | 42.7 | 1966 | 2926 | 170 | 2534 | 1150 | 30.3 | 769 |
| 60210M2/0340814 | 3 | 2/0 | 6 | 1.403 | 35.7 | 1.644 | 41.7 | 1.775 | 45.1 | 2290 | 3409 | 195 | 3194 | 1449 | 32.0 | 812 |
| 60210M3/0240814 | 3 | 3/0 | 4 | 1.420 | 36.1 | 1.660 | 42.2 | 1.792 | 45.5 | 2105 | 3132 | 225 | 2671 | 1212 | 32.3 | 819 |
| 60210M4/0340814 | 3 | 4/0 | 4 | 1.633 | 41.5 | 1.938 | 49.2 | 2.071 | 52.6 | 3335 | 4964 | 260 | 5078 | 2304 | 37.3 | 947 |
| 60210M080400814 | 4 | 8 | 10 | 0.719 | 18.3 | 0.959 | 24.4 | 1.071 | 27.2 | 625 | 930 | 55 | 529 | 240 | 19.3 | 490 |
| 60210M060400814 | 4 | 6 | 8 | 0.929 | 23.6 | 1.169 | 29.7 | 1.281 | 32.5 | 971 | 1445 | 75 | 839 | 380 | 23.1 | 586 |
| 60210M040400814 | 4 | 4 | 8 | 1.045 | 26.6 | 1.286 | 32.7 | 1.398 | 35.5 | 1248 | 1857 | 95 | 1336 | 606 | 25.2 | 639 |
| 60210M030400814 | 4 | 3 | 6 | 1.112 | 28.3 | 1.353 | 34.4 | 1.465 | 37.2 | 1455 | 2165 | 115 | 1684 | 764 | 26.4 | 670 |
| 60210M020400814 | 4 | 2 | 6 | 1.189 | 30.2 | 1.429 | 36.3 | 1.541 | 39.1 | 1679 | 2498 | 130 | 2124 | 964 | 27.7 | 705 |
| 60210M010440814 | 4 | 1 | 6 | 1.351 | 34.3 | 1.591 | 40.4 | 1.723 | 43.8 | 2082 | 3098 | 145 | 2678 | 1215 | 31.0 | 788 |
| 60210M1/0440814 | 4 | 1/0 | 6 | 1.448 | 36.8 | 1.688 | 42.9 | 1.82 | 46.2 | 2436 | 3626 | 170 | 3379 | 1533 | 32.8 | 832 |
| 60210M2/0440814 | 4 | 2/0 | 6 | 1.551 | 39.4 | 1.856 | 47.2 | 1.988 | 50.5 | 2948 | 4387 | 195 | 4259 | 1932 | 35.8 | 909 |
| 60210M3/0440814 | 4 | 3/0 | 4 | 1.674 | 42.5 | 1.979 | 50.3 | 2.111 | 53.6 | 3531 | 5255 | 225 | 5343 | 2423 | 38.0 | 965 |
| 60210M4/0440814 | 4 | 4/0 | 4 | 1.869 | 47.5 | 2.174 | 55.2 | 2.306 | 58.6 | 4336 | 6453 | 260 | 6771 | 3071 | 41.5 | 1054 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2 or Table 57. Values are corrected for number of insulated conductors as applicable according to Table 5C or Table 57.
Markets / Applications
- Transit
- OEM
- Transit
- Industrial
- Utility
