CSA TECK 90 Armoured Power | Multi-Conductor Shielded (5000V)
Shielded armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
Construction
Voltage
5000 V
Product Construction
- 90 MIL
- Insulation: – XLPE (RW90 rated) rated: 90°C wet/dry
- Armour: – Aluminum Interlocked Armour (AIA) (standard) – Steel Interlocked Armour (SIA) (optional)
- Jacket: – FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C – FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C
- Available in: – Variable Frequency Drive (VFD) – Verlock® (for mineshaft applications) – Custom colour coding – Custom insulation/jacket colours – Aluminum conductors
Certifications
Certifications/Compliances
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU/hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend/impact rated
- HL rated for use in hazardous locations: – Class I Zone 1 (Div 1) – Class I Zone 2 (Div 2) – Class II Zone 20, 21 (Div 1) – Class II Zone 22 (Div 2)

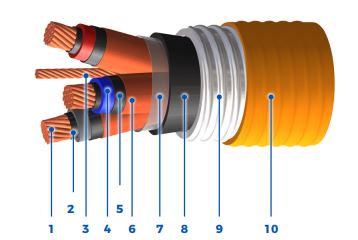

Properties
- Strand Bare (ASTM B8) Annealed Copper Conductors
- Semicon Conductor Shield
- Grounding/Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Semicon Insulation Shield
- Copper Tape Shield
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Numberof Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |||
| Insulated Wire (in/mm) | Over Insulated Shield (in/mm) | Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||
| 8S210M060305700 | 3 | 6 | 8 | 0.392 / 9.96 | 0.444 / 11.28 | 1.437 / 36.5 | 1.517 / 38.53 | 1130 / 1682 | 75 | 629 / 285 | 27.3 / 694 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M010345700 | 3 | 1 | 6 | 0.536 / 13.61 | 0.588 / 14.94 | 1.71 / 43.44 | 1.806 / 45.87 | 1990 / 2962 | 145 | 2009 / 911 | 32.5 / 826 |
| 8S210M1/0345700 | 3 | 1/0 | 6 | 0.576 / 14.63 | 0.628 / 15.95 | 1.861 / 47.27 | 1.957 / 49.71 | 2365 / 3520 | 170 | 2534 / 1150 | 35.2 / 895 |
| 8S210M2/0345700 | 3 | 2/0 | 6 | 0.619 / 15.72 | 0.671 / 17.04 | 1.954 / 49.62 | 2.049 / 52.06 | 2720 / 4047 | 195 | 3194 / 1449 | 36.9 / 937 |
| 8S210M3/0345700 | 3 | 3/0 | 4 | 0.67 / 17.02 | 0.722 / 18.34 | 2.123 / 53.93 | 2.219 / 56.37 | 3331 / 4957 | 225 | 4007 / 1818 | 39.9 / 1015 |
| 8S210M4/0345700 | 3 | 4/0 | 4 | 0.726 / 18.44 | 0.778 / 19.76 | 2.244 / 56.99 | 2.34 / 59.43 | 3882 / 5777 | 260 | 5078 / 2304 | 42.1 / 1070 |
| 8S210M250365700 | 3 | 250 | 4 | 0.782 / 19.86 | 0.834 / 21.18 | 2.364 / 60.05 | 2.484 / 63.09 | 4357 / 6483 | 290 | 6000 / 2722 | 44.7 / 1136 |
| 8S210M300365700 | 3 | 300 | 4 | 0.835 / 21.21 | 0.887 / 22.53 | 2.478 / 62.94 | 2.598 / 65.99 | 4947 / 7362 | 320 | 7200 / 3266 | 46.8 / 1188 |
| 8S210M350365700 | 3 | 350 | 3 | 0.885 / 22.48 | 0.937 / 23.8 | 2.585 / 65.67 | 2.705 / 68.72 | 5567 / 8284 | 350 | 8400 / 3810 | 48.7 / 1237 |
| 8S210M500365700 | 3 | 500 | 3 | 1.013 / 25.73 | 1.065 / 27.05 | 2.861 / 72.66 | 2.981 / 75.71 | 7274 / 10825 | 430 | 12000 / 5443 | 53.7 / 1363 |
| 8S210M750365700 | 3 | 750 | 2 | 1.2 / 30.48 | 1.252 / 31.8 | 3.323 / 84.4 | 3.457 / 87.8 | 9990 / 14867 | 535 | 18000 / 8165 | 62.2 / 1580 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2.
Markets / Applications
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Petrochem/Pulp & Paper
- Power Distribution – MV
- Utility
- Commercial Construction Projects
- OIl & Gas
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Mining
Voltage
5000 V
Product Construction
- 90 MIL
- Insulation: – XLPE (RW90 rated) rated: 90°C wet/dry
- Armour: – Aluminum Interlocked Armour (AIA) (standard) – Steel Interlocked Armour (SIA) (optional)
- Jacket: – FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C – FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C
- Available in: – Variable Frequency Drive (VFD) – Verlock® (for mineshaft applications) – Custom colour coding – Custom insulation/jacket colours – Aluminum conductors
Certifications/Compliances
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU/hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend/impact rated
- HL rated for use in hazardous locations: – Class I Zone 1 (Div 1) – Class I Zone 2 (Div 2) – Class II Zone 20, 21 (Div 1) – Class II Zone 22 (Div 2)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- Semicon Conductor Shield
- Grounding/Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Semicon Insulation Shield
- Copper Tape Shield
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Numberof Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |||
| Insulated Wire (in/mm) | Over Insulated Shield (in/mm) | Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||
| 8S210M060305700 | 3 | 6 | 8 | 0.392 / 9.96 | 0.444 / 11.28 | 1.437 / 36.5 | 1.517 / 38.53 | 1130 / 1682 | 75 | 629 / 285 | 27.3 / 694 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 0.491 / 12.47 | 1.501 / 38.14 | 1.581 / 40.17 | 1353 / 2013 | 95 | 1002 / 454 | 28.5 / 723 |
| 8S210M010345700 | 3 | 1 | 6 | 0.536 / 13.61 | 0.588 / 14.94 | 1.71 / 43.44 | 1.806 / 45.87 | 1990 / 2962 | 145 | 2009 / 911 | 32.5 / 826 |
| 8S210M1/0345700 | 3 | 1/0 | 6 | 0.576 / 14.63 | 0.628 / 15.95 | 1.861 / 47.27 | 1.957 / 49.71 | 2365 / 3520 | 170 | 2534 / 1150 | 35.2 / 895 |
| 8S210M2/0345700 | 3 | 2/0 | 6 | 0.619 / 15.72 | 0.671 / 17.04 | 1.954 / 49.62 | 2.049 / 52.06 | 2720 / 4047 | 195 | 3194 / 1449 | 36.9 / 937 |
| 8S210M3/0345700 | 3 | 3/0 | 4 | 0.67 / 17.02 | 0.722 / 18.34 | 2.123 / 53.93 | 2.219 / 56.37 | 3331 / 4957 | 225 | 4007 / 1818 | 39.9 / 1015 |
| 8S210M4/0345700 | 3 | 4/0 | 4 | 0.726 / 18.44 | 0.778 / 19.76 | 2.244 / 56.99 | 2.34 / 59.43 | 3882 / 5777 | 260 | 5078 / 2304 | 42.1 / 1070 |
| 8S210M250365700 | 3 | 250 | 4 | 0.782 / 19.86 | 0.834 / 21.18 | 2.364 / 60.05 | 2.484 / 63.09 | 4357 / 6483 | 290 | 6000 / 2722 | 44.7 / 1136 |
| 8S210M300365700 | 3 | 300 | 4 | 0.835 / 21.21 | 0.887 / 22.53 | 2.478 / 62.94 | 2.598 / 65.99 | 4947 / 7362 | 320 | 7200 / 3266 | 46.8 / 1188 |
| 8S210M350365700 | 3 | 350 | 3 | 0.885 / 22.48 | 0.937 / 23.8 | 2.585 / 65.67 | 2.705 / 68.72 | 5567 / 8284 | 350 | 8400 / 3810 | 48.7 / 1237 |
| 8S210M500365700 | 3 | 500 | 3 | 1.013 / 25.73 | 1.065 / 27.05 | 2.861 / 72.66 | 2.981 / 75.71 | 7274 / 10825 | 430 | 12000 / 5443 | 53.7 / 1363 |
| 8S210M750365700 | 3 | 750 | 2 | 1.2 / 30.48 | 1.252 / 31.8 | 3.323 / 84.4 | 3.457 / 87.8 | 9990 / 14867 | 535 | 18000 / 8165 | 62.2 / 1580 |
*Ampacity value based on Canadian Electrical Code, Version 2018, Table-2.
