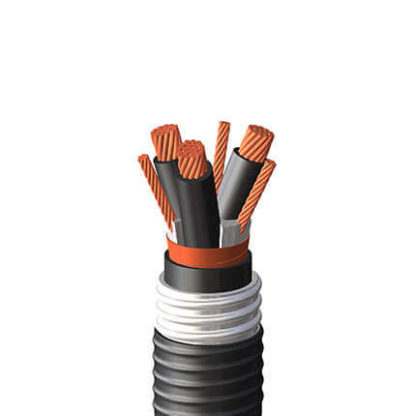

CSA Armoured VFD AIA | Multi-Conductor (1000V)
Construction
VOLTAGE
1000V
Optional: 600V / 5000V

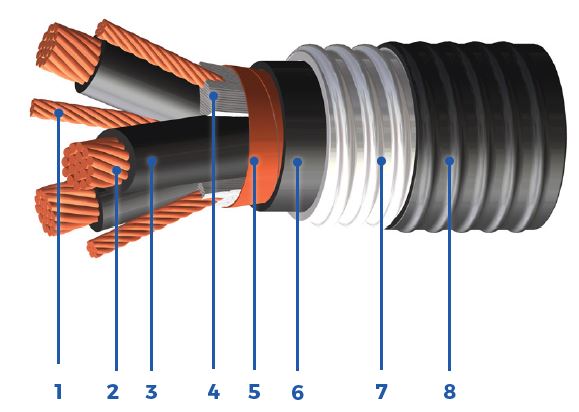

PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
UV sunlight resistant SUN RES (all colours)
Direct burial rated
– 40°C cold bend / impact rated
Rated for use in hazardous locations:
Class I Zone 0 (Intrinsically Safe cables only)
Class 1 Zone 1 (Div 1)
Class 1 Zone 2 (Div 2)
Shielding:
Dual helically applied copper tape shield
Armour:
Aluminum Interlocking Armour (AIA) (standard)
Steel Interlocking Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket
FR LAG PVC (AG14 rated) outer black or yellow jacket (standard)rated: 90°C to -40°C
Available in:
Custom insulation / jacket colours
LSZH Jacket
Certifications
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 #131, Teck 90 Cable
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 #38, Thermoset Insulated Wires &Cables (XLPE)
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
COLOUR CODING
- 3C Black, # Coded
Properties
|
 |
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) |
OD Over Inner Jacket (in/mm) | Nominal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | |
| Over Armour (in/mm) | Overall Cable (in/mm) | |||||||||
|
8021HM1203007DR |
3 |
12 |
18 |
0.503 / 12.78 |
0.743 / 18.88 |
0.823 / 20.91 |
401 / 597 |
30 |
157 / 71 |
14.8 / 376 |
|
8021HM1003007DR |
3 |
10 |
16 |
0.595 / 15.11 |
0.835 / 21.21 |
0.915 / 23.24 |
544 / 810 |
40 |
249 / 113 |
16.5 / 418 |
|
8021HM0803007DR |
3 |
8 |
14 |
0.657 / 16.69 |
0.897 / 22.79 |
0.977 / 24.82 |
687 / 1022 |
55 |
397 / 180 |
17.6 / 447 |
|
80213M0603007DR |
3 |
6 |
12 |
0.801 / 20.35 |
1.041 / 26.45 |
1.121 / 28.48 |
1047 / 1559 |
75 |
629 / 285 |
20.2 / 513 |
|
80213M0403007DR |
3 |
4 |
12 |
0.942 / 23.94 |
1.182 / 30.03 |
1.262 / 32.06 |
1357 / 2020 |
95 |
1002 / 454 |
22.7 / 577 |
|
80213M0203007DR |
3 |
2 |
10 |
1.067 / 27.1 |
1.307 / 33.2 |
1.387 / 35.23 |
1809 / 2692 |
130 |
1593 / 723 |
25 / 634 |
|
80213M0103407DR |
3 |
1 |
10 |
1.237 / 31.42 |
1.477 / 37.51 |
1.557 / 39.55 |
2286 / 3402 |
145 |
2009 / 911 |
28 / 712 |
|
80213M1/03407DR |
3 |
1/0 |
10 |
1.323 / 33.6 |
1.563 / 39.7 |
1.659 / 42.14 |
2671 / 3975 |
170 |
2534 / 1150 |
29.9 / 758 |
|
80213M2/03407DR |
3 |
2/0 |
10 |
1.415 / 35.95 |
1.655 / 42.05 |
1.751 / 44.48 |
3104 / 4620 |
195 |
3194 / 1449 |
31.5 / 801 |
|
80213M3/03407DR |
3 |
3/0 |
8 |
1.525 / 38.74 |
1.83 / 46.48 |
1.926 / 48.92 |
3809 / 5669 |
225 |
4007 / 1818 |
34.7 / 881 |
|
80213M4/03407DR |
3 |
4/0 |
8 |
1.645 / 41.79 |
1.95 / 49.54 |
2.046 / 51.98 |
4492 / 6685 |
260 |
5078 / 2304 |
36.8 / 936 |
|
80213M2503607DR |
3 |
250 |
8 |
1.847 / 46.92 |
2.152 / 54.67 |
2.248 / 57.11 |
5328 / 7930 |
290 |
6000 / 2722 |
40.5 / 1028 |
|
80213M3503607DR |
3 |
350 |
6 |
2.069 / 52.55 |
2.374 / 60.29 |
2.494 / 63.34 |
7008 / 10430 |
350 |
8400 / 3810 |
44.9 / 1140 |
|
80213M5003607DR |
3 |
500 |
6 |
2.344 / 59.54 |
2.649 / 67.28 |
2.769 / 70.33 |
9214 / 13713 |
430 |
12000 / 5443 |
49.8 / 1266 |
|
80213M7503607DR |
3 |
750 |
6 |
2.729 / 69.31 |
3.034 / 77.06 |
3.168 / 80.46 |
12906 / 19206 |
535 |
18000 / 8165 |
57 / 1448 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
