UL Unarmored VFD Tray | Multi-Conductor (600V)
Shawflex VFD cables are the preferred power cables for AC Drives. These cables are primarily used between Pulse Width Modulation (PWM) inverters and AC motors. Tray cables are suitable for use in raceways, including ventilated, non-ventilated, indoor / outdoor and ladder-type cable trays in wet / dry locations and are applicable in Industrial and Processing facilities.
Construction
Voltage
600V
Optional: 2000V
Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- Shielding:
- Dual helically applied copper tape shield
- Jacket:
- FR PVC outer black or yellow jacket (standard) rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Custom insulation / jacket colours
- TC-ER (optional)
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
Colour Coding
- 3C Black, # coded

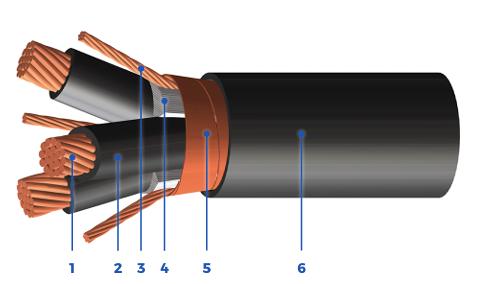

Properties
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Tri-sectional Grounding Conductors
- Polypropylene Fillers
- Dual Helically Applied Bare / Tinned Copper Tape Shield
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | ConductorSize (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius(Pull) (in/mm) |
| 2C01HU1203003DR | 3 | 12 | 16 | 0.439 / 11.14 | 166 / 247 | 30 | 157 / 71 | 7.9 / 201 |
| 2C01HU1003003DR | 3 | 10 | 14 | 0.5 / 12.71 | 247 / 368 | 40 | 249 / 113 | 9 / 229 |
| 2C01HU0803003DR | 3 | 8 | 14 | 0.657 / 16.69 | 376 / 560 | 55 | 397 / 180 | 11.8 / 300 |
| 2C013U0603003DR | 3 | 6 | 12 | 0.737 / 18.71 | 524 / 780 | 75 | 629 / 285 | 13.3 / 337 |
| 2C013U0403003DR | 3 | 4 | 12 | 0.838 / 21.28 | 714 / 1063 | 95 | 1002 / 454 | 15.1 / 383 |
| 2C013U0203003DR | 3 | 2 | 10 | 1.003 / 25.46 | 1074 / 1598 | 130 | 1593 / 723 | 18 / 458 |
| 2C013U0103403DR | 3 | 1 | 10 | 1.129 / 28.69 | 1298 / 1932 | 145 | 2009 / 911 | 20.3 / 516 |
| 2C013U1/03403DR | 3 | 1/0 | 10 | 1.215 / 30.87 | 1563 / 2326 | 170 | 2534 / 1150 | 21.9 / 556 |
| 2C013U2/03403DR | 3 | 2/0 | 10 | 1.308 / 33.22 | 1864 / 2773 | 195 | 3194 / 1449 | 23.5 / 598 |
| 2C013U3/03403DR | 3 | 3/0 | 8 | 1.418 / 36 | 2301 / 3425 | 225 | 4007 / 1818 | 25.5 / 648 |
| 2C013U4/03403DR | 3 | 4/0 | 8 | 1.538 / 39.06 | 2784 / 4143 | 260 | 5078 / 2304 | 27.7 / 703 |
| 2C013U2503603DR | 3 | 250 | 8 | 1.68 / 42.67 | 3240 / 4821 | 290 | 6000 / 2722 | 30.2 / 768 |
| 2C013U3503603DR | 3 | 350 | 6 | 1.961 / 49.82 | 4538 / 6753 | 350 | 8400 / 3810 | 35.3 / 897 |
| 2C013U5003603DR | 3 | 500 | 6 | 2.236 / 56.81 | 6128 / 9120 | 430 | 12000 / 5443 | 40.3 / 1023 |
| 2C013U7503603DR | 3 | 750 | 4 | 2.686 / 68.22 | 8729 / 12990 | 535 | 18000 / 8165 | 48.3 / 1228 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16).
Markets / Applications
- Transit
- Water/Waste Water Treatment
- Generation
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- OIl & Gas
- Mining
Voltage
600V
Optional: 2000V
Product Construction
- Insulation:
- FR XLPE (XHHW-2 rated)rated: 90°C wet / dry
- Shielding:
- Dual helically applied copper tape shield
- Jacket:
- FR PVC outer black or yellow jacket (standard) rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Available in:
- Custom insulation / jacket colours
- TC-ER (optional)
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
Colour Coding
- 3C Black, # coded
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Tri-sectional Grounding Conductors
- Polypropylene Fillers
- Dual Helically Applied Bare / Tinned Copper Tape Shield
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | ConductorSize (AWG/MCM) | Ground Wire Size (uninsulated) (AWG/MCM) | Nominal Diameter Overall cable (in/mm) | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius(Pull) (in/mm) |
| 2C01HU1203003DR | 3 | 12 | 16 | 0.439 / 11.14 | 166 / 247 | 30 | 157 / 71 | 7.9 / 201 |
| 2C01HU1003003DR | 3 | 10 | 14 | 0.5 / 12.71 | 247 / 368 | 40 | 249 / 113 | 9 / 229 |
| 2C01HU0803003DR | 3 | 8 | 14 | 0.657 / 16.69 | 376 / 560 | 55 | 397 / 180 | 11.8 / 300 |
| 2C013U0603003DR | 3 | 6 | 12 | 0.737 / 18.71 | 524 / 780 | 75 | 629 / 285 | 13.3 / 337 |
| 2C013U0403003DR | 3 | 4 | 12 | 0.838 / 21.28 | 714 / 1063 | 95 | 1002 / 454 | 15.1 / 383 |
| 2C013U0203003DR | 3 | 2 | 10 | 1.003 / 25.46 | 1074 / 1598 | 130 | 1593 / 723 | 18 / 458 |
| 2C013U0103403DR | 3 | 1 | 10 | 1.129 / 28.69 | 1298 / 1932 | 145 | 2009 / 911 | 20.3 / 516 |
| 2C013U1/03403DR | 3 | 1/0 | 10 | 1.215 / 30.87 | 1563 / 2326 | 170 | 2534 / 1150 | 21.9 / 556 |
| 2C013U2/03403DR | 3 | 2/0 | 10 | 1.308 / 33.22 | 1864 / 2773 | 195 | 3194 / 1449 | 23.5 / 598 |
| 2C013U3/03403DR | 3 | 3/0 | 8 | 1.418 / 36 | 2301 / 3425 | 225 | 4007 / 1818 | 25.5 / 648 |
| 2C013U4/03403DR | 3 | 4/0 | 8 | 1.538 / 39.06 | 2784 / 4143 | 260 | 5078 / 2304 | 27.7 / 703 |
| 2C013U2503603DR | 3 | 250 | 8 | 1.68 / 42.67 | 3240 / 4821 | 290 | 6000 / 2722 | 30.2 / 768 |
| 2C013U3503603DR | 3 | 350 | 6 | 1.961 / 49.82 | 4538 / 6753 | 350 | 8400 / 3810 | 35.3 / 897 |
| 2C013U5003603DR | 3 | 500 | 6 | 2.236 / 56.81 | 6128 / 9120 | 430 | 12000 / 5443 | 40.3 / 1023 |
| 2C013U7503603DR | 3 | 750 | 4 | 2.686 / 68.22 | 8729 / 12990 | 535 | 18000 / 8165 | 48.3 / 1228 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16).
