UL Type TC Tray Control, Multi-Conductor, 2000 V
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
2000V
Product Construction
-
- Insulation:
- FR XLPE (RHW-2 rated)rated: 90°C wet / dry
- Insulation:
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Jacket:
- Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC)-ER (optional)
- UL 44, Thermoset Insulated Wires and Cables
- UL1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant UN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Method K1 & K2 (standard)
- Method 4 (optional)

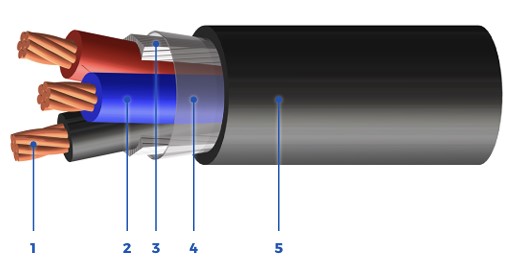

Properties
- Strand Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (RHW-2 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft)/ (kg/km) | (30°C ambient) | (lb/kg) | (in/mm) | ||
| 2K010U140200300 | 2 | 14 | 0.492 / 12.5 | 111 / 165 | 25 | 66 / 30 | 4.4 / 112 |
| 2K010U140300300 | 3 | 14 | 0.521 / 13.2 | 137 / 204 | 25 | 99 / 45 | 4.7 / 119 |
| 2K010U140400300 | 4 | 14 | 0.601 / 15.3 | 188 / 280 | 20 | 132 / 60 | 5.4 / 137 |
| 2K010U140500300 | 5 | 14 | 0.657 / 16.7 | 227 / 338 | 20 | 165 / 75 | 5.9 / 150 |
| 2K010U140600300 | 6 | 14 | 0.715 / 18.2 | 261 / 388 | 20 | 197 / 90 | 6.4 / 163 |
| 2K010U140300300 | 7 | 14 | 0.715 / 18.5 | 282 / 420 | 17.5 | 230 / 104 | 6.4 / 163 |
| 2K010U140800300 | 8 | 14 | 0.773 / 19.6 | 315 / 469 | 17.5 | 263 / 119 | 7 / 177 |
| 2K010U141000300 | 10 | 14 | 0.948 / 24.1 | 428 / 637 | 12.5 | 329 / 149 | 8.5 / 217 |
| 2K010U141200300 | 12 | 14 | 0.977 / 24.8 | 483 / 719 | 12.5 | 395 / 179 | 8.8 / 223 |
| 2K010U141400300 | 14 | 14 | 1.027 / 26.1 | 548 / 815 | 12.5 | 461 / 209 | 9.2 / 235 |
| 2K010U141500300 | 15 | 14 | 1.054 / 26.8 | 580 / 863 | 12.5 | 494 / 224 | 9.5 / 241 |
| 2K010U142000300 | 20 | 14 | 1.199 / 30.5 | 747 / 1111 | 12.5 | 658 / 298 | 10.8 / 274 |
| 2K010U142500300 | 25 | 14 | 1.334 / 33.9 | 908 / 1351 | 11.25 | 823 / 373 | 12 / 305 |
| 2K010U143000300 | 30 | 14 | 1.413 / 35.9 | 1048 / 1559 | 11.25 | 987 / 448 | 12.7 / 323 |
| 2K010U144000300 | 40 | 14 | 1.585 / 40.3 | 1344 / 2000 | 10 | 1316 / 597 | 14.3 / 362 |
| 2K010U145000300 | 50 | 14 | 1.826 / 46.4 | 1756 / 2613 | 8.75 | 1645 / 746 | 16.4 / 417 |
| 2K010U120200300 | 2 | 12 | 0.528 / 13.4 | 136 / 202 | 30 | 104 / 47 | 4.8 / 121 |
| 2K010U120300300 | 3 | 12 | 0.590 / 15.0 | 189 / 282 | 30 | 157 / 71 | 5.3 / 135 |
| 2K010U120400300 | 4 | 12 | 0.645 / 16.4 | 235 / 349 | 24 | 209 / 95 | 5.8 / 147 |
| 2K010U120500300 | 5 | 12 | 0.706 / 17.9 | 282 / 420 | 24 | 261 / 118 | 6.4 / 161 |
| 2K010U120600300 | 6 | 12 | 0.769 / 19.5 | 334 / 497 | 24 | 313 / 142 | 6.9 / 176 |
| 2K010U120700300 | 7 | 12 | 0.769 / 19.5 | 364 / 541 | 21 | 365 / 166 | 6.9 / 176 |
| 2K010U120800300 | 8 | 12 | 0.832 / 21.1 | 401 / 596 | 21 | 418 / 189 | 7.5 / 190 |
| 2K010U121000300 | 10 | 12 | 1.020 / 25.9 | 538 / 801 | 15 | 522 / 237 | 9.2 / 233 |
| 2K010U121200300 | 12 | 12 | 1.052 / 26.7 | 615 / 915 | 15 | 626 / 284 | 9.5 / 240 |
| 2K010U121400300 | 14 | 12 | 1.106 / 28.1 | 699 / 1040 | 15 | 731 / 331 | 10 / 253 |
| 2K010U121500300 | 15 | 12 | 1.136 / 28.9 | 741 / 1102 | 15 | 783 / 355 | 10.2 / 260 |
| 2K010U122000300 | 20 | 12 | 1.294 / 32.9 | 957 / 1425 | 15 | 1044 / 474 | 11.6 / 296 |
| 2K010U122500300 | 25 | 12 | 1.442 / 36.6 | 1170 / 1741 | 13.5 | 1305 / 592 | 13 / 330 |
| 2K010U123000300 | 30 | 12 | 1.529 / 38.8 | 1358 / 2021 | 13.5 | 1566 / 710 | 13.8 / 349 |
| 2K010U124000300 | 40 | 12 | 1.776 / 45.1 | 1853 / 2757 | 12 | 2088 / 947 | 16 / 406 |
| 2K010U125000300 | 50 | 12 | 1.975 / 50.2 | 2272 / 3381 | 10.5 | 2610 / 1184 | 17.8 / 451 |
| 2K010U100200300 | 2 | 10 | 0.608 / 15.4 | 191 / 284 | 40 | 166 / 75 | 5.5 / 139 |
| 2K010U100300300 | 3 | 10 | 0.643 / 16.3 | 244 / 363 | 40 | 249 / 113 | 5.8 / 147 |
| 2K010U100400300 | 4 | 10 | 0.705 / 17.9 | 305 / 453 | 32 | 332 / 151 | 6.3 / 161 |
| 2K010U100500300 | 5 | 10 | 0.773 / 19.6 | 369 / 549 | 32 | 415 / 188 | 7 / 177 |
| 2K010U100600300 | 6 | 10 | 0.844 / 21.4 | 434 / 646 | 32 | 498 / 226 | 7.6 / 193 |
| 2K010U100700300 | 7 | 10 | 0.844 / 21.4 | 477 / 711 | 28 | 581 / 264 | 7.6 / 193 |
| 2K010U100800300 | 8 | 10 | 0.955 / 24.3 | 569 / 847 | 28 | 664 / 301 | 8.6 / 218 |
| 2K010U101000300 | 10 | 10 | 1.120 / 28.5 | 708 / 1053 | 20 | 830 / 376 | 10.1 / 256 |
| 2K010U101200300 | 12 | 10 | 1.155 / 29.4 | 814 / 1211 | 20 | 996 / 452 | 10.4 / 264 |
| 2K010U101400300 | 14 | 10 | 1.217 / 30.9 | 930 / 1384 | 20 | 1162 / 527 | 11 / 278 |
| 2K010U101500300 | 15 | 10 | 1.250 / 31.7 | 987 / 1469 | 20 | 1245 / 565 | 11.2 / 286 |
| 2K010U102000300 | 20 | 10 | 1.427 / 36.2 | 1284 / 1911 | 20 | 1660 / 753 | 12.8 / 326 |
| 2K010U102500300 | 25 | 10 | 1.592 / 40.4 | 1573 / 2341 | 18 | 2075 / 941 | 14.3 / 364 |
| 2K010U103000300 | 30 | 10 | 1.689 / 42.9 | 1837 / 2733 | 18 | 2490 / 1129 | 15.2 / 386 |
| 2K010U104000300 | 40 | 10 | 1.959 / 49.8 | 2492 / 3709 | 16 | 3320 / 1506 | 17.6 / 448 |
*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors.
Markets / Applications
|
|
Voltage
2000V
Product Construction
-
- Insulation:
- FR XLPE (RHW-2 rated)rated: 90°C wet / dry
- Insulation:
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE (optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Jacket:
- Available in:
- Custom insulation / jacket colors
- Composite constructions
Certifications/Compliances
- UL 1277, Tray Cable (TC)-ER (optional)
- UL 44, Thermoset Insulated Wires and Cables
- UL1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated (optional)
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant UN RES(all colours)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Colour Coding
- Method K1 & K2 (standard)
- Method 4 (optional)
- Strand Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (RHW-2 Rated) Insulated Conductors
- Polypropylene Fillers
- Polyester Separator Tape
- FR PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft)/ (kg/km) | (30°C ambient) | (lb/kg) | (in/mm) | ||
| 2K010U140200300 | 2 | 14 | 0.492 / 12.5 | 111 / 165 | 25 | 66 / 30 | 4.4 / 112 |
| 2K010U140300300 | 3 | 14 | 0.521 / 13.2 | 137 / 204 | 25 | 99 / 45 | 4.7 / 119 |
| 2K010U140400300 | 4 | 14 | 0.601 / 15.3 | 188 / 280 | 20 | 132 / 60 | 5.4 / 137 |
| 2K010U140500300 | 5 | 14 | 0.657 / 16.7 | 227 / 338 | 20 | 165 / 75 | 5.9 / 150 |
| 2K010U140600300 | 6 | 14 | 0.715 / 18.2 | 261 / 388 | 20 | 197 / 90 | 6.4 / 163 |
| 2K010U140300300 | 7 | 14 | 0.715 / 18.5 | 282 / 420 | 17.5 | 230 / 104 | 6.4 / 163 |
| 2K010U140800300 | 8 | 14 | 0.773 / 19.6 | 315 / 469 | 17.5 | 263 / 119 | 7 / 177 |
| 2K010U141000300 | 10 | 14 | 0.948 / 24.1 | 428 / 637 | 12.5 | 329 / 149 | 8.5 / 217 |
| 2K010U141200300 | 12 | 14 | 0.977 / 24.8 | 483 / 719 | 12.5 | 395 / 179 | 8.8 / 223 |
| 2K010U141400300 | 14 | 14 | 1.027 / 26.1 | 548 / 815 | 12.5 | 461 / 209 | 9.2 / 235 |
| 2K010U141500300 | 15 | 14 | 1.054 / 26.8 | 580 / 863 | 12.5 | 494 / 224 | 9.5 / 241 |
| 2K010U142000300 | 20 | 14 | 1.199 / 30.5 | 747 / 1111 | 12.5 | 658 / 298 | 10.8 / 274 |
| 2K010U142500300 | 25 | 14 | 1.334 / 33.9 | 908 / 1351 | 11.25 | 823 / 373 | 12 / 305 |
| 2K010U143000300 | 30 | 14 | 1.413 / 35.9 | 1048 / 1559 | 11.25 | 987 / 448 | 12.7 / 323 |
| 2K010U144000300 | 40 | 14 | 1.585 / 40.3 | 1344 / 2000 | 10 | 1316 / 597 | 14.3 / 362 |
| 2K010U145000300 | 50 | 14 | 1.826 / 46.4 | 1756 / 2613 | 8.75 | 1645 / 746 | 16.4 / 417 |
| 2K010U120200300 | 2 | 12 | 0.528 / 13.4 | 136 / 202 | 30 | 104 / 47 | 4.8 / 121 |
| 2K010U120300300 | 3 | 12 | 0.590 / 15.0 | 189 / 282 | 30 | 157 / 71 | 5.3 / 135 |
| 2K010U120400300 | 4 | 12 | 0.645 / 16.4 | 235 / 349 | 24 | 209 / 95 | 5.8 / 147 |
| 2K010U120500300 | 5 | 12 | 0.706 / 17.9 | 282 / 420 | 24 | 261 / 118 | 6.4 / 161 |
| 2K010U120600300 | 6 | 12 | 0.769 / 19.5 | 334 / 497 | 24 | 313 / 142 | 6.9 / 176 |
| 2K010U120700300 | 7 | 12 | 0.769 / 19.5 | 364 / 541 | 21 | 365 / 166 | 6.9 / 176 |
| 2K010U120800300 | 8 | 12 | 0.832 / 21.1 | 401 / 596 | 21 | 418 / 189 | 7.5 / 190 |
| 2K010U121000300 | 10 | 12 | 1.020 / 25.9 | 538 / 801 | 15 | 522 / 237 | 9.2 / 233 |
| 2K010U121200300 | 12 | 12 | 1.052 / 26.7 | 615 / 915 | 15 | 626 / 284 | 9.5 / 240 |
| 2K010U121400300 | 14 | 12 | 1.106 / 28.1 | 699 / 1040 | 15 | 731 / 331 | 10 / 253 |
| 2K010U121500300 | 15 | 12 | 1.136 / 28.9 | 741 / 1102 | 15 | 783 / 355 | 10.2 / 260 |
| 2K010U122000300 | 20 | 12 | 1.294 / 32.9 | 957 / 1425 | 15 | 1044 / 474 | 11.6 / 296 |
| 2K010U122500300 | 25 | 12 | 1.442 / 36.6 | 1170 / 1741 | 13.5 | 1305 / 592 | 13 / 330 |
| 2K010U123000300 | 30 | 12 | 1.529 / 38.8 | 1358 / 2021 | 13.5 | 1566 / 710 | 13.8 / 349 |
| 2K010U124000300 | 40 | 12 | 1.776 / 45.1 | 1853 / 2757 | 12 | 2088 / 947 | 16 / 406 |
| 2K010U125000300 | 50 | 12 | 1.975 / 50.2 | 2272 / 3381 | 10.5 | 2610 / 1184 | 17.8 / 451 |
| 2K010U100200300 | 2 | 10 | 0.608 / 15.4 | 191 / 284 | 40 | 166 / 75 | 5.5 / 139 |
| 2K010U100300300 | 3 | 10 | 0.643 / 16.3 | 244 / 363 | 40 | 249 / 113 | 5.8 / 147 |
| 2K010U100400300 | 4 | 10 | 0.705 / 17.9 | 305 / 453 | 32 | 332 / 151 | 6.3 / 161 |
| 2K010U100500300 | 5 | 10 | 0.773 / 19.6 | 369 / 549 | 32 | 415 / 188 | 7 / 177 |
| 2K010U100600300 | 6 | 10 | 0.844 / 21.4 | 434 / 646 | 32 | 498 / 226 | 7.6 / 193 |
| 2K010U100700300 | 7 | 10 | 0.844 / 21.4 | 477 / 711 | 28 | 581 / 264 | 7.6 / 193 |
| 2K010U100800300 | 8 | 10 | 0.955 / 24.3 | 569 / 847 | 28 | 664 / 301 | 8.6 / 218 |
| 2K010U101000300 | 10 | 10 | 1.120 / 28.5 | 708 / 1053 | 20 | 830 / 376 | 10.1 / 256 |
| 2K010U101200300 | 12 | 10 | 1.155 / 29.4 | 814 / 1211 | 20 | 996 / 452 | 10.4 / 264 |
| 2K010U101400300 | 14 | 10 | 1.217 / 30.9 | 930 / 1384 | 20 | 1162 / 527 | 11 / 278 |
| 2K010U101500300 | 15 | 10 | 1.250 / 31.7 | 987 / 1469 | 20 | 1245 / 565 | 11.2 / 286 |
| 2K010U102000300 | 20 | 10 | 1.427 / 36.2 | 1284 / 1911 | 20 | 1660 / 753 | 12.8 / 326 |
| 2K010U102500300 | 25 | 10 | 1.592 / 40.4 | 1573 / 2341 | 18 | 2075 / 941 | 14.3 / 364 |
| 2K010U103000300 | 30 | 10 | 1.689 / 42.9 | 1837 / 2733 | 18 | 2490 / 1129 | 15.2 / 386 |
| 2K010U104000300 | 40 | 10 | 1.959 / 49.8 | 2492 / 3709 | 16 | 3320 / 1506 | 17.6 / 448 |
*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors.
|
|
