SL-HFA 600/1000 V Armoured Single Conductor (LSZH), HF90/SHF1
Construction
Voltage
600/1000v
Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
Halogen Free HF90 Rated: +90ºC Wet/Dry, IEC 60092-360
Armour:
Tinned-Copper Braid (Standard)
Bronze Braid (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-1-2 (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- IEC 60811-403 (Ozone Resistance)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
- Black conductor (standard)

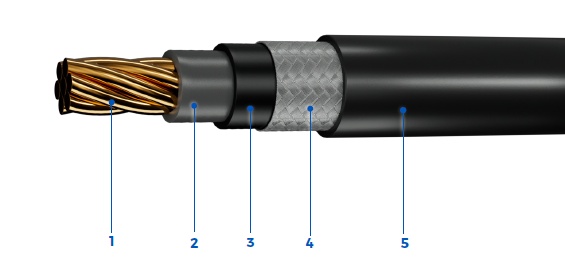

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- Halogen Free HF90 Insulated Conductors
- Extruded LSZH Inner Covering
- Tinned-Copper or Bronze Braided Armour
- Protective LSZH Outer Sheath
NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
(c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
1c | x | 1 | 0.2 / 6.1 | 53.7 / 79.91 | 18 | SLC10E0101F0800 |
1c | x | 1.5 | 0.3 / 6.4 | 60.04 / 89.35 | 23 | SLC10E3A01F0800 |
1c | x | 2.5 | 0.3 / 6.8 | 70.52 / 104.95 | 30 | SLC10E5A01F0800 |
1c | x | 4 | 0.3 / 7.4 | 84.87 / 126.29 | 40 | SLC10E0401F0800 |
1c | x | 6 | 0.3 / 8.1 | 104.83 / 156 | 52 | SLC10E0601F0800 |
1c | x | 10 | 0.4 / 9.1 | 141.84 / 211.09 | 72 | SLC10E1001F0800 |
1c | x | 16 | 0.4 / 10.6 | 197.49 / 293.89 | 96 | SLC10E1601F0800 |
1c | x | 25 | 0.5 / 12.6 | 296.8 / 441.69 | 127 | SLC10E2501F0800 |
1c | x | 35 | 0.6 / 14.1 | 377.02 / 561.07 | 157 | SLC10E3501F0800 |
1c | x | 50 | 0.6 / 15.5 | 488.74 / 727.33 | 196 | SLC10E5001F0800 |
1c | x | 70 | 0.7 / 18.1 | 647.82 / 964.06 | 242 | SLC10E7001F0800 |
1c | x | 120 | 0.9 / 21.9 | 999.91 / 1488.04 | 339 | SLC10E12001F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Markets / Applications
Marine & Shipboard
Voltage
600/1000v
Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
Halogen Free HF90 Rated: +90ºC Wet/Dry, IEC 60092-360
Armour:
Tinned-Copper Braid (Standard)
Bronze Braid (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-1-2 (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- IEC 60811-403 (Ozone Resistance)
- Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
- Black conductor (standard)
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- Halogen Free HF90 Insulated Conductors
- Extruded LSZH Inner Covering
- Tinned-Copper or Bronze Braided Armour
- Protective LSZH Outer Sheath
NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
(c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
1c | x | 1 | 0.2 / 6.1 | 53.7 / 79.91 | 18 | SLC10E0101F0800 |
1c | x | 1.5 | 0.3 / 6.4 | 60.04 / 89.35 | 23 | SLC10E3A01F0800 |
1c | x | 2.5 | 0.3 / 6.8 | 70.52 / 104.95 | 30 | SLC10E5A01F0800 |
1c | x | 4 | 0.3 / 7.4 | 84.87 / 126.29 | 40 | SLC10E0401F0800 |
1c | x | 6 | 0.3 / 8.1 | 104.83 / 156 | 52 | SLC10E0601F0800 |
1c | x | 10 | 0.4 / 9.1 | 141.84 / 211.09 | 72 | SLC10E1001F0800 |
1c | x | 16 | 0.4 / 10.6 | 197.49 / 293.89 | 96 | SLC10E1601F0800 |
1c | x | 25 | 0.5 / 12.6 | 296.8 / 441.69 | 127 | SLC10E2501F0800 |
1c | x | 35 | 0.6 / 14.1 | 377.02 / 561.07 | 157 | SLC10E3501F0800 |
1c | x | 50 | 0.6 / 15.5 | 488.74 / 727.33 | 196 | SLC10E5001F0800 |
1c | x | 70 | 0.7 / 18.1 | 647.82 / 964.06 | 242 | SLC10E7001F0800 |
1c | x | 120 | 0.9 / 21.9 | 999.91 / 1488.04 | 339 | SLC10E12001F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Marine & Shipboard
