SE-XL 600/1000 V Unarmoured Single Conductor (LSZH), XLPE/SHF1
Construction
Voltage
600/ 1000 V
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-1-2 (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40°C/-35°C)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
- Black conductor (standard)

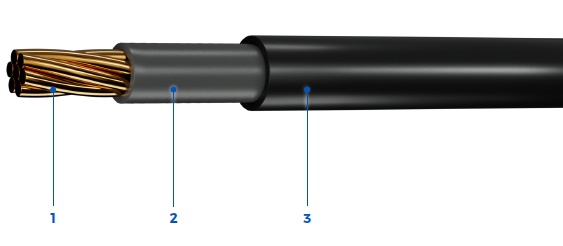

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 1c | x | 1 | 0.2 / 5.1 | 28 / 41.66 | 18 | SE010E0101F0800 |
| 1c | x | 1.5 | 0.2 / 5.4 | 32.93 / 49 | 23 | SE010E3A01F0800 |
| 1c | x | 2.5 | 0.2 / 5.8 | 41.4 / 61.61 | 30 | SE010E5A01F0800 |
| 1c | x | 4 | 0.3 / 6.4 | 53.27 / 79.28 | 40 | SE010E0401F0800 |
| 1c | x | 6 | 0.3 / 7.1 | 69.7 / 103.72 | 52 | SE010E0601F0800 |
| 1c | x | 10 | 0.3 / 7.8 | 97.86 / 145.64 | 72 | SE010E1001F0800 |
| 1c | x | 16 | 0.4 / 9.6 | 151.04 / 224.77 | 96 | SE010E1601F0800 |
| 1c | x | 25 | 0.5 / 11.5 | 224.13 / 333.55 | 127 | SE010E2501F0800 |
| 1c | x | 35 | 0.5 / 12.7 | 288.19 / 428.88 | 157 | SE010E3501F0800 |
| 1c | x | 50 | 0.6 / 14.1 | 390.63 / 581.32 | 196 | SE010E5001F0800 |
| 1c | x | 70 | 0.7 / 16.7 | 532.82 / 792.93 | 242 | SE010E7001F0800 |
| 1c | x | 120 | 0.8 / 20.5 | 859.43 / 1278.97 | 339 | SE010E12001F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes
Markets / Applications
Marine & Shipboard
Voltage
600/ 1000 V
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
XLPE Rated: +90ºC Wet/Dry, IEC 60092-360
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certification/Compliances
Construction & Materials:
- IEC 60092-353
- IEC 60092-350
- IEC 60092-360 (Insulation & Sheath)
- IEC 60228 (Conductor)
Performance:
- IEC 60332-1-2 (Flame Retardancy)
- IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
- IEC 61034-1 & 2 (Low Smoke Emission)
- Cold Bend & Impact (-40°C/-35°C)
Approvals:
- American Bureau of Shipping (ABS)
- Lloyd’s Register
- Transport Canada
Colour Coding
- Black conductor (standard)
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- XLPE Insulated Conductors
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 1c | x | 1 | 0.2 / 5.1 | 28 / 41.66 | 18 | SE010E0101F0800 |
| 1c | x | 1.5 | 0.2 / 5.4 | 32.93 / 49 | 23 | SE010E3A01F0800 |
| 1c | x | 2.5 | 0.2 / 5.8 | 41.4 / 61.61 | 30 | SE010E5A01F0800 |
| 1c | x | 4 | 0.3 / 6.4 | 53.27 / 79.28 | 40 | SE010E0401F0800 |
| 1c | x | 6 | 0.3 / 7.1 | 69.7 / 103.72 | 52 | SE010E0601F0800 |
| 1c | x | 10 | 0.3 / 7.8 | 97.86 / 145.64 | 72 | SE010E1001F0800 |
| 1c | x | 16 | 0.4 / 9.6 | 151.04 / 224.77 | 96 | SE010E1601F0800 |
| 1c | x | 25 | 0.5 / 11.5 | 224.13 / 333.55 | 127 | SE010E2501F0800 |
| 1c | x | 35 | 0.5 / 12.7 | 288.19 / 428.88 | 157 | SE010E3501F0800 |
| 1c | x | 50 | 0.6 / 14.1 | 390.63 / 581.32 | 196 | SE010E5001F0800 |
| 1c | x | 70 | 0.7 / 16.7 | 532.82 / 792.93 | 242 | SE010E7001F0800 |
| 1c | x | 120 | 0.8 / 20.5 | 859.43 / 1278.97 | 339 | SE010E12001F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes
