SL-HF 600/1000 V Unarmoured Multi-Conductor (LSZH), HF90/SHF1
Construction
Voltage
600/1000v
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
Halogen Free HF90 Rated: +90ºC Wet/Dry, IEC 60092-360
Shield:
Aluminum/mylar shield with drain wire or copper tape shielded (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certifications
Certification/Compliances
Construction & Materials:
• IEC 60092-353
• IEC 60092-350
• IEC 60092-360 (Insulation & Sheath)
• IEC 60228 (Conductor)
Performance:
• IEC 60332-3-22, Cat. A (Flame Retardancy)
• IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
• IEC 61034-1 & 2 (Low Smoke Emission)
• IEC 60811-403 (Ozone Resistance)
• Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
• American Bureau of Shipping (ABS)
• Lloyd’s Register
• Transport Canada
Colour Coding
Custom colour coding available, including:
• Per IEEE 1580 Table 23:
2C – Black, White
3C – Black, White, Red
4C – Black, White, Red, Green
5C – Black, White, Red, Green, Orange
6C – Black, White, Red, Green, Orange, Blue
≥7C – Base color with tracers

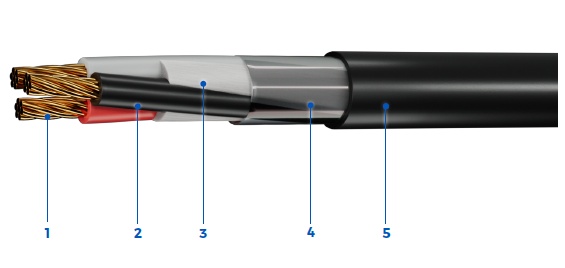

Properties
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- Halogen Free HF90 Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 1 | 0.3 / 8.3 | 65.44 / 97.39 | 16 | SL011E0102F0800 |
| 2c | x | 1.5 | 0.4 / 9.2 | 79.19 / 117.85 | 20 | SL011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 10.1 | 97.7 / 145.39 | 26 | SL011E5A02F0800 |
| 2c | x | 4 | 0.4 / 11.1 | 124.51 / 185.29 | 34 | SL011E0402F0800 |
| 2c | x | 6 | 0.5 / 12.9 | 167.75 / 249.64 | 44 | SL011E0602F0800 |
| 2c | x | 10 | 0.6 / 14.4 | 233.1 / 346.9 | 61 | SL011E1002F0800 |
| 2c | x | 16 | 0.7 / 17.9 | 356.33 / 530.27 | 82 | SL011E1602F0800 |
| 2c | x | 25 | 0.8 / 21.5 | 525.87 / 782.59 | 108 | SL011E2502F0800 |
| 2c | x | 35 | 1 / 24.3 | 684.57 / 1018.75 | 133 | SL011E3502F0800 |
| 2c | x | 50 | 1.1 / 27.3 | 936.17 / 1393.17 | 167 | SL011E5002F0800 |
| 2c | x | 70 | 1.3 / 32.1 | 1269.82 / 1889.7 | 206 | SL011E7002F0800 |
| 2c | x | 120 | 1.6 / 40.1 | 2062.33 / 3069.08 | 288 | SL011E12002F0800 |
| 3c | x | 1 | 0.3 / 8.7 | 75.21 / 111.92 | 12 | SL011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.7 | 92.87 / 138.2 | 16 | SL011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.6 | 117.39 / 174.7 | 21 | SL011E5A03F0800 |
| 3c | x | 4 | 0.5 / 12 | 161.47 / 240.29 | 28 | SL011E0403F0800 |
| 3c | x | 6 | 0.5 / 13.6 | 212.75 / 316.61 | 36 | SL011E0603F0800 |
| 3c | x | 10 | 0.6 / 15.5 | 308.74 / 459.46 | 50 | SL011E1003F0800 |
| 3c | x | 16 | 0.8 / 19.2 | 479.12 / 713 | 67 | SL011E1603F0800 |
| 3c | x | 25 | 0.9 / 23 | 706.52 / 1051.41 | 89 | SL011E2503F0800 |
| 3c | x | 35 | 1 / 26 | 932.72 / 1388.04 | 110 | SL011E3503F0800 |
| 3c | x | 50 | 1.2 / 29.3 | 1274.07 / 1896.03 | 137 | SL011E5003F0800 |
| 3c | x | 70 | 1.4 / 34.5 | 1737.88 / 2586.24 | 169 | SL011E7003F0800 |
| 3c | x | 120 | 1.7 / 43 | 2834.96 / 4218.88 | 237 | SL011E12003F0800 |
| 4c | x | 1 | 0.4 / 9.4 | 85.79 / 127.66 | 12 | SL011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10.5 | 106.18 / 158.02 | 16 | SL011E3A04F0800 |
| 4c | x | 2.5 | 0.5 / 11.8 | 148.24 / 220.61 | 21 | SL011E5A04F0800 |
| 4c | x | 4 | 0.5 / 13 | 194.76 / 289.84 | 28 | SL011E0404F0800 |
| 4c | x | 6 | 0.6 / 14.9 | 263.13 / 391.57 | 36 | SL011E0604F0800 |
| 4c | x | 10 | 0.7 / 16.9 | 385.66 / 573.93 | 50 | SL011E1004F0800 |
| 4c | x | 16 | 0.8 / 21.1 | 601.25 / 894.75 | 67 | SL011E1604F0800 |
| 4c | x | 25 | 1 / 25.3 | 896.84 / 1334.64 | 89 | SL011E2504F0800 |
| 5c | x | 1 | 0.4 / 10.5 | 102.19 / 152.08 | 10 | SL011E0105F0800 |
| 5c | x | 1.5 | 0.5 / 11.6 | 130.32 / 193.93 | 13 | SL011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.7 | 176.09 / 262.05 | 17 | SL011E5A05F0800 |
| 5c | x | 4 | 0.6 / 14.2 | 233.65 / 347.7 | 22 | SL011E0405F0800 |
| 5c | x | 6 | 0.6 / 16.5 | 320.47 / 476.91 | 29 | SL011E0605F0800 |
| 5c | x | 10 | 0.7 / 18.7 | 476.52 / 709.14 | 40 | SL011E1005F0800 |
| 5c | x | 16 | 0.9 / 23.3 | 745.81 / 1109.88 | 54 | SL011E1605F0800 |
| 5c | x | 25 | 1.1 / 28 | 1113.86 / 1657.6 | 71 | SL011E2505F0800 |
| 7c | x | 1 | 0.5 / 11.6 | 129.07 / 192.08 | 8 | SL011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 12.5 | 159.06 / 236.71 | 11 | SL011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.8 | 213.55 / 317.8 | 15 | SL011E5A07F0800 |
| 10c | x | 1 | 0.6 / 14.3 | 176.43 / 262.56 | 8 | SL011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 15.8 | 227.61 / 338.72 | 11 | SL011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 17.5 | 305.29 / 454.33 | 15 | SL011E5A10F0800 |
| 12c | x | 1 | 0.6 / 14.7 | 195.39 / 290.78 | 8 | SL011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 16.3 | 254.11 / 378.16 | 11 | SL011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 18 | 344.38 / 512.49 | 15 | SL011E5A12F0800 |
| 14c | x | 1 | 1 | 222.46 / 331.06 | 8 | SL011E0114F0800 |
| 14c | x | 1.5 | 0.7 / 17 | 280.82 / 417.9 | 11 | SL011E3A14F0800 |
| 14c | x | 2.5 | 0.8 / 19.2 | 399.4 / 594.37 | 15 | SL011E5A14F0800 |
| 19c | x | 1 | 0.7 / 17.3 | 277.13 / 412.41 | 8 | SL011E0119F0800 |
| 19c | x | 1.5 | 0.8 / 19.1 | 364.5 / 542.44 | 11 | SL011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 21.3 | 503.86 / 749.82 | 15 | SL011E5A19F0800 |
| 24c | x | 1 | 0.8 / 20.3 | 359.64 / 535.21 | 8 | SL011E0124F0800 |
| 24c | x | 1.5 | 0.9 / 22.4 | 471.19 / 701.21 | 11 | SL011E3A24F0800 |
| 24c | x | 2.5 | 1 / 25 | 651.27 / 969.19 | 15 | SL011E5A24F0800 |
| 27c | x | 1 | 0.8 / 20.7 | 388.23 / 577.75 | 7 | SL011E0127F0800 |
| 27c | x | 1.5 | 0.9 / 22.9 | 511.09 / 760.58 | 10 | SL011E3A27F0800 |
| 27c | x | 2.5 | 1 / 25.8 | 724.34 / 1077.94 | 13 | SL011E5A27F0800 |
| 37c | x | 1 | 0.9 / 23.3 | 503.62 / 749.47 | 7 | SL011E0137F0800 |
| 37c | x | 1.5 | 1 / 25.7 | 666.5 / 991.86 | 10 | SL011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 29 | 952.15 / 1416.96 | 13 | SL011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Markets / Applications
Marine & Shipboard
Voltage
600/1000v
Operating Temperature
-40°C to +90°C
Product Construction
Conductor:
Stranded bare or tinned copper class 5 (standard) or class 2 (optional)
Insulation:
Halogen Free HF90 Rated: +90ºC Wet/Dry, IEC 60092-360
Shield:
Aluminum/mylar shield with drain wire or copper tape shielded (optional)
Jacket:
FR LSZH Thermoplastic, IEC 60092-360 (SHF1)
Available in:
Custom insulation/jacket colours
Certification/Compliances
Construction & Materials:
• IEC 60092-353
• IEC 60092-350
• IEC 60092-360 (Insulation & Sheath)
• IEC 60228 (Conductor)
Performance:
• IEC 60332-3-22, Cat. A (Flame Retardancy)
• IEC 60754-1 & 2, IEC 60684-2 (Halogen Free)
• IEC 61034-1 & 2 (Low Smoke Emission)
• IEC 60811-403 (Ozone Resistance)
• Cold Bend & Impact (-40ºC/-35ºC)
Approvals:
• American Bureau of Shipping (ABS)
• Lloyd’s Register
• Transport Canada
Colour Coding
Custom colour coding available, including:
• Per IEEE 1580 Table 23:
2C – Black, White
3C – Black, White, Red
4C – Black, White, Red, Green
5C – Black, White, Red, Green, Orange
6C – Black, White, Red, Green, Orange, Blue
≥7C – Base color with tracers
- Stranded Bare or Tinned Class 2 or Class 5 Copper Conductors
- Halogen Free HF90 Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- Protective LSZH Outer Sheath
| NUMBER OF CONDUCTORS |
x | SIZE OF CONDUCTORS |
NOMINAL OD OVERALL CABLE |
CABLE WEIGHT | AMPACITY | SHAWFLEX PART NUMBER |
| (c) | (mm2) | (in/mm) | (lbs/1000ft) / (kg/km) | (45°C ambient) | ||
| 2c | x | 1 | 0.3 / 8.3 | 65.44 / 97.39 | 16 | SL011E0102F0800 |
| 2c | x | 1.5 | 0.4 / 9.2 | 79.19 / 117.85 | 20 | SL011E3A02F0800 |
| 2c | x | 2.5 | 0.4 / 10.1 | 97.7 / 145.39 | 26 | SL011E5A02F0800 |
| 2c | x | 4 | 0.4 / 11.1 | 124.51 / 185.29 | 34 | SL011E0402F0800 |
| 2c | x | 6 | 0.5 / 12.9 | 167.75 / 249.64 | 44 | SL011E0602F0800 |
| 2c | x | 10 | 0.6 / 14.4 | 233.1 / 346.9 | 61 | SL011E1002F0800 |
| 2c | x | 16 | 0.7 / 17.9 | 356.33 / 530.27 | 82 | SL011E1602F0800 |
| 2c | x | 25 | 0.8 / 21.5 | 525.87 / 782.59 | 108 | SL011E2502F0800 |
| 2c | x | 35 | 1 / 24.3 | 684.57 / 1018.75 | 133 | SL011E3502F0800 |
| 2c | x | 50 | 1.1 / 27.3 | 936.17 / 1393.17 | 167 | SL011E5002F0800 |
| 2c | x | 70 | 1.3 / 32.1 | 1269.82 / 1889.7 | 206 | SL011E7002F0800 |
| 2c | x | 120 | 1.6 / 40.1 | 2062.33 / 3069.08 | 288 | SL011E12002F0800 |
| 3c | x | 1 | 0.3 / 8.7 | 75.21 / 111.92 | 12 | SL011E0103F0800 |
| 3c | x | 1.5 | 0.4 / 9.7 | 92.87 / 138.2 | 16 | SL011E3A03F0800 |
| 3c | x | 2.5 | 0.4 / 10.6 | 117.39 / 174.7 | 21 | SL011E5A03F0800 |
| 3c | x | 4 | 0.5 / 12 | 161.47 / 240.29 | 28 | SL011E0403F0800 |
| 3c | x | 6 | 0.5 / 13.6 | 212.75 / 316.61 | 36 | SL011E0603F0800 |
| 3c | x | 10 | 0.6 / 15.5 | 308.74 / 459.46 | 50 | SL011E1003F0800 |
| 3c | x | 16 | 0.8 / 19.2 | 479.12 / 713 | 67 | SL011E1603F0800 |
| 3c | x | 25 | 0.9 / 23 | 706.52 / 1051.41 | 89 | SL011E2503F0800 |
| 3c | x | 35 | 1 / 26 | 932.72 / 1388.04 | 110 | SL011E3503F0800 |
| 3c | x | 50 | 1.2 / 29.3 | 1274.07 / 1896.03 | 137 | SL011E5003F0800 |
| 3c | x | 70 | 1.4 / 34.5 | 1737.88 / 2586.24 | 169 | SL011E7003F0800 |
| 3c | x | 120 | 1.7 / 43 | 2834.96 / 4218.88 | 237 | SL011E12003F0800 |
| 4c | x | 1 | 0.4 / 9.4 | 85.79 / 127.66 | 12 | SL011E0104F0800 |
| 4c | x | 1.5 | 0.4 / 10.5 | 106.18 / 158.02 | 16 | SL011E3A04F0800 |
| 4c | x | 2.5 | 0.5 / 11.8 | 148.24 / 220.61 | 21 | SL011E5A04F0800 |
| 4c | x | 4 | 0.5 / 13 | 194.76 / 289.84 | 28 | SL011E0404F0800 |
| 4c | x | 6 | 0.6 / 14.9 | 263.13 / 391.57 | 36 | SL011E0604F0800 |
| 4c | x | 10 | 0.7 / 16.9 | 385.66 / 573.93 | 50 | SL011E1004F0800 |
| 4c | x | 16 | 0.8 / 21.1 | 601.25 / 894.75 | 67 | SL011E1604F0800 |
| 4c | x | 25 | 1 / 25.3 | 896.84 / 1334.64 | 89 | SL011E2504F0800 |
| 5c | x | 1 | 0.4 / 10.5 | 102.19 / 152.08 | 10 | SL011E0105F0800 |
| 5c | x | 1.5 | 0.5 / 11.6 | 130.32 / 193.93 | 13 | SL011E3A05F0800 |
| 5c | x | 2.5 | 0.5 / 12.7 | 176.09 / 262.05 | 17 | SL011E5A05F0800 |
| 5c | x | 4 | 0.6 / 14.2 | 233.65 / 347.7 | 22 | SL011E0405F0800 |
| 5c | x | 6 | 0.6 / 16.5 | 320.47 / 476.91 | 29 | SL011E0605F0800 |
| 5c | x | 10 | 0.7 / 18.7 | 476.52 / 709.14 | 40 | SL011E1005F0800 |
| 5c | x | 16 | 0.9 / 23.3 | 745.81 / 1109.88 | 54 | SL011E1605F0800 |
| 5c | x | 25 | 1.1 / 28 | 1113.86 / 1657.6 | 71 | SL011E2505F0800 |
| 7c | x | 1 | 0.5 / 11.6 | 129.07 / 192.08 | 8 | SL011E0107F0800 |
| 7c | x | 1.5 | 0.5 / 12.5 | 159.06 / 236.71 | 11 | SL011E3A07F0800 |
| 7c | x | 2.5 | 0.5 / 13.8 | 213.55 / 317.8 | 15 | SL011E5A07F0800 |
| 10c | x | 1 | 0.6 / 14.3 | 176.43 / 262.56 | 8 | SL011E0110F0800 |
| 10c | x | 1.5 | 0.6 / 15.8 | 227.61 / 338.72 | 11 | SL011E3A10F0800 |
| 10c | x | 2.5 | 0.7 / 17.5 | 305.29 / 454.33 | 15 | SL011E5A10F0800 |
| 12c | x | 1 | 0.6 / 14.7 | 195.39 / 290.78 | 8 | SL011E0112F0800 |
| 12c | x | 1.5 | 0.6 / 16.3 | 254.11 / 378.16 | 11 | SL011E3A12F0800 |
| 12c | x | 2.5 | 0.7 / 18 | 344.38 / 512.49 | 15 | SL011E5A12F0800 |
| 14c | x | 1 | 1 | 222.46 / 331.06 | 8 | SL011E0114F0800 |
| 14c | x | 1.5 | 0.7 / 17 | 280.82 / 417.9 | 11 | SL011E3A14F0800 |
| 14c | x | 2.5 | 0.8 / 19.2 | 399.4 / 594.37 | 15 | SL011E5A14F0800 |
| 19c | x | 1 | 0.7 / 17.3 | 277.13 / 412.41 | 8 | SL011E0119F0800 |
| 19c | x | 1.5 | 0.8 / 19.1 | 364.5 / 542.44 | 11 | SL011E3A19F0800 |
| 19c | x | 2.5 | 0.8 / 21.3 | 503.86 / 749.82 | 15 | SL011E5A19F0800 |
| 24c | x | 1 | 0.8 / 20.3 | 359.64 / 535.21 | 8 | SL011E0124F0800 |
| 24c | x | 1.5 | 0.9 / 22.4 | 471.19 / 701.21 | 11 | SL011E3A24F0800 |
| 24c | x | 2.5 | 1 / 25 | 651.27 / 969.19 | 15 | SL011E5A24F0800 |
| 27c | x | 1 | 0.8 / 20.7 | 388.23 / 577.75 | 7 | SL011E0127F0800 |
| 27c | x | 1.5 | 0.9 / 22.9 | 511.09 / 760.58 | 10 | SL011E3A27F0800 |
| 27c | x | 2.5 | 1 / 25.8 | 724.34 / 1077.94 | 13 | SL011E5A27F0800 |
| 37c | x | 1 | 0.9 / 23.3 | 503.62 / 749.47 | 7 | SL011E0137F0800 |
| 37c | x | 1.5 | 1 / 25.7 | 666.5 / 991.86 | 10 | SL011E3A37F0800 |
| 37c | x | 2.5 | 1.1 / 29 | 952.15 / 1416.96 | 13 | SL011E5A37F0800 |
*Ampacity value based on ABS Rules for Building and Classing Steel Vessels, Version 2023, Table-6. Values are corrected according to Table 6 for number of Conductors.
**Available in both American Wire Gauge (AWG) and Metric wire conductor sizes.
Marine & Shipboard
Related products
-
SF-XLA 150/250 V Armoured Multi-Conductor (LSZH), XLPE/SHF1
Read moreSF-XLA 150/250 V Armoured Multi-Conductor (LSZH), XLPE/SHF1
SF-XLA 150/250 V armoured multicore cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
-
SH-HFA 150/250 V Armoured Multi-Conductor (LSZH), HF90/SHF1
Read moreSH-HFA 150/250 V Armoured Multi-Conductor (LSZH), HF90/SHF1
SH-HFA 150/250 V armoured multicore cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
-
SL-HFA 600/1000 V Armoured Multi-Conductor (LSZH), HF90/SHF1
Read moreSL-HFA 600/1000 V Armoured Multi-Conductor (LSZH), HF90/SHF1
SL-HFA 600/1000 V armoured multicore cables are suitable for use in offshore oil and gas, shipboard and marine applications. Our cables are made to IEC specifications and can be modified to fit your specific requirements.
