CSA TYPE CIC TC Tray Instrumentation, 300 V
Tray Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Type TC Instrumentation cables can be installed in raceways, cable trays, direct burial applications and in outdoor exposed industrial applications.
Construction
Voltage
300 V
Optional: 600, 1000 V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / 105°C dry
- PVC (optional)
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Available in:
- Copper tape or braided shield
- Custom insulation / jacket colours
- Composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 239, Control & Instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
- TC-BCD gas groups rated
Colour Coding
- Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
- Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

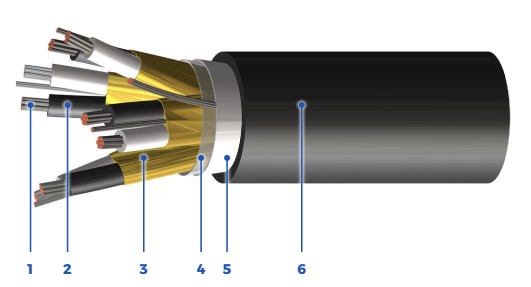

Properties
- Stranded Bare Copper Conductors (Tin-coated Available)
- XLPE (RW90 Rated) Insulated Conductors
- Individually Shielded Pairs / Triads with Tin-coated Copper Drain Wire
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tin-coated Copper Drain Wire
- FR PVC Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | in. | mm | lbs|1000ft | kg|km | lb | kg | in. | mm | ||
| 4B021M160100008 | 1 | 16 | 0.347 | 8.8 | 56 | 84 | 41 | 19 | 6.2 | 159 |
| 4B022M160200008 | 2 | 16 | 0.514 | 13.1 | 125 | 186 | 82 | 37 | 9.3 | 235 |
| 4B022M160400008 | 4 | 16 | 0.632 | 16.1 | 195 | 290 | 165 | 75 | 11.4 | 289 |
| 4B022M160600008 | 6 | 16 | 0.756 | 19.2 | 280 | 416 | 247 | 112 | 13.6 | 346 |
| 4B022M160800008 | 8 | 16 | 0.821 | 20.9 | 346 | 515 | 330 | 150 | 14.8 | 375 |
| 4B022M161200008 | 12 | 16 | 1.042 | 26.5 | 528 | 786 | 494 | 224 | 18.7 | 476 |
| 4B022M161600008 | 16 | 16 | 1.160 | 29.5 | 663 | 986 | 659 | 299 | 20.9 | 530 |
| 4B022M162400008 | 24 | 16 | 1.438 | 36.5 | 961 | 1431 | 989 | 449 | 25.9 | 658 |
| 4B022M163600008 | 36 | 16 | 1.657 | 42.1 | 1357 | 2019 | 1483 | 673 | 29.8 | 758 |
| 4B022M180200008 | 2 | 18 | 0.475 | 12.1 | 99 | 147 | 52 | 24 | 8.5 | 217 |
| 4B022M180400008 | 4 | 18 | 0.584 | 14.8 | 151 | 225 | 104 | 47 | 10.5 | 267 |
| 4B022M180600008 | 6 | 18 | 0.696 | 17.7 | 215 | 319 | 156 | 71 | 12.5 | 318 |
| 4B022M180800008 | 8 | 18 | 0.754 | 19.2 | 263 | 392 | 208 | 94 | 13.6 | 345 |
| 4B022M181200008 | 12 | 18 | 0.957 | 24.3 | 401 | 597 | 312 | 142 | 17.2 | 438 |
| 4B022M181600008 | 16 | 18 | 1.064 | 27.0 | 499 | 742 | 416 | 189 | 19.2 | 487 |
| 4B022M182400008 | 24 | 18 | 1.315 | 33.4 | 716 | 1065 | 624 | 283 | 23.7 | 601 |
| 4B022M183600008 | 36 | 18 | 1.512 | 38.4 | 997 | 1484 | 936 | 425 | 27.2 | 692 |
| 4B021M200100008 | 1 | 20 | 0.303 | 7.7 | 39 | 57 | 16 | 7 | 5.5 | 139 |
| 4B022M200200008 | 2 | 20 | 0.442 | 11.2 | 84 | 125 | 32 | 15 | 8.0 | 202 |
| 4B022M200400008 | 4 | 20 | 0.514 | 13.1 | 113 | 169 | 64 | 29 | 9.3 | 235 |
| 4B022M200600008 | 6 | 20 | 0.646 | 16.4 | 178 | 264 | 96 | 44 | 11.6 | 295 |
| 4B022M200800008 | 8 | 20 | 0.699 | 17.8 | 215 | 320 | 128 | 58 | 12.6 | 320 |
| 4B022M201200008 | 12 | 20 | 0.887 | 22.5 | 330 | 491 | 192 | 87 | 16.0 | 406 |
| 4B022M201600008 | 16 | 20 | 0.984 | 25.0 | 405 | 603 | 256 | 116 | 17.7 | 450 |
| 4B022M202400008 | 24 | 20 | 1.213 | 30.8 | 579 | 861 | 384 | 174 | 21.8 | 554 |
| 4B022M203600008 | 36 | 20 | 1.392 | 35.4 | 798 | 1188 | 576 | 261 | 25.1 | 636 |
TRIADS
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | in. | mm | lbs|1000ft | kg|km |
lb | kg | in. | mm | ||
| 4B031M160100008 | 1 | 16 | 0.365 | 9.3 | 71 | 106 | 62 | 28 | 6.6 | 167 |
| 4B032M160200008 | 2 | 16 | 0.615 | 15.6 | 178 | 265 | 124 | 56 | 11.1 | 281 |
| 4B032M160400008 | 4 | 16 | 0.718 | 18.2 | 258 | 383 | 247 | 112 | 12.9 | 328 |
| 4B032M160600008 | 6 | 16 | 0.903 | 22.9 | 403 | 600 | 371 | 168 | 16.3 | 413 |
| 4B032M160800008 | 8 | 16 | 0.978 | 24.8 | 499 | 743 | 494 | 224 | 17.6 | 447 |
| 4B032M161200008 | 12 | 16 | 1.188 | 30.2 | 711 | 1058 | 742 | 336 | 21.4 | 543 |
| 4B032M161600008 | 16 | 16 | 1.326 | 33.7 | 896 | 1333 | 989 | 449 | 23.9 | 606 |
| 4B032M162400008 | 24 | 16 | 1.651 | 41.9 | 1310 | 1949 | 1483 | 673 | 29.7 | 755 |
| 4B031M180100008 | 1 | 18 | 0.339 | 8.6 | 56 | 83 | 39 | 18 | 6.1 | 155 |
| 4B032M180200008 | 2 | 18 | 0.568 | 14.4 | 142 | 211 | 78 | 35 | 10.2 | 260 |
| 4B032M180400008 | 4 | 18 | 0.661 | 16.8 | 199 | 297 | 156 | 71 | 11.9 | 302 |
| 4B032M180600008 | 6 | 18 | 0.791 | 20.1 | 286 | 425 | 234 | 106 | 14.2 | 362 |
| 4B032M180800008 | 8 | 18 | 0.899 | 22.8 | 385 | 572 | 312 | 142 | 16.2 | 411 |
| 4B032M181200008 | 12 | 18 | 1.089 | 27.7 | 543 | 807 | 468 | 212 | 19.6 | 498 |
| 4B032M181600008 | 16 | 18 | 1.213 | 30.8 | 676 | 1006 | 624 | 283 | 21.8 | 555 |
| 4B032M182400008 | 24 | 18 | 1.506 | 38.2 | 979 | 1457 | 936 | 425 | 27.1 | 688 |
| 4B031M200100008 | 1 | 20 | 0.318 | 8.1 | 46 | 69 | 24 | 11 | 5.7 | 145 |
| 4B032M200200008 | 2 | 20 | 0.500 | 12.7 | 106 | 158 | 48 | 22 | 9.0 | 229 |
| 4B032M200400008 | 4 | 20 | 0.615 | 15.6 | 162 | 242 | 96 | 44 | 11.1 | 281 |
| 4B032M200800008 | 8 | 20 | 0.796 | 20.2 | 282 | 419 | 192 | 87 | 14.3 | 364 |
| 4B032M201200008 | 12 | 20 | 1.009 | 25.6 | 431 | 641 | 288 | 131 | 18.2 | 461 |
| 4B032M201600008 | 16 | 20 | 1.122 | 28.5 | 534 | 795 | 384 | 174 | 20.2 | 513 |
| 4B032M202400008 | 24 | 20 | 1.388 | 35.3 | 769 | 1144 | 576 | 261 | 25.0 | 635 |
Markets / Applications
- Water/Waste Water Treatment
- Industrial Construction/Automation
- Industrial
- Petrochem/Pulp & Paper
- Utility
- Energy
- Mining
Voltage
300 V
Optional: 600, 1000 V
Product Construction
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet / 105°C dry
- PVC (optional)
- Shielding (foil-free edge):
- ISOS (standard)
- OS (optional)
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Available in:
- Copper tape or braided shield
- Custom insulation / jacket colours
- Composite constructions
Certifications/Compliances
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 239, Control & Instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 75, Thermoplastic-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
- TC-BCD gas groups rated
Colour Coding
- Pairs – Black, & white, number-coded with black ink printed on white conductor (standard)
- Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)
- Stranded Bare Copper Conductors (Tin-coated Available)
- XLPE (RW90 Rated) Insulated Conductors
- Individually Shielded Pairs / Triads with Tin-coated Copper Drain Wire
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tin-coated Copper Drain Wire
- FR PVC Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | in. | mm | lbs|1000ft | kg|km | lb | kg | in. | mm | ||
| 4B021M160100008 | 1 | 16 | 0.347 | 8.8 | 56 | 84 | 41 | 19 | 6.2 | 159 |
| 4B022M160200008 | 2 | 16 | 0.514 | 13.1 | 125 | 186 | 82 | 37 | 9.3 | 235 |
| 4B022M160400008 | 4 | 16 | 0.632 | 16.1 | 195 | 290 | 165 | 75 | 11.4 | 289 |
| 4B022M160600008 | 6 | 16 | 0.756 | 19.2 | 280 | 416 | 247 | 112 | 13.6 | 346 |
| 4B022M160800008 | 8 | 16 | 0.821 | 20.9 | 346 | 515 | 330 | 150 | 14.8 | 375 |
| 4B022M161200008 | 12 | 16 | 1.042 | 26.5 | 528 | 786 | 494 | 224 | 18.7 | 476 |
| 4B022M161600008 | 16 | 16 | 1.160 | 29.5 | 663 | 986 | 659 | 299 | 20.9 | 530 |
| 4B022M162400008 | 24 | 16 | 1.438 | 36.5 | 961 | 1431 | 989 | 449 | 25.9 | 658 |
| 4B022M163600008 | 36 | 16 | 1.657 | 42.1 | 1357 | 2019 | 1483 | 673 | 29.8 | 758 |
| 4B022M180200008 | 2 | 18 | 0.475 | 12.1 | 99 | 147 | 52 | 24 | 8.5 | 217 |
| 4B022M180400008 | 4 | 18 | 0.584 | 14.8 | 151 | 225 | 104 | 47 | 10.5 | 267 |
| 4B022M180600008 | 6 | 18 | 0.696 | 17.7 | 215 | 319 | 156 | 71 | 12.5 | 318 |
| 4B022M180800008 | 8 | 18 | 0.754 | 19.2 | 263 | 392 | 208 | 94 | 13.6 | 345 |
| 4B022M181200008 | 12 | 18 | 0.957 | 24.3 | 401 | 597 | 312 | 142 | 17.2 | 438 |
| 4B022M181600008 | 16 | 18 | 1.064 | 27.0 | 499 | 742 | 416 | 189 | 19.2 | 487 |
| 4B022M182400008 | 24 | 18 | 1.315 | 33.4 | 716 | 1065 | 624 | 283 | 23.7 | 601 |
| 4B022M183600008 | 36 | 18 | 1.512 | 38.4 | 997 | 1484 | 936 | 425 | 27.2 | 692 |
| 4B021M200100008 | 1 | 20 | 0.303 | 7.7 | 39 | 57 | 16 | 7 | 5.5 | 139 |
| 4B022M200200008 | 2 | 20 | 0.442 | 11.2 | 84 | 125 | 32 | 15 | 8.0 | 202 |
| 4B022M200400008 | 4 | 20 | 0.514 | 13.1 | 113 | 169 | 64 | 29 | 9.3 | 235 |
| 4B022M200600008 | 6 | 20 | 0.646 | 16.4 | 178 | 264 | 96 | 44 | 11.6 | 295 |
| 4B022M200800008 | 8 | 20 | 0.699 | 17.8 | 215 | 320 | 128 | 58 | 12.6 | 320 |
| 4B022M201200008 | 12 | 20 | 0.887 | 22.5 | 330 | 491 | 192 | 87 | 16.0 | 406 |
| 4B022M201600008 | 16 | 20 | 0.984 | 25.0 | 405 | 603 | 256 | 116 | 17.7 | 450 |
| 4B022M202400008 | 24 | 20 | 1.213 | 30.8 | 579 | 861 | 384 | 174 | 21.8 | 554 |
| 4B022M203600008 | 36 | 20 | 1.392 | 35.4 | 798 | 1188 | 576 | 261 | 25.1 | 636 |
TRIADS
| Part Number | Number of Pairs | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | in. | mm | lbs|1000ft | kg|km |
lb | kg | in. | mm | ||
| 4B031M160100008 | 1 | 16 | 0.365 | 9.3 | 71 | 106 | 62 | 28 | 6.6 | 167 |
| 4B032M160200008 | 2 | 16 | 0.615 | 15.6 | 178 | 265 | 124 | 56 | 11.1 | 281 |
| 4B032M160400008 | 4 | 16 | 0.718 | 18.2 | 258 | 383 | 247 | 112 | 12.9 | 328 |
| 4B032M160600008 | 6 | 16 | 0.903 | 22.9 | 403 | 600 | 371 | 168 | 16.3 | 413 |
| 4B032M160800008 | 8 | 16 | 0.978 | 24.8 | 499 | 743 | 494 | 224 | 17.6 | 447 |
| 4B032M161200008 | 12 | 16 | 1.188 | 30.2 | 711 | 1058 | 742 | 336 | 21.4 | 543 |
| 4B032M161600008 | 16 | 16 | 1.326 | 33.7 | 896 | 1333 | 989 | 449 | 23.9 | 606 |
| 4B032M162400008 | 24 | 16 | 1.651 | 41.9 | 1310 | 1949 | 1483 | 673 | 29.7 | 755 |
| 4B031M180100008 | 1 | 18 | 0.339 | 8.6 | 56 | 83 | 39 | 18 | 6.1 | 155 |
| 4B032M180200008 | 2 | 18 | 0.568 | 14.4 | 142 | 211 | 78 | 35 | 10.2 | 260 |
| 4B032M180400008 | 4 | 18 | 0.661 | 16.8 | 199 | 297 | 156 | 71 | 11.9 | 302 |
| 4B032M180600008 | 6 | 18 | 0.791 | 20.1 | 286 | 425 | 234 | 106 | 14.2 | 362 |
| 4B032M180800008 | 8 | 18 | 0.899 | 22.8 | 385 | 572 | 312 | 142 | 16.2 | 411 |
| 4B032M181200008 | 12 | 18 | 1.089 | 27.7 | 543 | 807 | 468 | 212 | 19.6 | 498 |
| 4B032M181600008 | 16 | 18 | 1.213 | 30.8 | 676 | 1006 | 624 | 283 | 21.8 | 555 |
| 4B032M182400008 | 24 | 18 | 1.506 | 38.2 | 979 | 1457 | 936 | 425 | 27.1 | 688 |
| 4B031M200100008 | 1 | 20 | 0.318 | 8.1 | 46 | 69 | 24 | 11 | 5.7 | 145 |
| 4B032M200200008 | 2 | 20 | 0.500 | 12.7 | 106 | 158 | 48 | 22 | 9.0 | 229 |
| 4B032M200400008 | 4 | 20 | 0.615 | 15.6 | 162 | 242 | 96 | 44 | 11.1 | 281 |
| 4B032M200800008 | 8 | 20 | 0.796 | 20.2 | 282 | 419 | 192 | 87 | 14.3 | 364 |
| 4B032M201200008 | 12 | 20 | 1.009 | 25.6 | 431 | 641 | 288 | 131 | 18.2 | 461 |
| 4B032M201600008 | 16 | 20 | 1.122 | 28.5 | 534 | 795 | 384 | 174 | 20.2 | 513 |
| 4B032M202400008 | 24 | 20 | 1.388 | 35.3 | 769 | 1144 | 576 | 261 | 25.0 | 635 |
- Water/Waste Water Treatment
- Industrial Construction/Automation
- Industrial
- Petrochem/Pulp & Paper
- Utility
- Energy
- Mining
Related products
-
CSA LSZH Type CIC TC Tray Instrumentation, 300 V
View Product: CSA LSZH Type CIC TC Tray Instrumentation, 300 VCSA LSZH Type CIC TC Tray Instrumentation, 300 V
LSZH Tray Instrumentation cables are used to convert analogue or digital signals. Used when there is a possibility for crosstalk between pairs / triads. Cable can be installed in raceways, direct burial applications and in outdoor exposed Industrial applications,
-
CSA TYPE TECK 90 Armoured Power, Multi-Conductor, 1000 V
View Product: CSA TYPE TECK 90 Armoured Power, Multi-Conductor, 1000 VCSA TYPE TECK 90 Armoured Power, Multi-Conductor, 1000 V
Armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
-
CSA LSZH TYPE CIC TC Tray Control, Multi-Conductor, 300 V
View Product: CSA LSZH TYPE CIC TC Tray Control, Multi-Conductor, 300 VCSA LSZH TYPE CIC TC Tray Control, Multi-Conductor, 300 V
LSZH Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
