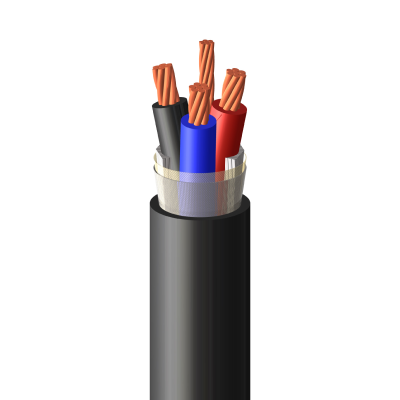

CSA LSZH Unarmoured Tray Control | Multi-Conductor (600V)
Construction
VOLTAGE
300V
Optional: 600 / 1000V

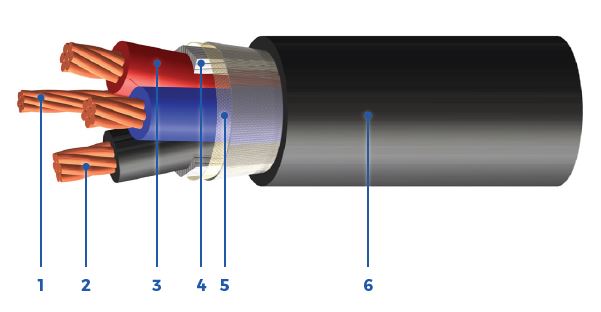

PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH outer black jacket rated: 90°C
Available in:
Custom insulation / jacket colours
Composite constructions
Certifications
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 NO. 230, Tray Cables (TC)
- CSA C22.2 NO. 239, Control & Instrumentation Cables (Type CIC)
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- CSA FT4,- ST1 Halogen Free & UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90) rated, 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend rated
- -25°C cold impact rated
- Rated for use in hazardous locations:
- Class I Zone 0 (Intrinsically Safe cables only)
- Class I Zone 2 (Div 2)
COLOUR CODING
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C-50C Black # coded
Properties
|
Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
42010M20020080G | 2 | 20 | 20 | 0.291 / 7.39 | 44 / 65 | 3.5 | 24 / 11 | 2.6 / 66 |
42010M20030080G | 3 | 20 | 20 | 0.313 / 7.96 | 51 / 77 | 3.5 | 32 / 15 | 2.8 / 72 |
42010M20040080G | 4 | 20 | 20 | 0.338 / 8.59 | 61 / 91 | 2.8 | 40 / 18 | 3 / 77 |
42010M20050080G | 5 | 20 | 20 | 0.364 / 9.25 | 70 / 104 | 2.8 | 48 / 22 | 3.3 / 83 |
42010M20060080G | 6 | 20 | 20 | 0.364 / 9.25 | 74 / 110 | 2.45 | 56 / 25 | 3.3 / 83 |
42010M20080080G | 8 | 20 | 20 | 0.416 / 10.58 | 93 / 139 | 2.45 | 72 / 33 | 3.7 / 95 |
42010M20100080G | 10 | 20 | 20 | 0.45 / 11.43 | 107 / 159 | 2.45 | 88 / 40 | 4 / 103 |
42010M20120080G | 12 | 20 | 20 | 0.471 / 11.96 | 118 / 175 | 2.45 | 104 / 47 | 4.2 / 108 |
42010M20150080G | 15 | 20 | 20 | 0.51 / 12.96 | 139 / 206 | 2.45 | 128 / 58 | 4.6 / 117 |
42010M20200080G | 20 | 20 | 20 | 0.592 / 15.03 | 190 / 283 | 2.45 | 168 / 76 | 5.3 / 135 |
42010M20250080G | 25 | 20 | 20 | 0.652 / 16.56 | 226 / 337 | 2.1 | 208 / 94 | 5.9 / 149 |
42010M20300080G | 30 | 20 | 20 | 0.699 / 17.76 | 258 / 384 | 2.1 | 248 / 112 | 6.3 / 160 |
42010M20400080G | 40 | 20 | 20 | 0.78 / 19.82 | 325 / 483 | 2.1 | 328 / 149 | 7 / 178 |
42010M20500080G | 50 | 20 | 20 | 0.845 / 21.46 | 384 / 572 | 1.75 | 408 / 185 | 7.6 / 193 |
42010M18020080G | 2 | 18 | 18 | 0.312 / 7.93 | 53 / 79 | 5 | 39 / 18 | 2.8 / 71 |
42010M18030080G | 3 | 18 | 18 | 0.337 / 8.57 | 63 / 94 | 5 | 52 / 24 | 3 / 77 |
42010M18040080G | 4 | 18 | 18 | 0.365 / 9.28 | 76 / 114 | 4 | 65 / 29 | 3.3 / 83 |
42010M18050080G | 5 | 18 | 18 | 0.394 / 10.01 | 88 / 131 | 4 | 78 / 35 | 3.5 / 90 |
42010M18060080G | 6 | 18 | 18 | 0.394 / 10.01 | 93 / 139 | 3.5 | 91 / 41 | 3.5 / 90 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size (AWG/MCM) | Nominal Diameter Overall Cable (in/mm) | Cable Weight (lbs/1000ft)/(kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) |
42010M18080080G | 8 | 18 | 18 | 0.453 / 11.49 | 118 / 175 | 3.5 | 117 / 53 | 4.1 / 103 |
42010M18100080G | 10 | 18 | 18 | 0.49 / 12.45 | 136 / 203 | 3.5 | 143 / 65 | 4.4 / 112 |
42010M18120080G | 12 | 18 | 18 | 0.513 / 13.03 | 153 / 227 | 3.5 | 169 / 77 | 4.6 / 117 |
42010M18150080G | 15 | 18 | 18 | 0.587 / 14.91 | 200 / 297 | 3.5 | 208 / 94 | 5.3 / 134 |
42010M18200080G | 20 | 18 | 18 | 0.645 / 16.38 | 246 / 366 | 3.5 | 273 / 124 | 5.8 / 147 |
42010M18250080G | 25 | 18 | 18 | 0.712 / 18.08 | 295 / 439 | 3 | 338 / 153 | 6.4 / 163 |
42010M18300080G | 30 | 18 | 18 | 0.765 / 19.43 | 338 / 503 | 3 | 403 / 183 | 6.9 / 175 |
42010M18400080G | 40 | 18 | 18 | 0.895 / 22.74 | 468 / 696 | 3 | 533 / 242 | 8.1 / 205 |
42010M18500080G | 50 | 18 | 18 | 0.967 / 24.56 | 554 / 825 | 2.5 | 663 / 301 | 8.7 / 221 |
42010M16020080G | 2 | 16 | 16 | 0.338 / 8.59 | 71 / 105 | 10 | 62 / 28 | 3 / 77 |
42010M16030080G | 3 | 16 | 16 | 0.366 / 9.3 | 82 / 122 | 10 | 82 / 37 | 3.3 / 84 |
42010M16040080G | 4 | 16 | 16 | 0.398 / 10.1 | 97 / 145 | 8 | 103 / 47 | 3.6 / 91 |
42010M16050080G | 5 | 16 | 16 | 0.43 / 10.92 | 113 / 168 | 8 | 124 / 56 | 3.9 / 98 |
42010M16060080G | 6 | 16 | 16 | 0.43 / 10.92 | 122 / 181 | 7 | 144 / 65 | 3.9 / 98 |
42010M16080080G | 8 | 16 | 16 | 0.496 / 12.6 | 155 / 230 | 7 | 185 / 84 | 4.5 / 113 |
42010M16100080G | 10 | 16 | 16 | 0.568 / 14.43 | 201 / 299 | 7 | 227 / 103 | 5.1 / 130 |
42010M16120080G | 12 | 16 | 16 | 0.594 / 15.09 | 226 / 336 | 7 | 268 / 121 | 5.3 / 136 |
42010M16150080G | 15 | 16 | 16 | 0.644 / 16.35 | 264 / 392 | 7 | 330 / 150 | 5.8 / 147 |
42010M16200080G | 20 | 16 | 16 | 0.708 / 17.99 | 330 / 491 | 7 | 433 / 196 | 6.4 / 162 |
42010M16250080G | 25 | 16 | 16 | 0.784 / 19.91 | 398 / 592 | 6 | 536 / 243 | 7.1 / 179 |
42010M16300080G | 30 | 16 | 16 | 0.843 / 21.42 | 460 / 685 | 6 | 639 / 290 | 7.6 / 193 |
42010M16400080G | 40 | 16 | 16 | 0.985 / 25.02 | 628 / 935 | 6 | 845 / 383 | 8.9 / 225 |
42010M16500080G | 50 | 16 | 16 | 1.066 / 27.07 | 754 / 1122 | 5 | 1051 / 477 | 9.6 / 244 |
42010M14020080G | 2 | 14 | 14 | 0.366 / 9.3 | 88 / 132 | 25 | 99 / 45 | 3.3 / 84 |
42010M14030080G | 3 | 14 | 14 | 0.398 / 10.1 | 109 / 162 | 25 | 132 / 60 | 3.6 / 91 |
42010M14040080G | 4 | 14 | 14 | 0.433 / 10.99 | 125 / 187 | 20 | 165 / 75 | 3.9 / 99 |
42010M14050080G | 5 | 14 | 14 | 0.469 / 11.91 | 147 / 218 | 20 | 197 / 90 | 4.2 / 107 |
42010M14060080G | 6 | 14 | 14 | 0.469 / 11.91 | 160 / 238 | 17.5 | 230 / 104 | 4.2 / 107 |
42010M14080080G | 8 | 14 | 14 | 0.573 / 14.55 | 224 / 333 | 17.5 | 296 / 134 | 5.2 / 131 |
42010M14100080G | 10 | 14 | 14 | 0.62 / 15.75 | 262 / 389 | 17.5 | 362 / 164 | 5.6 / 142 |
42010M14120080G | 12 | 14 | 14 | 0.649 / 16.49 | 297 / 441 | 17.5 | 428 / 194 | 5.8 / 148 |
42010M14150080G | 15 | 14 | 14 | 0.705 / 17.9 | 351 / 522 | 17.5 | 526 / 239 | 6.3 / 161 |
42010M14200080G | 20 | 14 | 14 | 0.777 / 19.74 | 442 / 658 | 17.5 | 691 / 313 | 7 / 178 |
42010M14250080G | 25 | 14 | 14 | 0.902 / 22.91 | 574 / 855 | 15 | 855 / 388 | 8.1 / 206 |
42010M14300080G | 30 | 14 | 14 | 0.969 / 24.6 | 665 / 990 | 15 | 1020 / 463 | 8.7 / 221 |
42010M14400080G | 40 | 14 | 14 | 1.082 / 27.49 | 847 / 1261 | 15 | 1349 / 612 | 9.7 / 247 |
42010M14500080G | 50 | 14 | 14 | 1.173 / 29.8 | 1021 / 1520 | 12.5 | 1678 / 761 | 10.6 / 268 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2 and Table-57. Values are corrected according to Table-5C and Table-57 for number of Conductors.
Markets / Applications
- Civil Construction Projects
- Commercial Construction Projects
- Industrial
- OEM
- Transit
