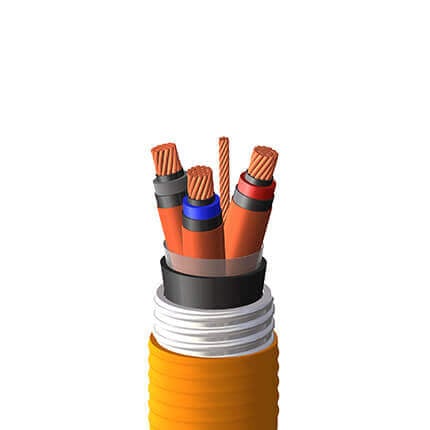

CSA TECK 90 Armoured Power | Multi-Conductor Unshielded (5000V)
Unshielded armoured power cable is used to supply power for lighting, drives, motors and pumps. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
Construction
VOLTAGE
5000 V
PRODUCT CONSTRUCTION
90 MIL 100% Insulation Levels
Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C
Certifications
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- Available in:
- Variable Frequency Drive (VFD)
- Verlock® (for mineshaft applications)
- Custom colour coding
- Custom insulation / jacket colours
- Aluminum conductors
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
COLOUR CODING
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded
Properties
|
 |
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size(uninsulated) (AWG/MCM) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | ||
| Insulated Wire (in/mm) | Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||
| 85210M060305700 | 3 | 6 | 8 | 0.392 / 9.96 | 1.294 / 32.87 | 1.386 / 35.21 | 933 / 1388 | 75 | 629 / 285 | 24.9 / 634 |
| 85210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 1.364 / 34.64 | 1.456 / 36.98 | 1138 / 1693 | 95 | 1002 / 454 | 26.2 / 666 |
| 85210M030305700 | 3 | 3 | 6 | 0.466 / 11.84 | 1.422 / 36.12 | 1.514 / 38.45 | 1313 / 1954 | 115 | 1263 / 573 | 27.3 / 692 |
| 85210M020305700 | 3 | 2 | 6 | 0.497 / 12.62 | 1.489 / 37.81 | 1.581 / 40.15 | 1491 / 2219 | 130 | 1593 / 723 | 28.5 / 723 |
| 85210M010345700 | 3 | 1 | 6 | 0.536 / 13.61 | 1.572 / 39.94 | 1.68 / 42.68 | 1731 / 2577 | 145 | 2009 / 911 | 30.2 / 768 |
| 85210M1/0345700 | 3 | 1/0 | 6 | 0.576 / 14.63 | 1.658 / 42.12 | 1.766 / 44.87 | 2003 / 2981 | 170 | 2534 / 1150 | 31.8 / 808 |
| 85210M2/0345700 | 3 | 2/0 | 6 | 0.619 / 15.72 | 1.751 / 44.47 | 1.859 / 47.22 | 2333 / 3472 | 195 | 3194 / 1449 | 33.5 / 850 |
| 85210M3/0345700 | 3 | 3/0 | 4 | 0.67 / 17.02 | 1.926 / 48.91 | 2.033 / 51.65 | 2882 / 4289 | 225 | 4007 / 1818 | 36.6 / 930 |
| 85210M4/0345700 | 3 | 4/0 | 4 | 0.726 / 18.44 | 2.106 / 53.49 | 2.214 / 56.23 | 3514 / 5229 | 260 | 5078 / 2304 | 39.9 / 1012 |
| 85210M250365700 | 3 | 250 | 4 | 0.782 / 19.86 | 2.226 / 56.55 | 2.334 / 59.29 | 3918 / 5830 | 290 | 6000 / 2722 | 42 / 1067 |
| 85210M300365700 | 3 | 300 | 4 | 0.835 / 21.21 | 2.34 / 59.44 | 2.472 / 62.8 | 4534 / 6747 | 320 | 7200 / 3266 | 44.5 / 1130 |
| 85210M350365700 | 3 | 350 | 3 | 0.885 / 22.48 | 2.448 / 62.17 | 2.58 / 65.53 | 5127 / 7630 | 350 | 8400 / 3810 | 46.4 / 1179 |
| 85210M500365700 | 3 | 500 | 3 | 1.013 / 25.73 | 2.723 / 69.16 | 2.855 / 72.52 | 6762 / 10064 | 430 | 12000 / 5443 | 51.4 / 1305 |
| 85210M750365700 | 3 | 750 | 2 | 1.2 / 30.48 | 3.185 / 80.9 | 3.331 / 84.61 | 9737 / 14490 | 535 | 18000 / 8165 | 60 / 1523 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
Markets / Applications
- Industrial
- Mining
- Petrochem/Pulp & Paper
- Water/Waste Water Treatment
VOLTAGE
5000 V
PRODUCT CONSTRUCTION
90 MIL 100% Insulation Levels
Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner black jacket rated: 90°C to -40°C
FR LAG PVC (AG14 rated) outer orange jacket rated: 90°C to -40°C
CERTIFICATIONS/COMPLIANCES
- CSA C22.2 NO. 131, Teck 90 Cables (Teck 90)
- CSA C22.2 NO. 174, Cables & Cable Glands for use in Hazardous Locations
- CSA C22.2 NO. 38, Thermoset Insulated Wires & Cables (XLPE)
- Available in:
- Variable Frequency Drive (VFD)
- Verlock® (for mineshaft applications)
- Custom colour coding
- Custom insulation / jacket colours
- Aluminum conductors
- CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated
- IEEE 383 & 1202 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- HL rated for use in hazardous locations:
- Class I Zone 1 (Div 1)
- Class I Zone 2 (Div 2)
- Class II Zone 20, 21 (Div 1)
- Class II Zone 22 (Div 2)
COLOUR CODING
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C to 50C Black # coded
|
|
| Part Number | Number of Conductors | Conductor Size (AWG/MCM) | Ground Wire Size(uninsulated) (AWG/MCM) | Normal Diameters | Cable Weight (lbs/1000ft)/ (kg/km) | Ampacity (30°C ambient) | Max. Pulling Tension (Pulling Eye) (lb/kg) | Min. Bend Radius (Pull) (in/mm) | ||
| Insulated Wire (in/mm) | Over Armour (in/mm) | Overall Cable (in/mm) | ||||||||
| 85210M060305700 | 3 | 6 | 8 | 0.392 / 9.96 | 1.294 / 32.87 | 1.386 / 35.21 | 933 / 1388 | 75 | 629 / 285 | 24.9 / 634 |
| 85210M040305700 | 3 | 4 | 8 | 0.439 / 11.15 | 1.364 / 34.64 | 1.456 / 36.98 | 1138 / 1693 | 95 | 1002 / 454 | 26.2 / 666 |
| 85210M030305700 | 3 | 3 | 6 | 0.466 / 11.84 | 1.422 / 36.12 | 1.514 / 38.45 | 1313 / 1954 | 115 | 1263 / 573 | 27.3 / 692 |
| 85210M020305700 | 3 | 2 | 6 | 0.497 / 12.62 | 1.489 / 37.81 | 1.581 / 40.15 | 1491 / 2219 | 130 | 1593 / 723 | 28.5 / 723 |
| 85210M010345700 | 3 | 1 | 6 | 0.536 / 13.61 | 1.572 / 39.94 | 1.68 / 42.68 | 1731 / 2577 | 145 | 2009 / 911 | 30.2 / 768 |
| 85210M1/0345700 | 3 | 1/0 | 6 | 0.576 / 14.63 | 1.658 / 42.12 | 1.766 / 44.87 | 2003 / 2981 | 170 | 2534 / 1150 | 31.8 / 808 |
| 85210M2/0345700 | 3 | 2/0 | 6 | 0.619 / 15.72 | 1.751 / 44.47 | 1.859 / 47.22 | 2333 / 3472 | 195 | 3194 / 1449 | 33.5 / 850 |
| 85210M3/0345700 | 3 | 3/0 | 4 | 0.67 / 17.02 | 1.926 / 48.91 | 2.033 / 51.65 | 2882 / 4289 | 225 | 4007 / 1818 | 36.6 / 930 |
| 85210M4/0345700 | 3 | 4/0 | 4 | 0.726 / 18.44 | 2.106 / 53.49 | 2.214 / 56.23 | 3514 / 5229 | 260 | 5078 / 2304 | 39.9 / 1012 |
| 85210M250365700 | 3 | 250 | 4 | 0.782 / 19.86 | 2.226 / 56.55 | 2.334 / 59.29 | 3918 / 5830 | 290 | 6000 / 2722 | 42 / 1067 |
| 85210M300365700 | 3 | 300 | 4 | 0.835 / 21.21 | 2.34 / 59.44 | 2.472 / 62.8 | 4534 / 6747 | 320 | 7200 / 3266 | 44.5 / 1130 |
| 85210M350365700 | 3 | 350 | 3 | 0.885 / 22.48 | 2.448 / 62.17 | 2.58 / 65.53 | 5127 / 7630 | 350 | 8400 / 3810 | 46.4 / 1179 |
| 85210M500365700 | 3 | 500 | 3 | 1.013 / 25.73 | 2.723 / 69.16 | 2.855 / 72.52 | 6762 / 10064 | 430 | 12000 / 5443 | 51.4 / 1305 |
| 85210M750365700 | 3 | 750 | 2 | 1.2 / 30.48 | 3.185 / 80.9 | 3.331 / 84.61 | 9737 / 14490 | 535 | 18000 / 8165 | 60 / 1523 |
*Ampacity value based on Canadian Electrical Code, Version 2015, Table-2.
- Industrial
- Mining
- Petrochem/Pulp & Paper
- Water/Waste Water Treatment
