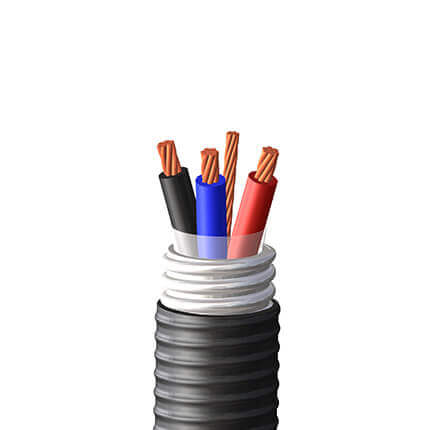

UL Type MC Armored Control, Multi-Conductor, 2000 V

UL Type MC Armored Control, Multi-Conductor, 2000 V

Metal Clad AIA Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
UL
Datasheet (PDF) Contact Us

Construction

Voltage

2000V

Optional: 600V

Product Construction

  • Insulation:
    • FR XLPE (XHHW-2 rated) rated: 90°C wet / dry
  • Armor:
    • Aluminum Interlocked Armor (AIA) (standard)
    • Steel Interlocked Armor (SIA) (optional)
  • Jacket:
    • FR PVC outer black jacket rated: 90°C to -40°C
    • Thermoset CPE optional)
    • Thermoplastic CPE (optional)
    • Thermoplastic LSZH (optional)
  • Available in:
    • Custom insulation / jacket colours
    • Composite constructions

Certifications

Certifications/Compliances

  • UL 1569, Metal Clad Cables (MC)
  • UL 44, Thermoset Insulated Wires and Cables
  • UL 1685 / FT4, Vertical Tray Flame Test rated
  • IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (XHHW-2 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours) (for CT use)
  • Direct burial rated
  • -40°C cold bend rated
  • Rated for use in hazardous locations:
    • Class I Zone 2 (Div 2)
    • Class II Zone 22 (Div 2)

Colour Coding

  • Method1 K1 or K2 (standard)
  • Method 4 (optional)

Properties

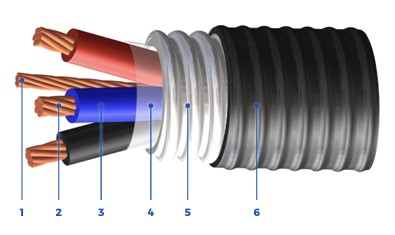

  1. Grounding / Bonding Conductor
  2. Strand Bare (ASTM B8) Annealed Copper Conductors
  3. FR XLPE (XHHW-2 Rated) Insulated Conductors
  4. Polyester Separator Tape
  5. Aluminum Interlocked Armor (AIA)
  6. FR PVC Outer Protective Black Jacket

Shawflex Type MC armored AIA multi-conductor cable cross-section with ground conductor, copper conductors, XLPE insulation, interlocked armor, and PVC jacket

Part Number Number of Conductors Conductor Size Ground Wire Size Nominal Diameters Cable Weight Ampacity Max. Pulling Tension (Pulling Eye) Min. Bend Radius(Pull))
Over Armour Overall Cable
(AWG/kcmil) (AWG/kcmil) (in/mm) (in/mm) (lbs/1000ft)/ (kg/km) (30°C ambient) (lb/kg) (in/mm)
2K610U140200309 2 14 14 0.630 / 16.0 0.742 / 18.9 227 / 337 25 66 / 30 13.4 / 339
2K610U140300309 3 14 14 0.674 / 17.1 0.786 / 20.0 262 / 390 25 99 / 45 14.2 / 360
2K610U140400309 4 14 14 0.723 / 18.4 0.835 / 21.2 295 / 438 20 132 / 60 15 / 382
2K610U140500309 5 14 14 0.765 / 19.4 0.877 / 22.3 334 / 496 20 165 / 75 15.8 / 401
2K610U140600309 6 14 14 0.823 / 20.9 0.935 / 23.8 380 / 565 20 197 / 90 16.8 / 427
2K610U140700309 7 14 14 0.881 / 22.4 0.993 / 25.2 425 / 632 17.5 230 / 104 17.9 / 454
2K610U140800309 8 14 14 0.941 / 23.9 1.053 / 26.7 473 / 703 17.5 263 / 119 18.9 / 481
2K610U141000309 10 14 14 0.980 / 24.9 1.092 / 27.7 532 / 792 12.5 329 / 149 19.7 / 499
2K610U141200309 12 14 14 1.009 / 25.6 1.121 / 28.5 591 / 879 12.5 395 / 179 20.2 / 513
2K610U141400309 14 14 14 1.059 / 26.9 1.171 / 29.8 658 / 980 12.5 461 / 209 21.1 / 535
2K610U141500309 15 14 14 1.086 / 27.6 1.198 / 30.4 693 / 1032 12.5 494 / 224 21.6 / 548
2K610U142000309 20 14 14 1.231 / 31.3 1.343 / 34.1 866 / 1289 12.5 658 / 298 24.2 / 614
2K610U142500309 25 14 14 1.366 / 34.7 1.478 / 37.5 1044 / 1553 11.25 823 / 373 26.6 / 676
2K610U143000309 30 14 14 1.445 / 36.7 1.557 / 39.6 1190 / 1770 11.25 987 / 448 28 / 712
2K610U144000309 40 14 14 1.617 / 41.1 1.749 / 44.4 1545 / 2299 10 1316 / 597 31.5 / 800
2K610U145000309 50 14 14 1.798 / 45.7 1.930 / 49.0 1861 / 2769 8.75 1645 / 746 34.7 / 883
2K610U120200309 2 12 12 0.666 / 16.9 0.778 / 19.8 265 / 394 30 104 / 47 14 / 356
2K610U120300309 3 12 12 0.715 / 18.2 0.827 / 21.0 310 / 461 30 157 / 71 14.9 / 378
2K610U120400309 4 12 12 0.767 / 19.5 0.879 / 22.3 360 / 536 24 209 / 95 15.8 / 402
2K610U120500309 5 12 12 0.814 / 20.7 0.926 / 23.5 403 / 599 24 261 / 118 16.7 / 423
2K610U120600309 6 12 12 0.877 / 22.3 0.989 / 25.1 458 / 682 24 313 / 142 17.8 / 452
2K610U120700309 7 12 12 0.940 / 23.9 1.052 / 26.7 516 / 769 21 365 / 166 18.9 / 481
2K610U120800309 8 12 12 0.970 / 24.6 1.082 / 27.5 569 / 847 21 418 / 189 19.5 / 495
2K610U121000309 10 12 12 1.052 / 26.7 1.164 / 29.6 656 / 976 15 522 / 237 21 / 532
2K610U121200309 12 12 12 1.084 / 27.5 1.196 / 30.4 735 / 1093 15 626 / 284 21.5 / 547
2K610U121400309 14 12 12 1.139 / 28.9 1.250 / 31.8 823 / 1224 15 731 / 331 22.5 / 572
2K610U121500309 15 12 12 1.168 / 29.7 1.280 / 32.5 867 / 1290 15 783 / 355 23 / 585
2K610U122000309 20 12 12 1.326 / 33.7 1.438 / 36.5 1092 / 1625 15 1044 / 474 25.9 / 658
2K610U122500309 25 12 12 1.474 / 37.4 1.586 / 40.3 1322 / 1967 13.5 1305 / 592 28.5 / 725
2K610U123000309 30 12 12 1.561 / 39.6 1.692 / 43.0 1548 / 2303 13.5 1566 / 710 30.5 / 774
2K610U124000309 40 12 12 1.748 / 44.4 1.880 / 47.8 1977 / 2942 12 2088 / 947 33.8 / 860
2K610U100200309 2 10 10 0.716 / 18.2 0.828 / 21.0 321 / 478 40 166 / 75 14.9 / 379
2K610U100300309 3 10 10 0.770 / 19.6 0.882 / 22.4 383 / 569 40 249 / 113 15.9 / 403
2K610U100400309 4 10 10 0.829 / 21.1 0.941 / 23.9 452 / 672 32 332 / 151 16.9 / 430
2K610U100500309 5 10 10 0.881 / 22.4 0.993 / 25.2 518 / 771 32 415 / 188 17.9 / 454
2K610U100600309 6 10 10 0.952 / 24.2 1.064 / 27.0 593 / 882 32 498 / 226 19.2 / 486
2K610U100700309 7 10 10 0.987 / 25.1 1.099 / 27.9 663 / 987 28 581 / 264 19.8 / 502
2K610U100800309 8 10 10 1.060 / 26.9 1.172 / 29.8 727 / 1082 28 664 / 301 21.1 / 536
2K610U101000309 10 10 10 1.152 / 29.3 1.264 / 32.1 845 / 1257 20 830 / 376 22.8 / 578
2K610U101200309 12 10 10 1.187 / 30.2 1.299 / 33.0 953 / 1419 20 996 / 452 23.4 / 594
2K610U101400309 14 10 10 1.249 / 31.7 1.361 / 34.6 1074 / 1599 20 1162 / 527 24.5 / 622
2K610U101500309 15 10 10 1.282 / 32.6 1.394 / 35.4 1134 / 1688 20 1245 / 565 25.1 / 637
2K610U102000309 20 10 10 1.459 / 37.1 1.571 / 39.9 1438 / 2140 20 1660 / 753 28.3 / 718
2K610U102500309 25 10 10 1.624 / 41.3 1.756 / 44.6 1781 / 2650 18 2075 / 941 31.6 / 803
2K610U103000309 30 10 10 1.721 / 43.7 1.853 / 47.1 2055 / 3059 18 2490 / 1129 33.3 / 847

*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors. Per NEC 310.15(C)(1), the ampacity of 4/C cable shall be reduced by a factor of 0.8 when the neutral is considered a current-carrying conductor.

Markets / Applications

  • Generation – Renewables – Wind
  • Transit
  • Water/Waste Water Treatment
  • Generation – Traditional Power
  • Generation
  • Communication Power & Control
  • Generation – Nuclear
  • Power Distribution
  • Industrial Construction/Automation
  • Civil Construction Projects
  • Power Distribution – LV
  • Industrial
  • Generation – Renewables
  • Communications Cable Splice & Protection
  • Petrochem/Pulp & Paper
  • Utility
  • Commercial Construction Projects
  • OIl & Gas
  • Generation – Renewables – Geo Thermal
  • Generation – Renewables – Solar
  • Mining

Voltage

2000V

Optional: 600V

Product Construction

  • Insulation:
    • FR XLPE (XHHW-2 rated) rated: 90°C wet / dry
  • Armor:
    • Aluminum Interlocked Armor (AIA) (standard)
    • Steel Interlocked Armor (SIA) (optional)
  • Jacket:
    • FR PVC outer black jacket rated: 90°C to -40°C
    • Thermoset CPE optional)
    • Thermoplastic CPE (optional)
    • Thermoplastic LSZH (optional)
  • Available in:
    • Custom insulation / jacket colours
    • Composite constructions

Certifications/Compliances

  • UL 1569, Metal Clad Cables (MC)
  • UL 44, Thermoset Insulated Wires and Cables
  • UL 1685 / FT4, Vertical Tray Flame Test rated
  • IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
  • ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
  • XLPE (XHHW-2 rated), 90°C wet / dry
  • UV sunlight resistant SUN RES (all colours) (for CT use)
  • Direct burial rated
  • -40°C cold bend rated
  • Rated for use in hazardous locations:
    • Class I Zone 2 (Div 2)
    • Class II Zone 22 (Div 2)

Colour Coding

  • Method1 K1 or K2 (standard)
  • Method 4 (optional)
  1. Grounding / Bonding Conductor
  2. Strand Bare (ASTM B8) Annealed Copper Conductors
  3. FR XLPE (XHHW-2 Rated) Insulated Conductors
  4. Polyester Separator Tape
  5. Aluminum Interlocked Armor (AIA)
  6. FR PVC Outer Protective Black Jacket

Shawflex Type MC armored AIA multi-conductor cable cross-section with ground conductor, copper conductors, XLPE insulation, interlocked armor, and PVC jacket

Part Number Number of Conductors Conductor Size Ground Wire Size Nominal Diameters Cable Weight Ampacity Max. Pulling Tension (Pulling Eye) Min. Bend Radius(Pull))
Over Armour Overall Cable
(AWG/kcmil) (AWG/kcmil) (in/mm) (in/mm) (lbs/1000ft)/ (kg/km) (30°C ambient) (lb/kg) (in/mm)
2K610U140200309 2 14 14 0.630 / 16.0 0.742 / 18.9 227 / 337 25 66 / 30 13.4 / 339
2K610U140300309 3 14 14 0.674 / 17.1 0.786 / 20.0 262 / 390 25 99 / 45 14.2 / 360
2K610U140400309 4 14 14 0.723 / 18.4 0.835 / 21.2 295 / 438 20 132 / 60 15 / 382
2K610U140500309 5 14 14 0.765 / 19.4 0.877 / 22.3 334 / 496 20 165 / 75 15.8 / 401
2K610U140600309 6 14 14 0.823 / 20.9 0.935 / 23.8 380 / 565 20 197 / 90 16.8 / 427
2K610U140700309 7 14 14 0.881 / 22.4 0.993 / 25.2 425 / 632 17.5 230 / 104 17.9 / 454
2K610U140800309 8 14 14 0.941 / 23.9 1.053 / 26.7 473 / 703 17.5 263 / 119 18.9 / 481
2K610U141000309 10 14 14 0.980 / 24.9 1.092 / 27.7 532 / 792 12.5 329 / 149 19.7 / 499
2K610U141200309 12 14 14 1.009 / 25.6 1.121 / 28.5 591 / 879 12.5 395 / 179 20.2 / 513
2K610U141400309 14 14 14 1.059 / 26.9 1.171 / 29.8 658 / 980 12.5 461 / 209 21.1 / 535
2K610U141500309 15 14 14 1.086 / 27.6 1.198 / 30.4 693 / 1032 12.5 494 / 224 21.6 / 548
2K610U142000309 20 14 14 1.231 / 31.3 1.343 / 34.1 866 / 1289 12.5 658 / 298 24.2 / 614
2K610U142500309 25 14 14 1.366 / 34.7 1.478 / 37.5 1044 / 1553 11.25 823 / 373 26.6 / 676
2K610U143000309 30 14 14 1.445 / 36.7 1.557 / 39.6 1190 / 1770 11.25 987 / 448 28 / 712
2K610U144000309 40 14 14 1.617 / 41.1 1.749 / 44.4 1545 / 2299 10 1316 / 597 31.5 / 800
2K610U145000309 50 14 14 1.798 / 45.7 1.930 / 49.0 1861 / 2769 8.75 1645 / 746 34.7 / 883
2K610U120200309 2 12 12 0.666 / 16.9 0.778 / 19.8 265 / 394 30 104 / 47 14 / 356
2K610U120300309 3 12 12 0.715 / 18.2 0.827 / 21.0 310 / 461 30 157 / 71 14.9 / 378
2K610U120400309 4 12 12 0.767 / 19.5 0.879 / 22.3 360 / 536 24 209 / 95 15.8 / 402
2K610U120500309 5 12 12 0.814 / 20.7 0.926 / 23.5 403 / 599 24 261 / 118 16.7 / 423
2K610U120600309 6 12 12 0.877 / 22.3 0.989 / 25.1 458 / 682 24 313 / 142 17.8 / 452
2K610U120700309 7 12 12 0.940 / 23.9 1.052 / 26.7 516 / 769 21 365 / 166 18.9 / 481
2K610U120800309 8 12 12 0.970 / 24.6 1.082 / 27.5 569 / 847 21 418 / 189 19.5 / 495
2K610U121000309 10 12 12 1.052 / 26.7 1.164 / 29.6 656 / 976 15 522 / 237 21 / 532
2K610U121200309 12 12 12 1.084 / 27.5 1.196 / 30.4 735 / 1093 15 626 / 284 21.5 / 547
2K610U121400309 14 12 12 1.139 / 28.9 1.250 / 31.8 823 / 1224 15 731 / 331 22.5 / 572
2K610U121500309 15 12 12 1.168 / 29.7 1.280 / 32.5 867 / 1290 15 783 / 355 23 / 585
2K610U122000309 20 12 12 1.326 / 33.7 1.438 / 36.5 1092 / 1625 15 1044 / 474 25.9 / 658
2K610U122500309 25 12 12 1.474 / 37.4 1.586 / 40.3 1322 / 1967 13.5 1305 / 592 28.5 / 725
2K610U123000309 30 12 12 1.561 / 39.6 1.692 / 43.0 1548 / 2303 13.5 1566 / 710 30.5 / 774
2K610U124000309 40 12 12 1.748 / 44.4 1.880 / 47.8 1977 / 2942 12 2088 / 947 33.8 / 860
2K610U100200309 2 10 10 0.716 / 18.2 0.828 / 21.0 321 / 478 40 166 / 75 14.9 / 379
2K610U100300309 3 10 10 0.770 / 19.6 0.882 / 22.4 383 / 569 40 249 / 113 15.9 / 403
2K610U100400309 4 10 10 0.829 / 21.1 0.941 / 23.9 452 / 672 32 332 / 151 16.9 / 430
2K610U100500309 5 10 10 0.881 / 22.4 0.993 / 25.2 518 / 771 32 415 / 188 17.9 / 454
2K610U100600309 6 10 10 0.952 / 24.2 1.064 / 27.0 593 / 882 32 498 / 226 19.2 / 486
2K610U100700309 7 10 10 0.987 / 25.1 1.099 / 27.9 663 / 987 28 581 / 264 19.8 / 502
2K610U100800309 8 10 10 1.060 / 26.9 1.172 / 29.8 727 / 1082 28 664 / 301 21.1 / 536
2K610U101000309 10 10 10 1.152 / 29.3 1.264 / 32.1 845 / 1257 20 830 / 376 22.8 / 578
2K610U101200309 12 10 10 1.187 / 30.2 1.299 / 33.0 953 / 1419 20 996 / 452 23.4 / 594
2K610U101400309 14 10 10 1.249 / 31.7 1.361 / 34.6 1074 / 1599 20 1162 / 527 24.5 / 622
2K610U101500309 15 10 10 1.282 / 32.6 1.394 / 35.4 1134 / 1688 20 1245 / 565 25.1 / 637
2K610U102000309 20 10 10 1.459 / 37.1 1.571 / 39.9 1438 / 2140 20 1660 / 753 28.3 / 718
2K610U102500309 25 10 10 1.624 / 41.3 1.756 / 44.6 1781 / 2650 18 2075 / 941 31.6 / 803
2K610U103000309 30 10 10 1.721 / 43.7 1.853 / 47.1 2055 / 3059 18 2490 / 1129 33.3 / 847

*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors. Per NEC 310.15(C)(1), the ampacity of 4/C cable shall be reduced by a factor of 0.8 when the neutral is considered a current-carrying conductor.
