CSA Cables

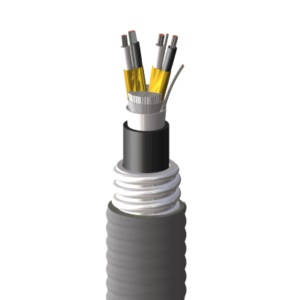

CSA Type ACIC multiple-conductor armoured control and instrumentation cables comply with CSA C22.2 No. 239. They have a voltage rating not exceeding 1000 V and intended for installation in accordance with CSA C22.1, Canadian Electrical Code, Part I. Unarmoured versions are also available and are called Type CIC.

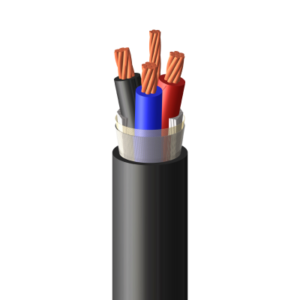

CSA Type TC single and multi-conductor cables comply with CSA C22.2 No. 230. They are without metal sheath or armour, and suitable for use in cable trays and other applications when installed in accordance with the Canadian Electrical Code, Part I. CSA constructions that may be TC-rated include Type RW90 and CIC.

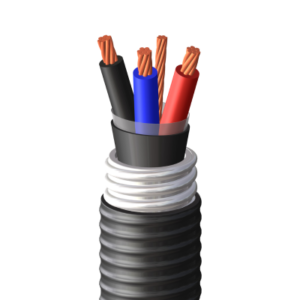

CSA Type TECK 90 single and multi-conductor armoured cables comply with CSA C22.2 No. 131. They are intended for installation in accordance with the Canadian Electrical Code, Part I, on systems having nominal voltages of 5000 V and less and having a maximum temperature rating of 90 °C in both dry and wet locations. Armour types include aluminum and galvanized steel.
UL Cables

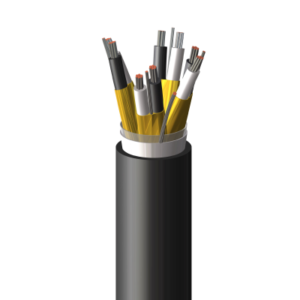

UL Type PLTC power-limited circuit cables comply with UL 13 and are intended for use in accordance with Article 725 and other applicable parts of the National Electrical Code (NEC). UL Type ITC instrumentation tray cables comply with UL 2250 and are intended for use in accordance with Article 727 and other applicable parts of the National Electrical Code (NEC). Interlocked aluminum or steel armour are optional.

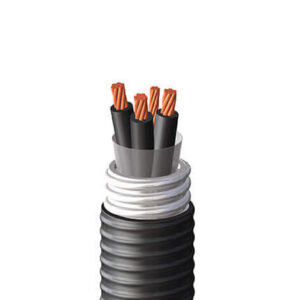

UL Type MC single and multi-conductor cables have voltage rating not exceeding 2000 V, interlocked aluminum or steel strip, and comply with UL 1569.They are intended for use in accordance with Article 330 and other applicable parts of the National Electrical Code, NFPA 70 and in accordance with Article 330 of the Standard for Electrical Installations, NOM-001-SEDE.

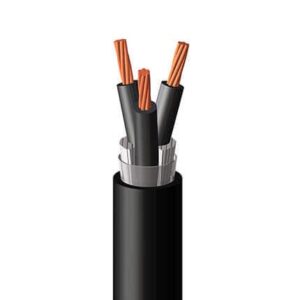

UL Type TC control and power cables consist of either two or more current-carrying circuit conductors, or one or more pairs of thermocouple-extension wires, and comply with UL 1277.They are intended for use in accordance with Article 336 and other applicable parts of the National Electrical Code (NEC), ANSI/NFPA 70 in cable trays, in raceways, and where supported in outdoor locations by a messenger wire.
Specialty Cables

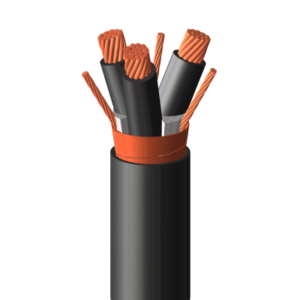

Variable Frequency Drive or VFD cables are specifically designed to for the connection of variable-speed drives to AC motors. The cable is symmetrically designed with three circuit conductors and three ground conductors plus an overall shield to withstand high voltage spikes and mitigate electrical magnetic interference. VFD cables are available in CSA, UL, IEC, ICEA designs, with or without armour, with a selection of shield types.

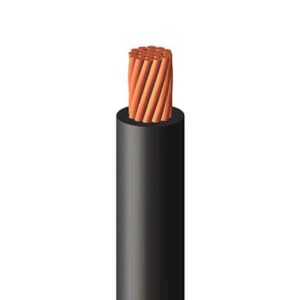

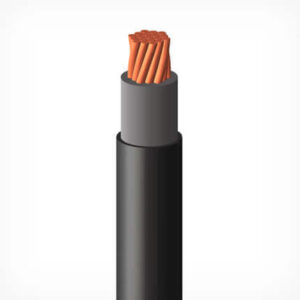

CSA Type RW90, RWU90 and UL Type XHHW-2, RHW-2 are used for a variety of applications, including wiring of lighting systems, power distribution, and control circuits in residential, commercial and industrial buildings. It can also be used for low voltage applications such as communication systems and security systems.They are intended for installation in accordance with CSA C22.1, Canadian Electrical Code, Part I or the National Electrical Code (NEC), ANSI/NFPA 70.

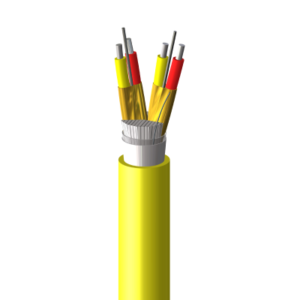

Thermocouple extension cables are used to extend a thermocouple signal from a sensor to the instrument reading the signal. Available types include EX, JX, KX, NX, RS/SX, and TX. Thermocouple extension cables are available in CSA or UL designs, with or without armour.

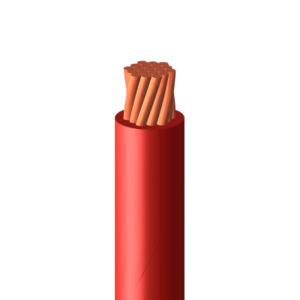

Cathodic protection cables are used for underground DC power supply feeder to cathodic protection systems for pipelines, storage tanks, and other buried or submerged structures. It provides the electrical connection between the anode and the metal structure being protected. They are insulated and optionally armoured with jacket to withstand harsh environments.

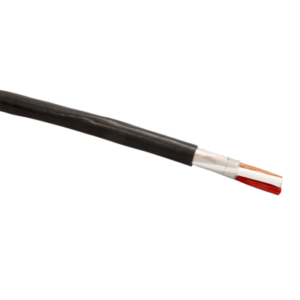

IMSA traffic cables are used in the traffic control industry to transmit data and power signals between traffic control devices, such as traffic lights, cameras, and sensors. IMSA stands for International Municipal Signal Association, which is a professional association that sets standards and guidelines for the design and installation of traffic control systems. IMSA traffic cables are available in a variety of sizes and configurations.
Markets

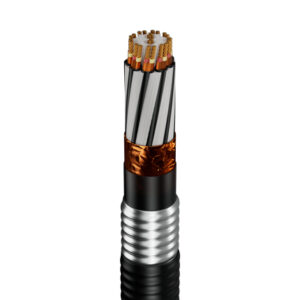

Nuclear Cables includes both EQ and non-EQ cables, composite cables, custom cables for robotics and automation, cable assemblies & harness, and cable accessories. These cables are used for the nuclear islands, turbine halls and balance of plants. Can be installed both inside and outside the containment building. Up to 200ºC and 250Mrad Temperature and Radiation Resistance and Qualified to withstand design basis accident conditions. Manufactured under stringent N299.2 Quality Program.

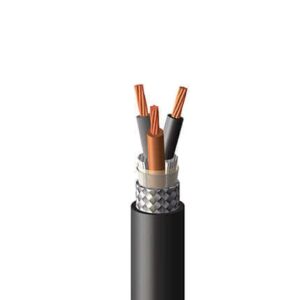

“Marine and Offshore Electrical Cable” or “Marine Shipboard Cable” means distribution (power) cables, and control and signal cables for installation aboard marine vessels, fixed and floating offshore petroleum facilities, and mobile offshore drilling units ( MODU s). Cables meet IEC requirements and are available in AWG or metric conductor sizes, with or without armour, and are halogen free.
ShawFlex offers various cable solutions for the Transit market including Traction Power, Signal , Control, and Grounding cables. Industry-specific standards include AREMA, CP-100, CSA, UL, ICEA, ANSI, and NFPA.

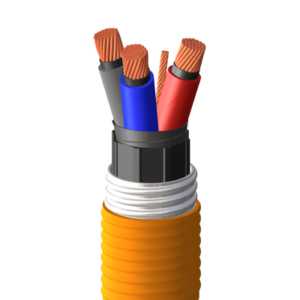

Mineshaft cables are designed for vertical applications and are suitable for use in mineshaft and for environments that require self-supporting lengths. They are typically used in Mining, Utilities, Industrial and Commercial applications. The cable features interlocked armour imbedded into a ribbed inner-jacketed core to prevent the core from slipping once the cable is installed. High strength members are optionally available for longer self-supporting lengths.
Supporting the Communications industry with Unique and Superior Cable applications The communications industry is a rapidly growing and evolving industry. Whether it’s to support existing infrastructure or new builds, Shawflex cable solutions ensure superior levels of performance for any application. Our cables can be used for wireless, wireline and other connectivity applications. To know more, contact us today and book an appointment with our experts.
Custom

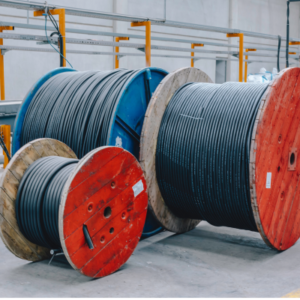

Engineered-to-order, custom solutions as per our customer’s requirements Leveraging years of experience, Shawflex wire and cable manufacturing and engineering capabilities enable us to meet the needs of various electrical wire and cable applications for any industry. From bare copper, tinned copper and all major thermocouple alloy conductors to PVC, XLPE, PE, CPE, EPR, LSZH insulation and jacketing material, we provide all kinds of shielding technology or combine different types of wire and cable under a common jacket to become a composite cable. Our portfolio extends beyond cables and we offer a complete end-to-end cable solution. We specialize in custom-made cable harnesses and assemblies and can design against any specific installation plan to make sure you have a proper termination. To know more, contact us today and book an appointment with our experts.
