CSA TYPE TECK 90 Armoured Control, Multi-Conductor, 1000 V
Armoured control cable is used for operation of control automation equipment. Interlocked armour replaces the use of conduit for mechanical protection. Cable can be directly buried, installed in raceways, including cable tray in wet or dry environments. Cable is suitable for use in outdoor exposed applications and is rated for damp or dry locations in -40°C (-40°F) environments.
Construction
VOLTAGE
1000 V
Optional: 600 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner/outer black jacket rated: 90°C to -40°C
Available in:
Variable Frequency Drive (VFD)
Ribbed inner-jacketed core for vertical/mineshaft applications
Custom insulation/jacket colours
Composite constructions
Certifications
CERTIFICATION/COMPLIANCES
- CSA C22.2 NO. 131, TECK 90 cable
- CSA C22.2 NO. 174, Cables and cable glands for use in hazardous locations
- CSA C22.2 NO. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556/UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend/impact rated
- HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
COLOUR CODING
- 2C – Black & white
- 3C – Black, red & blue
- 4C – Black, red, blue & white
- 5C and greater – Black , number-coded with white ink

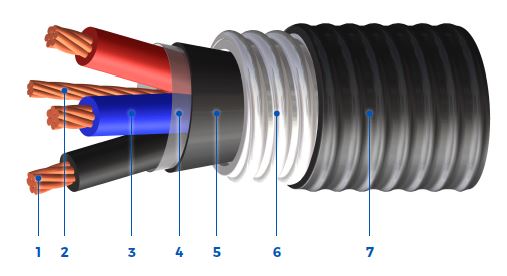

Properties
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Bonding Conductor Size | Nominal Diameter | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 80210M140200700 | 2 | 14 | 14 | 0.432 | 11.0 | 0.672 | 17.1 | 0.764 | 19.4 | 231 | 344 | 25 | 66 | 30 | 13.8 | 349 |
| 80210M140300700 | 3 | 14 | 14 | 0.470 | 11.9 | 0.710 | 18.0 | 0.802 | 20.4 | 262 | 391 | 25 | 99 | 45 | 14.4 | 366 |
| 80210M140400700 | 4 | 14 | 14 | 0.510 | 13.0 | 0.750 | 19.1 | 0.842 | 21.4 | 295 | 440 | 20 | 132 | 60 | 15.2 | 385 |
| 80210M140500700 | 5 | 14 | 14 | 0.576 | 14.6 | 0.816 | 20.7 | 0.908 | 23.1 | 351 | 523 | 20 | 165 | 75 | 16.3 | 415 |
| 80210M140600700 | 6 | 14 | 14 | 0.625 | 15.9 | 0.865 | 22.0 | 0.957 | 24.3 | 390 | 581 | 20 | 197 | 90 | 17.2 | 438 |
| 80210M140700700 | 7 | 14 | 14 | 0.674 | 17.1 | 0.914 | 23.2 | 1.006 | 25.6 | 430 | 640 | 17.5 | 230 | 104 | 18.1 | 460 |
| 80210M140800700 | 8 | 14 | 14 | 0.724 | 18.4 | 0.964 | 24.5 | 1.056 | 26.8 | 472 | 702 | 17.5 | 263 | 119 | 19.0 | 483 |
| 80210M141000700 | 10 | 14 | 14 | 0.788 | 20.0 | 1.028 | 26.1 | 1.120 | 28.5 | 573 | 853 | 17.5 | 329 | 149 | 20.2 | 512 |
| 80210M141200700 | 12 | 14 | 14 | 0.813 | 20.6 | 1.053 | 26.7 | 1.145 | 29.1 | 620 | 923 | 17.5 | 395 | 179 | 20.6 | 523 |
| 80210M141500700 | 15 | 14 | 14 | 0.918 | 23.3 | 1.158 | 29.4 | 1.250 | 31.7 | 749 | 1115 | 17.5 | 494 | 224 | 22.5 | 571 |
| 80210M142000700 | 20 | 14 | 14 | 1.040 | 26.4 | 1.280 | 32.5 | 1.372 | 34.9 | 904 | 1345 | 17.5 | 658 | 298 | 24.7 | 627 |
| 80210M142500700 | 25 | 14 | 14 | 1.154 | 29.3 | 1.394 | 35.4 | 1.486 | 37.7 | 1058 | 1575 | 15 | 823 | 373 | 26.7 | 679 |
| 80210M143000700 | 30 | 14 | 14 | 1.221 | 31.0 | 1.461 | 37.1 | 1.553 | 39.4 | 1177 | 1751 | 15 | 987 | 448 | 28.0 | 710 |
| 80210M144000700 | 40 | 14 | 14 | 1.366 | 34.7 | 1.606 | 40.8 | 1.714 | 43.5 | 1471 | 2188 | 15 | 1316 | 597 | 30.9 | 784 |
| 80210M145000700 | 50 | 14 | 14 | 1.519 | 38.6 | 1.759 | 44.7 | 1.867 | 47.4 | 1731 | 2577 | 12.5 | 1645 | 746 | 33.6 | 854 |
| 80210M120200700 | 2 | 12 | 14 | 0.468 | 11.9 | 0.708 | 18.0 | 0.800 | 20.3 | 260 | 386 | 30 | 104 | 47 | 14.4 | 366 |
| 80210M120300700 | 3 | 12 | 14 | 0.510 | 13.0 | 0.750 | 19.0 | 0.842 | 21.4 | 302 | 449 | 30 | 157 | 71 | 15.2 | 385 |
| 80210M120400700 | 4 | 12 | 14 | 0.585 | 14.9 | 0.825 | 21.0 | 0.917 | 23.3 | 368 | 548 | 24 | 209 | 95 | 16.5 | 419 |
| 80210M120500700 | 5 | 12 | 14 | 0.625 | 15.9 | 0.865 | 22.0 | 0.957 | 24.3 | 412 | 613 | 24 | 261 | 118 | 17.2 | 437 |
| 80210M120600700 | 6 | 12 | 14 | 0.679 | 17.3 | 0.919 | 23.3 | 1.011 | 25.7 | 462 | 688 | 24 | 313 | 142 | 18.2 | 462 |
| 80210M120700700 | 7 | 12 | 14 | 0.733 | 18.6 | 0.973 | 24.7 | 1.065 | 27.1 | 514 | 764 | 21 | 365 | 166 | 19.2 | 487 |
| 80210M120800700 | 8 | 12 | 14 | 0.789 | 20.1 | 1.029 | 26.2 | 1.121 | 28.5 | 612 | 910 | 21 | 418 | 189 | 20.2 | 513 |
| 80210M121000700 | 10 | 12 | 14 | 0.900 | 22.9 | 1.140 | 29.0 | 1.232 | 31.3 | 735 | 1094 | 21 | 522 | 237 | 22.2 | 563 |
| 80210M121200700 | 12 | 12 | 14 | 0.927 | 23.6 | 1.167 | 29.7 | 1.259 | 32.0 | 801 | 1193 | 21 | 626 | 284 | 22.7 | 576 |
| 80210M121500700 | 15 | 12 | 14 | 1.000 | 25.4 | 1.240 | 31.5 | 1.332 | 33.8 | 919 | 1368 | 21 | 783 | 355 | 24.0 | 609 |
| 80210M122000700 | 20 | 12 | 14 | 1.135 | 28.8 | 1.375 | 34.9 | 1.467 | 37.3 | 1121 | 1669 | 21 | 1044 | 474 | 26.4 | 671 |
| 80210M122500700 | 25 | 12 | 14 | 1.262 | 32.1 | 1.502 | 38.2 | 1.594 | 40.5 | 1325 | 1972 | 18 | 1305 | 592 | 28.7 | 729 |
| 80210M123000700 | 30 | 12 | 14 | 1.336 | 33.9 | 1.576 | 40.0 | 1.684 | 42.8 | 1517 | 2257 | 18 | 1566 | 710 | 30.3 | 770 |
| 80210M124000700 | 40 | 12 | 14 | 1.497 | 38.0 | 1.737 | 44.1 | 1.845 | 46.9 | 1880 | 2797 | 18 | 2088 | 947 | 33.2 | 844 |
| 80210M125000700 | 50 | 12 | 14 | 1.667 | 42.4 | 1.972 | 50.1 | 2.080 | 52.8 | 2325 | 3460 | 15 | 2610 | 1184 | 37.4 | 951 |
| 80210M100200700 | 2 | 10 | 12 | 0.518 | 13.2 | 0.758 | 19.3 | 0.850 | 21.6 | 310 | 462 | 40 | 166 | 75 | 15.3 | 389 |
| 80210M100300700 | 3 | 10 | 12 | 0.595 | 15.1 | 0.835 | 21.2 | 0.927 | 23.6 | 391 | 581 | 40 | 249 | 113 | 16.7 | 424 |
| 80210M100400700 | 4 | 10 | 12 | 0.647 | 16.4 | 0.887 | 22.5 | 0.979 | 24.9 | 450 | 670 | 32 | 332 | 151 | 17.6 | 448 |
| 80210M100500700 | 5 | 10 | 12 | 0.692 | 17.6 | 0.932 | 23.7 | 1.024 | 26.0 | 511 | 760 | 32 | 415 | 188 | 18.4 | 468 |
| 80210M100600700 | 6 | 10 | 12 | 0.754 | 19.2 | 0.994 | 25.3 | 1.086 | 27.6 | 579 | 862 | 32 | 498 | 226 | 19.5 | 497 |
| 80210M100700700 | 7 | 10 | 12 | 0.816 | 20.7 | 1.056 | 26.8 | 1.148 | 29.2 | 693 | 1031 | 28 | 581 | 264 | 20.7 | 525 |
| 80210M100800700 | 8 | 10 | 12 | 0.920 | 23.4 | 1.160 | 29.5 | 1.252 | 31.8 | 812 | 1209 | 28 | 664 | 301 | 22.5 | 572 |
| 80210M101000700 | 10 | 10 | 12 | 1.000 | 25.4 | 1.240 | 31.5 | 1.332 | 33.8 | 924 | 1374 | 28 | 830 | 376 | 24.0 | 609 |
| 80210M101200700 | 12 | 10 | 12 | 1.031 | 26.2 | 1.271 | 32.3 | 1.363 | 34.6 | 1019 | 1516 | 28 | 996 | 452 | 24.5 | 623 |
| 80210M101500700 | 15 | 10 | 12 | 1.113 | 28.3 | 1.353 | 34.4 | 1.445 | 36.7 | 1181 | 1758 | 28 | 1245 | 565 | 26.0 | 661 |
| 80210M102000700 | 20 | 10 | 12 | 1.268 | 32.2 | 1.508 | 38.3 | 1.600 | 40.6 | 1460 | 2173 | 28 | 1660 | 753 | 28.8 | 731 |
| 80210M102500700 | 25 | 10 | 12 | 1.412 | 35.9 | 1.652 | 42.0 | 1.760 | 44.7 | 1767 | 2629 | 24 | 2075 | 941 | 31.7 | 805 |
| 80210M103000700 | 30 | 10 | 12 | 1.496 | 38.0 | 1.736 | 44.1 | 1.844 | 46.9 | 2004 | 2983 | 24 | 2490 | 1129 | 33.2 | 843 |
| 80210M104000700 | 40 | 10 | 12 | 1.680 | 42.7 | 1.985 | 50.4 | 2.093 | 53.2 | 2606 | 3878 | 24 | 3320 | 1506 | 37.7 | 957 |
| 80210M105000700 | 50 | 10 | 12 | 1.933 | 49.1 | 2.238 | 56.9 | 2.346 | 59.6 | 3241 | 4823 | 20 | 4150 | 1882 | 42.2 | 1073 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2. Values are corrected for number of insulated conductors as applicable according to Table 5C.

Markets / Applications
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Shipboard
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Mining
VOLTAGE
1000 V
Optional: 600 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Jacket:
FR LAG PVC (AG14 rated) inner/outer black jacket rated: 90°C to -40°C
Available in:
Variable Frequency Drive (VFD)
Ribbed inner-jacketed core for vertical/mineshaft applications
Custom insulation/jacket colours
Composite constructions
CERTIFICATION/COMPLIANCES
- CSA C22.2 NO. 131, TECK 90 cable
- CSA C22.2 NO. 174, Cables and cable glands for use in hazardous locations
- CSA C22.2 NO. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556/UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend/impact rated
- HL rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 1 (Class I, Division 1), Zone 2 (Class I, Division 2)
- Zone 20 & 21 (Class II & III, Division 1), Zone 22 (Class II & III, Division 2)
COLOUR CODING
- 2C – Black & white
- 3C – Black, red & blue
- 4C – Black, red, blue & white
- 5C and greater – Black , number-coded with white ink
- Stranded Bare (ASTM B8) Annealed Copper Conductors
- Bonding Conductor
- XLPE (RW90 Rated) Insulated Conductors
- Polyester Separator Tape
- FR LAG PVC Inner Protective Jacket
- Aluminum Interlocked Armour (AIA)
- FR LAG PVC Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Bonding Conductor Size | Nominal Diameter | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) | ||
| AWG | AWG | Over Inner Jacket in. | mm |
Over Armour in. | mm |
Overall Cable in. | mm |
lb|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 80210M140200700 | 2 | 14 | 14 | 0.432 | 11.0 | 0.672 | 17.1 | 0.764 | 19.4 | 231 | 344 | 25 | 66 | 30 | 13.8 | 349 |
| 80210M140300700 | 3 | 14 | 14 | 0.470 | 11.9 | 0.710 | 18.0 | 0.802 | 20.4 | 262 | 391 | 25 | 99 | 45 | 14.4 | 366 |
| 80210M140400700 | 4 | 14 | 14 | 0.510 | 13.0 | 0.750 | 19.1 | 0.842 | 21.4 | 295 | 440 | 20 | 132 | 60 | 15.2 | 385 |
| 80210M140500700 | 5 | 14 | 14 | 0.576 | 14.6 | 0.816 | 20.7 | 0.908 | 23.1 | 351 | 523 | 20 | 165 | 75 | 16.3 | 415 |
| 80210M140600700 | 6 | 14 | 14 | 0.625 | 15.9 | 0.865 | 22.0 | 0.957 | 24.3 | 390 | 581 | 20 | 197 | 90 | 17.2 | 438 |
| 80210M140700700 | 7 | 14 | 14 | 0.674 | 17.1 | 0.914 | 23.2 | 1.006 | 25.6 | 430 | 640 | 17.5 | 230 | 104 | 18.1 | 460 |
| 80210M140800700 | 8 | 14 | 14 | 0.724 | 18.4 | 0.964 | 24.5 | 1.056 | 26.8 | 472 | 702 | 17.5 | 263 | 119 | 19.0 | 483 |
| 80210M141000700 | 10 | 14 | 14 | 0.788 | 20.0 | 1.028 | 26.1 | 1.120 | 28.5 | 573 | 853 | 17.5 | 329 | 149 | 20.2 | 512 |
| 80210M141200700 | 12 | 14 | 14 | 0.813 | 20.6 | 1.053 | 26.7 | 1.145 | 29.1 | 620 | 923 | 17.5 | 395 | 179 | 20.6 | 523 |
| 80210M141500700 | 15 | 14 | 14 | 0.918 | 23.3 | 1.158 | 29.4 | 1.250 | 31.7 | 749 | 1115 | 17.5 | 494 | 224 | 22.5 | 571 |
| 80210M142000700 | 20 | 14 | 14 | 1.040 | 26.4 | 1.280 | 32.5 | 1.372 | 34.9 | 904 | 1345 | 17.5 | 658 | 298 | 24.7 | 627 |
| 80210M142500700 | 25 | 14 | 14 | 1.154 | 29.3 | 1.394 | 35.4 | 1.486 | 37.7 | 1058 | 1575 | 15 | 823 | 373 | 26.7 | 679 |
| 80210M143000700 | 30 | 14 | 14 | 1.221 | 31.0 | 1.461 | 37.1 | 1.553 | 39.4 | 1177 | 1751 | 15 | 987 | 448 | 28.0 | 710 |
| 80210M144000700 | 40 | 14 | 14 | 1.366 | 34.7 | 1.606 | 40.8 | 1.714 | 43.5 | 1471 | 2188 | 15 | 1316 | 597 | 30.9 | 784 |
| 80210M145000700 | 50 | 14 | 14 | 1.519 | 38.6 | 1.759 | 44.7 | 1.867 | 47.4 | 1731 | 2577 | 12.5 | 1645 | 746 | 33.6 | 854 |
| 80210M120200700 | 2 | 12 | 14 | 0.468 | 11.9 | 0.708 | 18.0 | 0.800 | 20.3 | 260 | 386 | 30 | 104 | 47 | 14.4 | 366 |
| 80210M120300700 | 3 | 12 | 14 | 0.510 | 13.0 | 0.750 | 19.0 | 0.842 | 21.4 | 302 | 449 | 30 | 157 | 71 | 15.2 | 385 |
| 80210M120400700 | 4 | 12 | 14 | 0.585 | 14.9 | 0.825 | 21.0 | 0.917 | 23.3 | 368 | 548 | 24 | 209 | 95 | 16.5 | 419 |
| 80210M120500700 | 5 | 12 | 14 | 0.625 | 15.9 | 0.865 | 22.0 | 0.957 | 24.3 | 412 | 613 | 24 | 261 | 118 | 17.2 | 437 |
| 80210M120600700 | 6 | 12 | 14 | 0.679 | 17.3 | 0.919 | 23.3 | 1.011 | 25.7 | 462 | 688 | 24 | 313 | 142 | 18.2 | 462 |
| 80210M120700700 | 7 | 12 | 14 | 0.733 | 18.6 | 0.973 | 24.7 | 1.065 | 27.1 | 514 | 764 | 21 | 365 | 166 | 19.2 | 487 |
| 80210M120800700 | 8 | 12 | 14 | 0.789 | 20.1 | 1.029 | 26.2 | 1.121 | 28.5 | 612 | 910 | 21 | 418 | 189 | 20.2 | 513 |
| 80210M121000700 | 10 | 12 | 14 | 0.900 | 22.9 | 1.140 | 29.0 | 1.232 | 31.3 | 735 | 1094 | 21 | 522 | 237 | 22.2 | 563 |
| 80210M121200700 | 12 | 12 | 14 | 0.927 | 23.6 | 1.167 | 29.7 | 1.259 | 32.0 | 801 | 1193 | 21 | 626 | 284 | 22.7 | 576 |
| 80210M121500700 | 15 | 12 | 14 | 1.000 | 25.4 | 1.240 | 31.5 | 1.332 | 33.8 | 919 | 1368 | 21 | 783 | 355 | 24.0 | 609 |
| 80210M122000700 | 20 | 12 | 14 | 1.135 | 28.8 | 1.375 | 34.9 | 1.467 | 37.3 | 1121 | 1669 | 21 | 1044 | 474 | 26.4 | 671 |
| 80210M122500700 | 25 | 12 | 14 | 1.262 | 32.1 | 1.502 | 38.2 | 1.594 | 40.5 | 1325 | 1972 | 18 | 1305 | 592 | 28.7 | 729 |
| 80210M123000700 | 30 | 12 | 14 | 1.336 | 33.9 | 1.576 | 40.0 | 1.684 | 42.8 | 1517 | 2257 | 18 | 1566 | 710 | 30.3 | 770 |
| 80210M124000700 | 40 | 12 | 14 | 1.497 | 38.0 | 1.737 | 44.1 | 1.845 | 46.9 | 1880 | 2797 | 18 | 2088 | 947 | 33.2 | 844 |
| 80210M125000700 | 50 | 12 | 14 | 1.667 | 42.4 | 1.972 | 50.1 | 2.080 | 52.8 | 2325 | 3460 | 15 | 2610 | 1184 | 37.4 | 951 |
| 80210M100200700 | 2 | 10 | 12 | 0.518 | 13.2 | 0.758 | 19.3 | 0.850 | 21.6 | 310 | 462 | 40 | 166 | 75 | 15.3 | 389 |
| 80210M100300700 | 3 | 10 | 12 | 0.595 | 15.1 | 0.835 | 21.2 | 0.927 | 23.6 | 391 | 581 | 40 | 249 | 113 | 16.7 | 424 |
| 80210M100400700 | 4 | 10 | 12 | 0.647 | 16.4 | 0.887 | 22.5 | 0.979 | 24.9 | 450 | 670 | 32 | 332 | 151 | 17.6 | 448 |
| 80210M100500700 | 5 | 10 | 12 | 0.692 | 17.6 | 0.932 | 23.7 | 1.024 | 26.0 | 511 | 760 | 32 | 415 | 188 | 18.4 | 468 |
| 80210M100600700 | 6 | 10 | 12 | 0.754 | 19.2 | 0.994 | 25.3 | 1.086 | 27.6 | 579 | 862 | 32 | 498 | 226 | 19.5 | 497 |
| 80210M100700700 | 7 | 10 | 12 | 0.816 | 20.7 | 1.056 | 26.8 | 1.148 | 29.2 | 693 | 1031 | 28 | 581 | 264 | 20.7 | 525 |
| 80210M100800700 | 8 | 10 | 12 | 0.920 | 23.4 | 1.160 | 29.5 | 1.252 | 31.8 | 812 | 1209 | 28 | 664 | 301 | 22.5 | 572 |
| 80210M101000700 | 10 | 10 | 12 | 1.000 | 25.4 | 1.240 | 31.5 | 1.332 | 33.8 | 924 | 1374 | 28 | 830 | 376 | 24.0 | 609 |
| 80210M101200700 | 12 | 10 | 12 | 1.031 | 26.2 | 1.271 | 32.3 | 1.363 | 34.6 | 1019 | 1516 | 28 | 996 | 452 | 24.5 | 623 |
| 80210M101500700 | 15 | 10 | 12 | 1.113 | 28.3 | 1.353 | 34.4 | 1.445 | 36.7 | 1181 | 1758 | 28 | 1245 | 565 | 26.0 | 661 |
| 80210M102000700 | 20 | 10 | 12 | 1.268 | 32.2 | 1.508 | 38.3 | 1.600 | 40.6 | 1460 | 2173 | 28 | 1660 | 753 | 28.8 | 731 |
| 80210M102500700 | 25 | 10 | 12 | 1.412 | 35.9 | 1.652 | 42.0 | 1.760 | 44.7 | 1767 | 2629 | 24 | 2075 | 941 | 31.7 | 805 |
| 80210M103000700 | 30 | 10 | 12 | 1.496 | 38.0 | 1.736 | 44.1 | 1.844 | 46.9 | 2004 | 2983 | 24 | 2490 | 1129 | 33.2 | 843 |
| 80210M104000700 | 40 | 10 | 12 | 1.680 | 42.7 | 1.985 | 50.4 | 2.093 | 53.2 | 2606 | 3878 | 24 | 3320 | 1506 | 37.7 | 957 |
| 80210M105000700 | 50 | 10 | 12 | 1.933 | 49.1 | 2.238 | 56.9 | 2.346 | 59.6 | 3241 | 4823 | 20 | 4150 | 1882 | 42.2 | 1073 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2. Values are corrected for number of insulated conductors as applicable according to Table 5C.
